Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

16 part groups · 5 illustrations

Illustrations

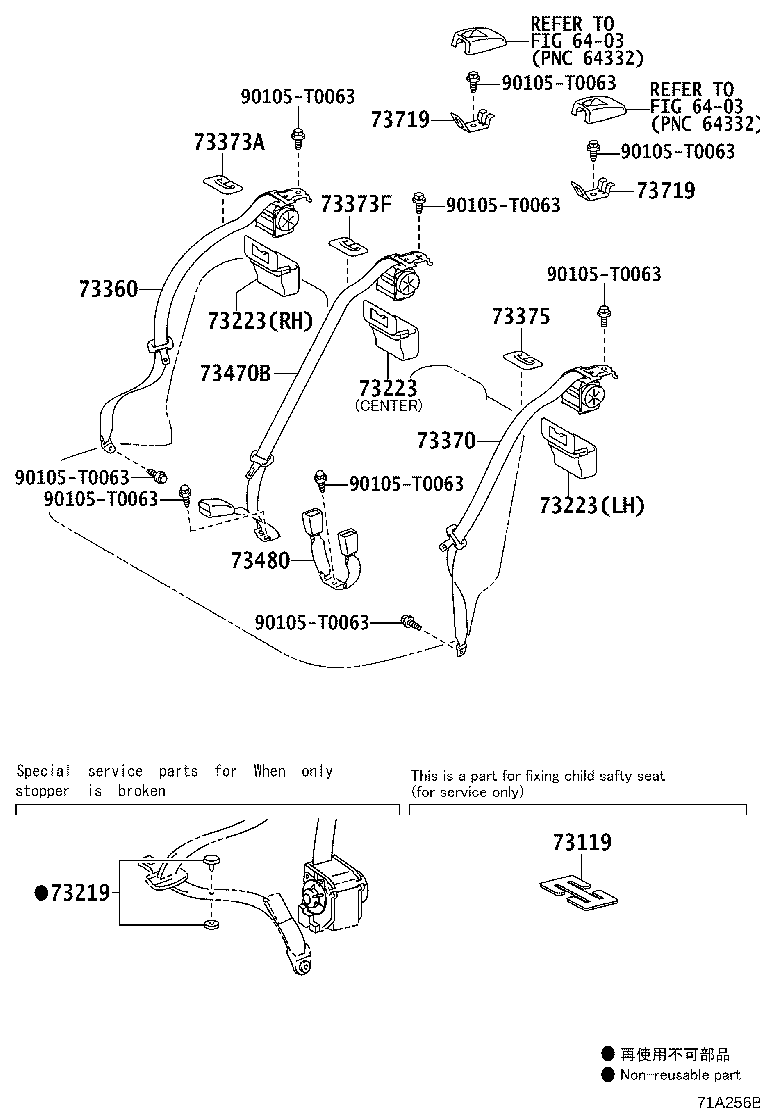

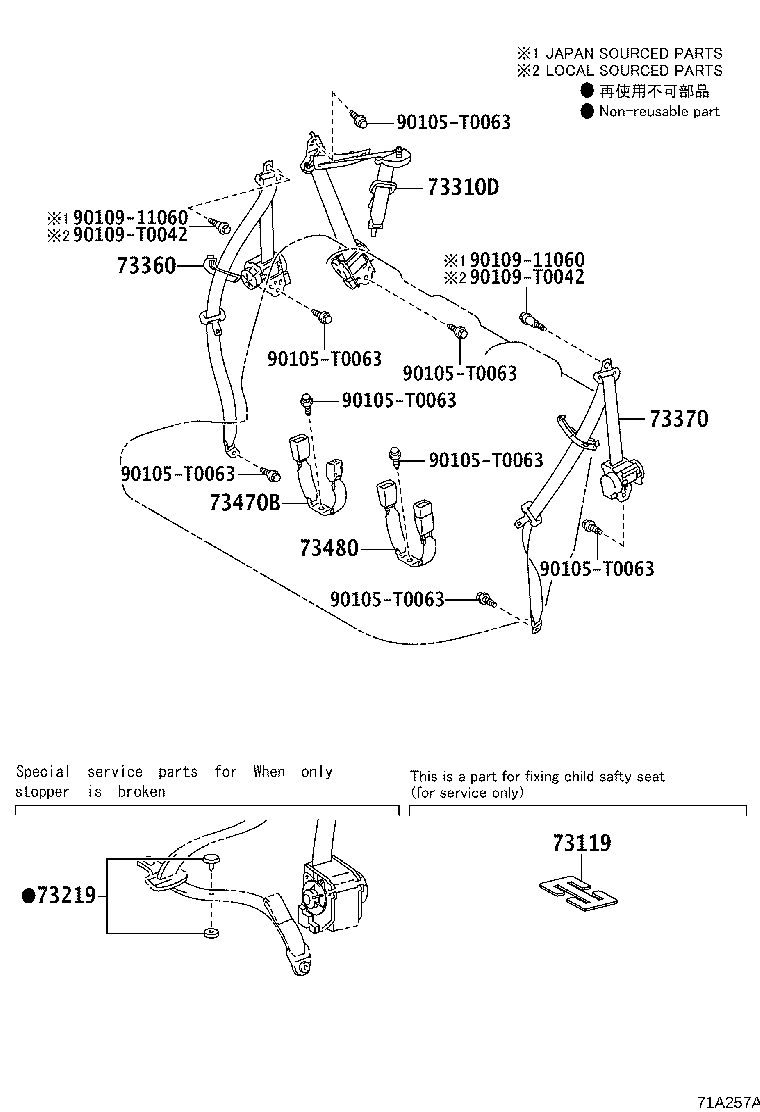

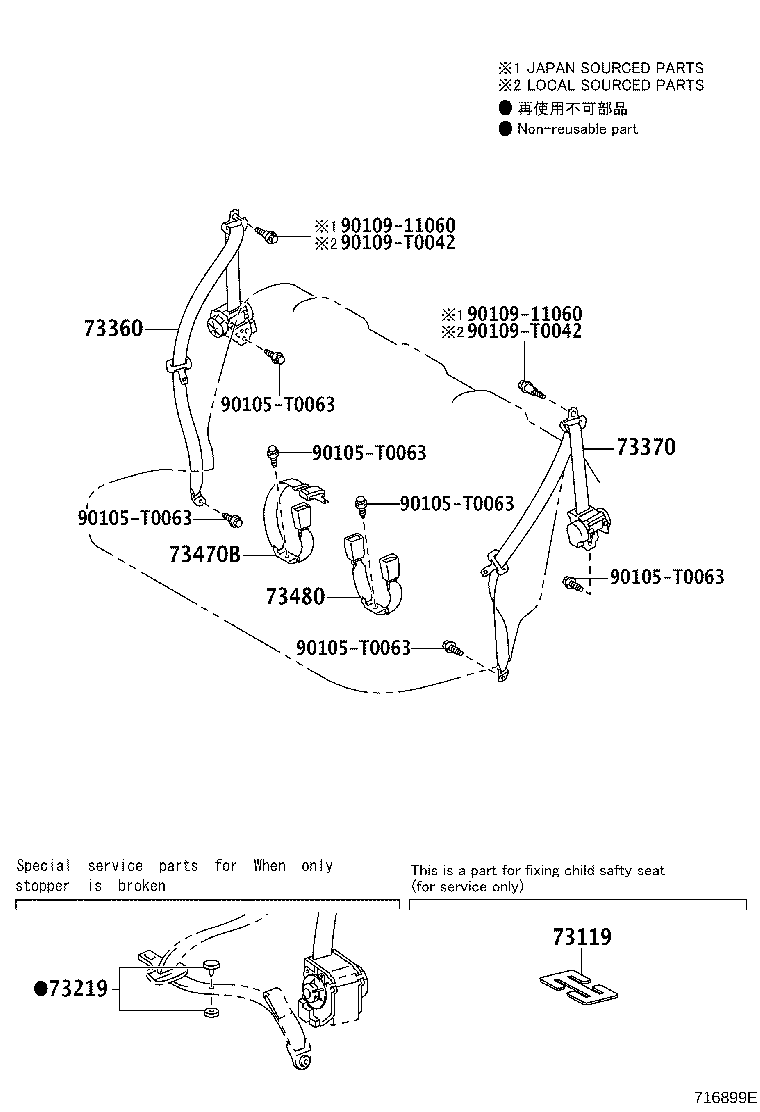

Figure 716898H 716898H 2010-12 → — Figure 716899E 716899E 2010-12 → — Figure 71A257A 71A257A 2016-09 → — Figure 716900E 716900E 2010-12 → — Figure 71A256B 71A256B 2016-09 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73310D Belt Assy, Rear Seat 3 Point Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373A Cover, Rear Seat Shoulder Belt, RH
73373F Cover, Rear Seat Shoulder Belt Hole
73375 Cover, Rear Seat Shoulder Belt, LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
