Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

10 part groups · 4 illustrations

Illustrations

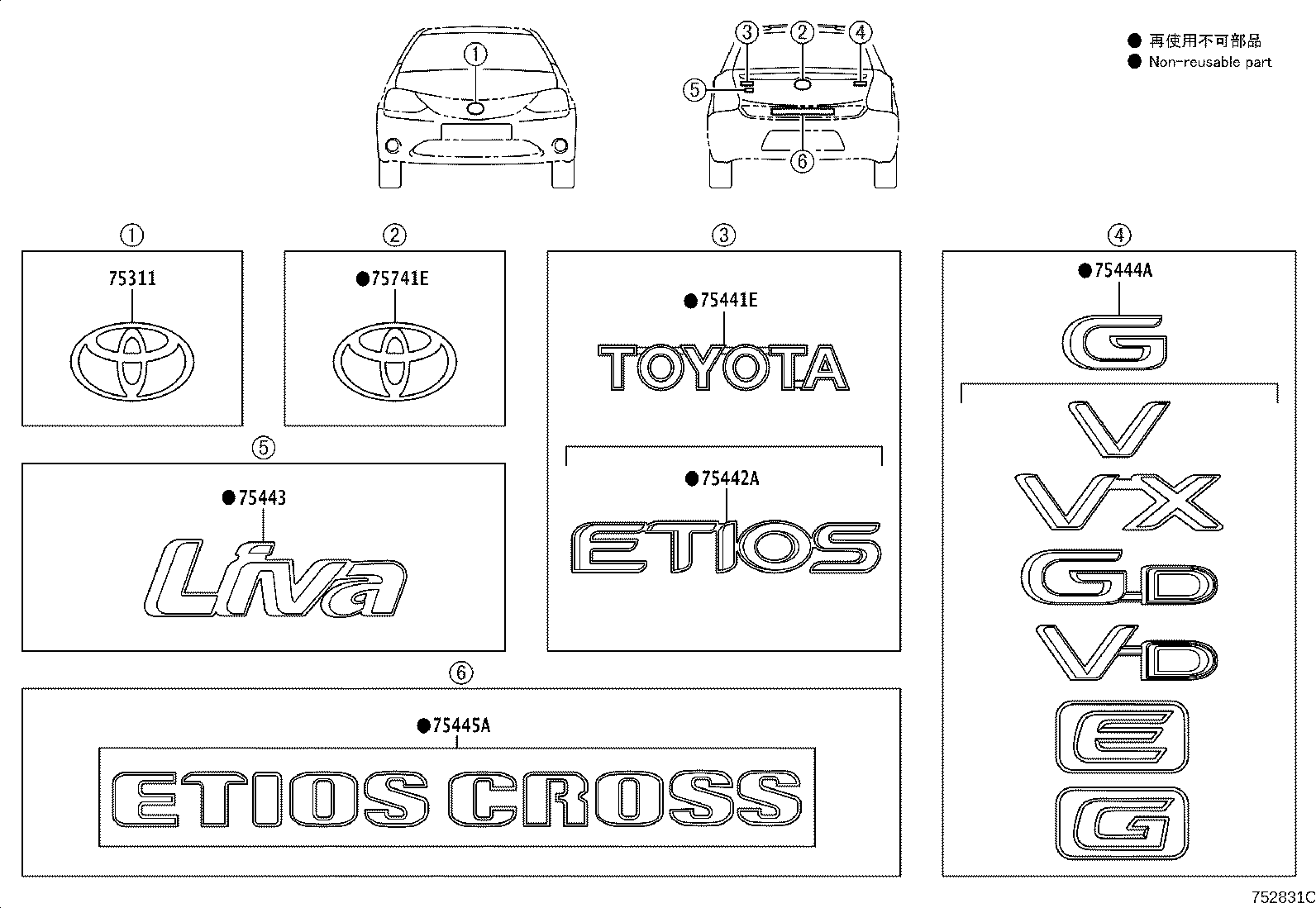

Figure 752384C 752384C 2010-12 → 2013-03 Figure 752830A 752830A 2010-12 → 2013-03 Figure 752829A 752829A 2013-03 → — Figure 752831C 752831C 2013-03 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75441D Plate, Luggage Compartment Door Name, NO.1
75441E Plate, Back Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75444C Plate, Luggage Compartment Door Name, NO.4
75445A Plate, Back Door Name, NO.5
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
