Toyota Etios/Liva/Cross
2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General
Supported model
Data version 2020-04

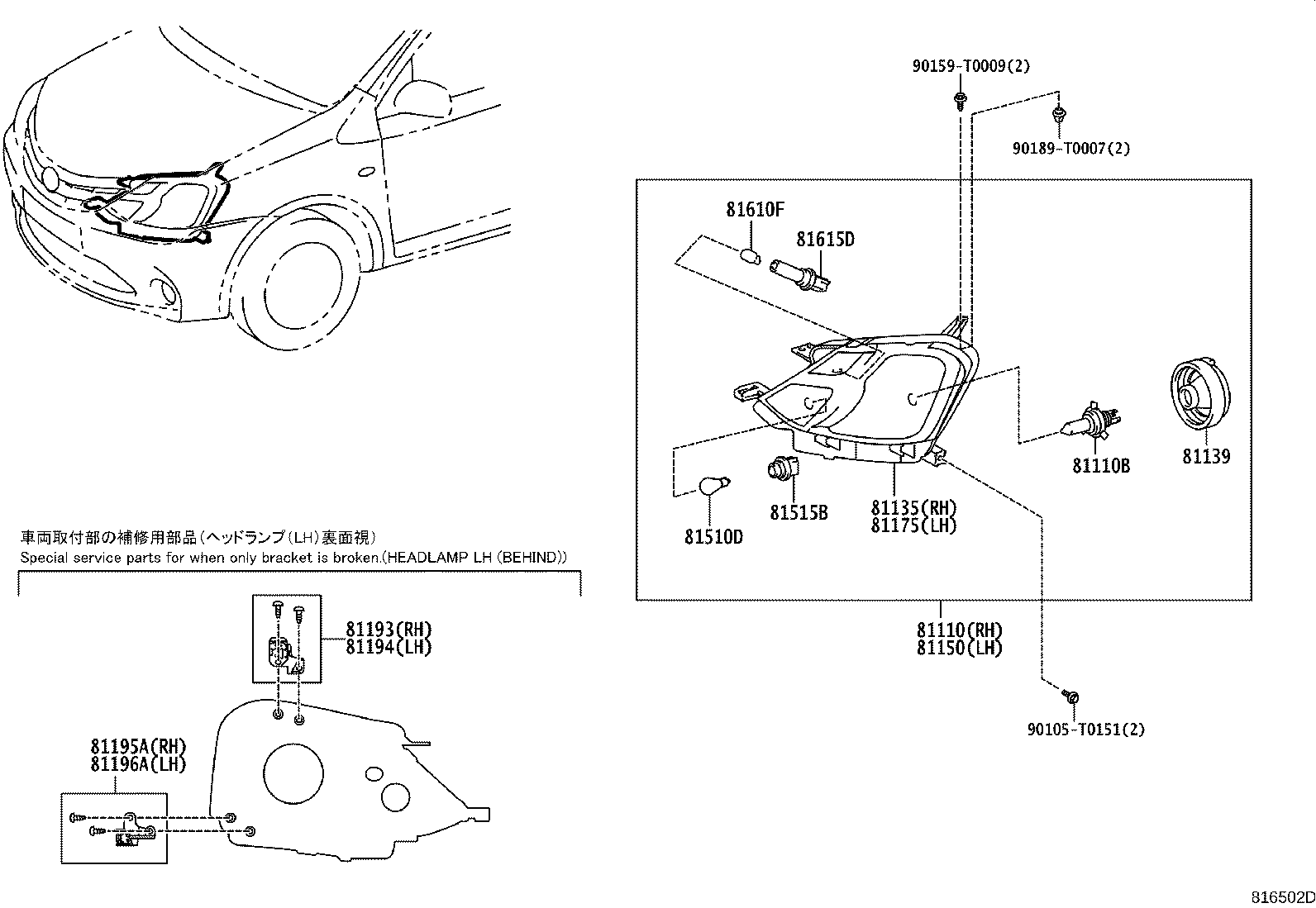

Headlamp
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85660D | Cable Assy, Headlamp Leveling |
| 85661B | Cable, Headlamp Leveling, RH |
| 85662C | Cable, Headlamp Leveling, LH |
| 85665 | Knob, Headlamp Leveling |
| 85667D | Cover, Headlamp Leveling |
| 8566A | Gear, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
