Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

53 part groups · 9 illustrations

Illustrations

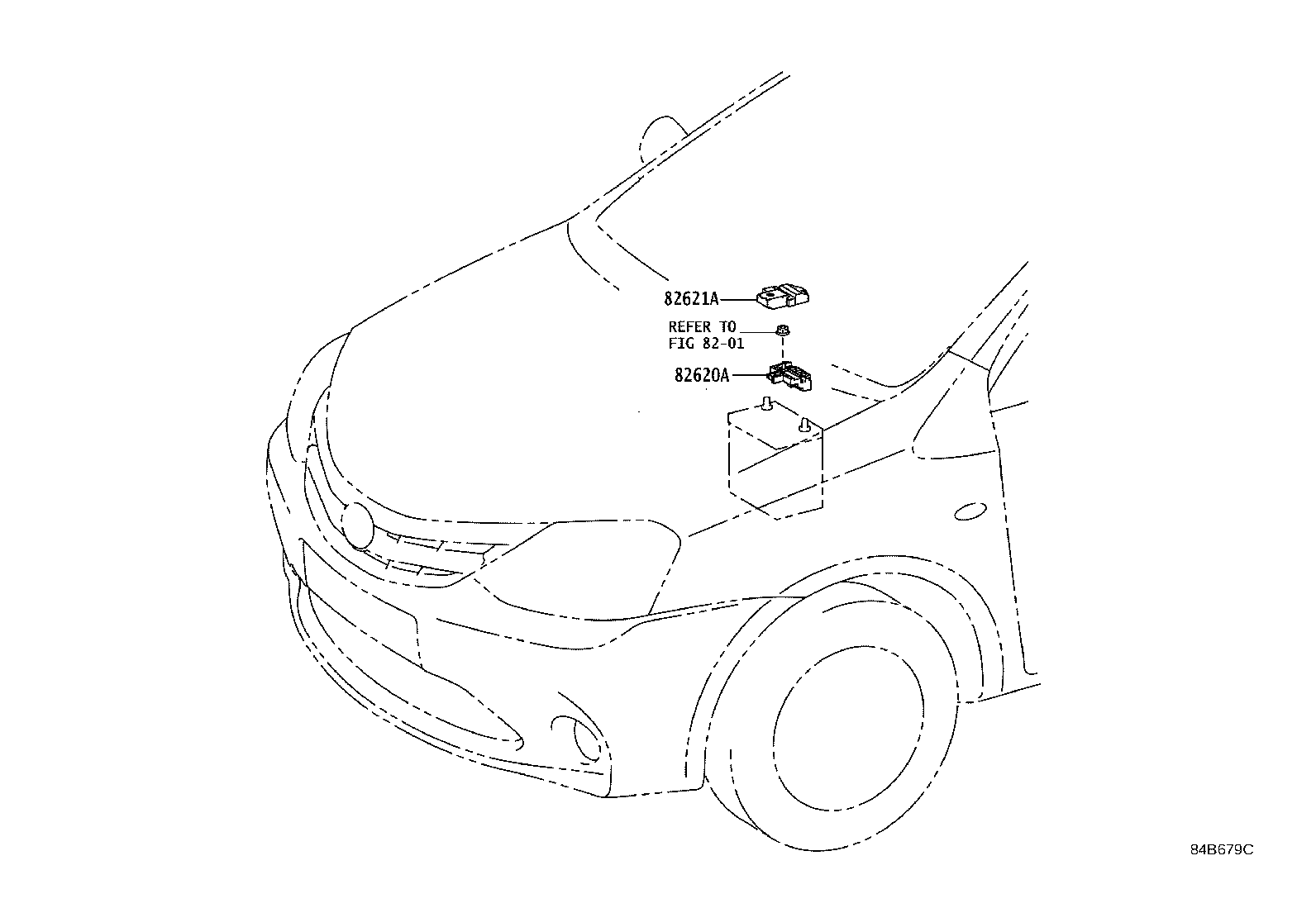

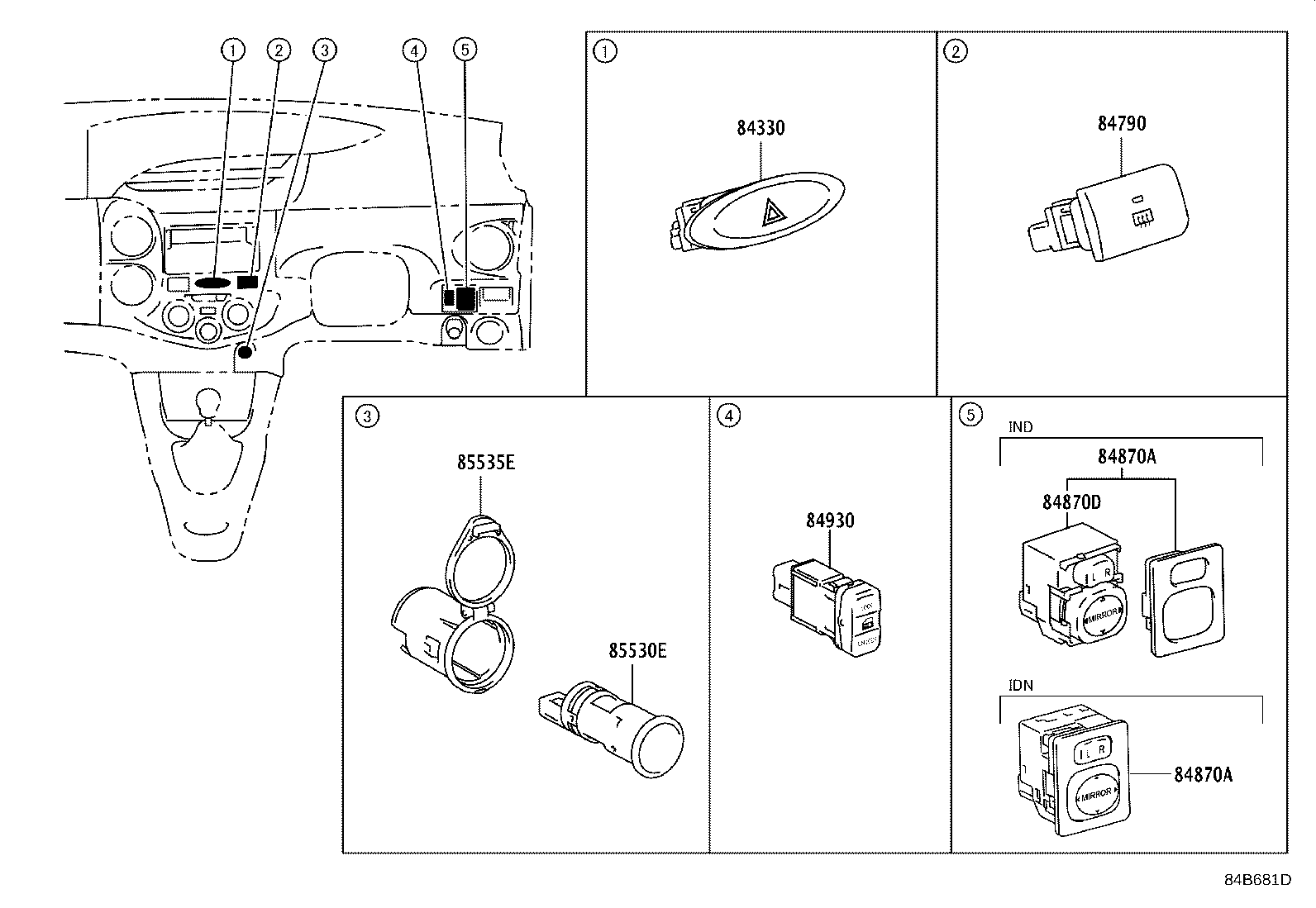

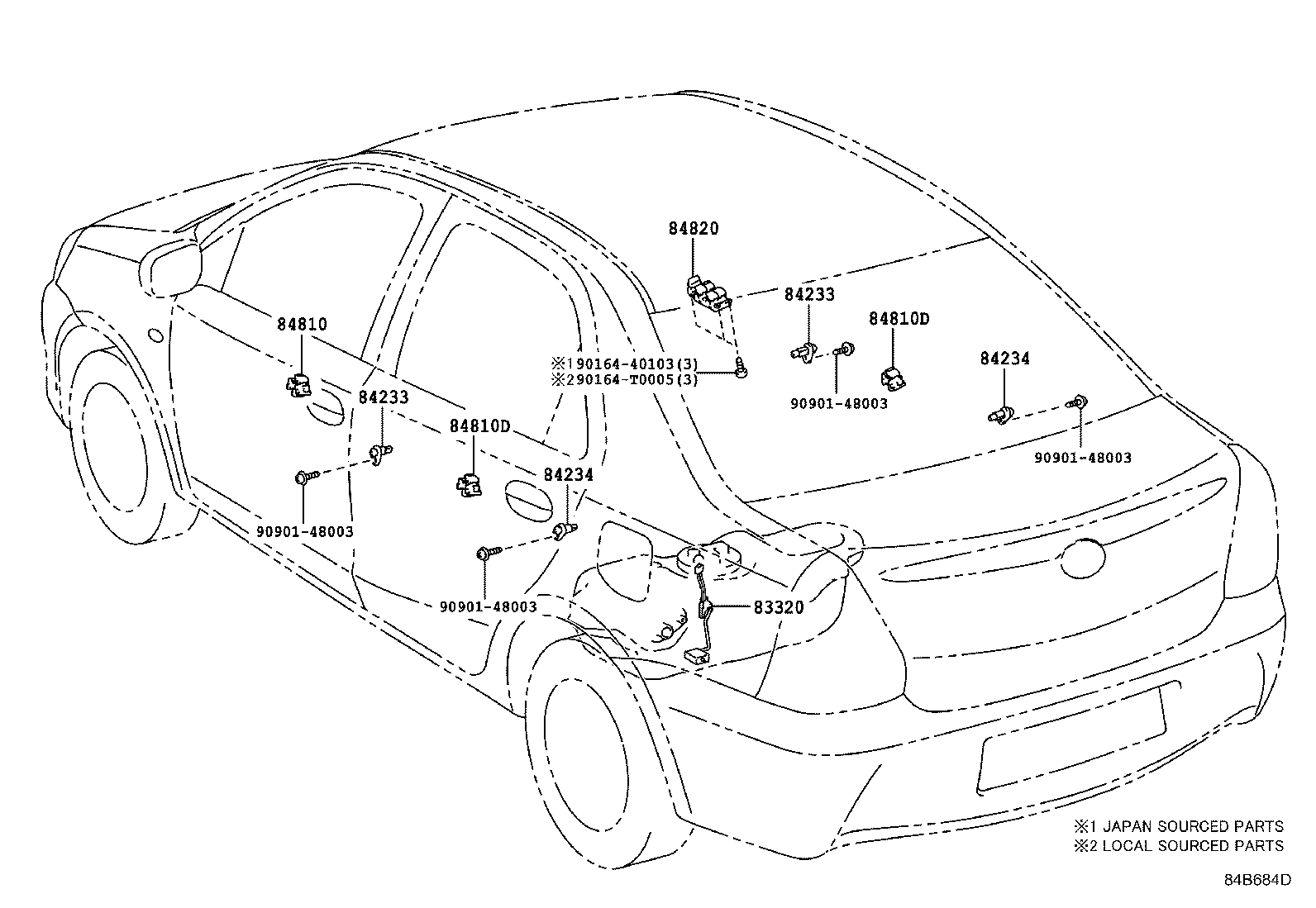

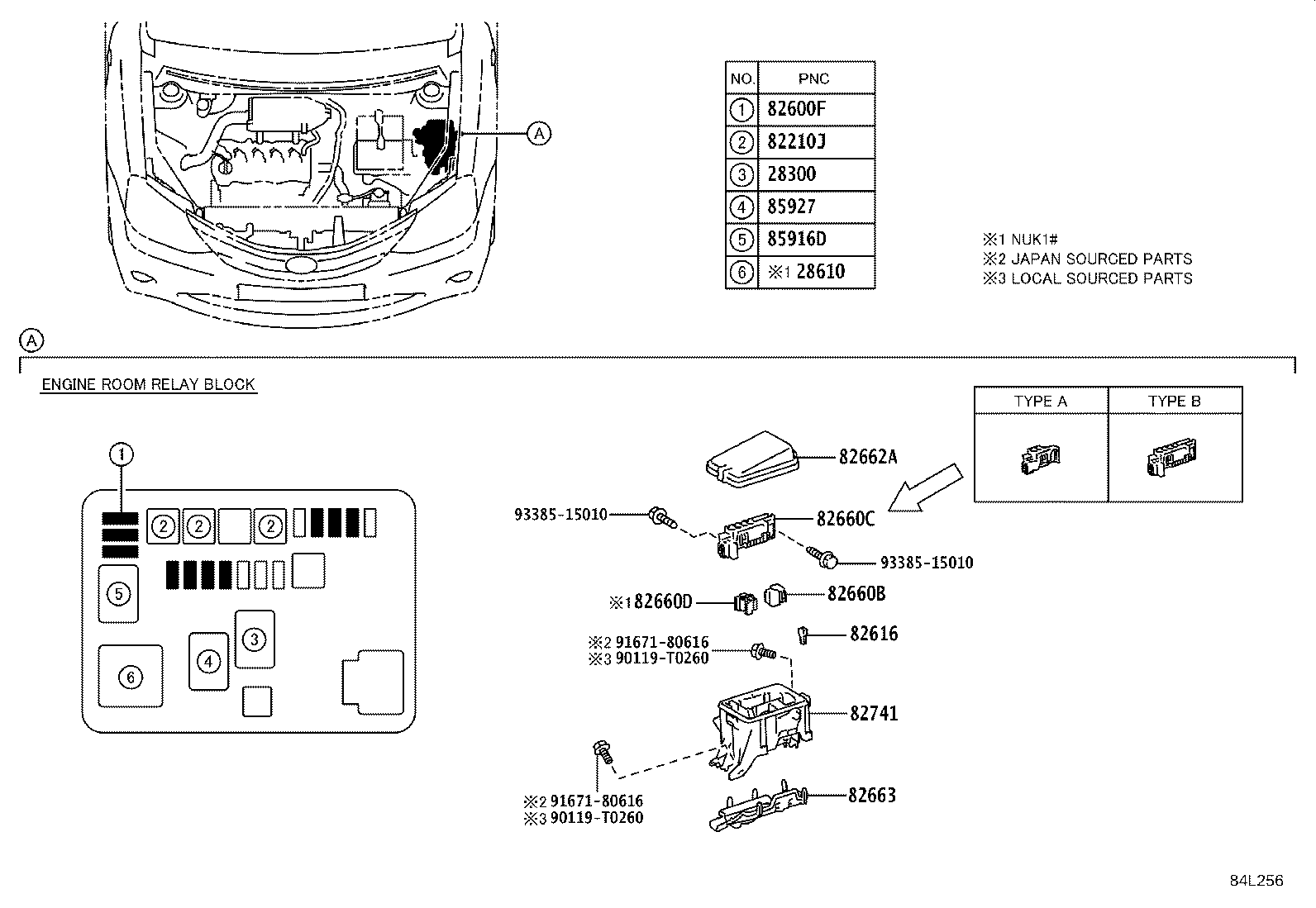

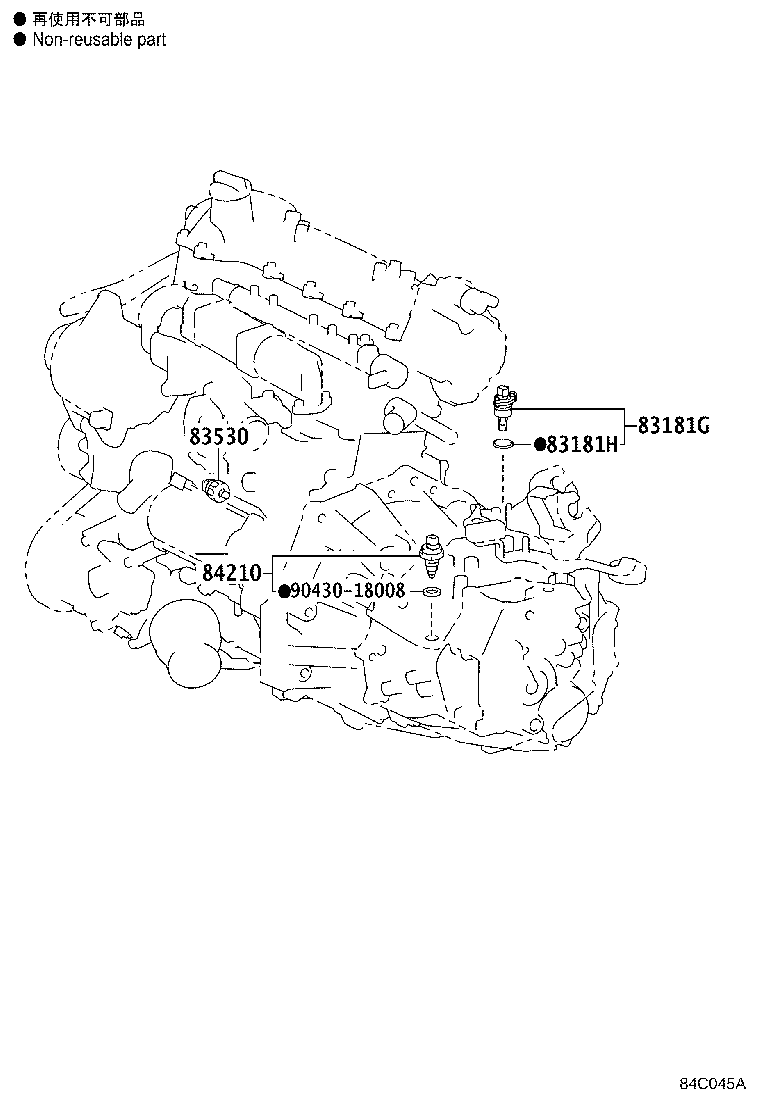

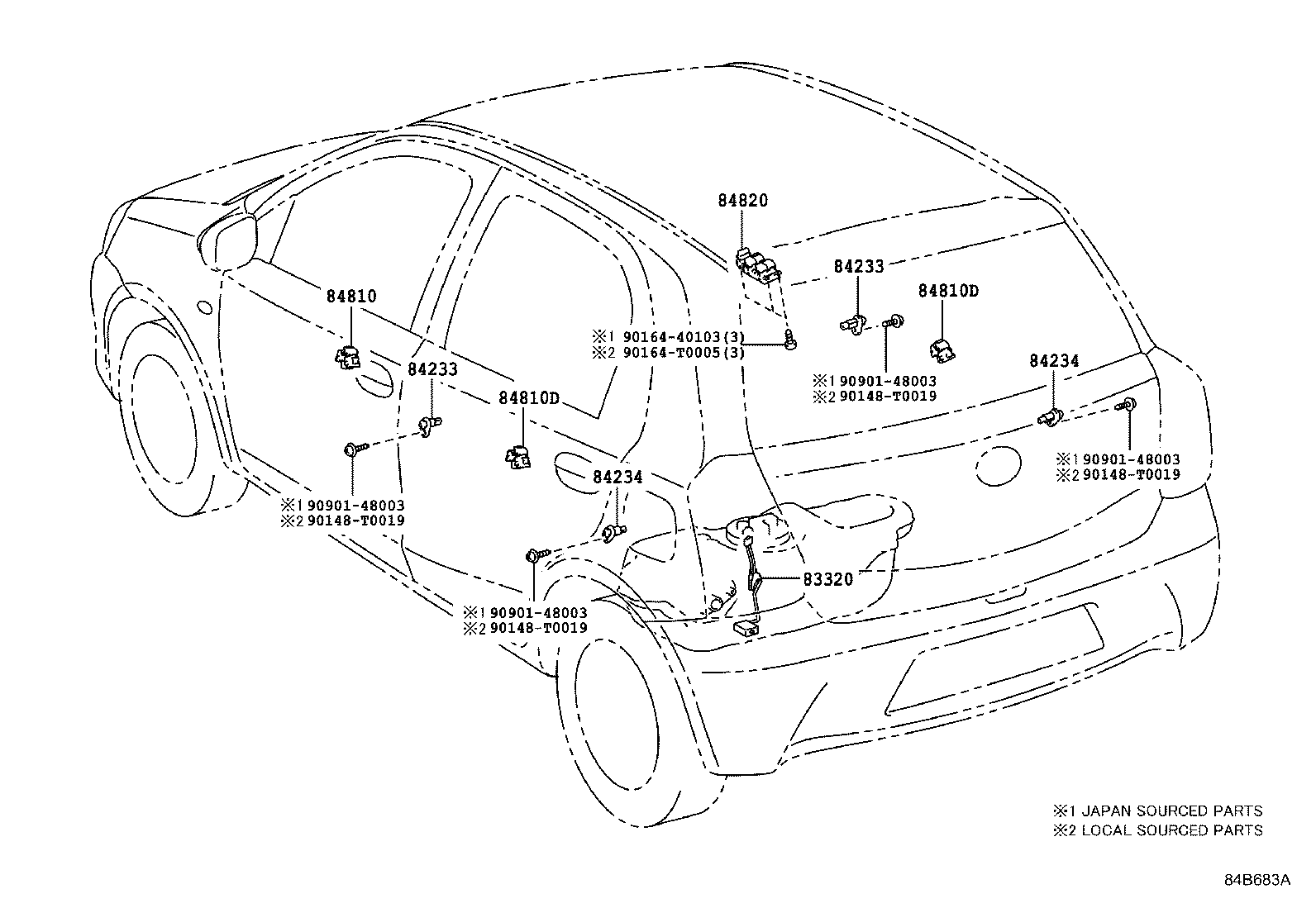

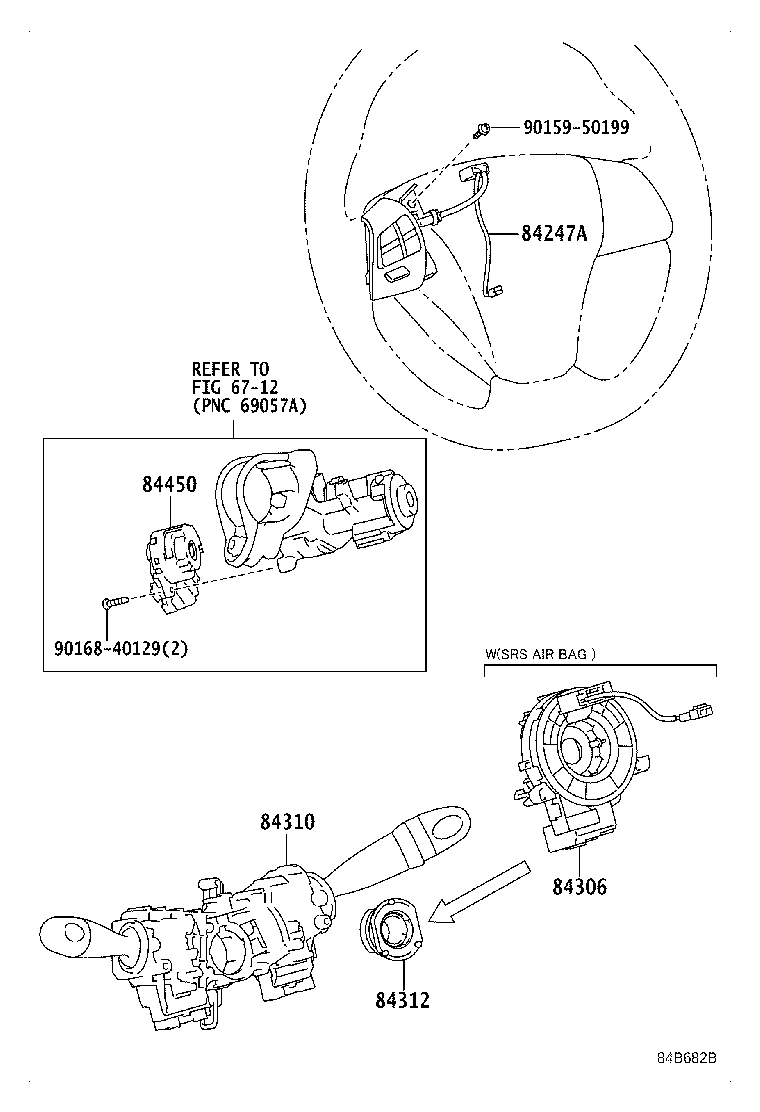

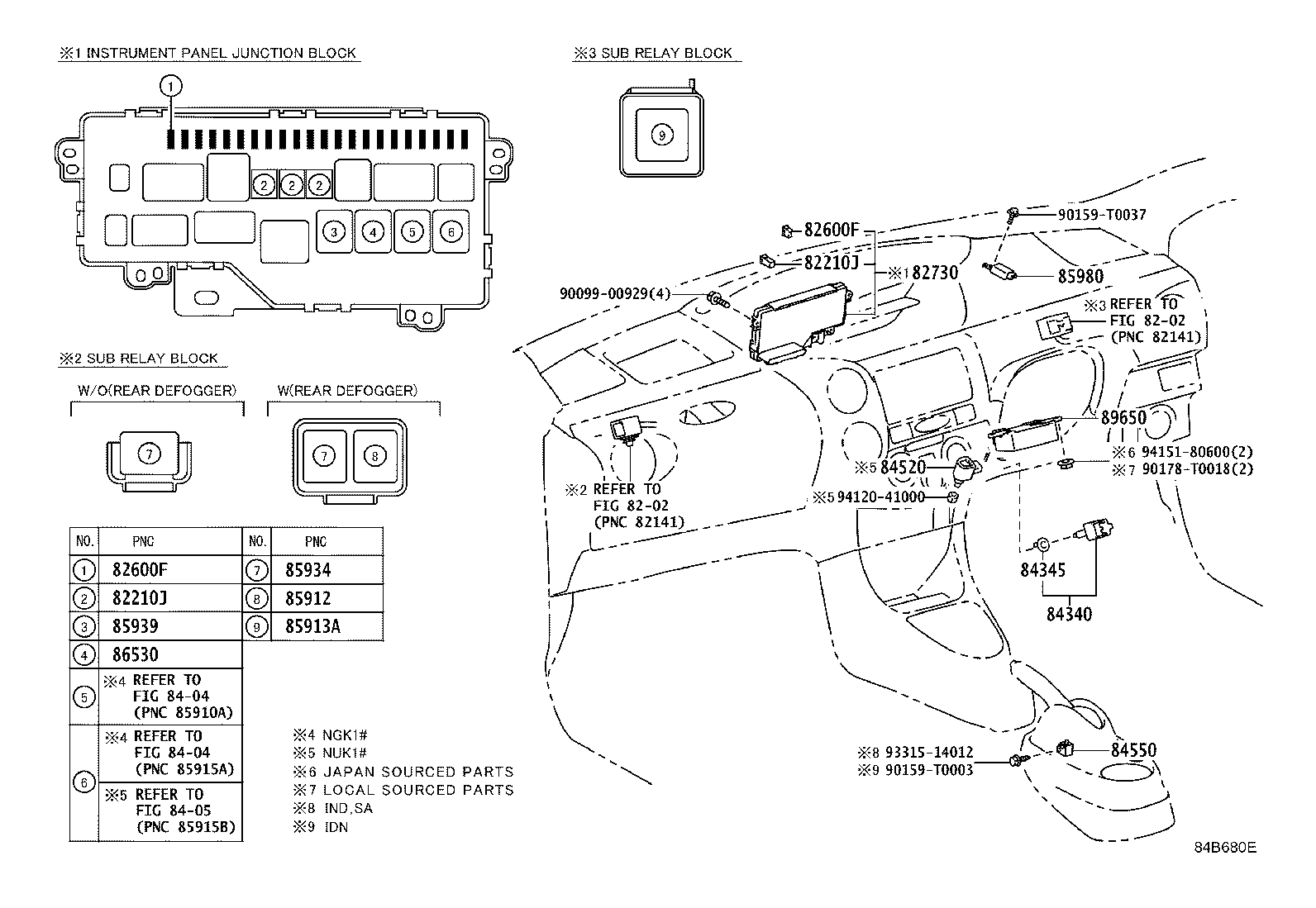

Figure 84B678C 84B678C 2010-12 → — Figure 84C045A 84C045A 2011-08 → — Figure 84B679C 84B679C 2010-12 → — Figure 84L256 84L256 2010-12 → — Figure 84B680E 84B680E 2010-12 → — Figure 84B681D 84B681D 2010-12 → — Figure 84B682B 84B682B 2010-12 → — Figure 84B683B 84B683B 2010-12 → — Figure 84B684D 84B684D 2010-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28610 Relay Assy, Intake Heater OR Glow Plug
82210J Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84550 Switch Assy, Parking Brake
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84930 Switch Assy, Door Control
85530E Socket Assy, Power Outlet, NO.3
85535E Cover, Power Outlet Socket, NO.2
85912 Relay, Defogger
85913A Relay, Heater Control
85916D Relay, Fog Lamp
85927 Relay, Cooling Fan
85934 Relay, Magnet-clutch
85939 Relay, Power Window
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
89413A Sensor, Transmission Revolution
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
