Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

11 part groups · 4 illustrations

Illustrations

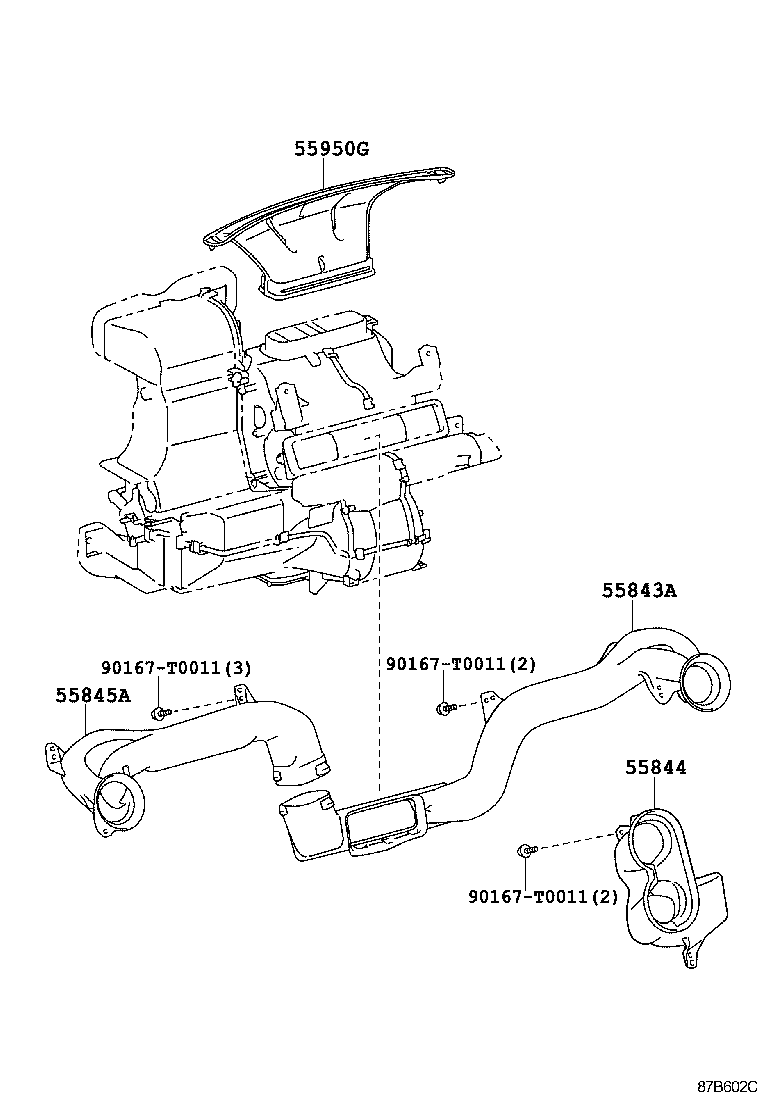

Figure 87B601D 87B601D 2010-12 → 2013-03 Figure 87D474E 87D474E 2013-03 → — Figure 87D521D 87D521D 2013-03 → — Figure 87B602C 87B602C 2010-12 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
