Heating & Air Conditioning - Water Piping

6 part groups · 4 illustrations

Illustrations

Figure 87B603C

87B603C 2010-12 → —

Figure 87B928B

87B928B 2011-08 → —

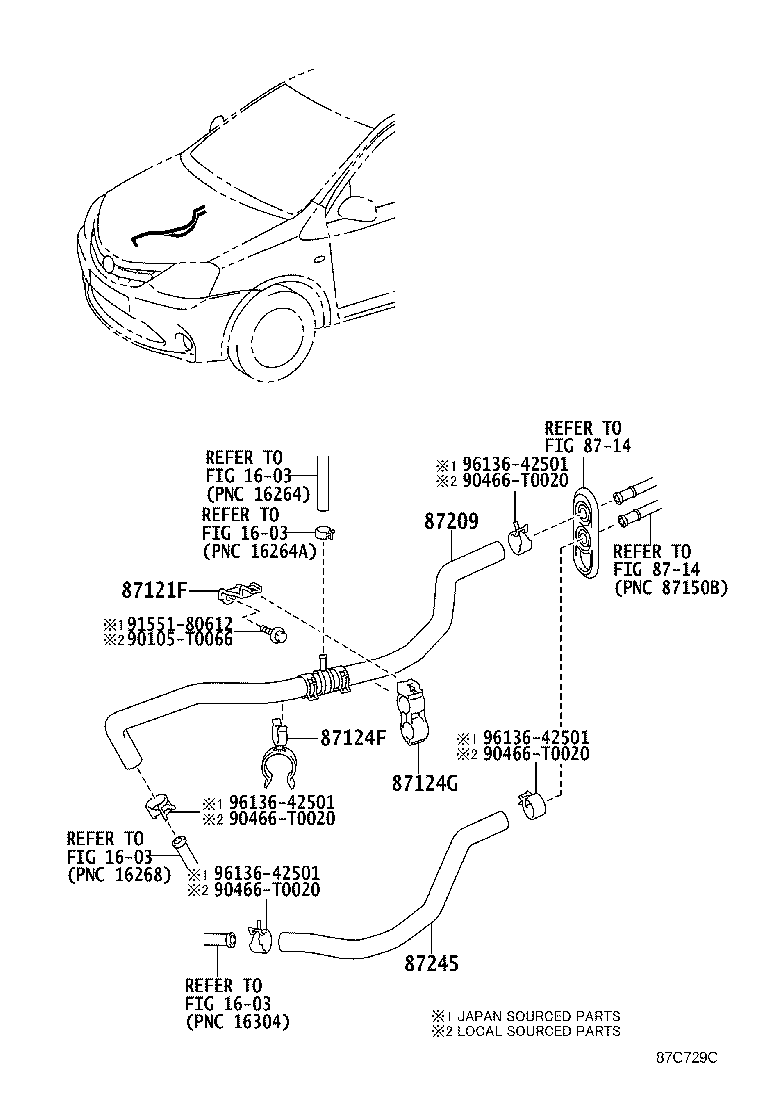

Figure 87C729C

87C729C 2012-03 → 2013-03

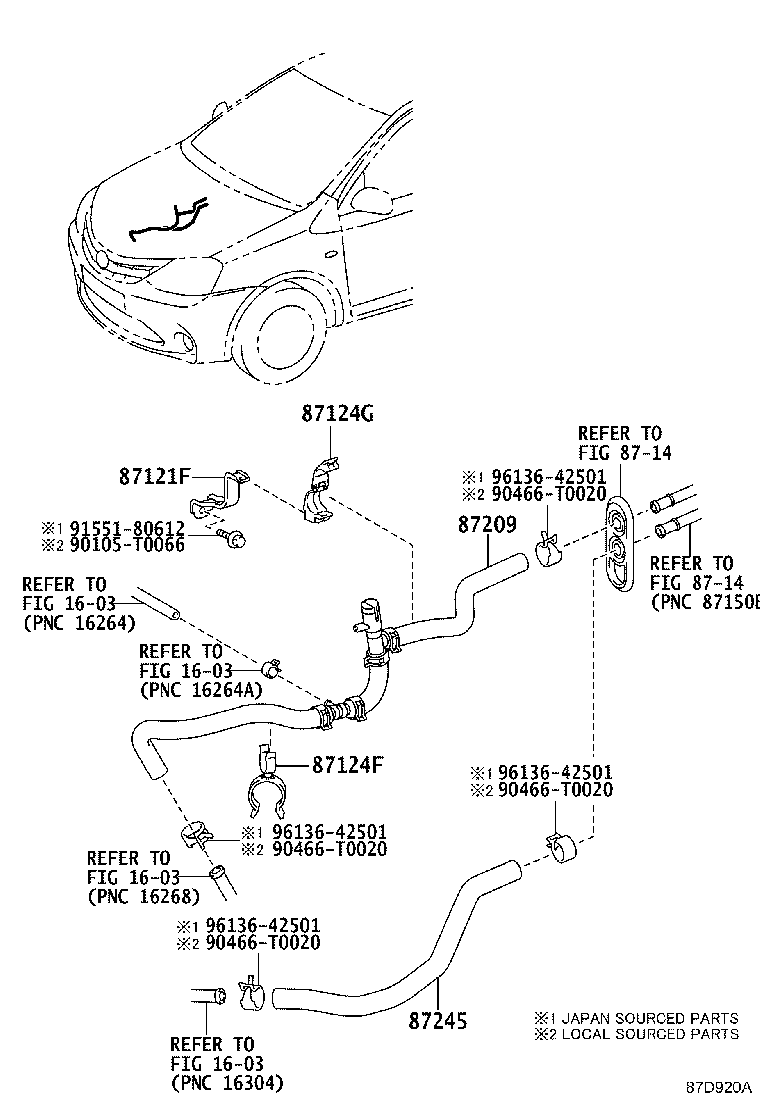

Figure 87D920A

87D920A 2013-03 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
