Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07

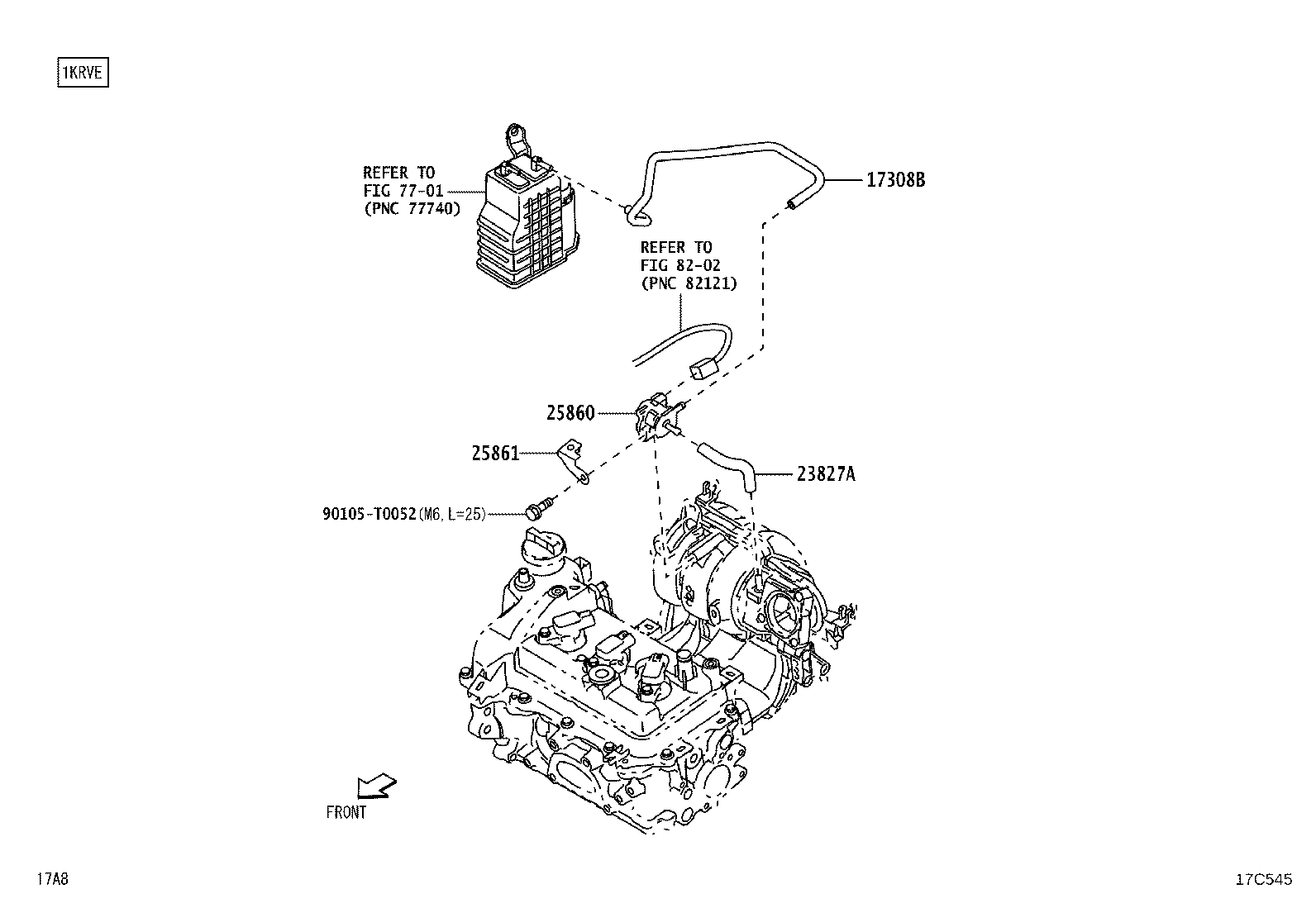

Vacuum Piping
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17650G | Valve, Duty Vacuum Switching |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
