Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07

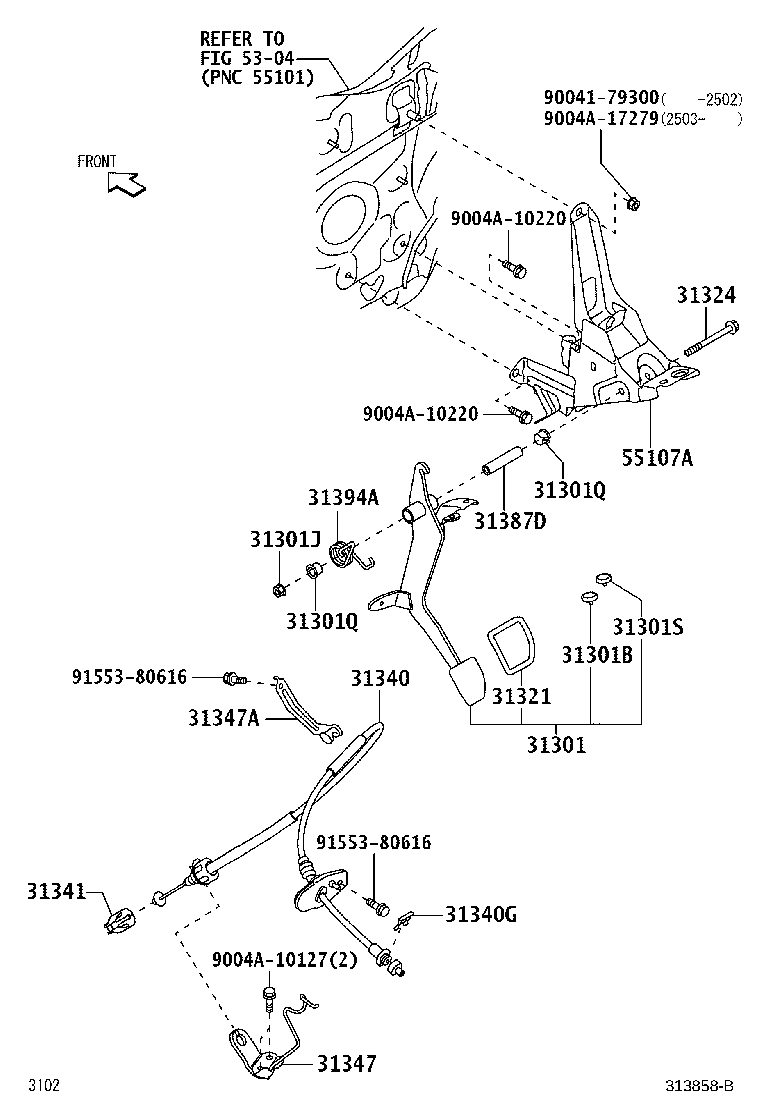

Clutch Pedal & Flexible Hose
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301Q | Bush(FOR CLUTCH PEDAL SPRING) |
| 31301S | Cushion, NO.2(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31340 | Cable Assy, Clutch Release |
| 31340G | Clip(FOR CLUTCH RELEASE CABLE) |
| 31341 | Bracket, Clutch Cable |
| 31347 | Clamp, Clutch Cable |
| 31347A | Clamp, Clutch Cable, NO.1 |
| 31387D | Spacer(FOR CLUTCH RELEASE SECTOR) |
| 31394A | Spring, Pedal W/Hook |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
