Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07

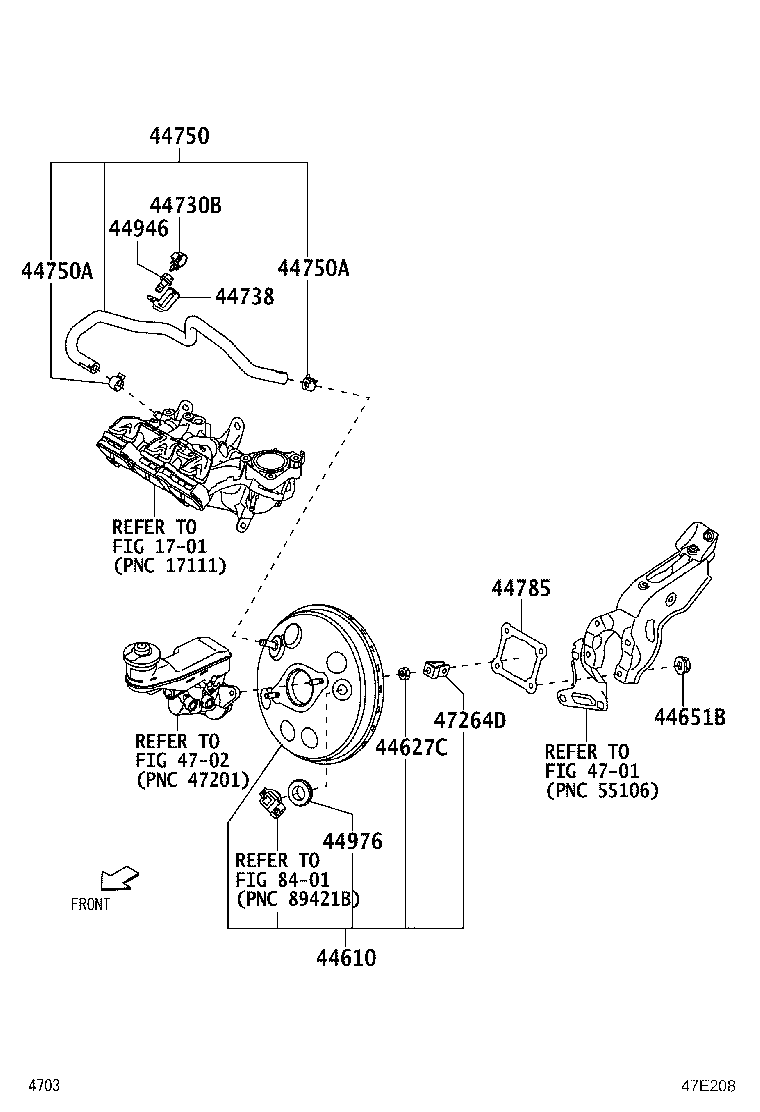

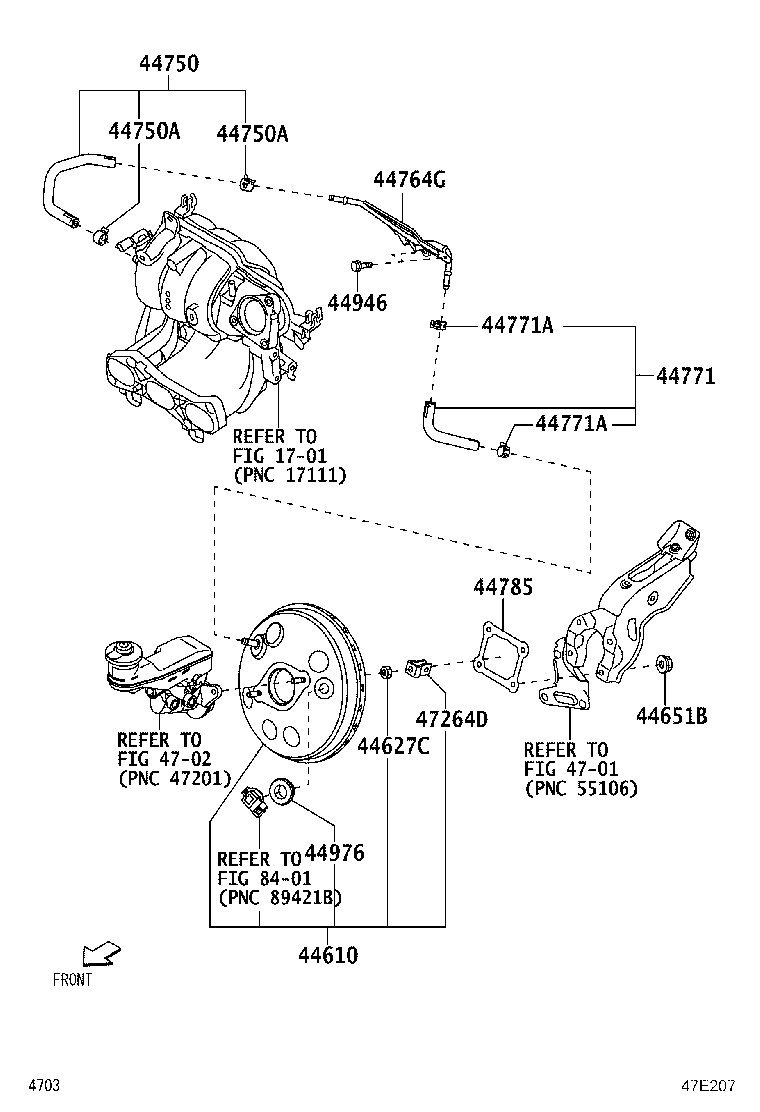

Brake Booster & Vacuum Tube
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44627C | Nut, Booster Sleeve Cylinder |
| 44651B | Nut, Booster |
| 44730B | Clamp, Vacuum Hose |
| 44738 | Bracket, Hose Clamp Brakcet |
| 44750 | Hose Assy, Vacuum |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 44764G | Tube, Connector TO Brake Booster |
| 44771 | Hose, Vacuum Tube Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44785 | Gasket, Brake Booster |
| 44946 | Bolt, Booster |
| 44976 | Seal, Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
