Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 3 illustrations

Illustrations

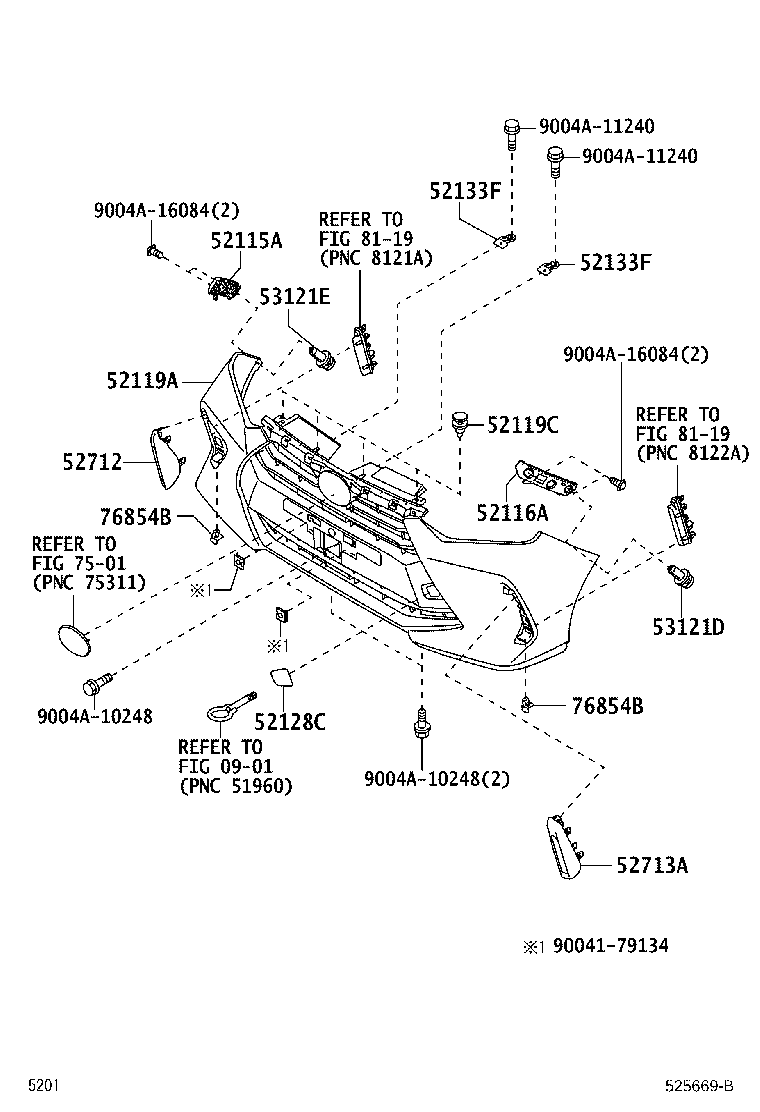

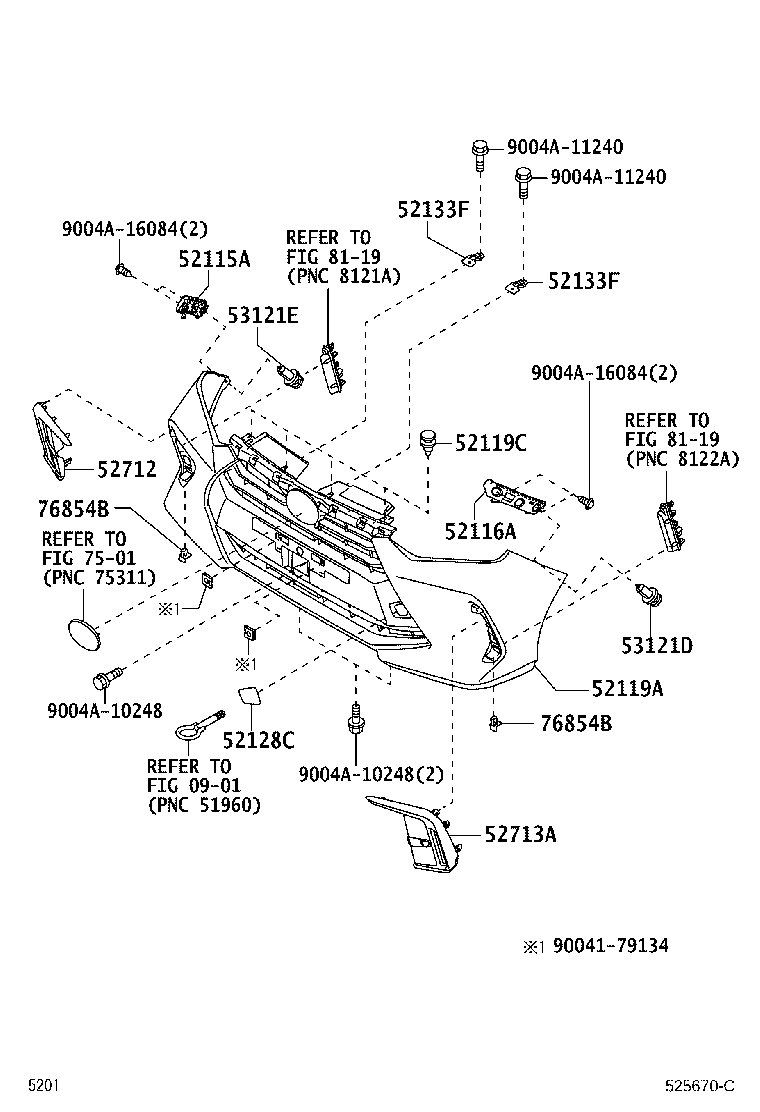

Figure 525697A 525697A 2023-03 → — Figure 525669B 525669B 2023-03 → — Figure 525670C 525670C 2023-03 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52128C Cover, Front Bumper Hole, LH
52133F Bracket, Front Bumper, RH
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
76854B Retainer, Front Spoiler,NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
