Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07

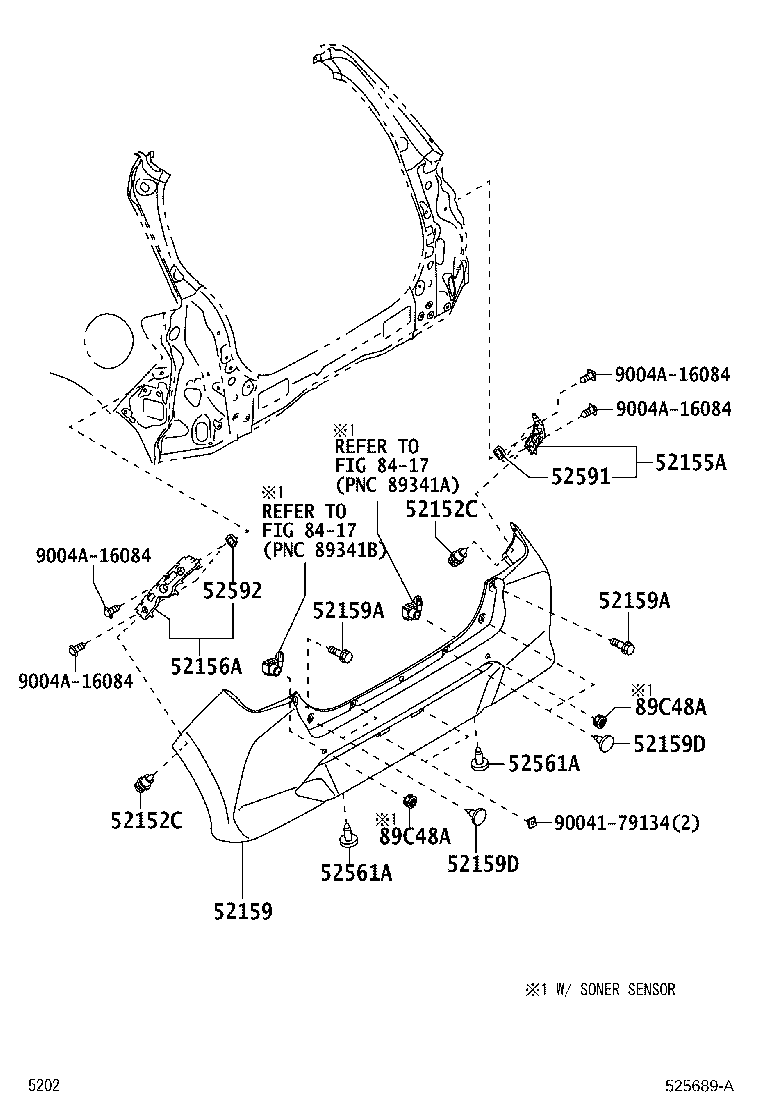

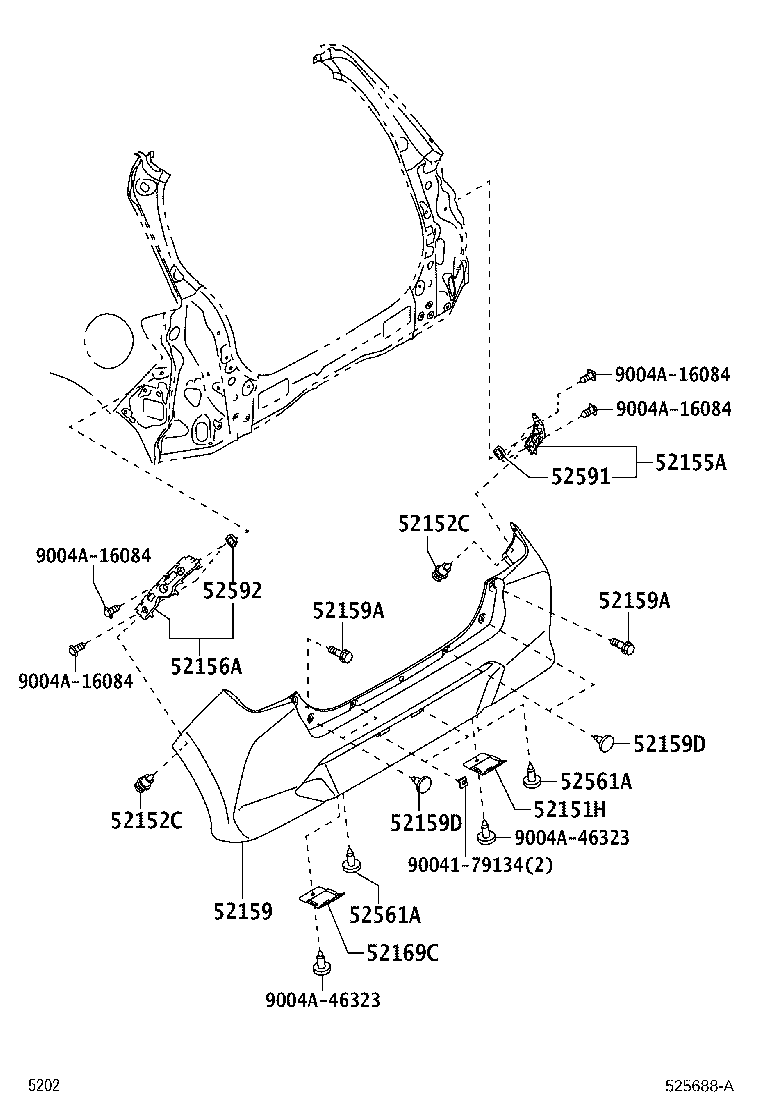

Rear Bumper & Bumper Stay
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52151H | Cover, Rear Bumper |
| 52152C | Clip, Rear Bumper Side |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52159A | Bolt(FOR REAR BUMPER COVER) |
| 52159D | Clip, Rear Bumper Cover |
| 52169C | Cover, Rear Bumper, Lower |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
