Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 2 illustrations

Illustrations

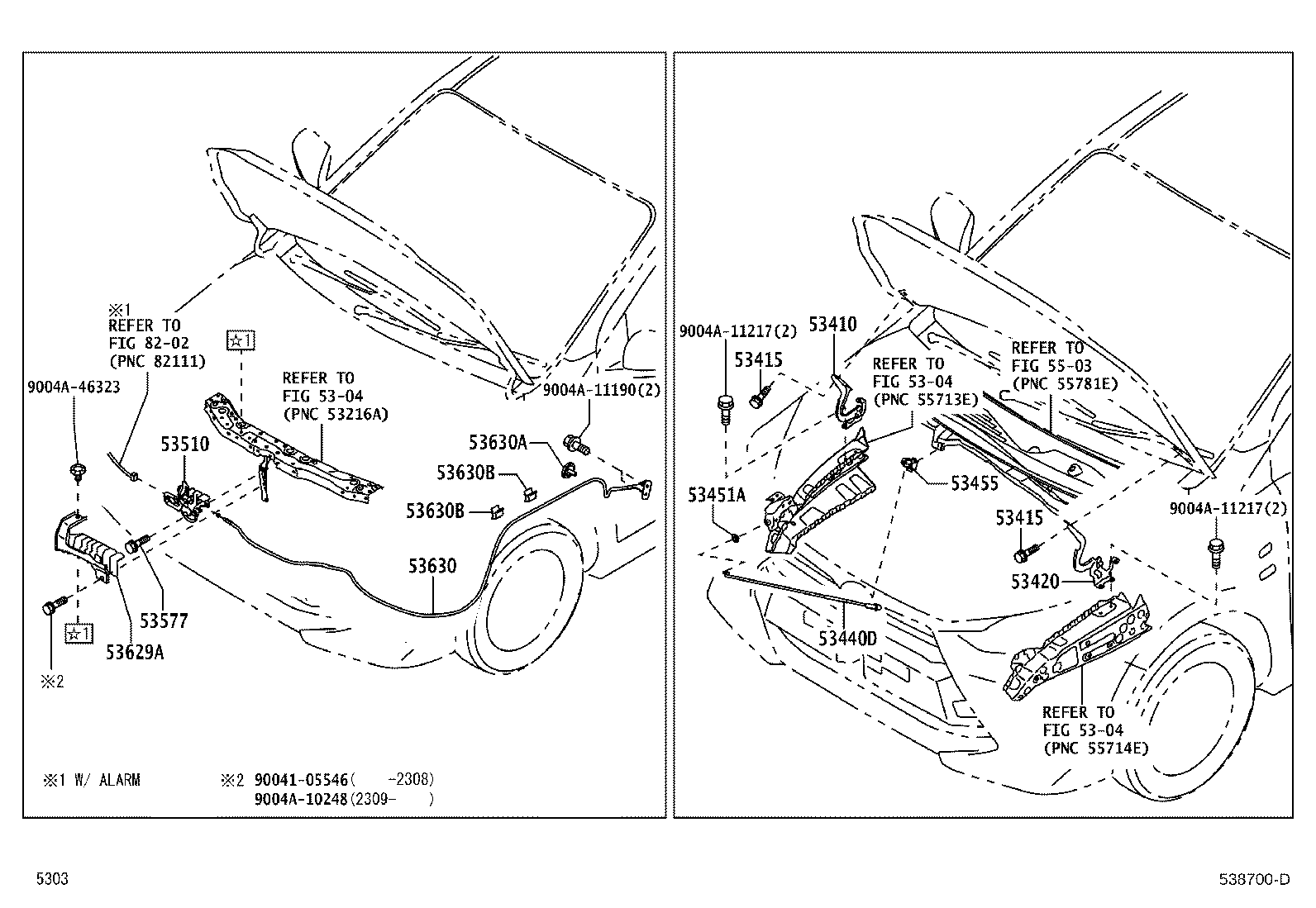

Figure 538699D 538699D 2023-03 → — Figure 538700D 538700D 2023-03 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53415 Bolt, Hood Hinge
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53451A Grommet(FOR HOOD SUPPORT ROD)
53455 Clamp, Hood Support Rod
53510 Lock Assy, Hood
53577 Bolt, Hood Lock
53629A Cover, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
53630A Grommet(FOR HOOD LOCK CONTROL CABLE)
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
