Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07

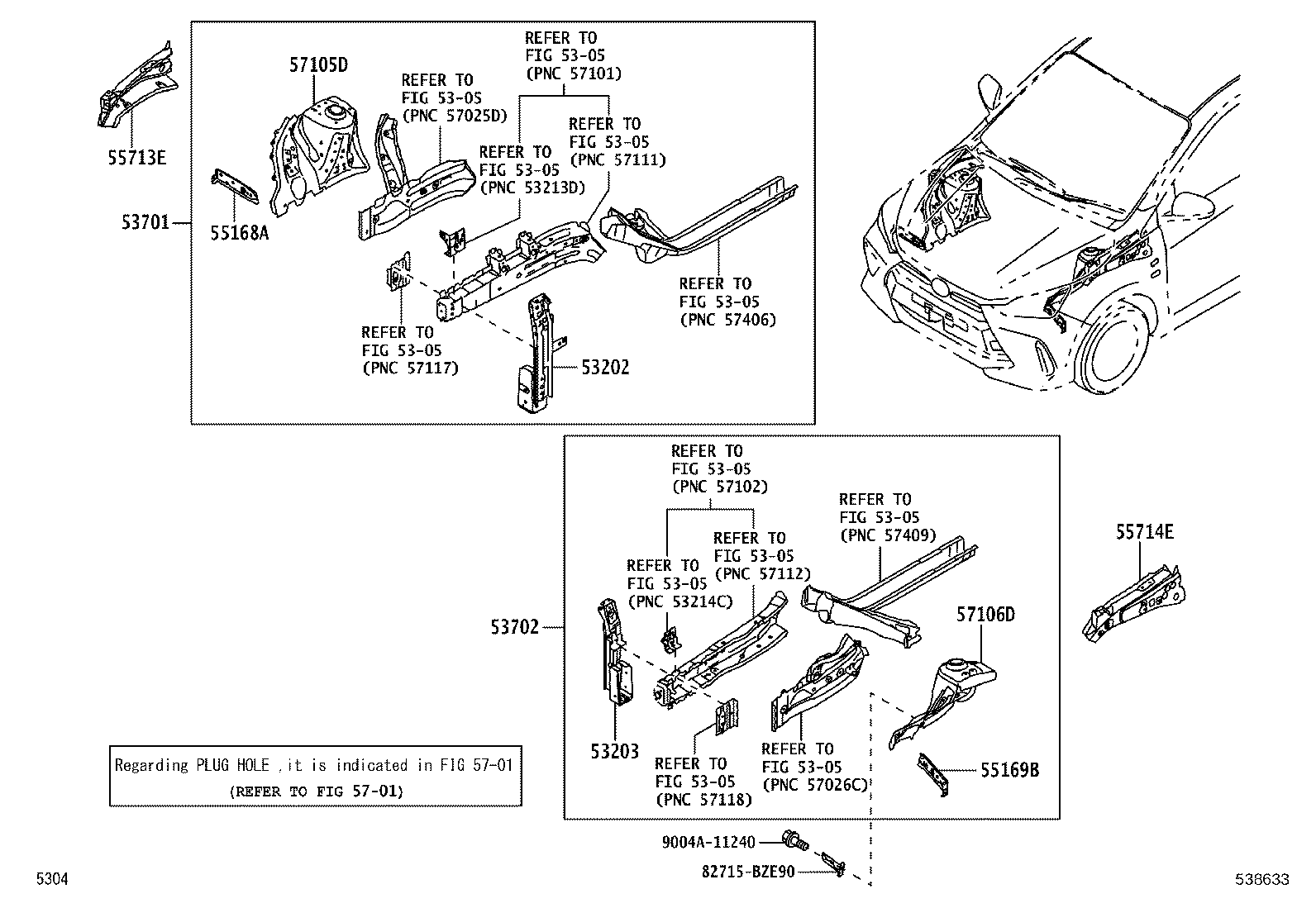

Front Fender Apron & Dash Panel
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53028 | Support Sub-assy, Radiator, Lower |
| 53140A | Cover, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53215B | Support, Hood Lock |
| 53216A | Support, Radiator, Upper |
| 53217A | Brace, Hood Lock Support |
| 53381D | Bumper, Hood TO Front Shroud |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 55101 | Panel Sub-assy, Dash |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55713E | Panel, Cowl Top Side, RH |
| 55714E | Panel, Cowl Top Side, LH |
| 57105D | Plate Sub-assy, Front Side Member, RH |
| 57106D | Plate Sub-assy, Front Side Member, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
