Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07

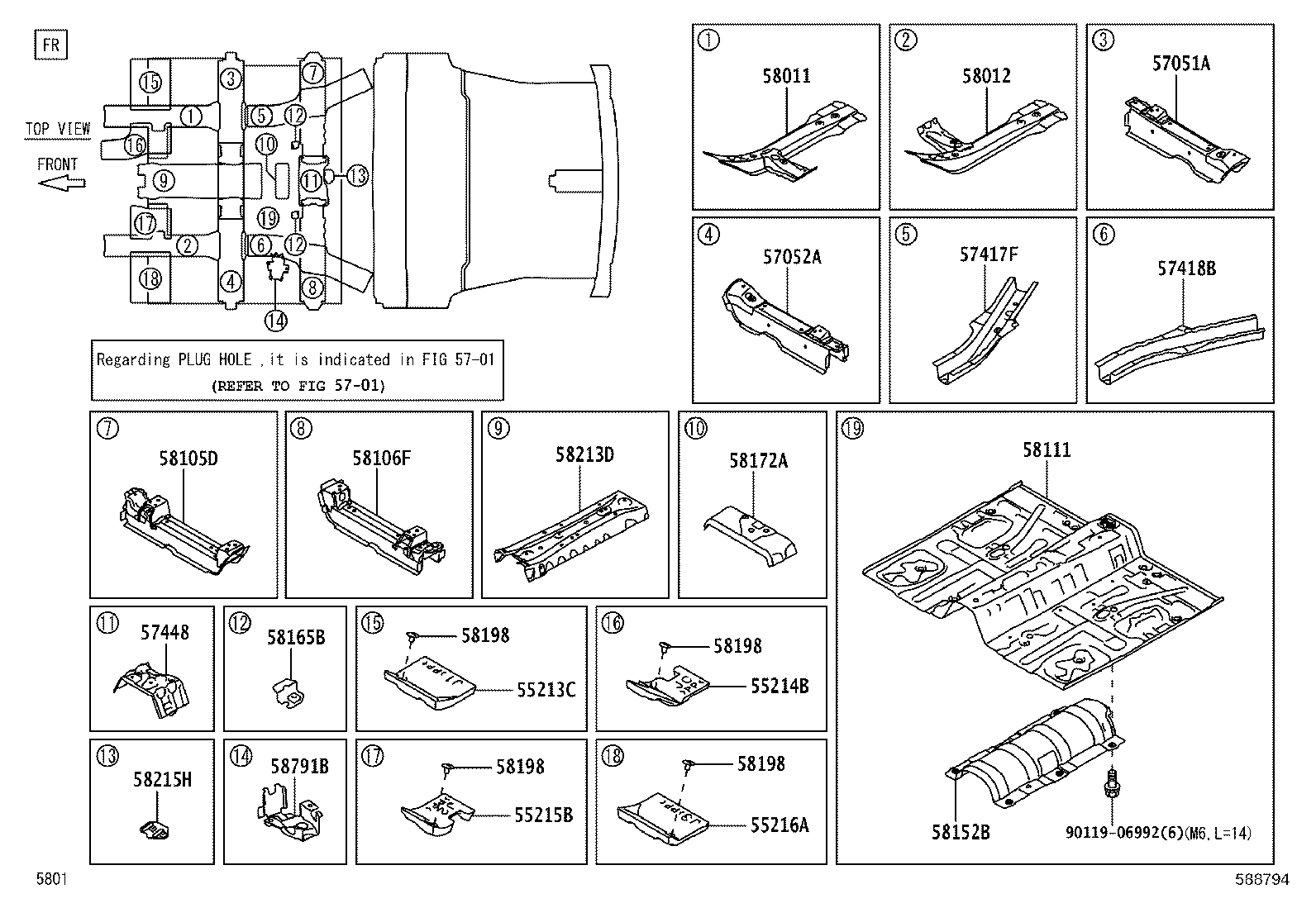

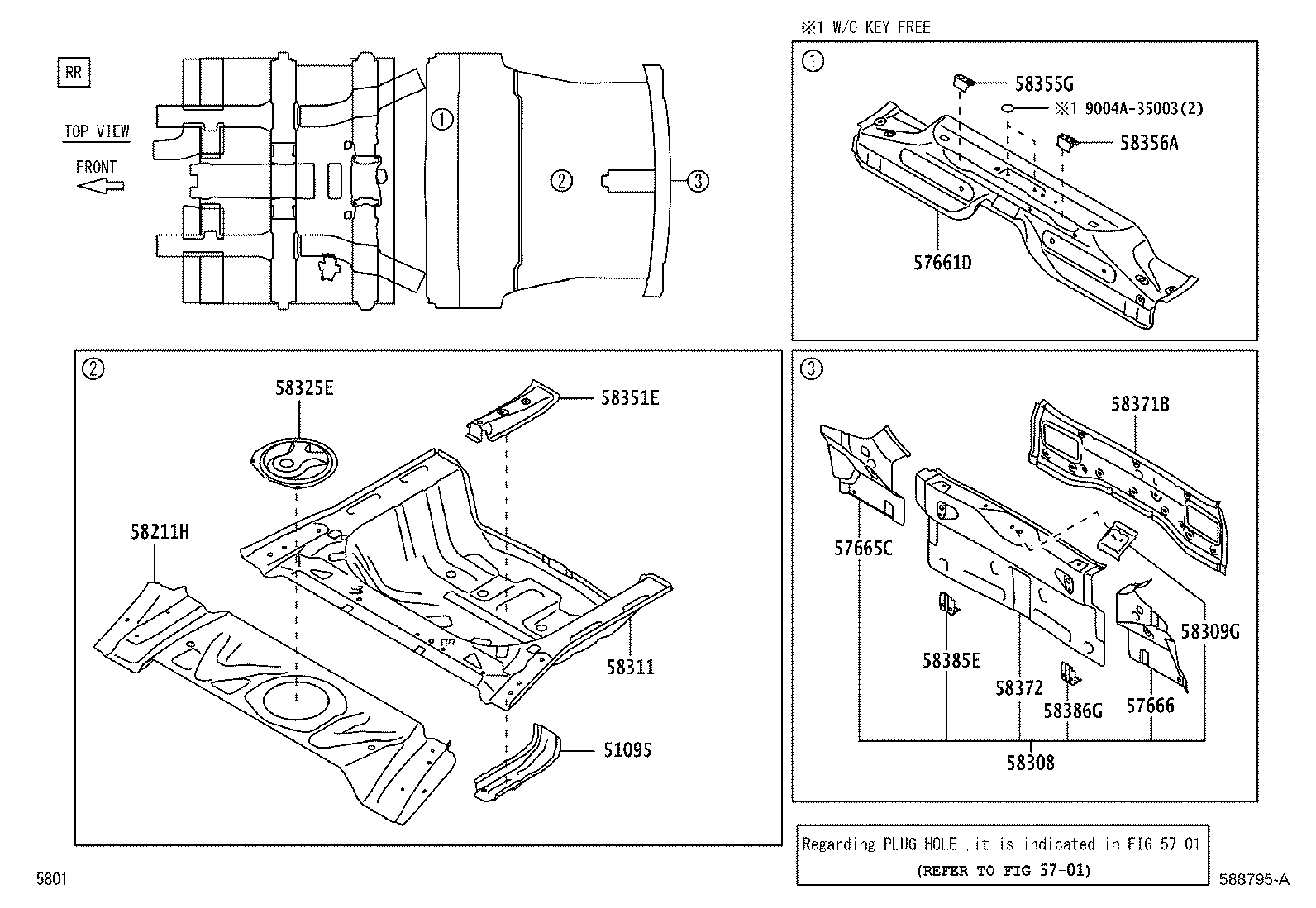

Floor Pan & Lower Back Panel

37 part groups · 3 illustrations

PNC	Description
51095	Hook, Transport, Rear
55213C	Pad, Dash Panel Insulator, NO.2
55214B	Pad, Dash Panel Insulator, NO.2
55215B	Pad, Dash Panel Insulator, NO.3
55216A	Pad, Dash Panel Insulator, NO.4
57051A	Member Sub-assy, Front Floor Cross, RH
57052A	Member Sub-assy, Front Floor Cross, LH
57417F	Reinforcement, Front Floor Under, RH
57418B	Reinforcement, Front Floor Under, LH
57448	Retainer, Center Floor Crossmember
57661D	Member, Rear Floor Cross, Front
57665C	Panel, Lower Back Side, RH
57666	Panel, Lower Back Side, LH
58011	Panel Sub-assy, Front Floor Side, RH
58012	Panel Sub-assy, Front Floor Side, LH
58105D	Retainer Sub-assy, Seat Rail, Rear RH
58106F	Bracket Sub-assy, Front Seat Mounting, Outside LH
58111	Pan, Front Floor
58152B	Insulator, Front Floor Heat, NO.1 Lower
58165B	Cover, Front Floor, RH
58172A	Plate, Parking Brake Mounting
58198	Clip, Footrest
58211H	Pan, Center Floor
58213D	Reinforcement, Center Floor Panel
58215H	Retainer, Front Floor
58308	Panel Sub-assy, Body Lower Back, Inner
58309G	Retainer Sub-assy, Back Door Lock Striker
58311	Pan, Rear Floor
58325E	Cover, Rear Floor Service Hole
58351E	Bracket, Spare Wheel Clamp
58355G	Reinforcement, Floor Side Plate, RH
58356A	Reinforcement, Floor Side Plate, LH
58371B	Panel, Body Lower Back, Outer
58372	Panel, Body Lower Back, Inner
58385E	Bracket, Rear Bumper Cover, RH
58386G	Bracket, Rear Bumper Cover, LH
58791B	Carrier, Jack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
