Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

9 part groups · 4 illustrations

Illustrations

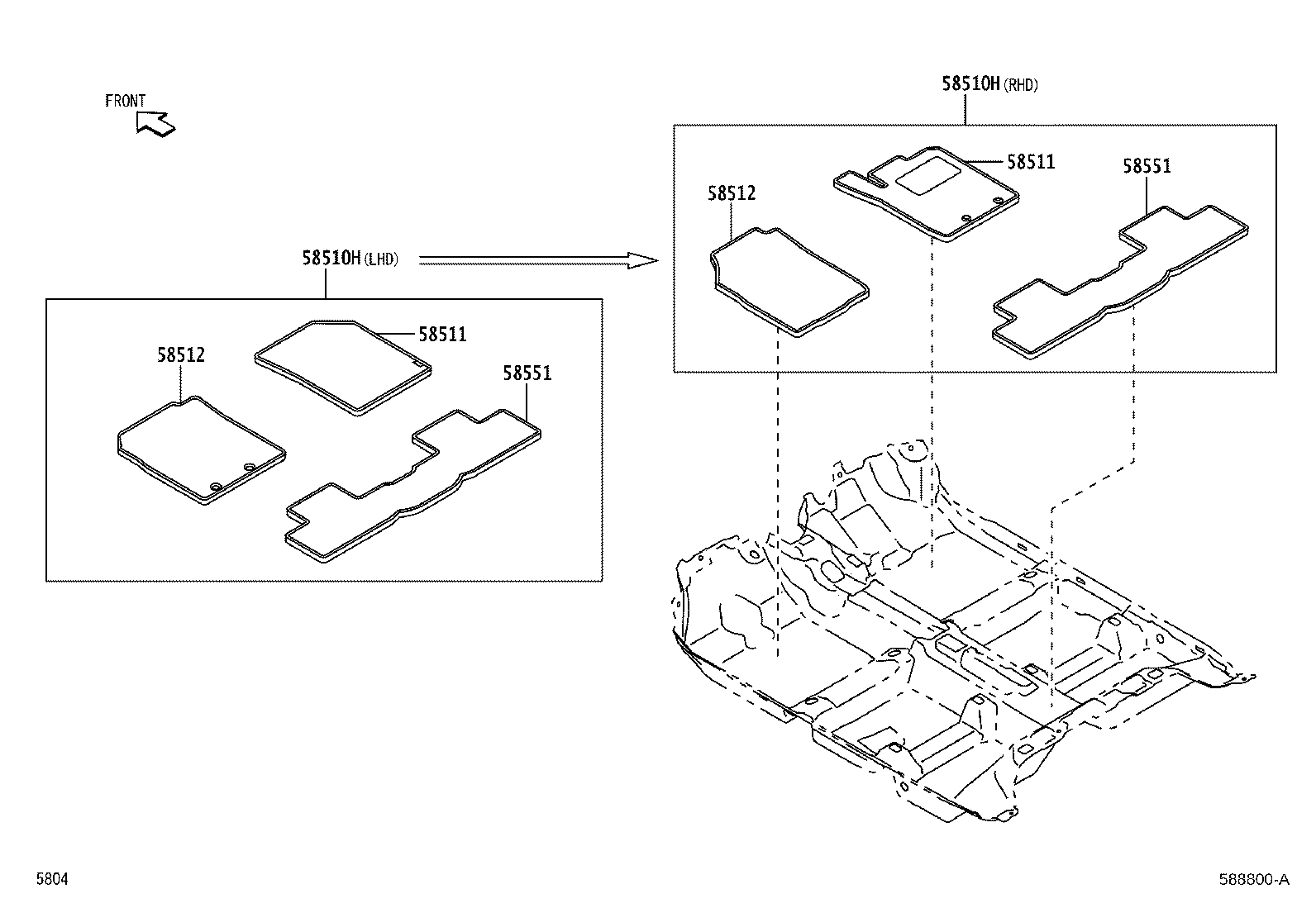

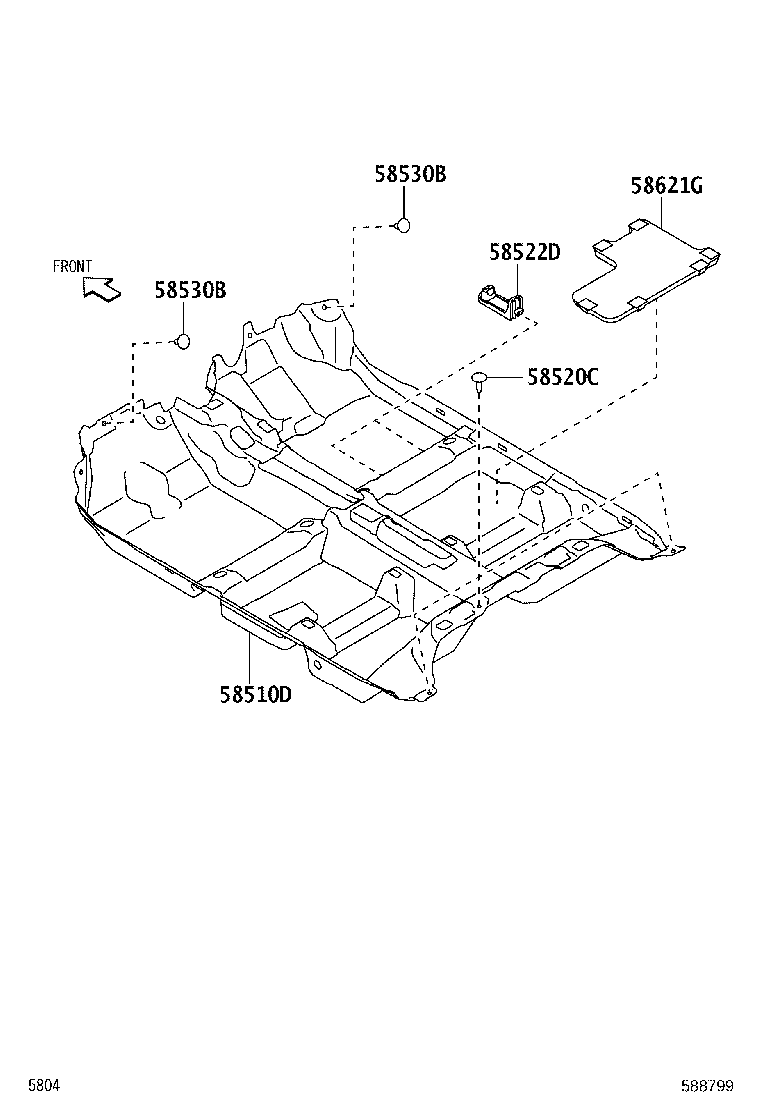

Figure 588798 588798 2023-03 → — Figure 588799 588799 2023-06 → — Figure 588800A 588800A 2023-03 → — Figure 588800A 588800A 2023-08 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58512 Mat, Seat Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58522D Hook, Floor Carpet, NO.2
58530B Clip(FOR FRONT FLOOR CARPET)
58551 Mat, Floor, Rear
58621G Pad, Front Floor Silencer, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
