Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07

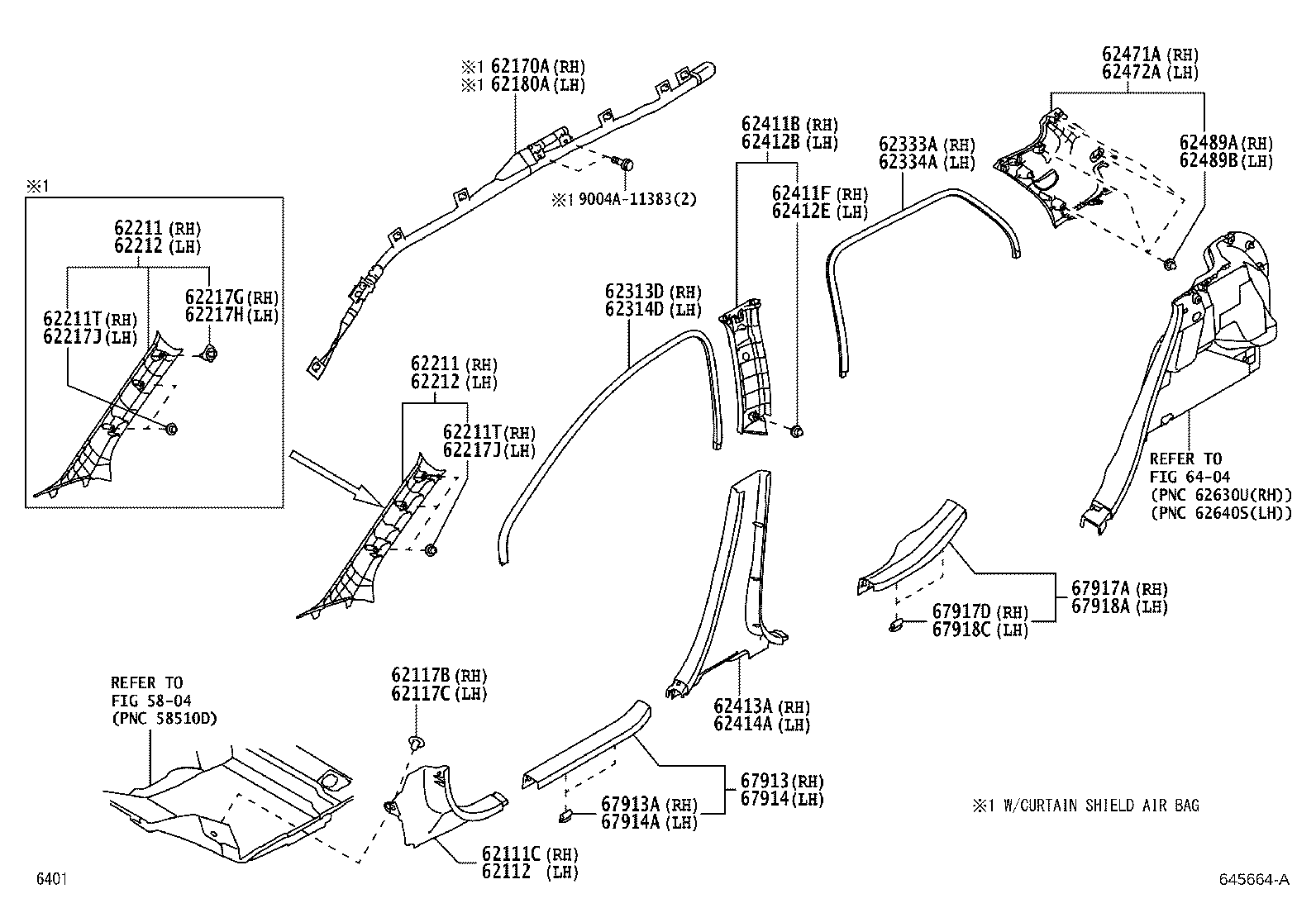

Inside Trim Board & Door Opening Trim Moulding
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62217J | Clip, Center Piller Garnish |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62411F | Clip, Center Pillar Garnish, RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62412E | Clip, Center Pillar Garnish, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489B | Clip, Roof Side Inner Garnish |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67914A | Clip(FOR SCUFF PLATE) |
| 67917A | Plate, Rear Door Scuff, RH |
| 67917D | Clip, Rear Door Scuff Plate |
| 67918A | Plate, Rear Door Scuff, LH |
| 67918C | Clip(FOR REAR SCUFF PLATE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
