Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07
Front Seat & Seat Track
80 part groups · 13 illustrations

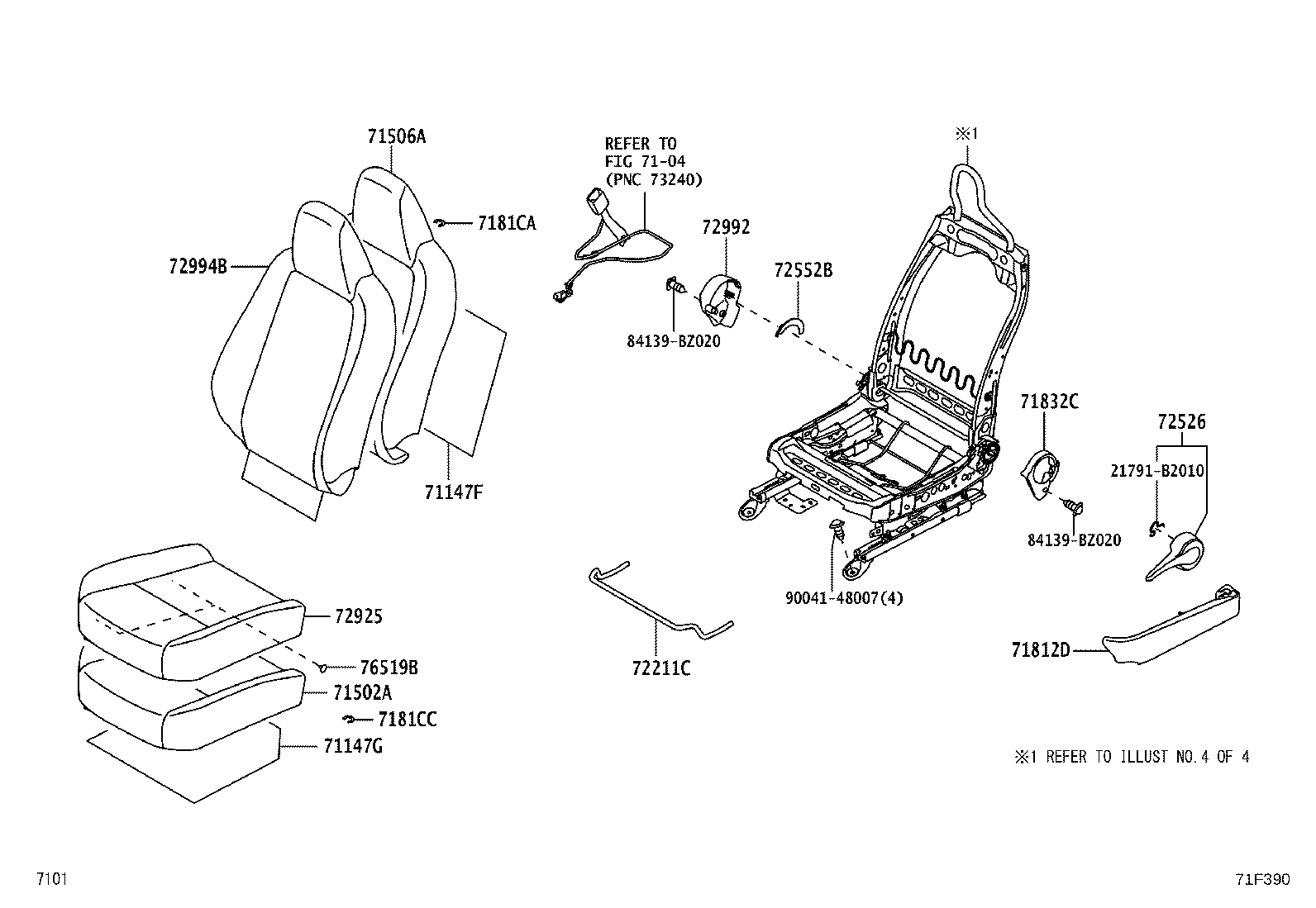

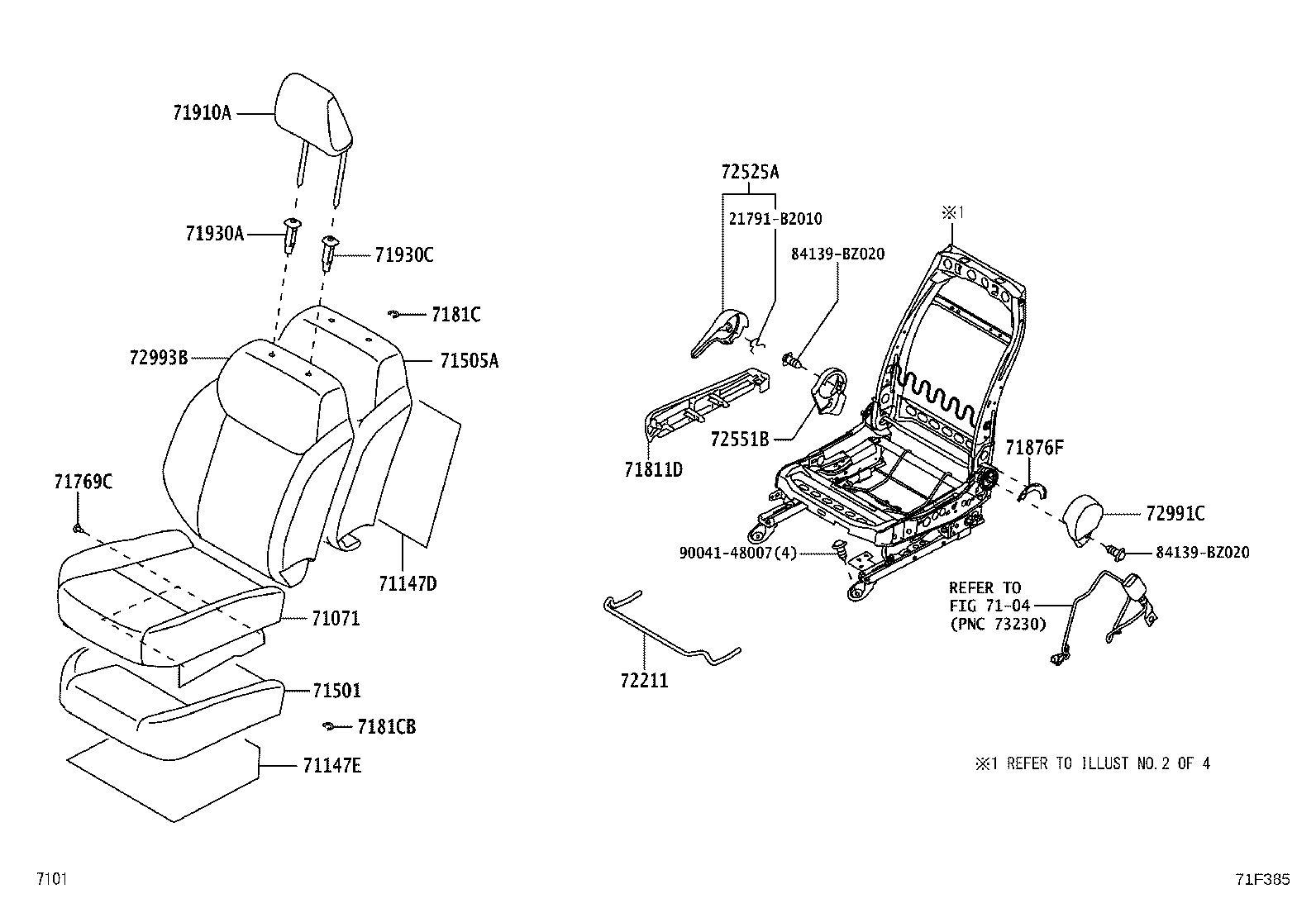

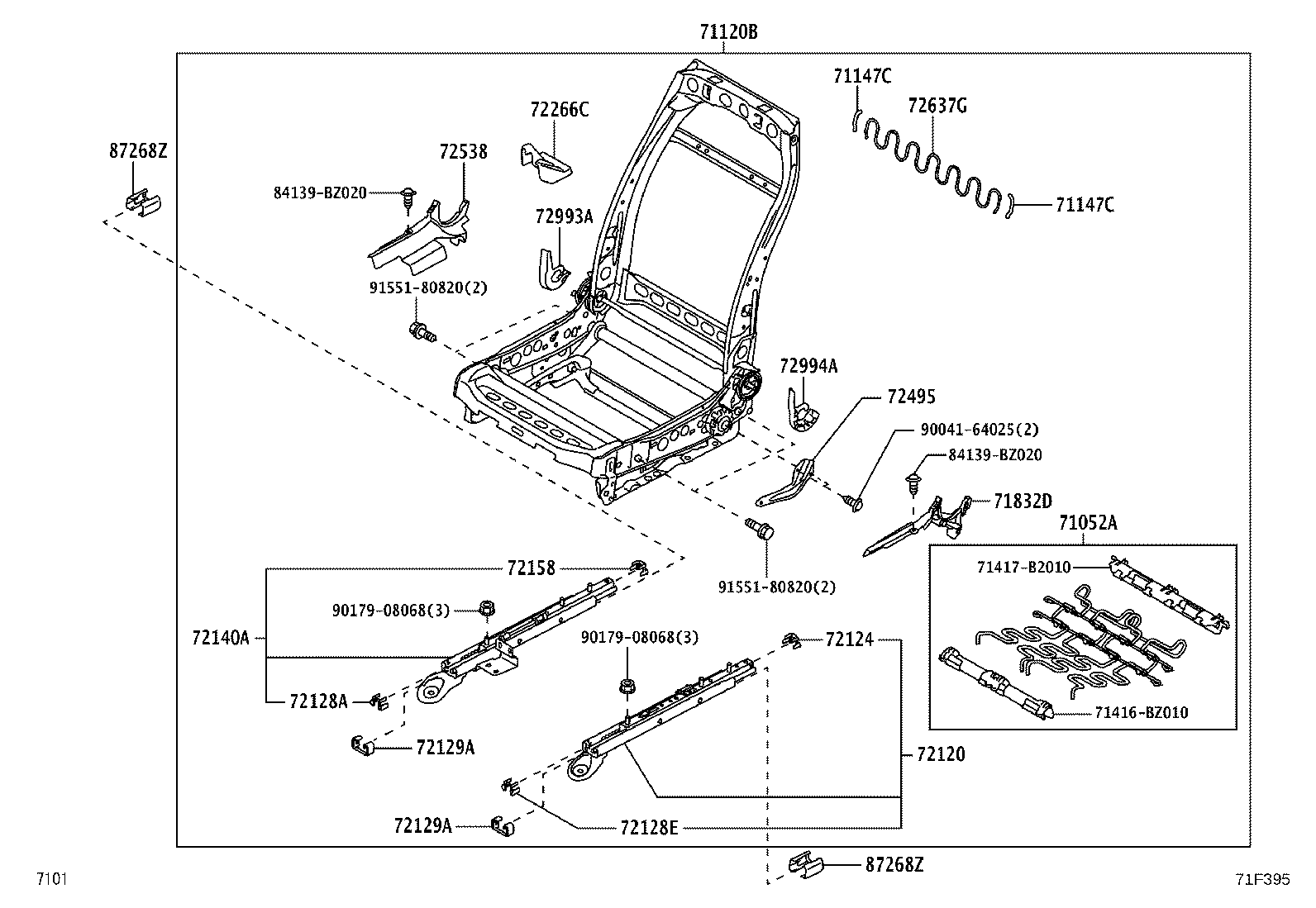

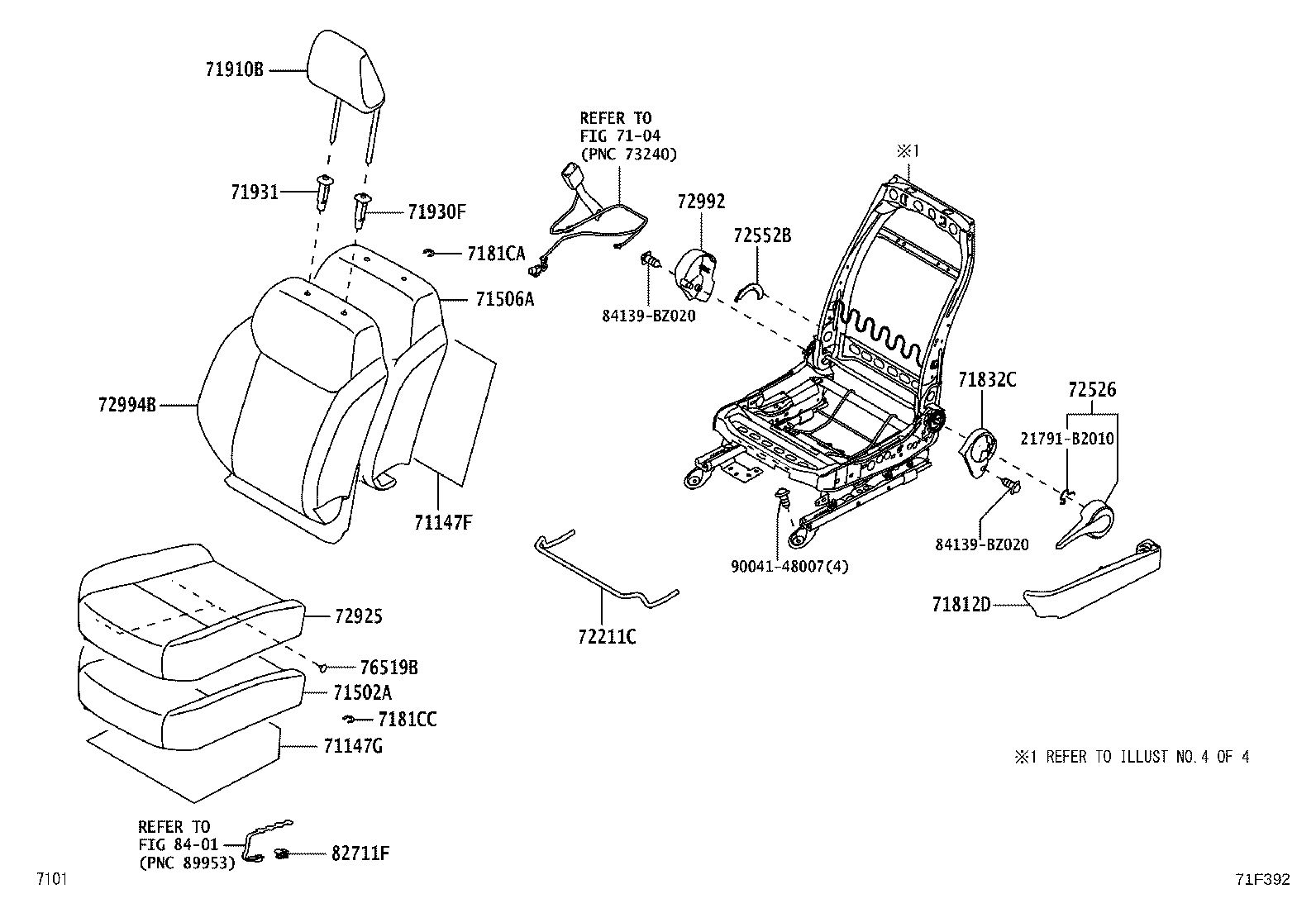

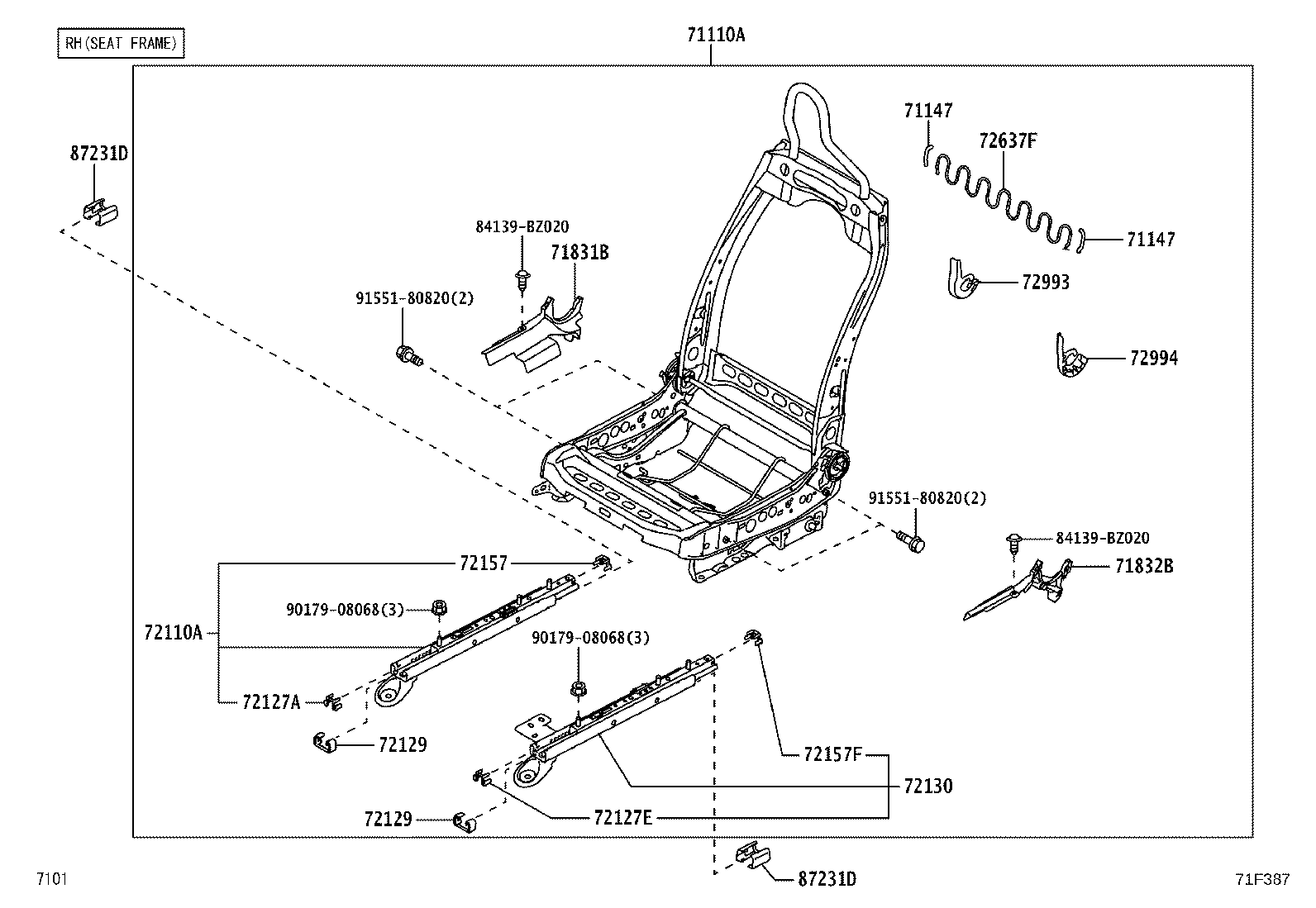

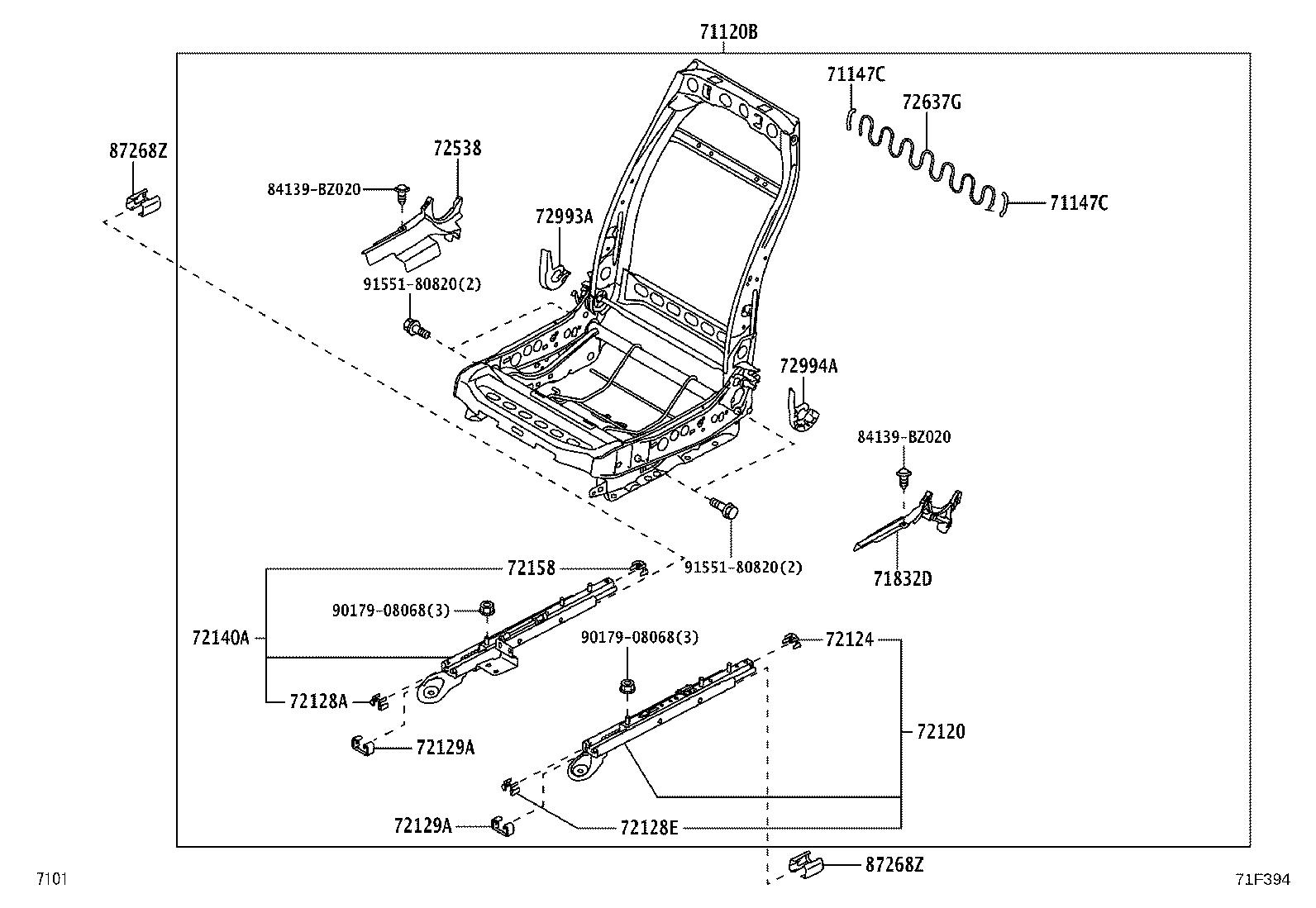

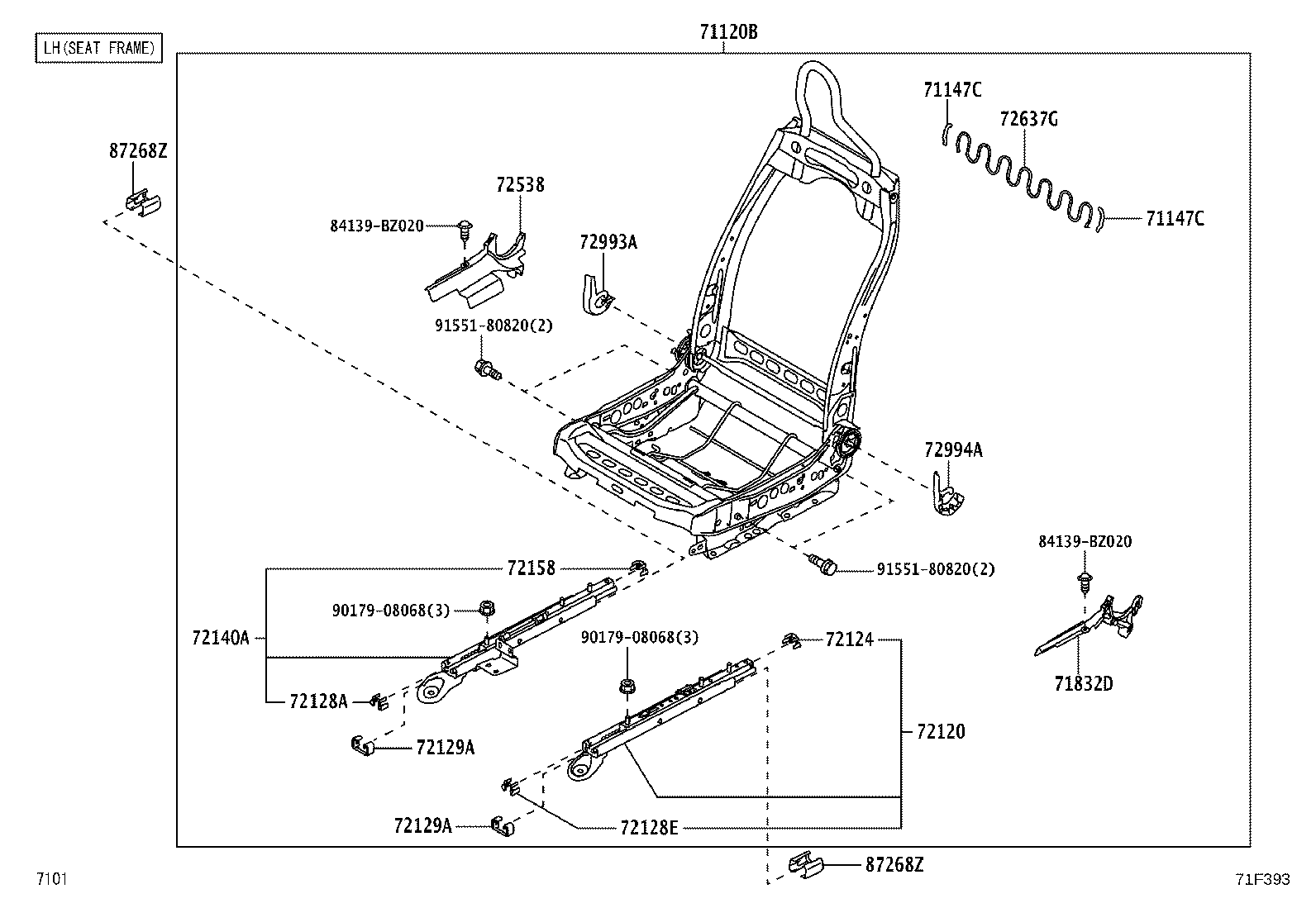

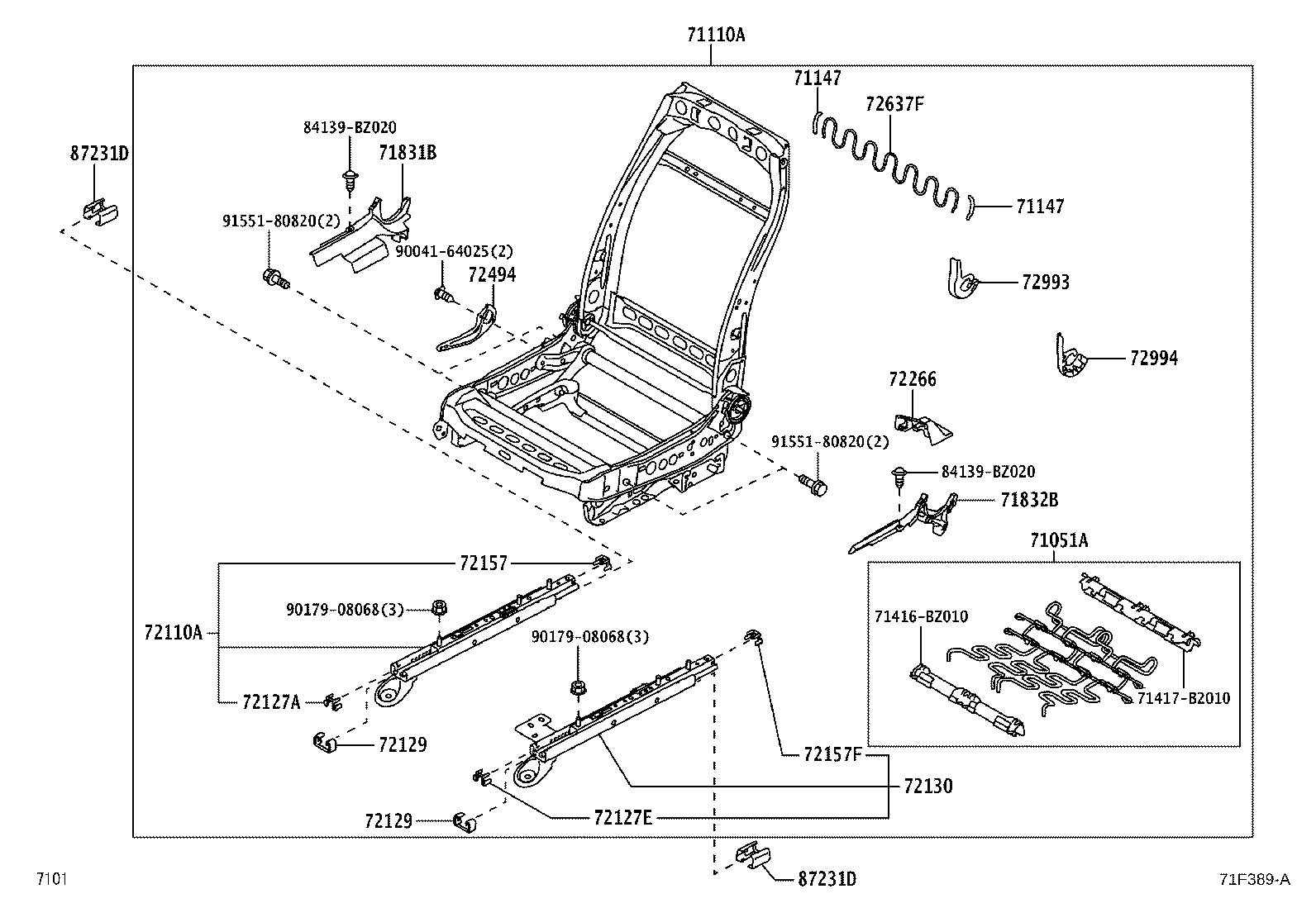

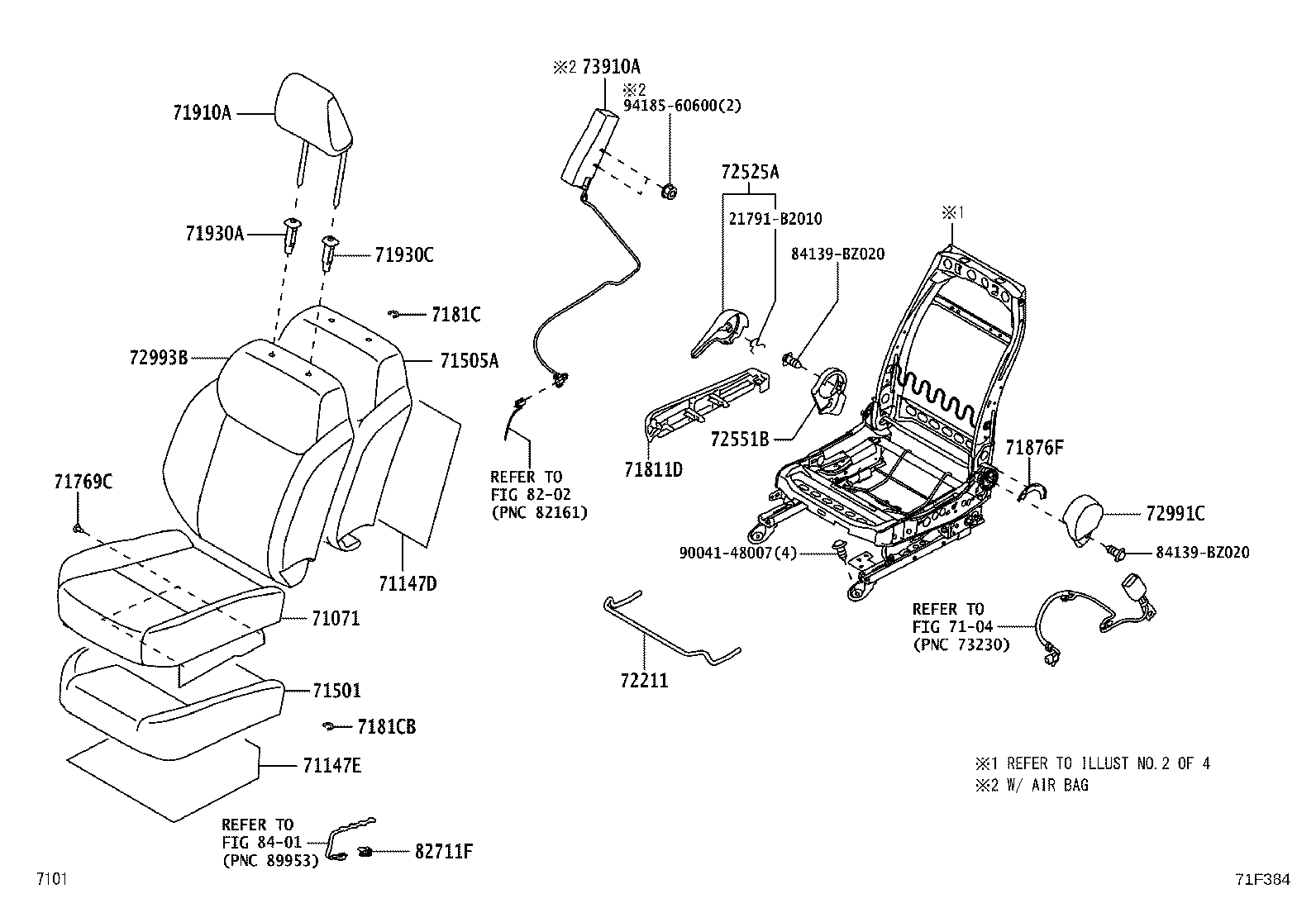

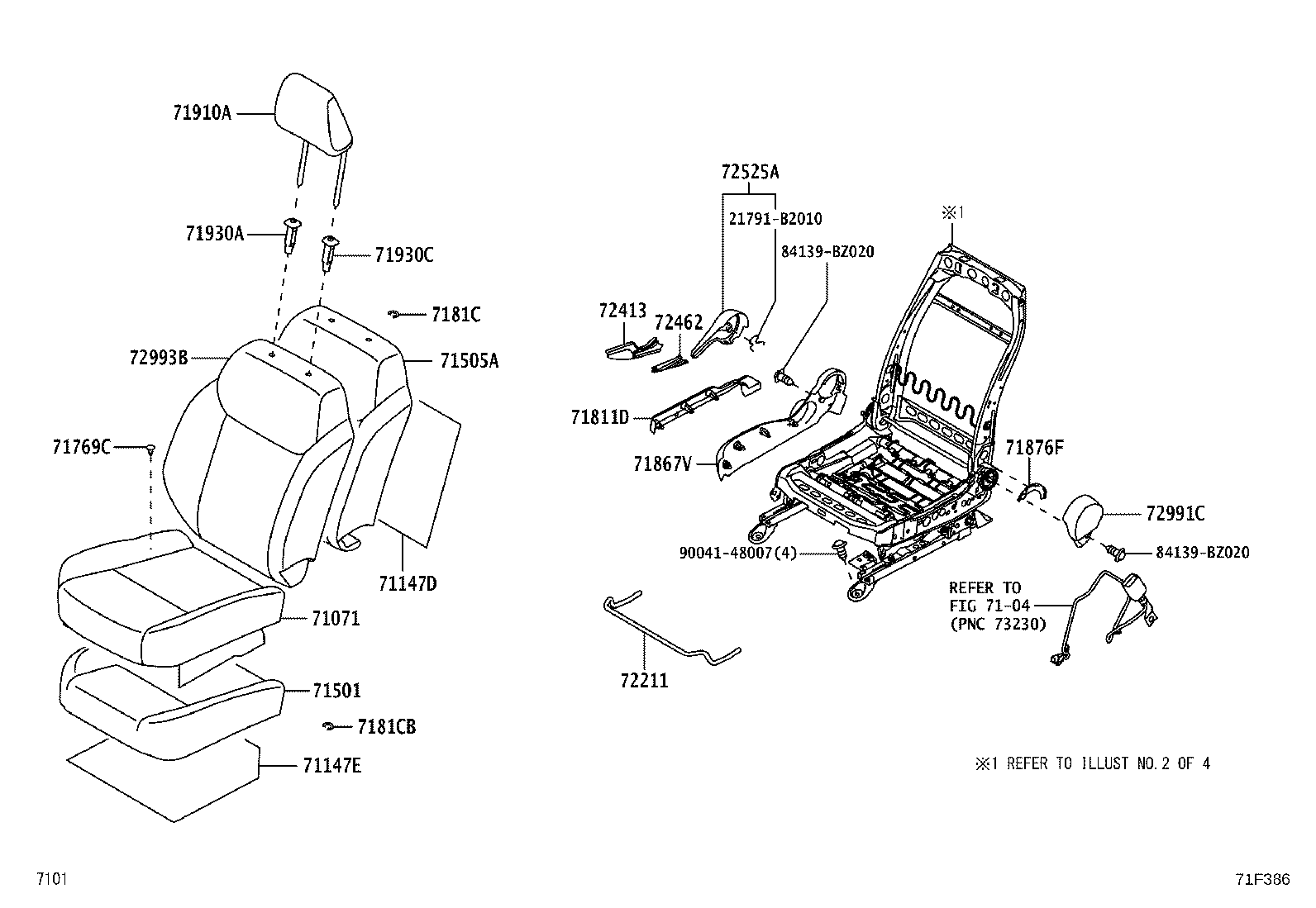

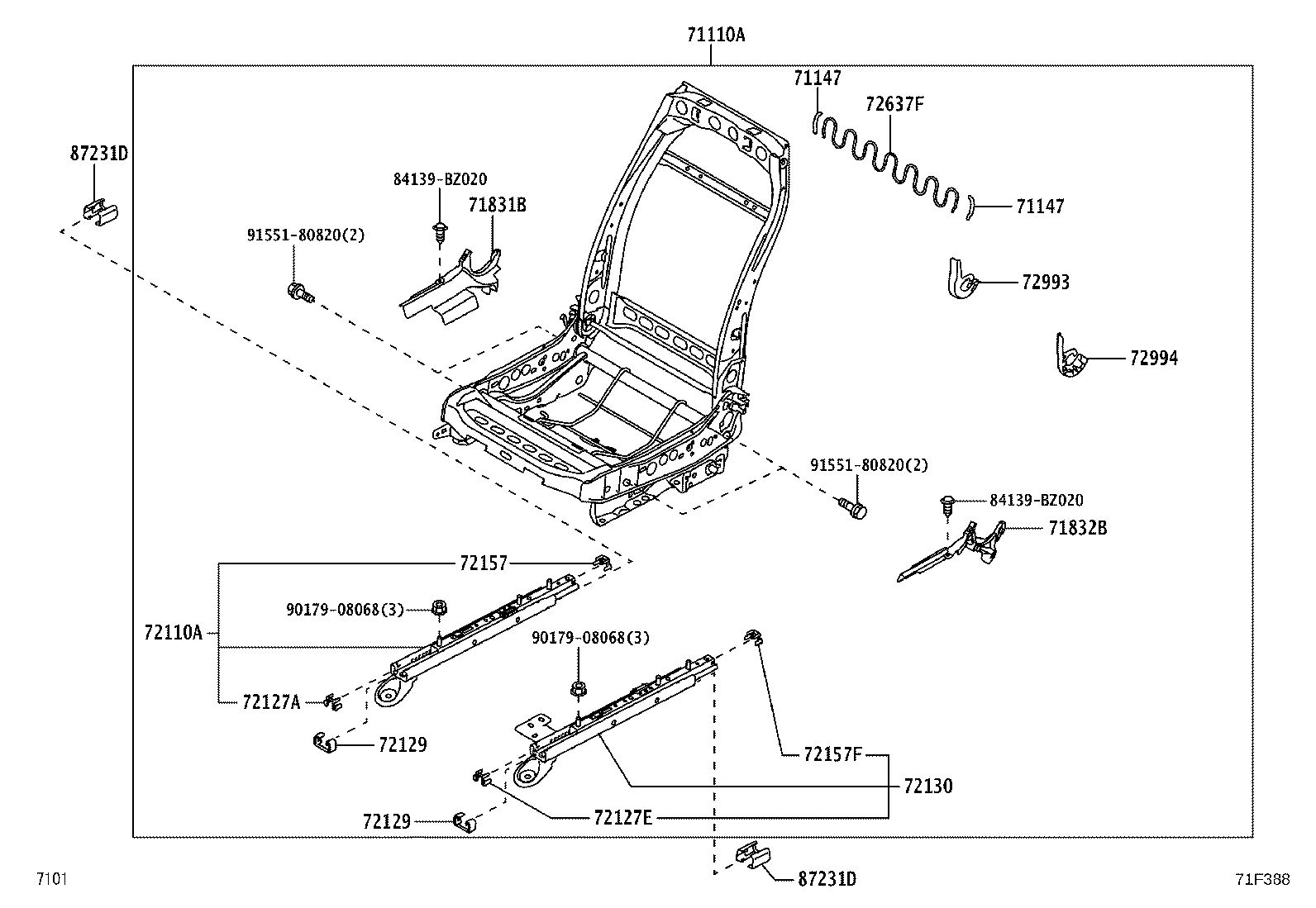

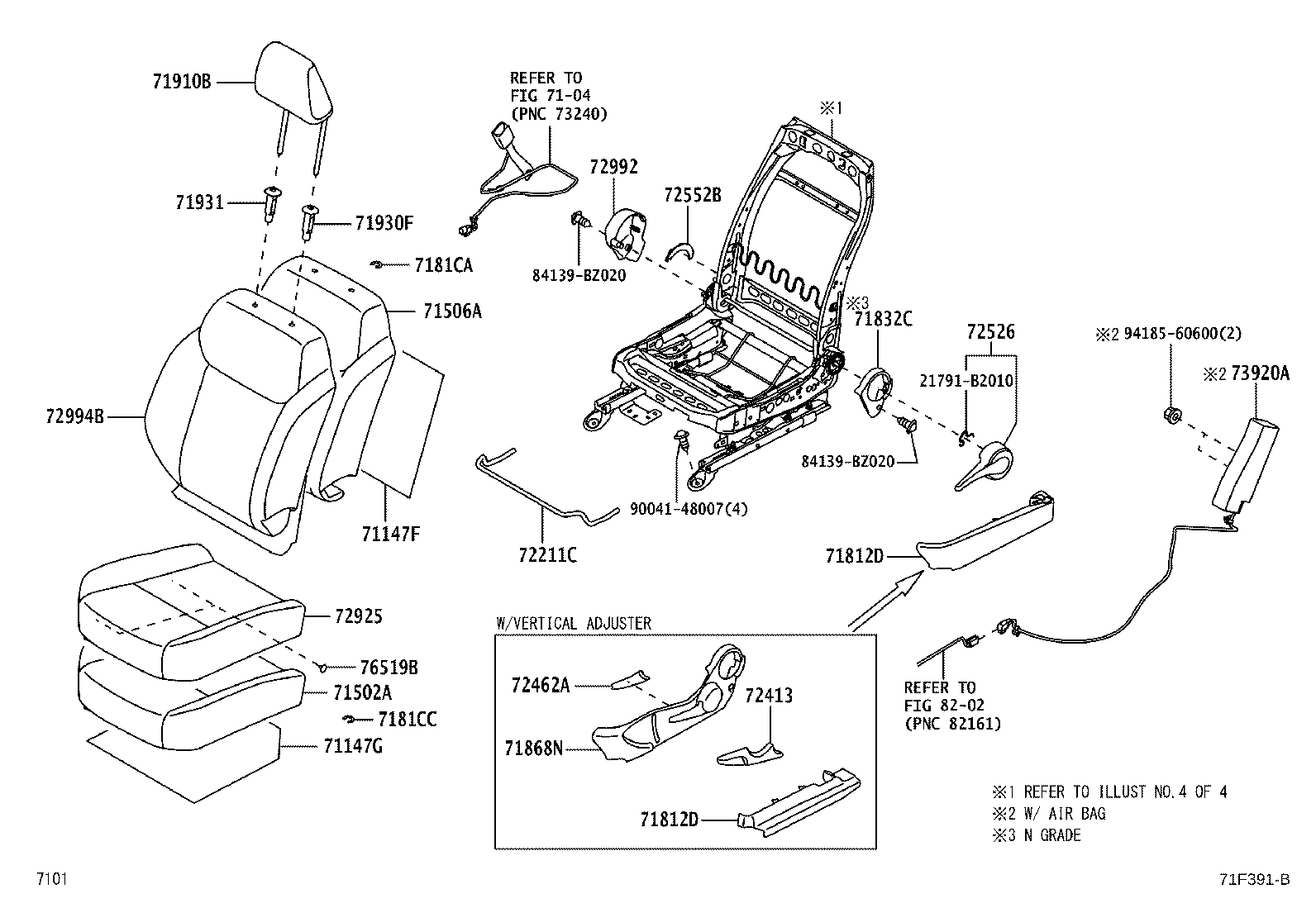

Illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71147 | Silencer, Seat Spring |
| 71147C | Silencer, Seat Spring |
| 71147D | Silencer, Seat Spring, RH(FOR SEATBACK) |
| 71147E | Silencer, Seat Spring, RH(FOR SEAT CUSHION) |
| 71147F | Silencer, Seat Spring, LH(FOR SEATBACK) |
| 71147G | Silencer, Seat Spring, LH(FOR SEAT CUSHION) |
| 71501 | Pad Sub-assy, Front Seat Cushion, RH |
| 71502A | Pad Sub-assy, Front Seat Cushion, LH |
| 71505A | Pad Sub-assy, Front Seatback, RH |
| 71506A | Pad Sub-assy, Front Seatback, LH |
| 71769C | Clip, Front Seat Cushion Cover |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181C | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CA | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CB | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 7181CC | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 71831B | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832C | Cover, Front LH Seat Hinge |
| 71832D | Cover, Front Seat Hinge, LH |
| 71867V | Shield, Front Seat Cushion, Front RH |
| 71868N | Shield, Front Seat Cushion, Front LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71910B | Headrest Assy, Front Seat |
| 71930A | Support Assy, Front Seat Headrest |
| 71930C | Support, Front Seat Headrest, LH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71931 | Support, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72127E | Cover, Seat Track Bracket, Inner Front |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72128E | Cover, Seat Track Bracket, Outer Front LH |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129A | Protector, Seat Track Lower Rail, NO.2 |
| 72130 | Track Assy, RH Seat, Inner |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72157F | Cover, Seat Track Bracket, Inner Rear RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72266C | Cover, Seat Track Upper Rail, LH |
| 72413 | Lever, Vertical Adjuster Lock |
| 72462 | Cover, Vertical Adjuster RH |
| 72462A | Cover, Vertical Adjuster LH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72538 | Cover, Reclining Hinge Outer, LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72637F | Spring, Seatback, RH |
| 72637G | Spring, Seatback, LH |
| 72925 | Cover, Front Seat Cushion |
| 72991C | Cover, Front Seat |
| 72992 | Cover, Front Seat Cushion, LH |
| 72993 | Cover, Front Seatback |
| 72993A | Cover, Front Seatback |
| 72993B | Cover, Front Seatback, RH |
| 72994 | Cover, Front Seatback |
| 72994A | Cover, Front Seatback |
| 72994B | Cover, Front Seatback, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 76519B | Clip, Front Seat Cushion Cover |
| 82711F | Clamp, Wiring Harness |
| 87231D | Protector |
| 87268Z | Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
