Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

9 part groups · 4 illustrations

Illustrations

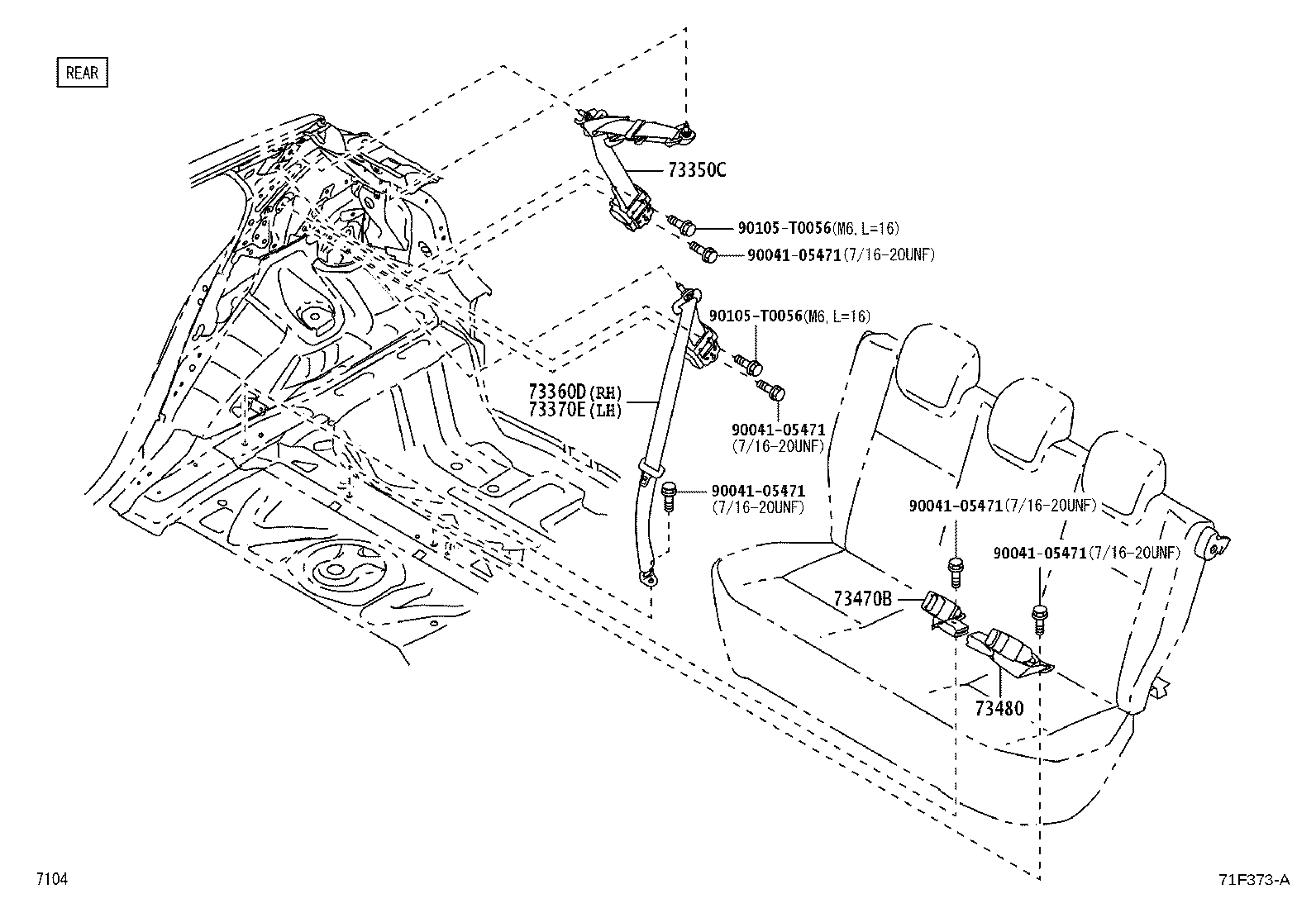

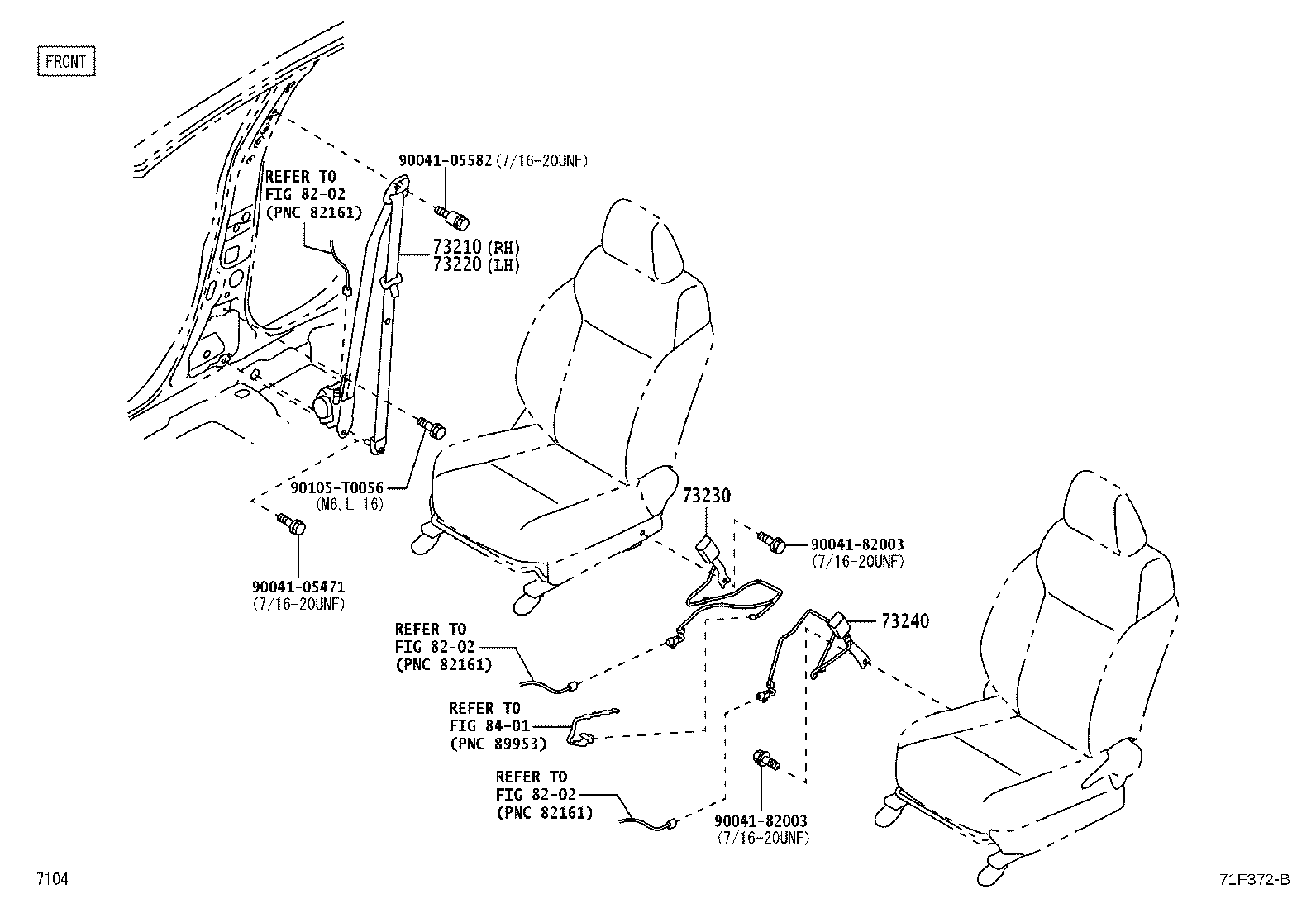

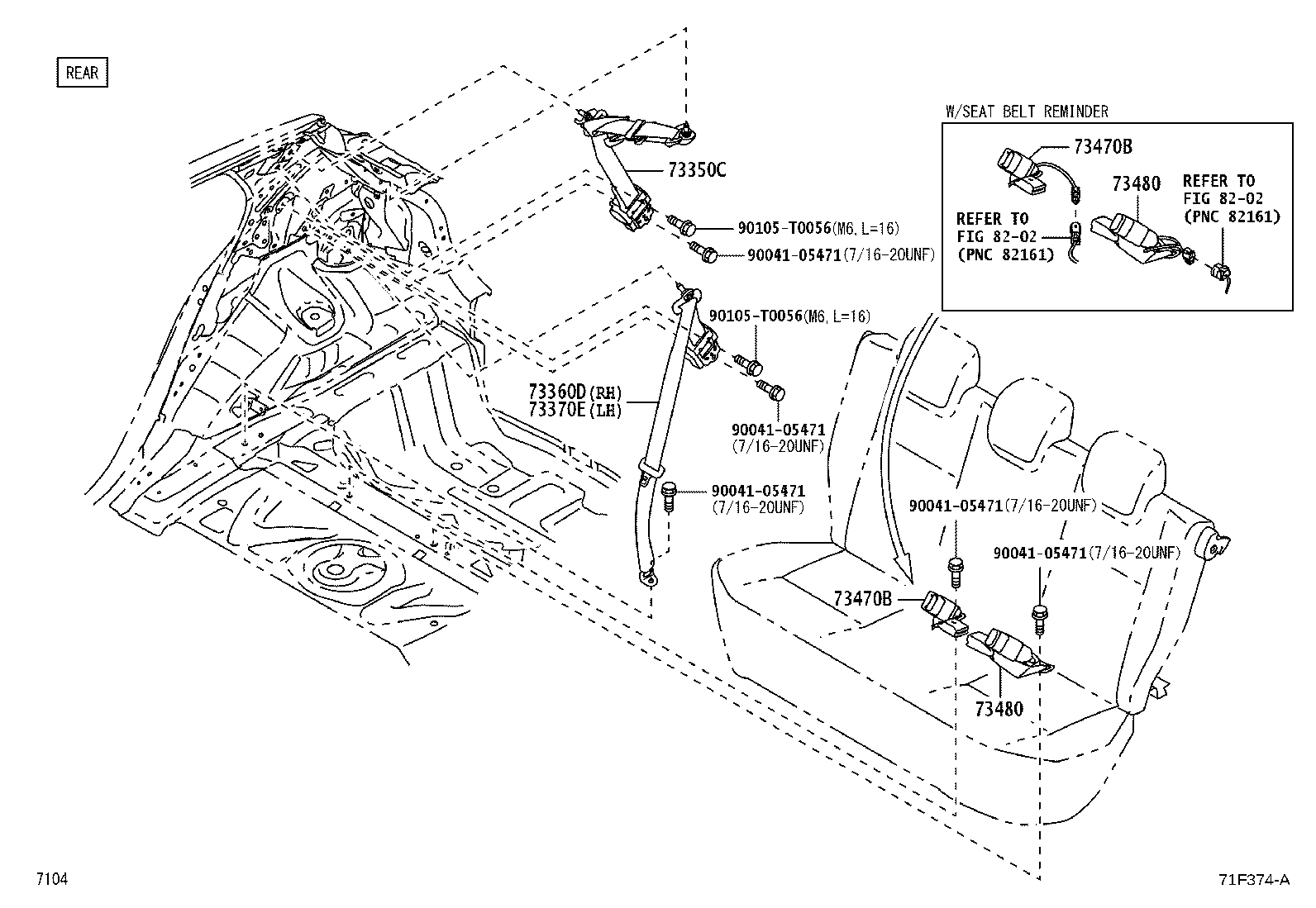

Figure 71F371B 71F371B 2023-03 → — Figure 71F372B 71F372B 2023-03 → — Figure 71F373A 71F373A 2023-03 → — Figure 71F374A 71F374A 2023-03 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360D Belt Assy, Rear Seat, Outer RH
73370E Belt Assy, Rear Seat, Outer LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
