Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07
Armrest & Visor
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

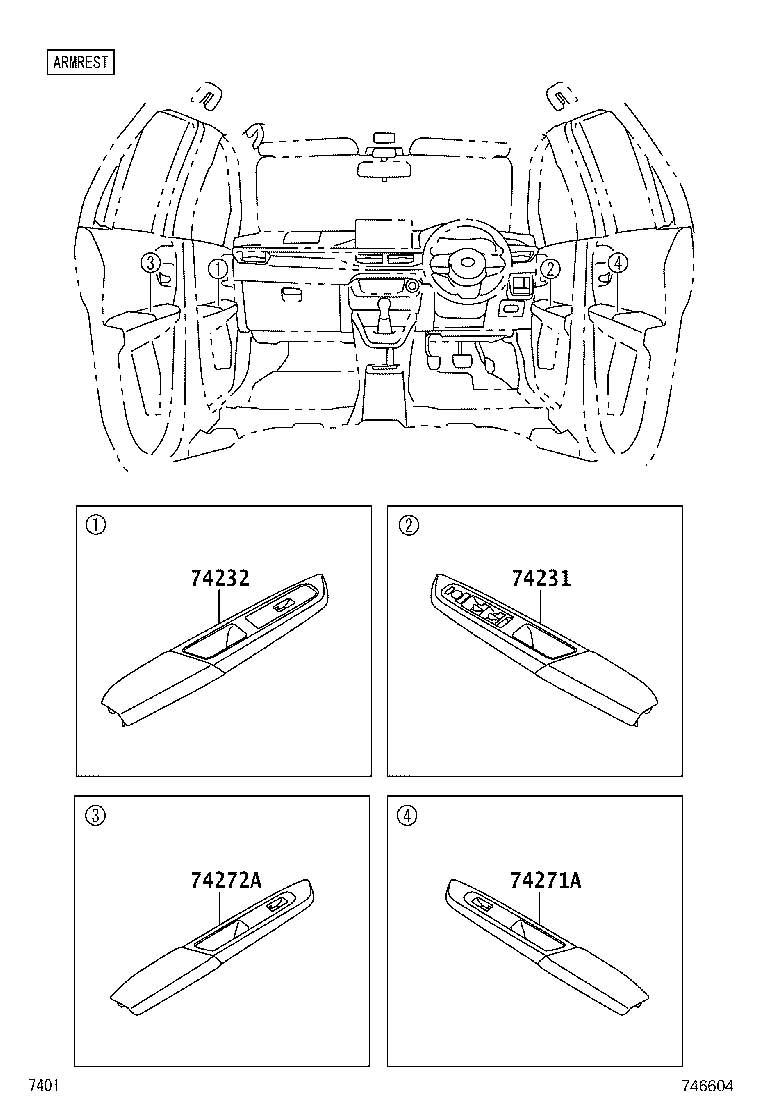

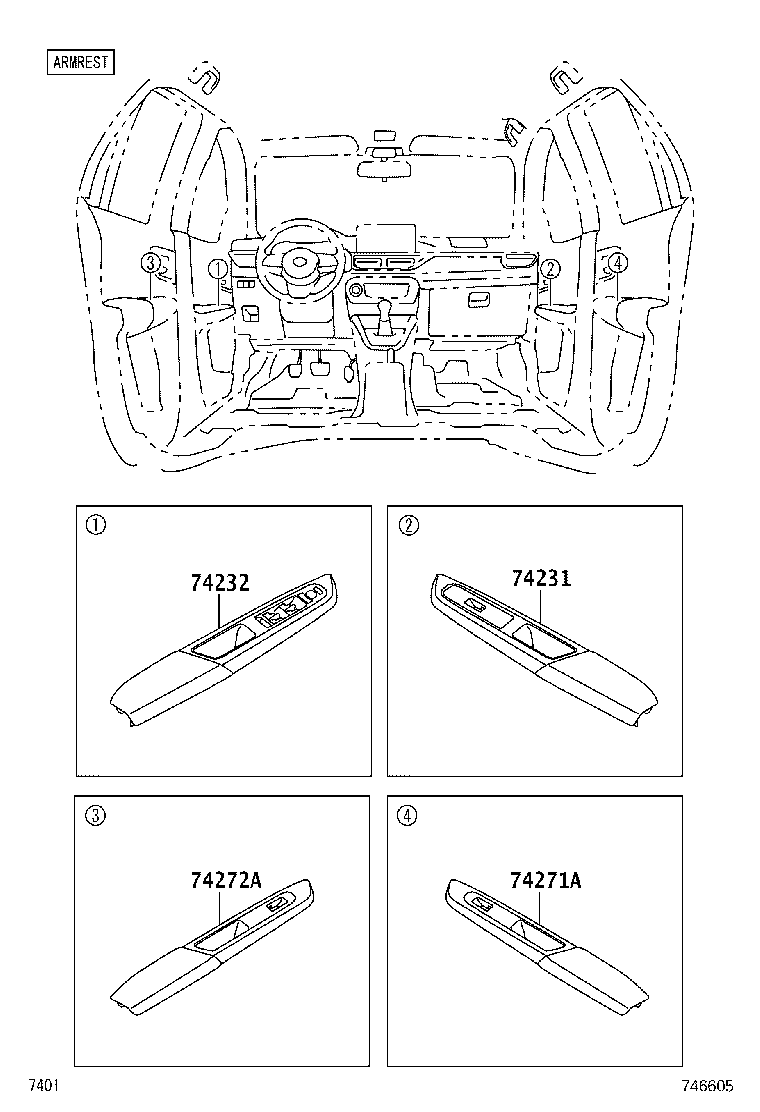

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |

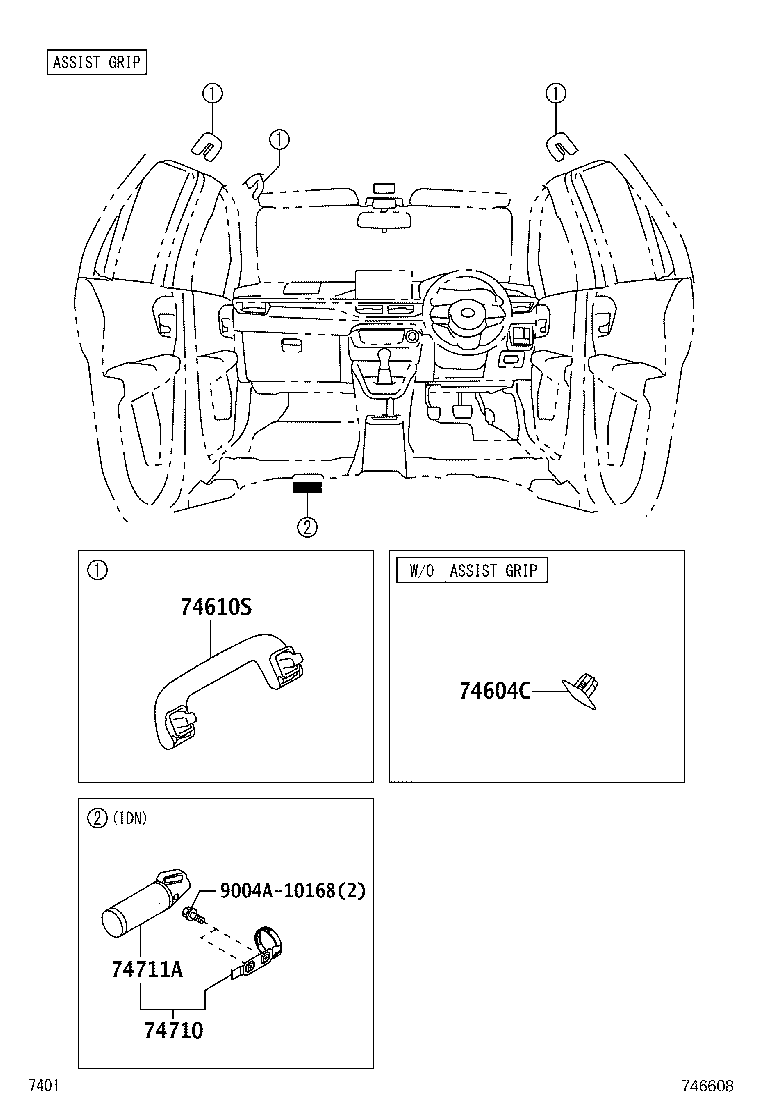

| 74604C | Plug, Hole (FOR ASSIST GRIP) |
| 74610S | Grip Assy, Assist |
| 74710 | Extinguisher Assy |
| 74711A | Extinguisher |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
