Toyota Agya/Wigo
2023-03 → present · chassis A35# · catalogue 136220 · General
Supported model
Data version 2023-07
Switch & Relay & Computer
51 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28850 | Sensor Assy, Battery Current |

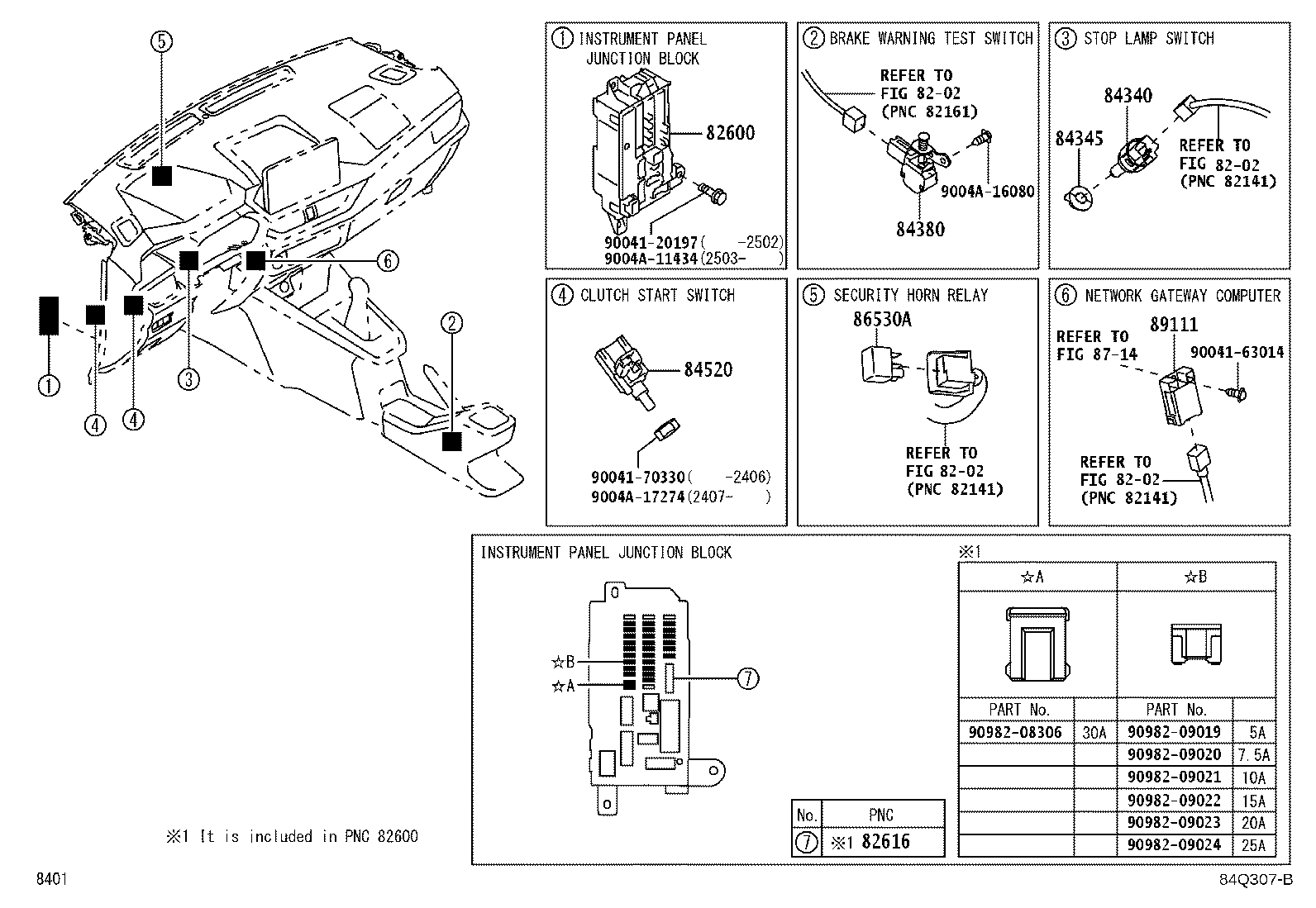

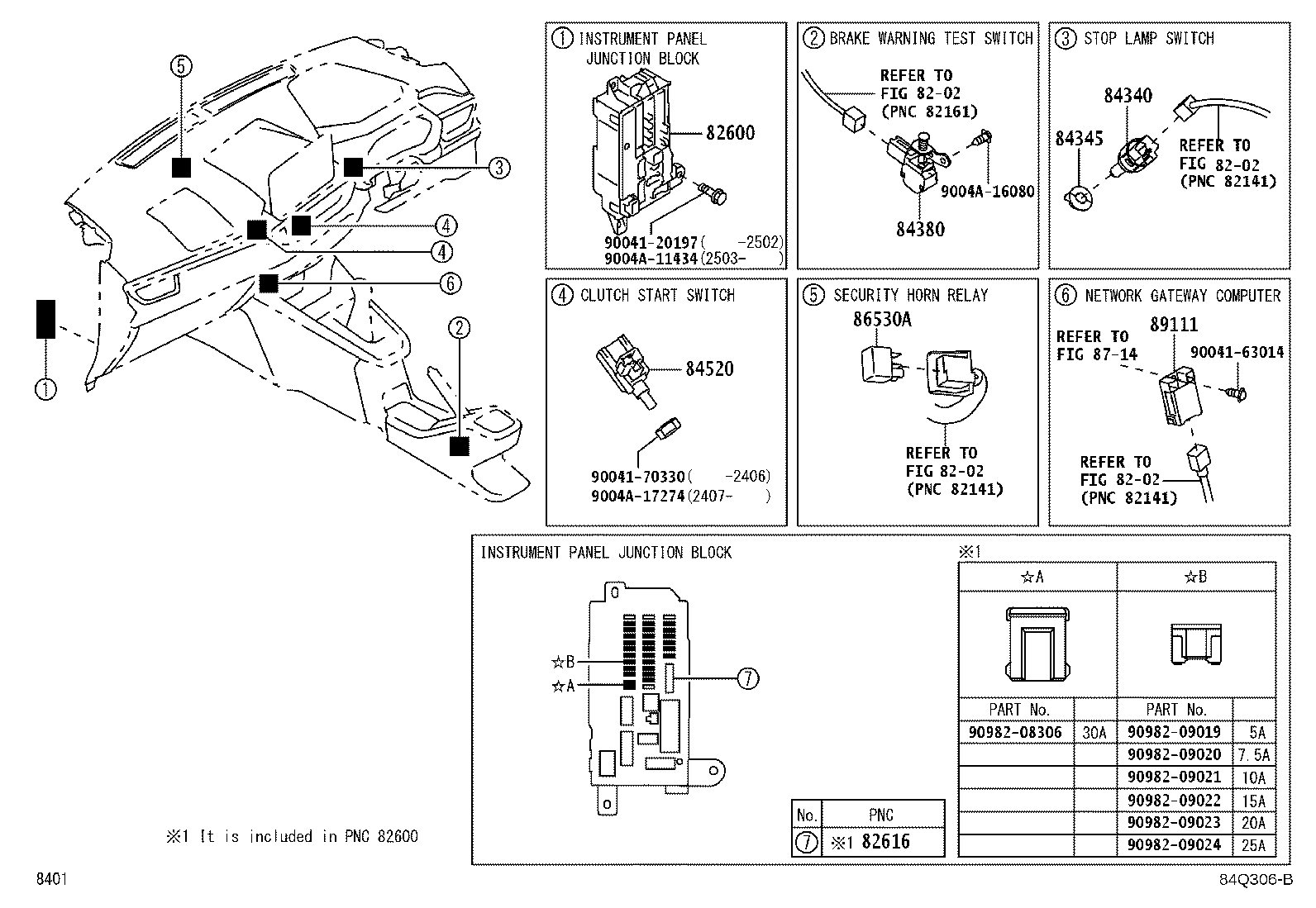

| 82600 | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82616A | Puller, Fuse, NO.2 |

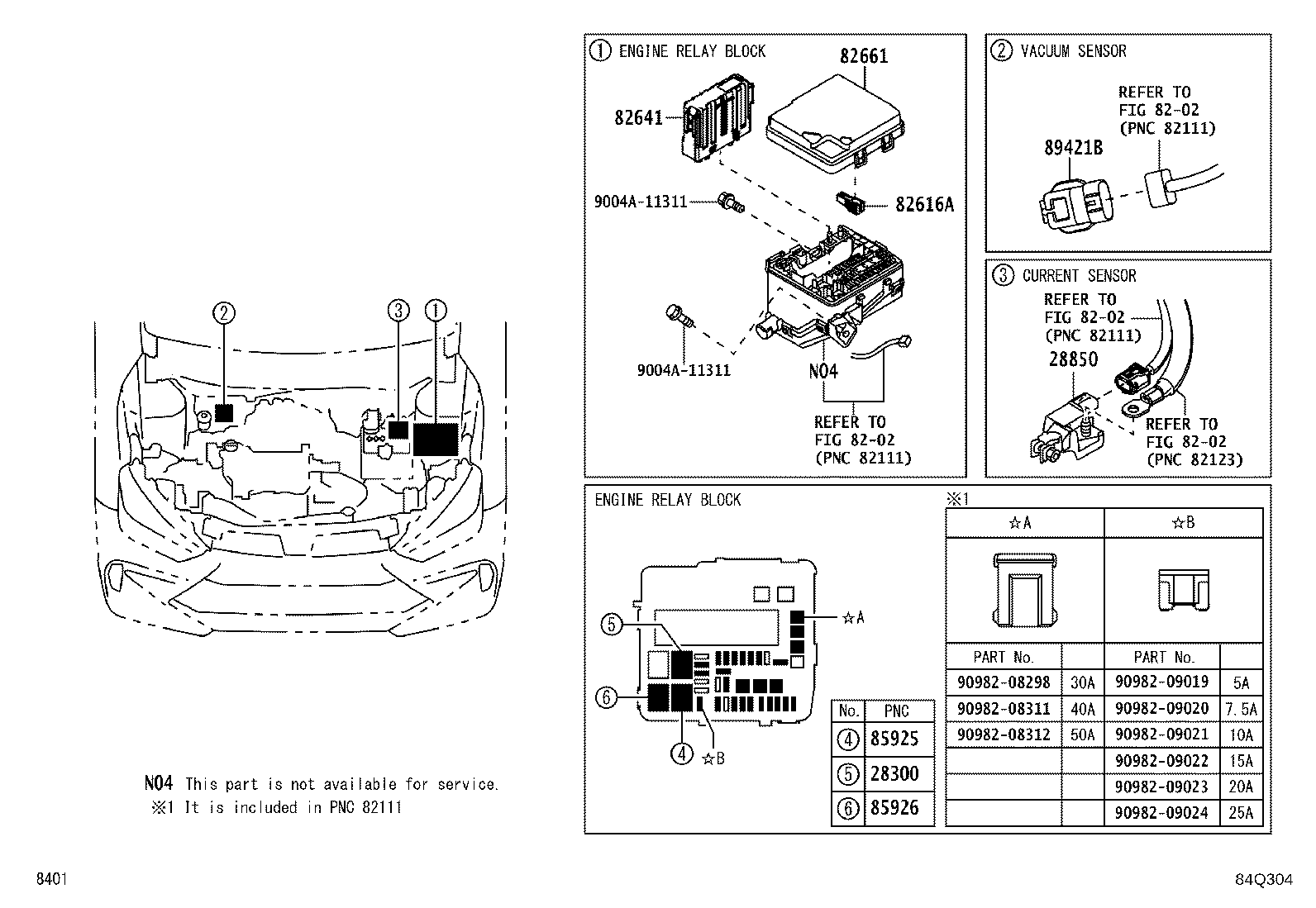

| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83950M | Lamp Assy, Telltale |

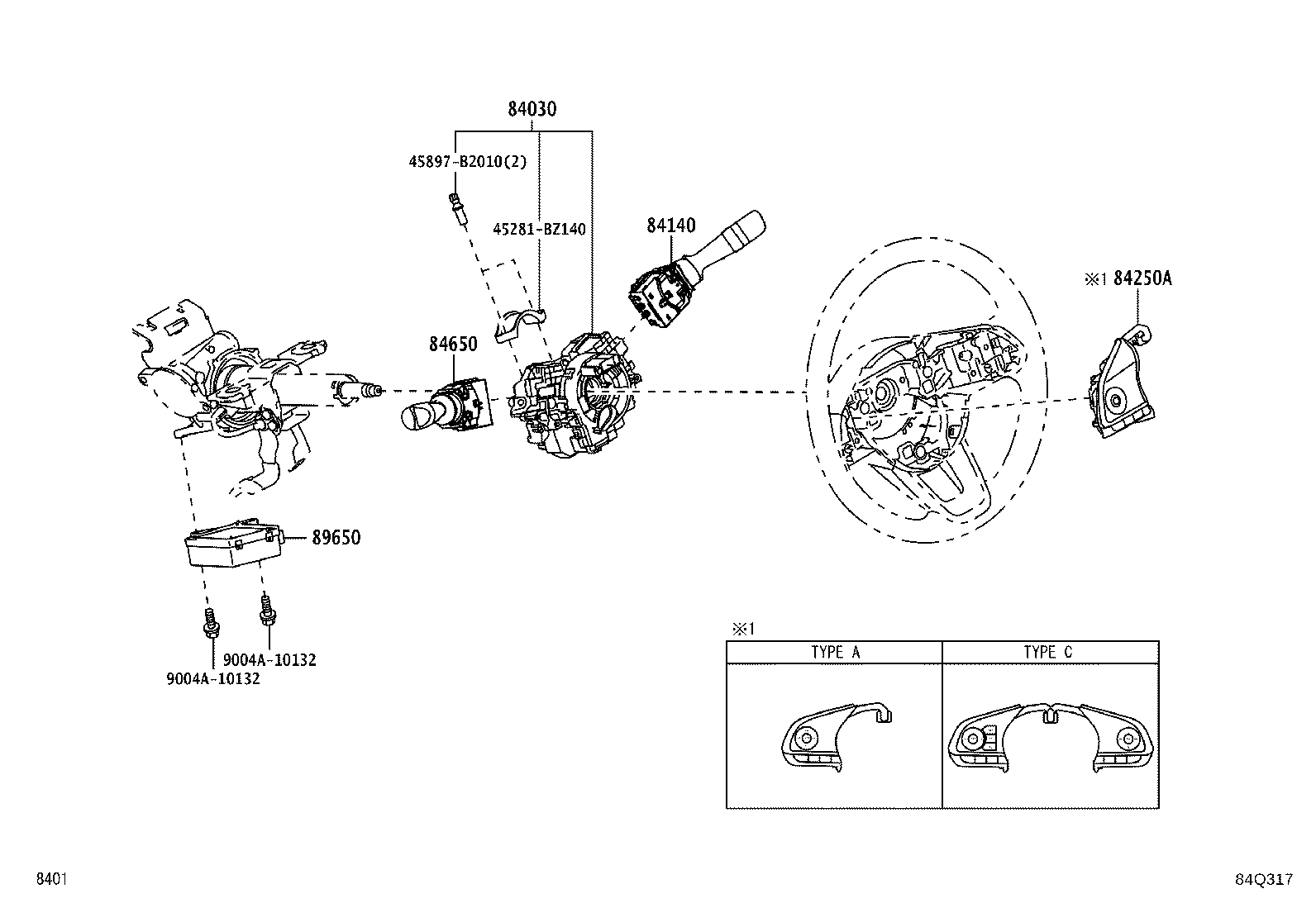

| 84030 | Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84231A | Switch, Courtesy Lamp |
| 84248 | Clamp, Center Cluster Module Switch Harness |
| 84250A | Switch Assy, Steering Pad |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84380 | Switch Assy, Brake Warning Test |

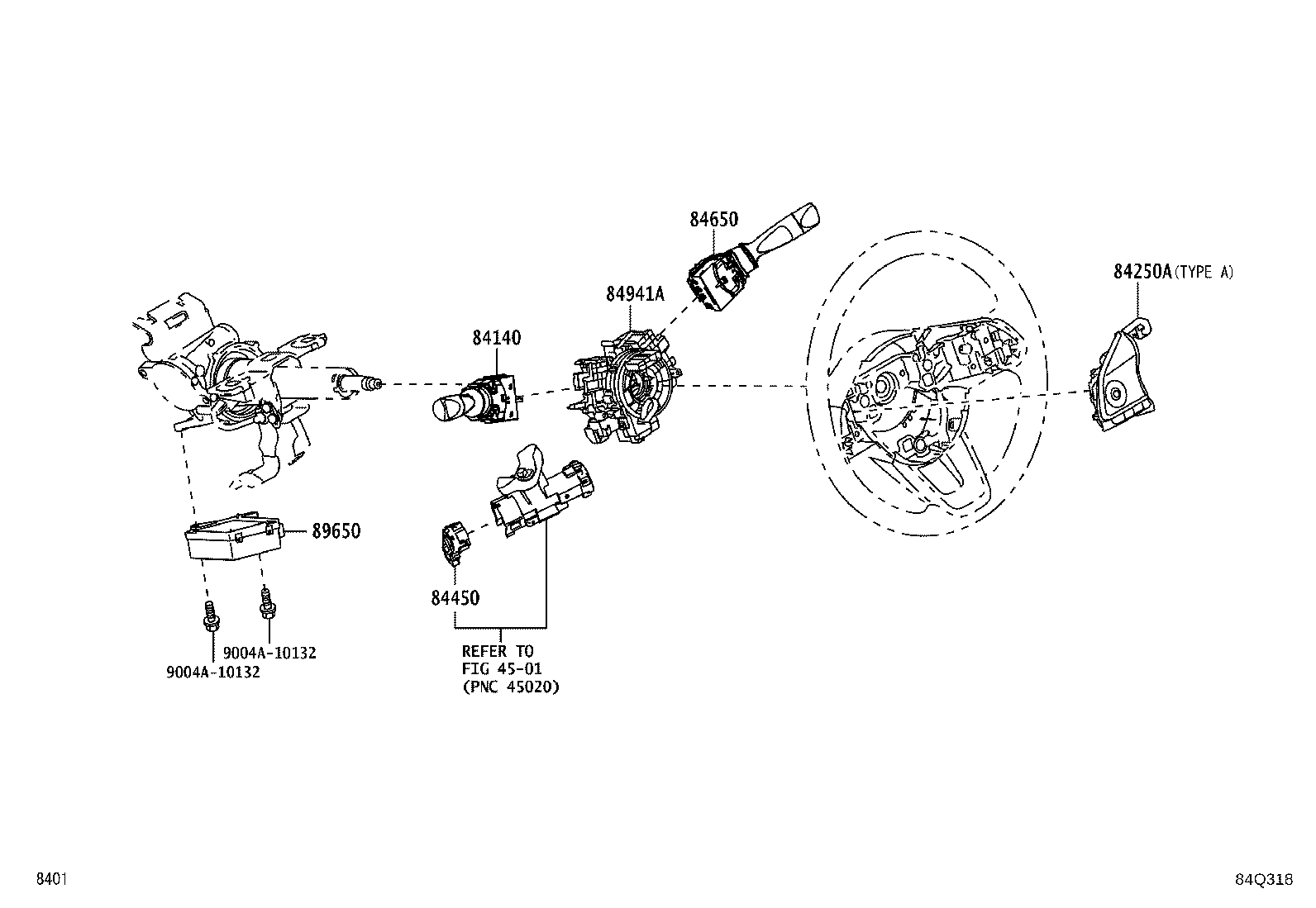

| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84545 | Switch, Neutral Position |
| 84650 | Switch Assy, Windshield Wiper |

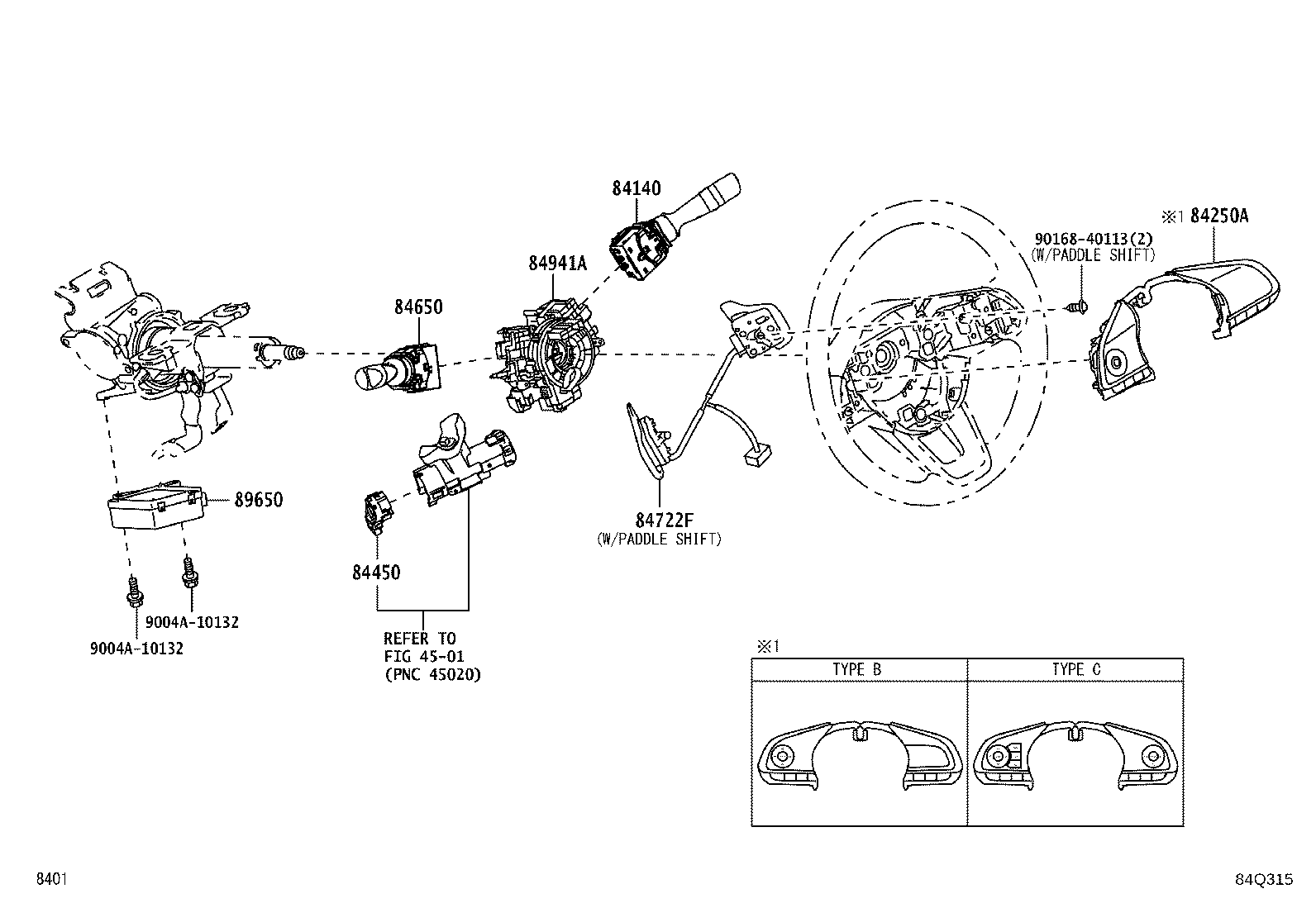

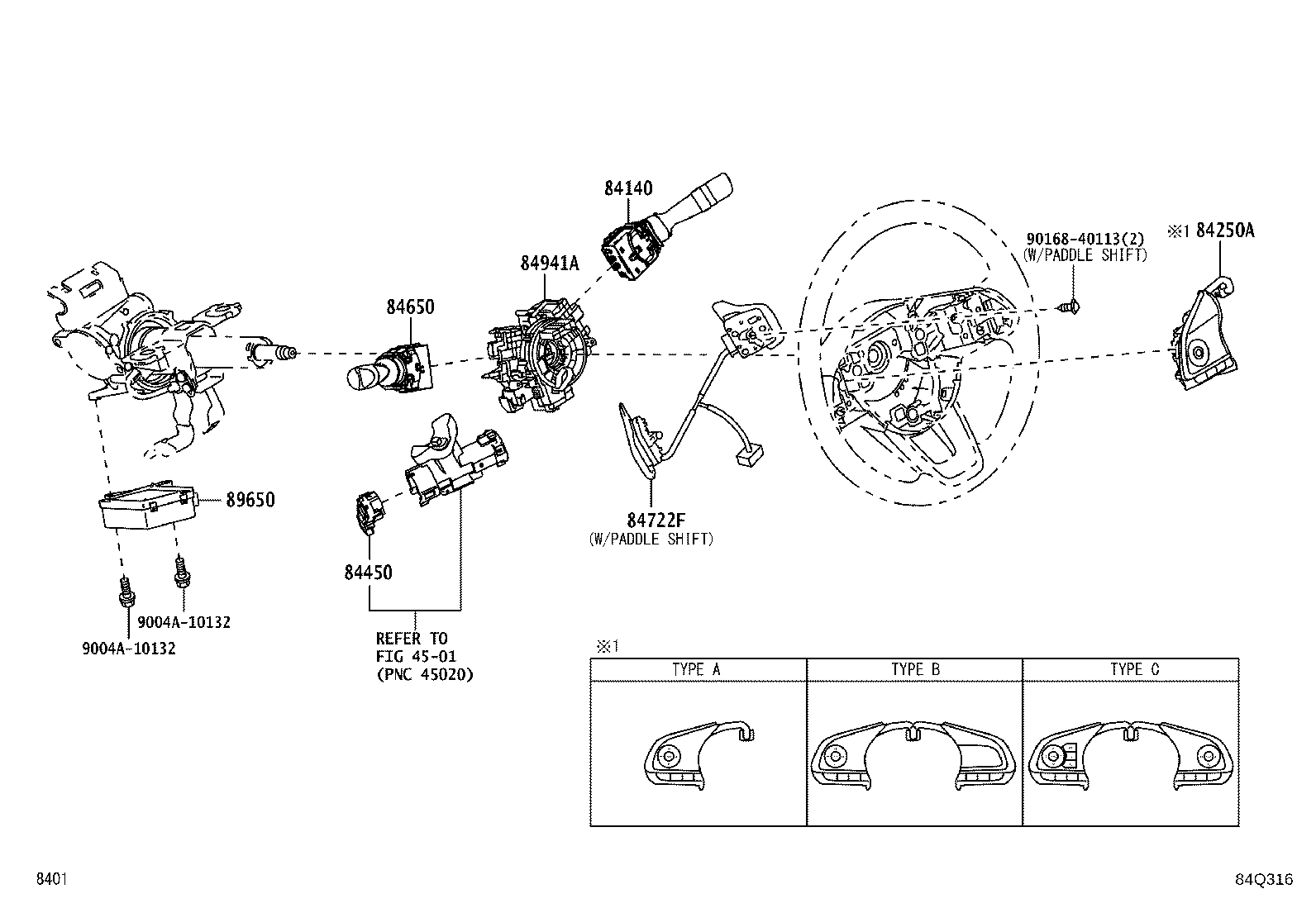

| 84722F | Switch, Transmission Control |

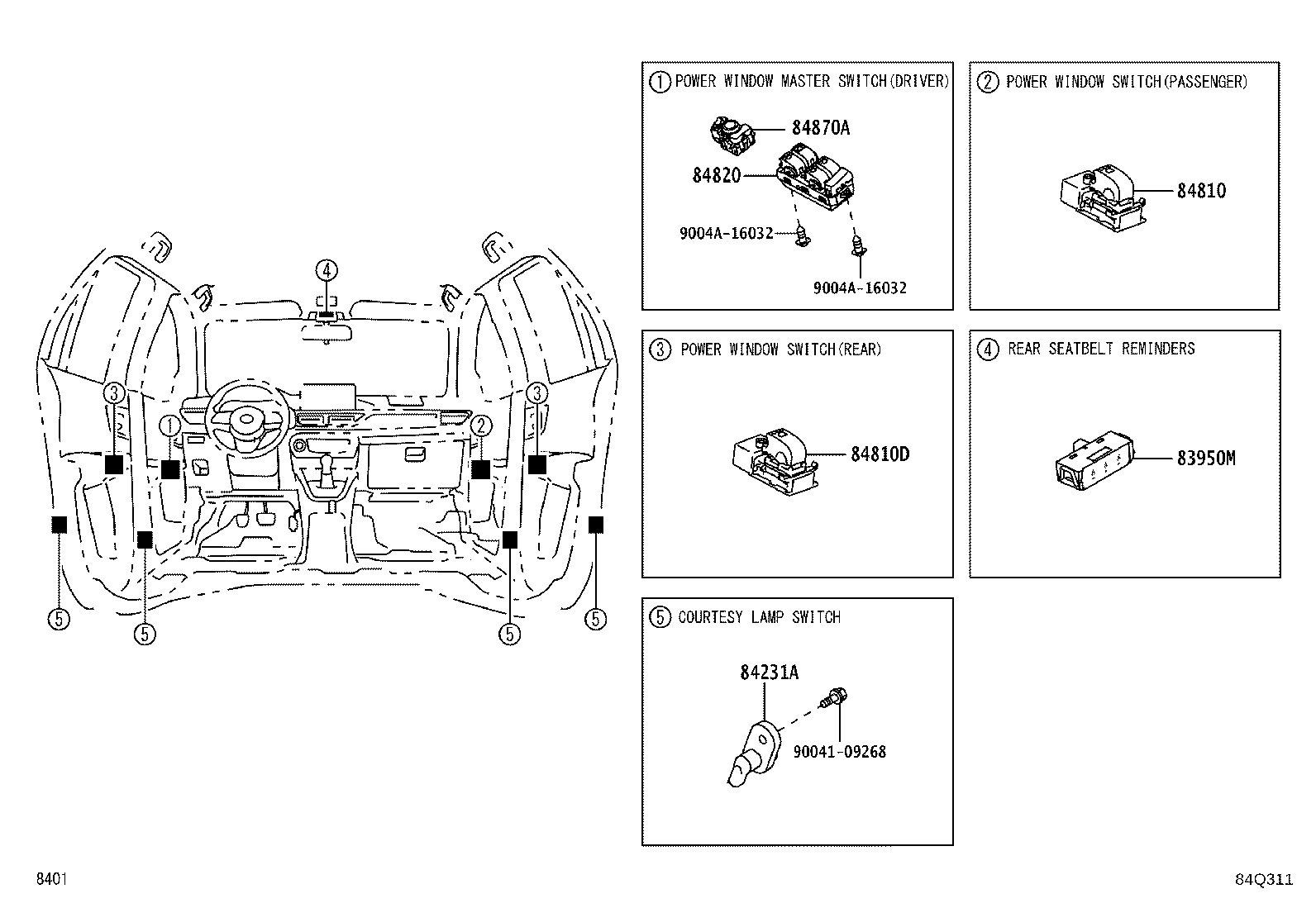

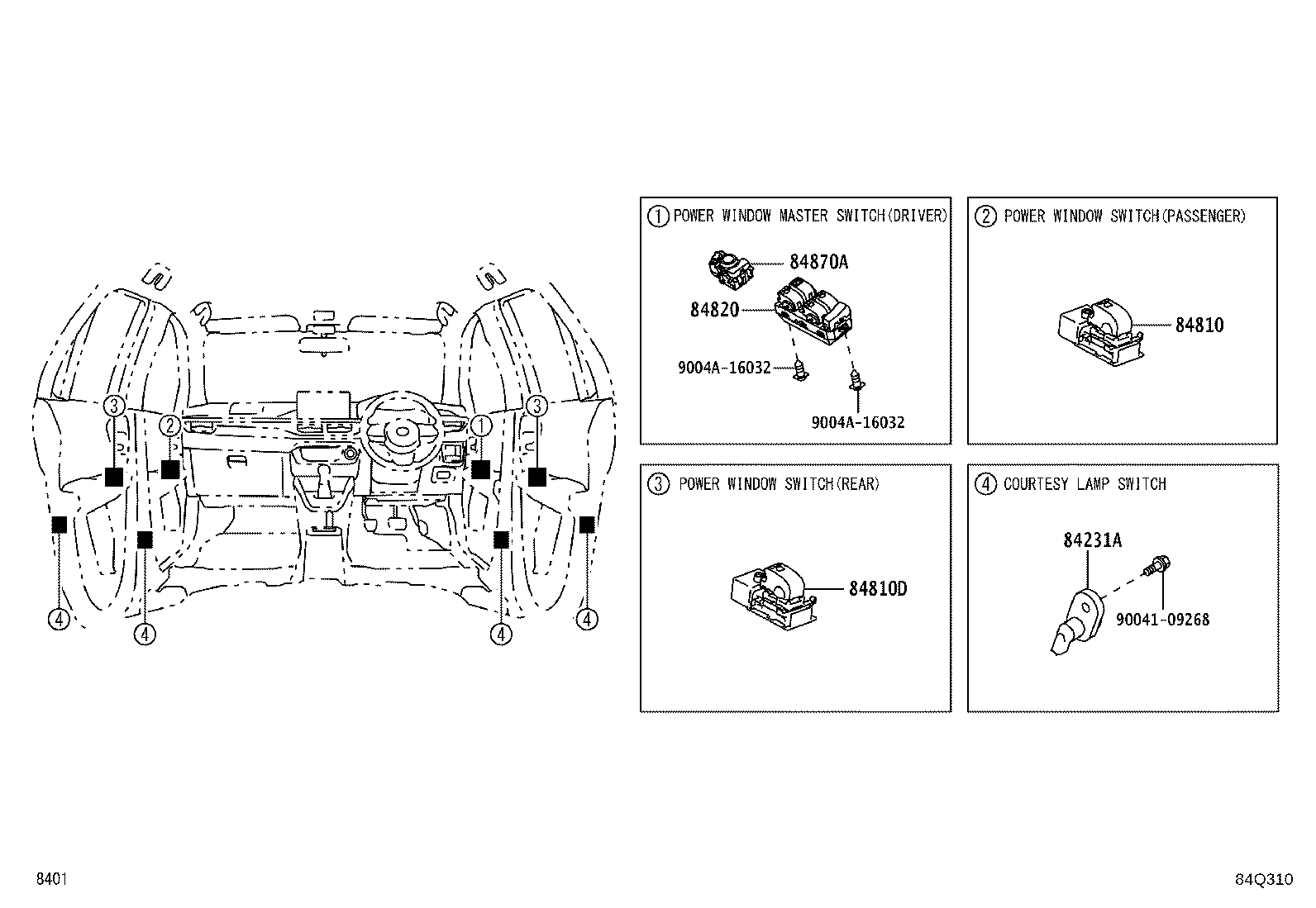

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |

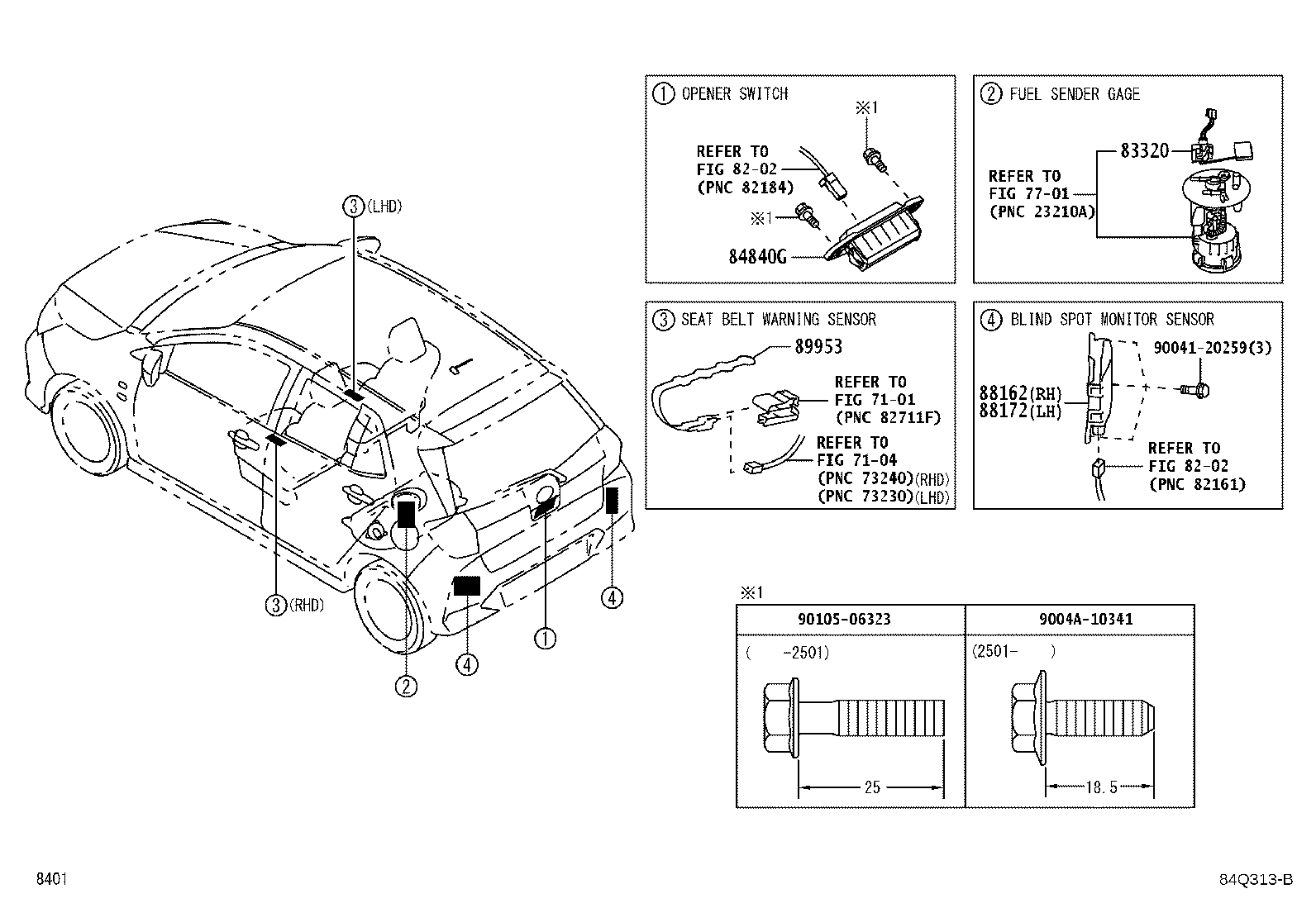

| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84941A | Base, Switch |
| 84986 | Switch, Vehicle Stability Control |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85925 | Relay, Radiator Fan |
| 85926 | Relay, Headlamp Dimmer |
| 86530A | Relay, Horn |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89421B | Sensor, Vacuum |
| 89422A | Sensor, Water Temperature |
| 89439 | Bracket, Sensor |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |

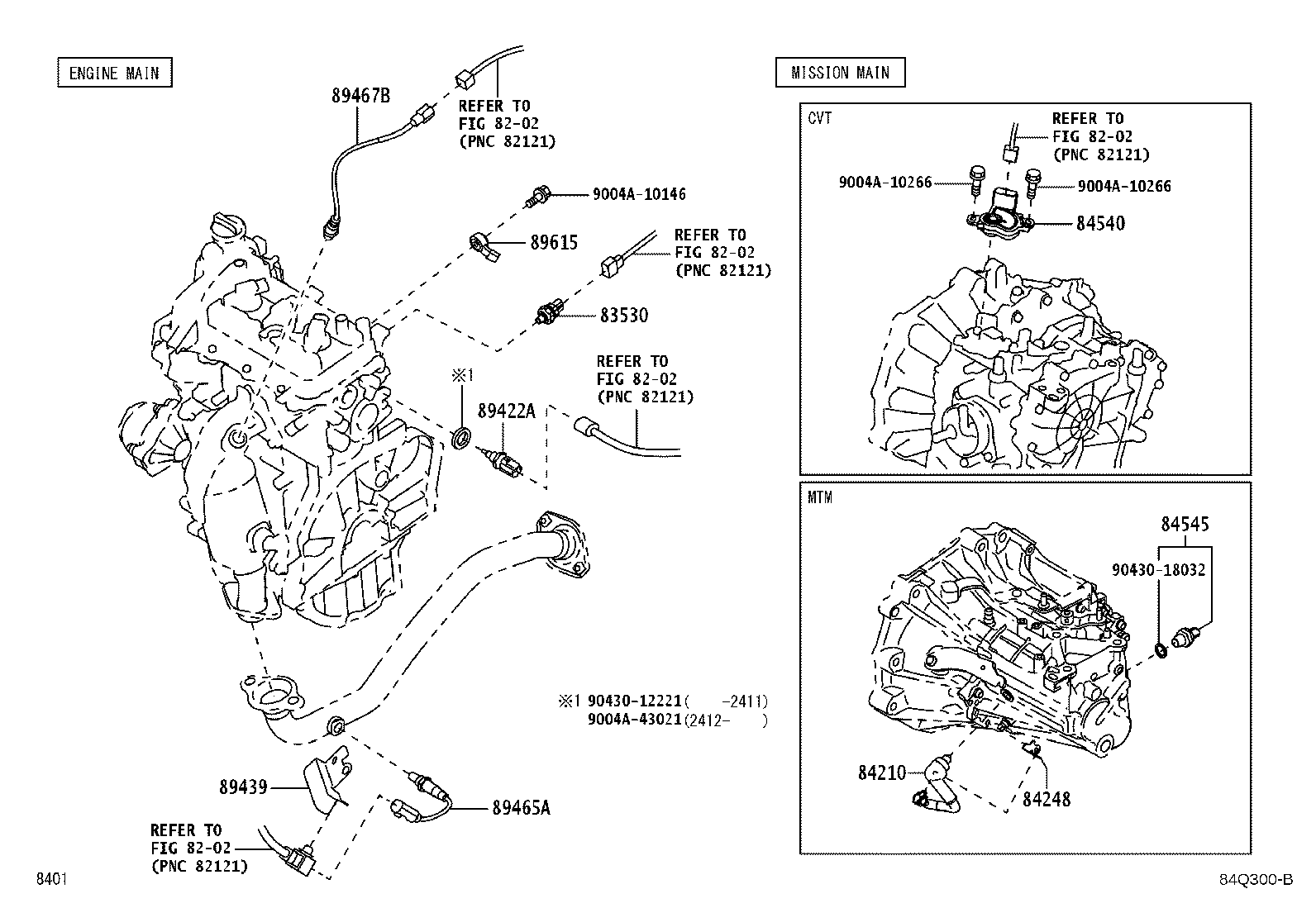

| 89467B | Sensor, Air Fuel Ratio |

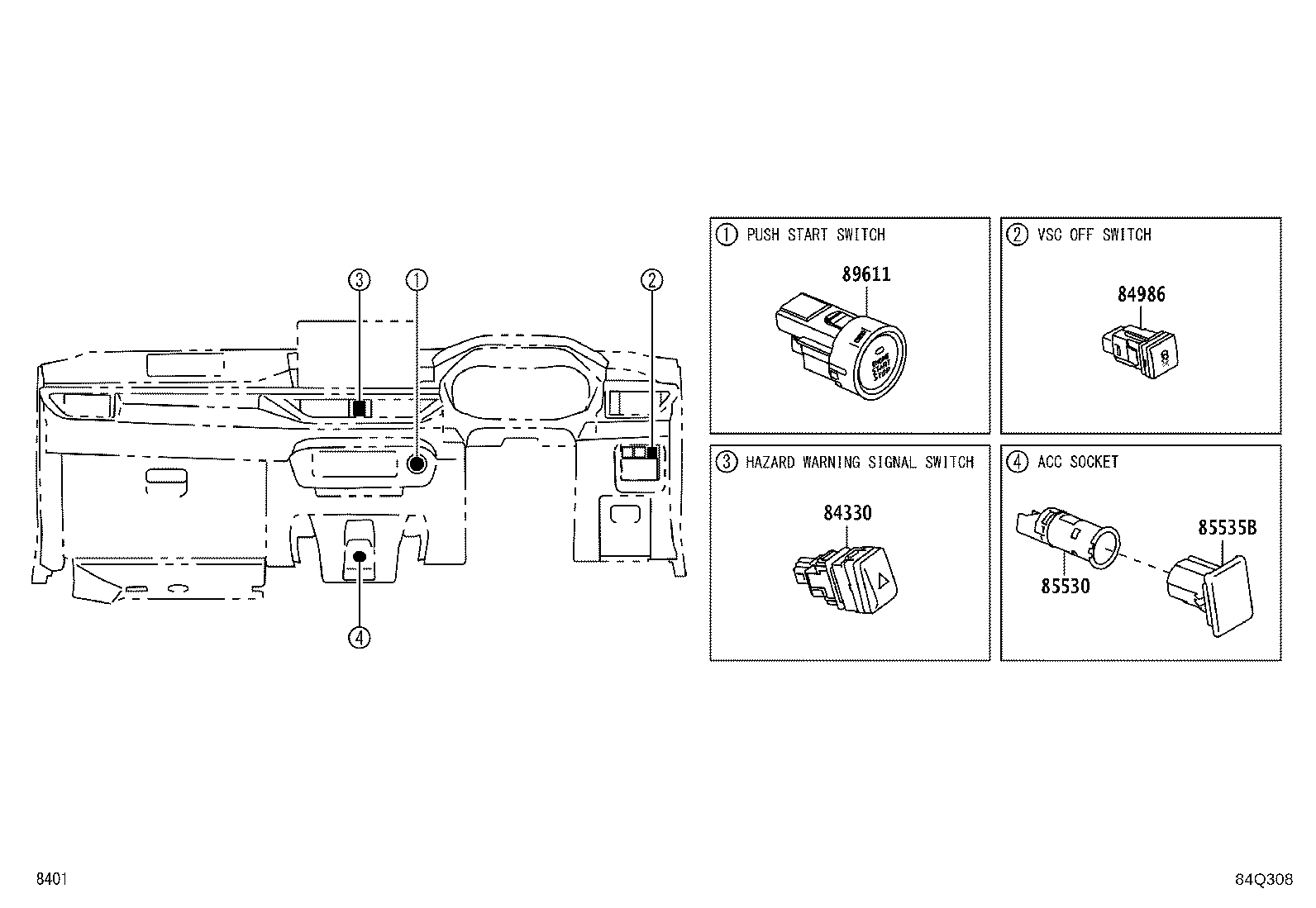

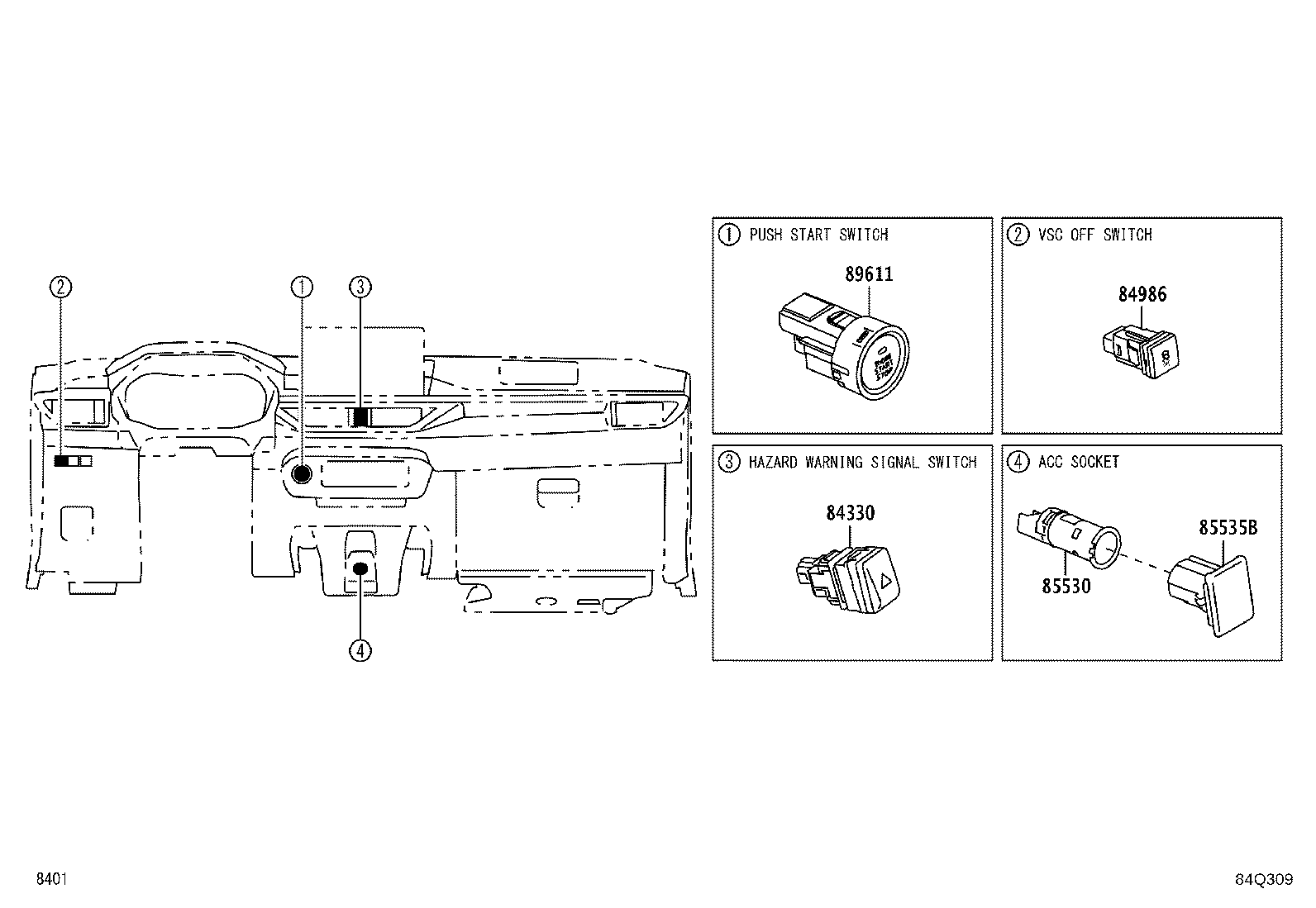

| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89953 | Sensor, Belt Warning Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
