Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 3 illustrations

Illustrations

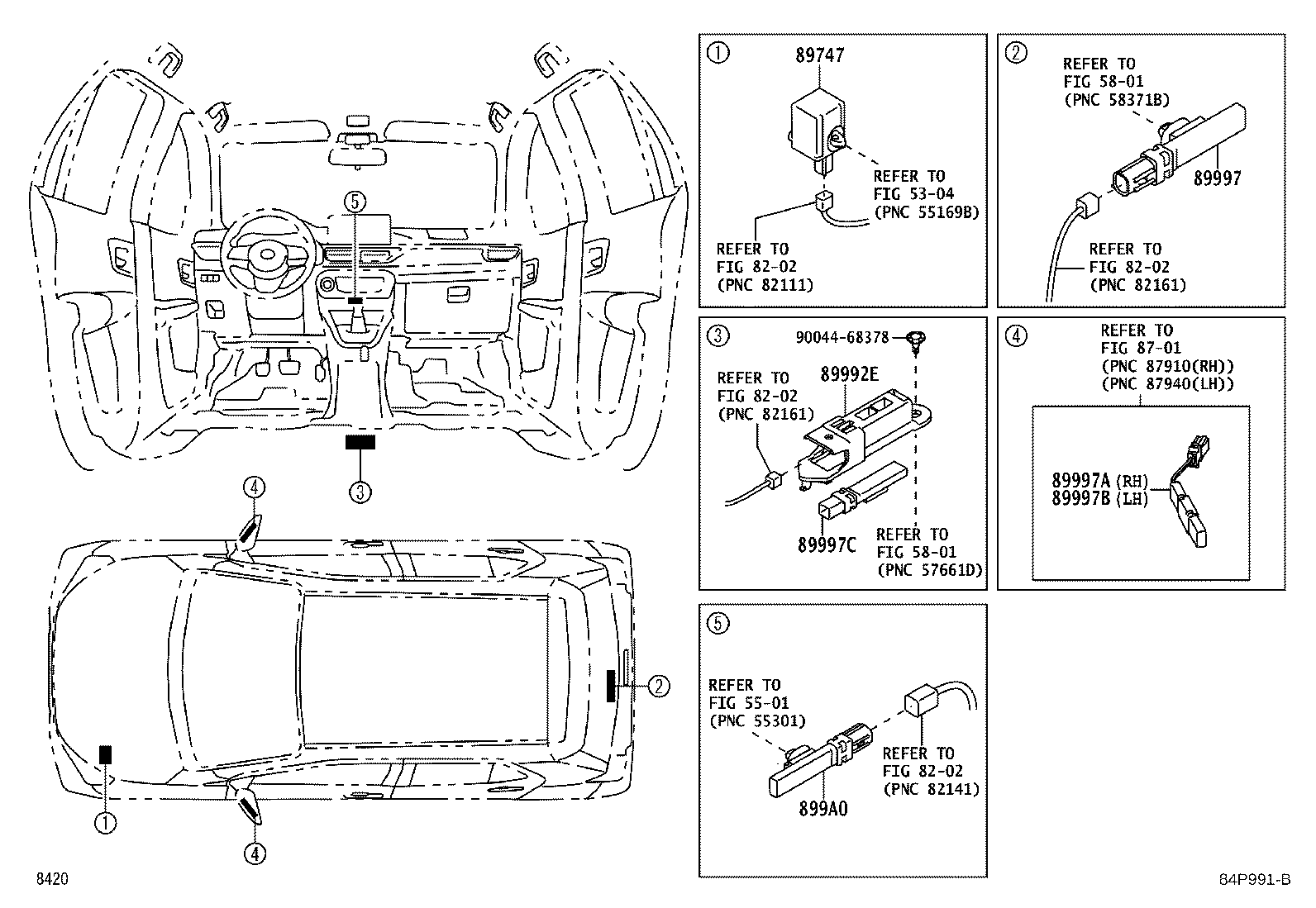

Figure 84Q070A 84Q070A 2023-03 → — Figure 84Q070A 84Q070A 2023-06 → — Figure 84P991B 84P991B 2023-03 → —

Part groups

PNCDescription
89747 Buzzer, Wireless Door Lock
89992E Case, Less Oscillator Electrical Key
89997 Antenna, Electrical Key
89997A Antenna, Electrical Key, NO.2
89997B Antenna, Electrical Key, NO.3
89997C Antenna, Electrical Key, NO.4
899A0 Antenna Assy, Indoor Electrical Key, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
