Toyota Agya/Wigo

2023-03 → present · chassis A35# · catalogue 136220 · General

Supported model Data version 2023-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

27 part groups · 5 illustrations

Illustrations

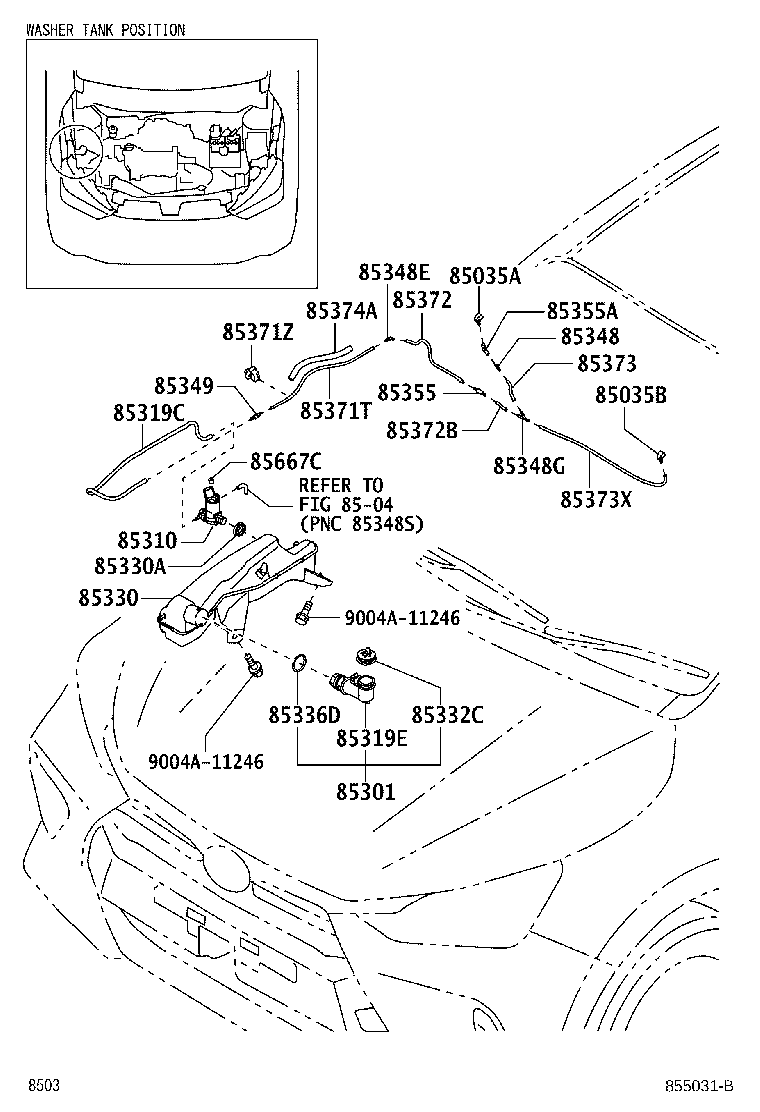

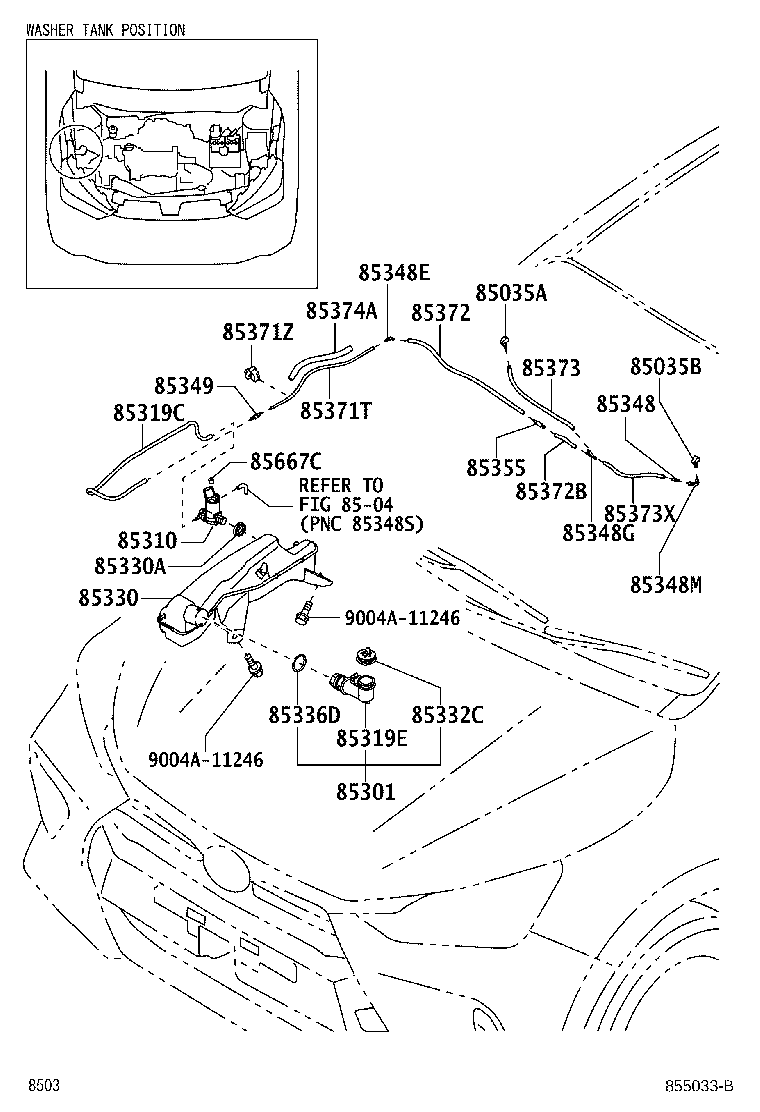

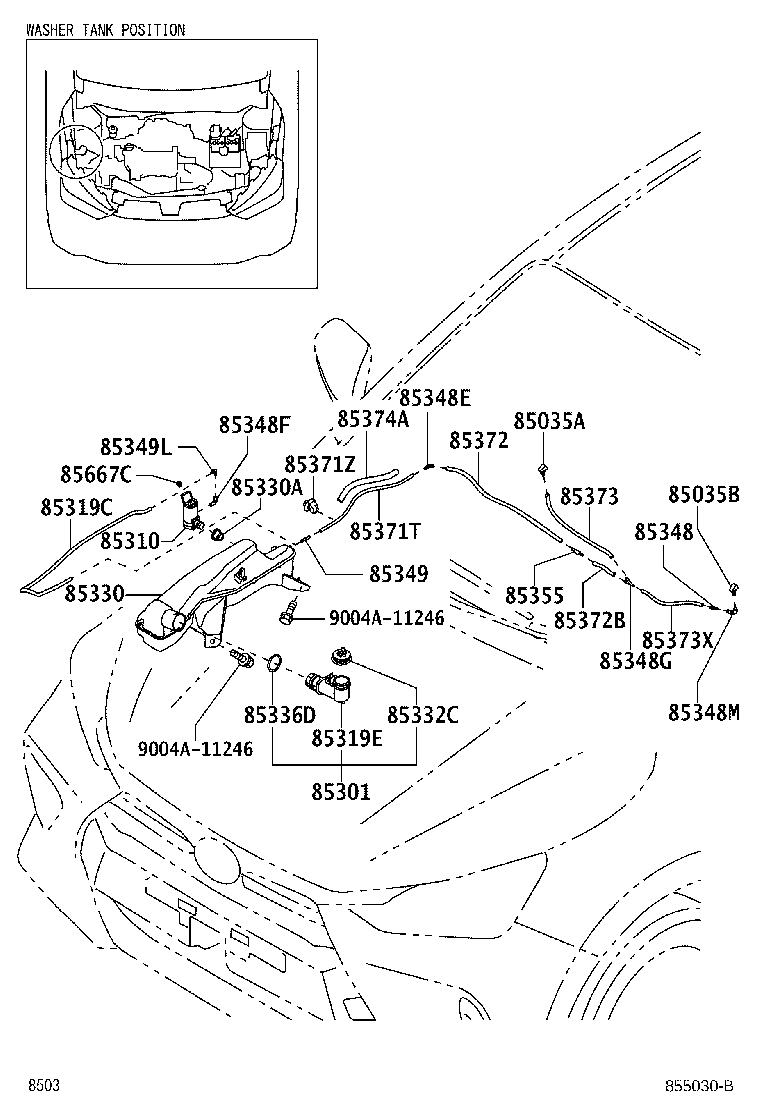

Figure 855028B 855028B 2023-03 → — Figure 855030B 855030B 2023-06 → — Figure 855031B 855031B 2023-03 → — Figure 855031B 855031B 2023-06 → — Figure 855033B 855033B 2023-03 → —

Part groups

PNCDescription
85035A Nozzle, FR Washer, RH
85035B Nozzle, Front Washer, LH
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319C Hose, Washer
85319E Inlet Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332C Cap, Front Washer Tank
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348F Joint, Windshield Washer Elbow, NO.3
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85349 Joint, Windshield Washer Hose, NO.1
85349L Joint, Windshield Washer Elbow, NO.1
85355 Valve, Windshield Washer Hose
85355A Joint, Windshield Washer Elbow
85371T Hose, Windshield Washer (FROM JOINT TO JOINT)
85371Z Clamp, Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85373X Hose, Windshield Washer (FROM JOINT TO NOZZLE), NO.2
85374A Protector, Washer Hose
85667C Cover, Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
