Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

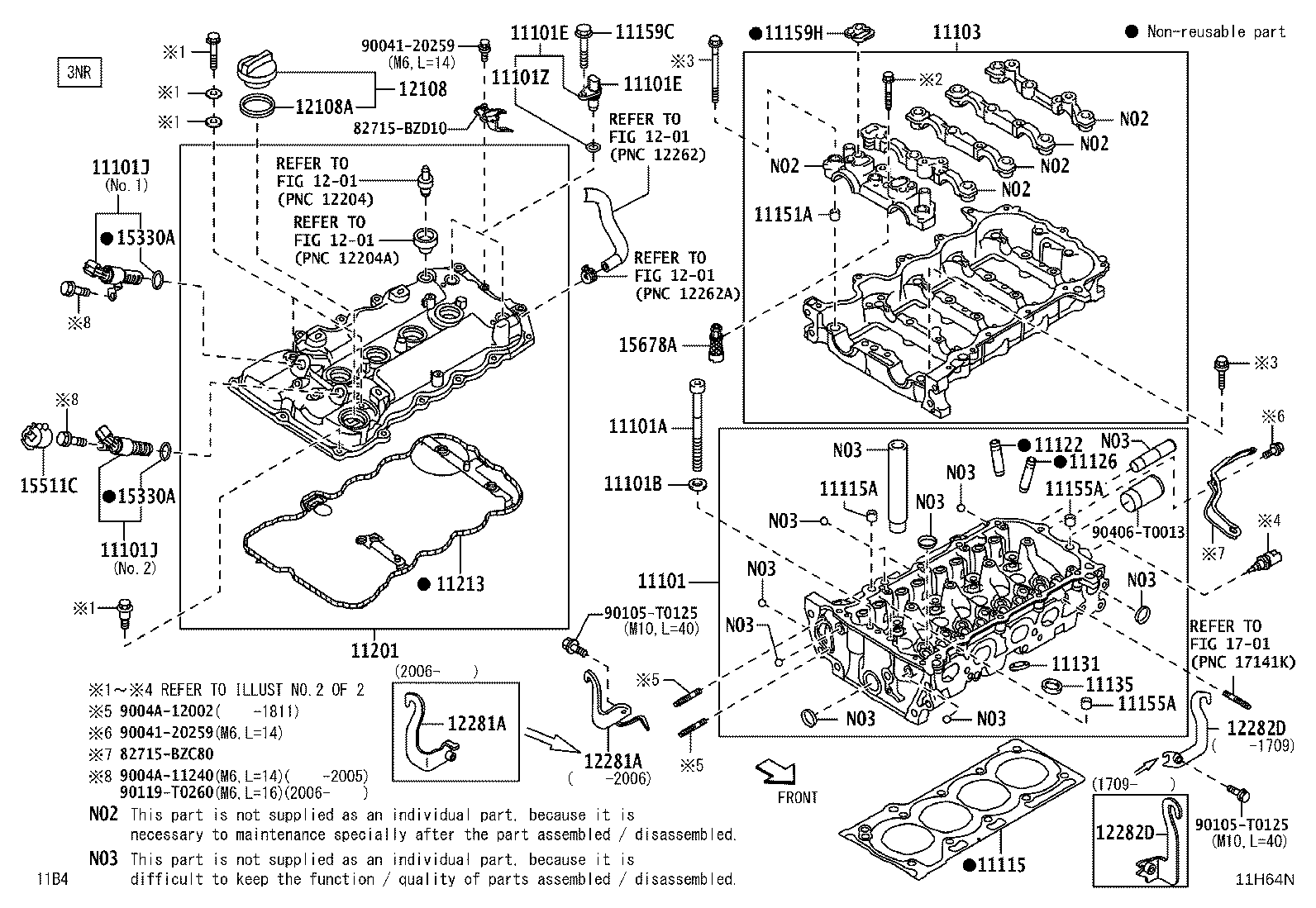

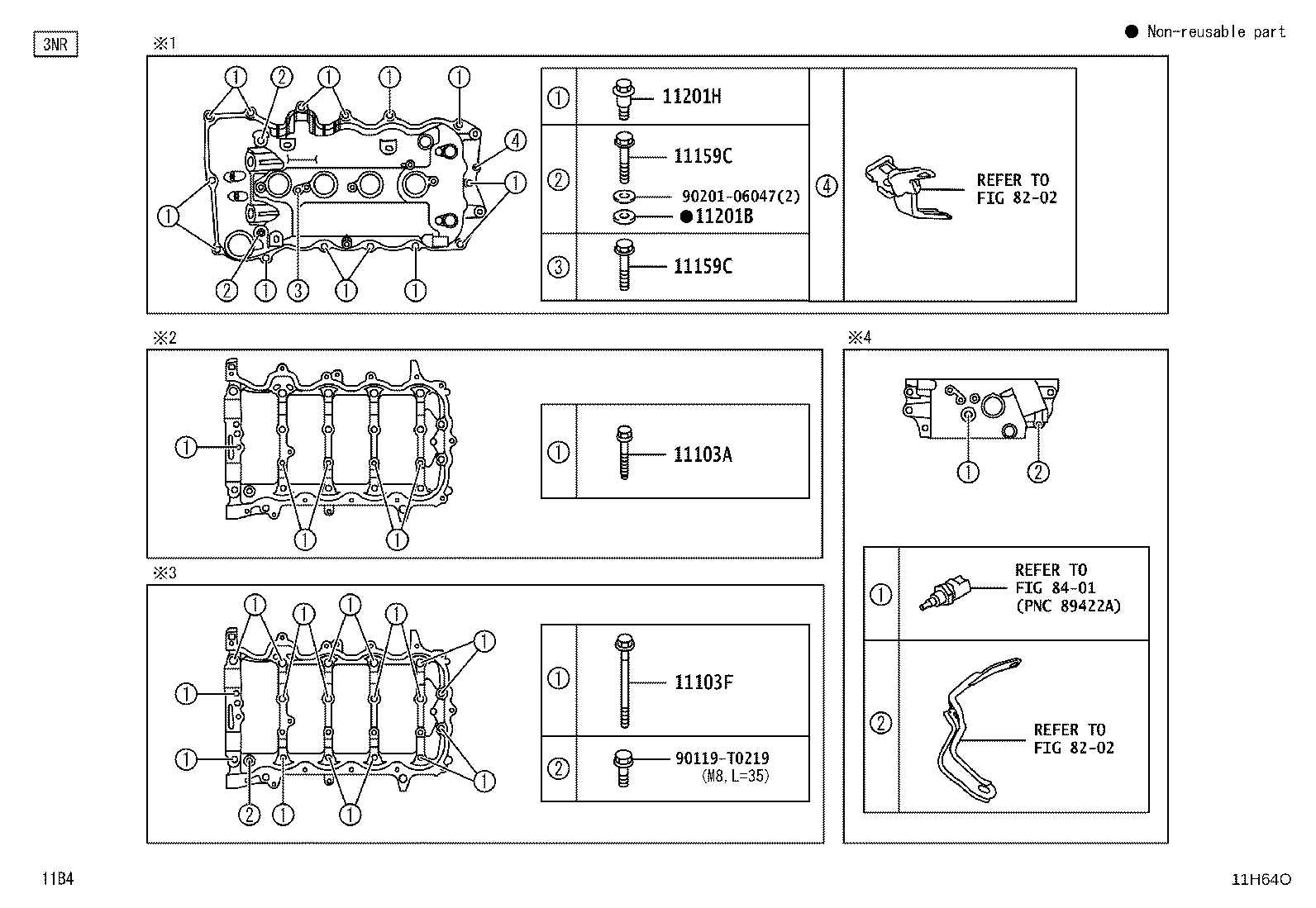

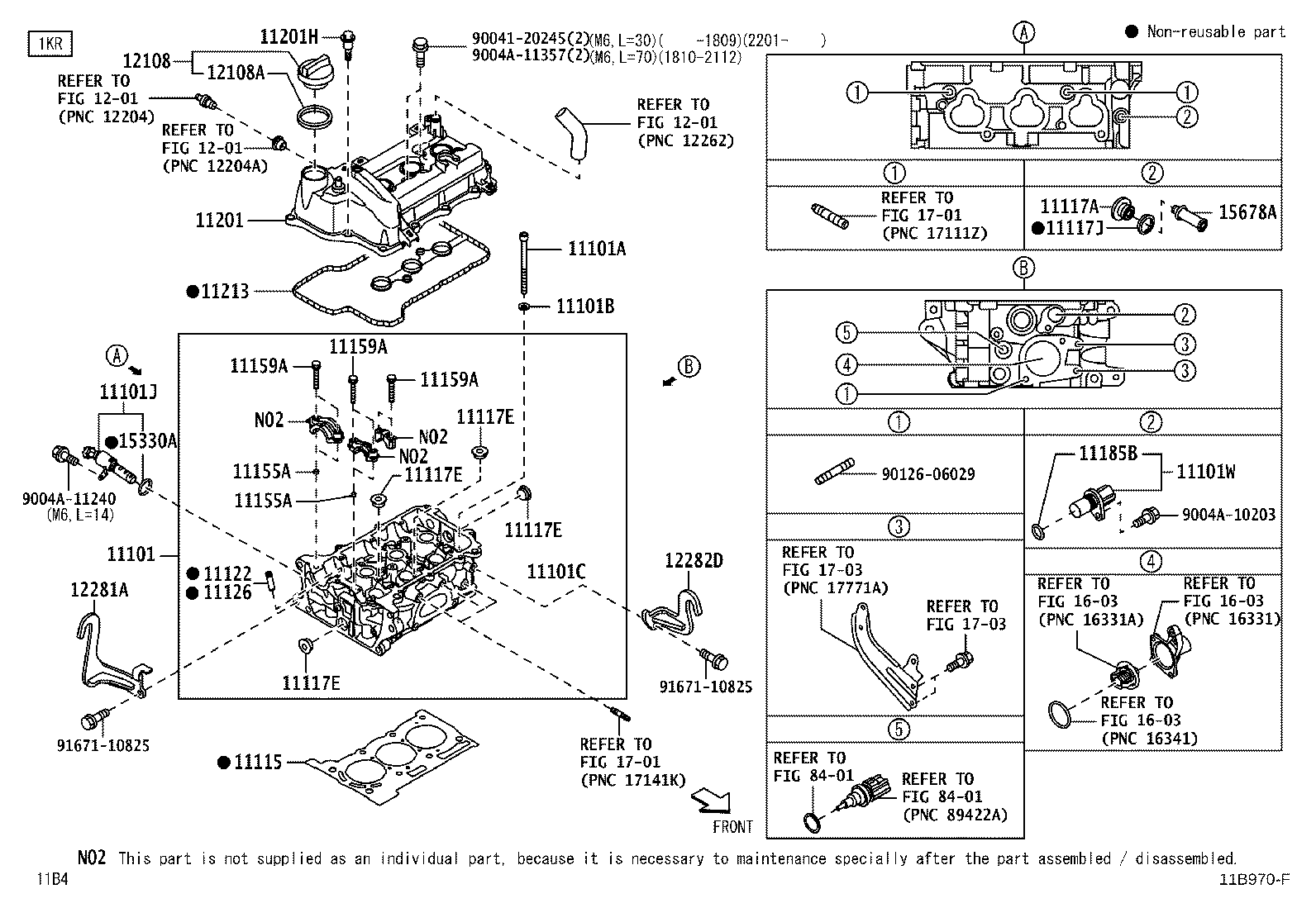

Cylinder Head
37 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101C | Tube(FOR CYLINDER HEAD) |
| 11101E | Sensor, Cam Position |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101W | Sensor, Crank Position, NO.1 |
| 11101Z | O Ring, Cam Position Sensor |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11103F | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11115 | Gasket, Cylinder Head |
| 11115A | Pin, Ring |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159C | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11185B | Ring, O |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15511C | Cover, Oil Control Valve |
| 15678A | Filter, Oil Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
