Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

29 part groups · 6 illustrations

Illustrations

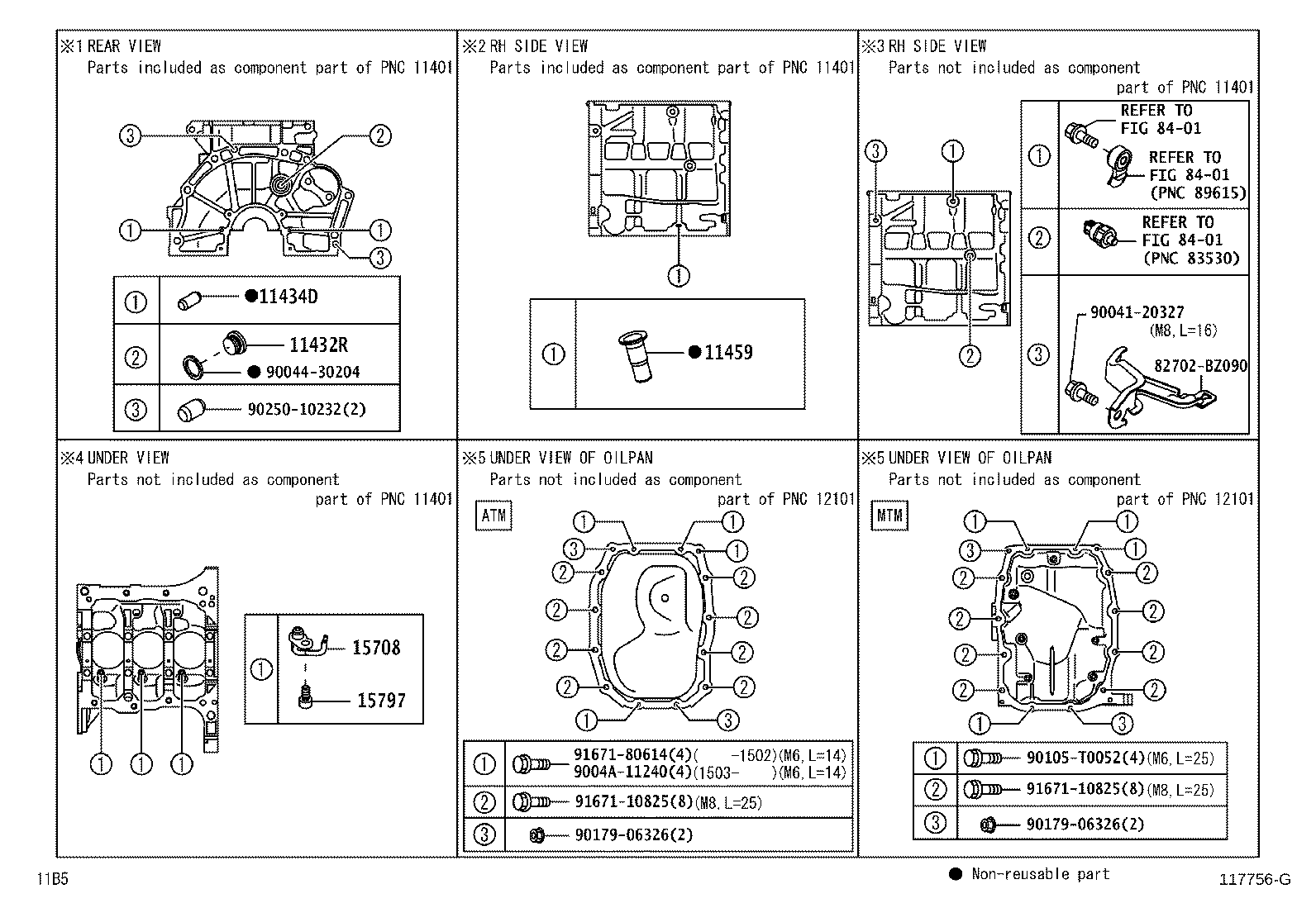

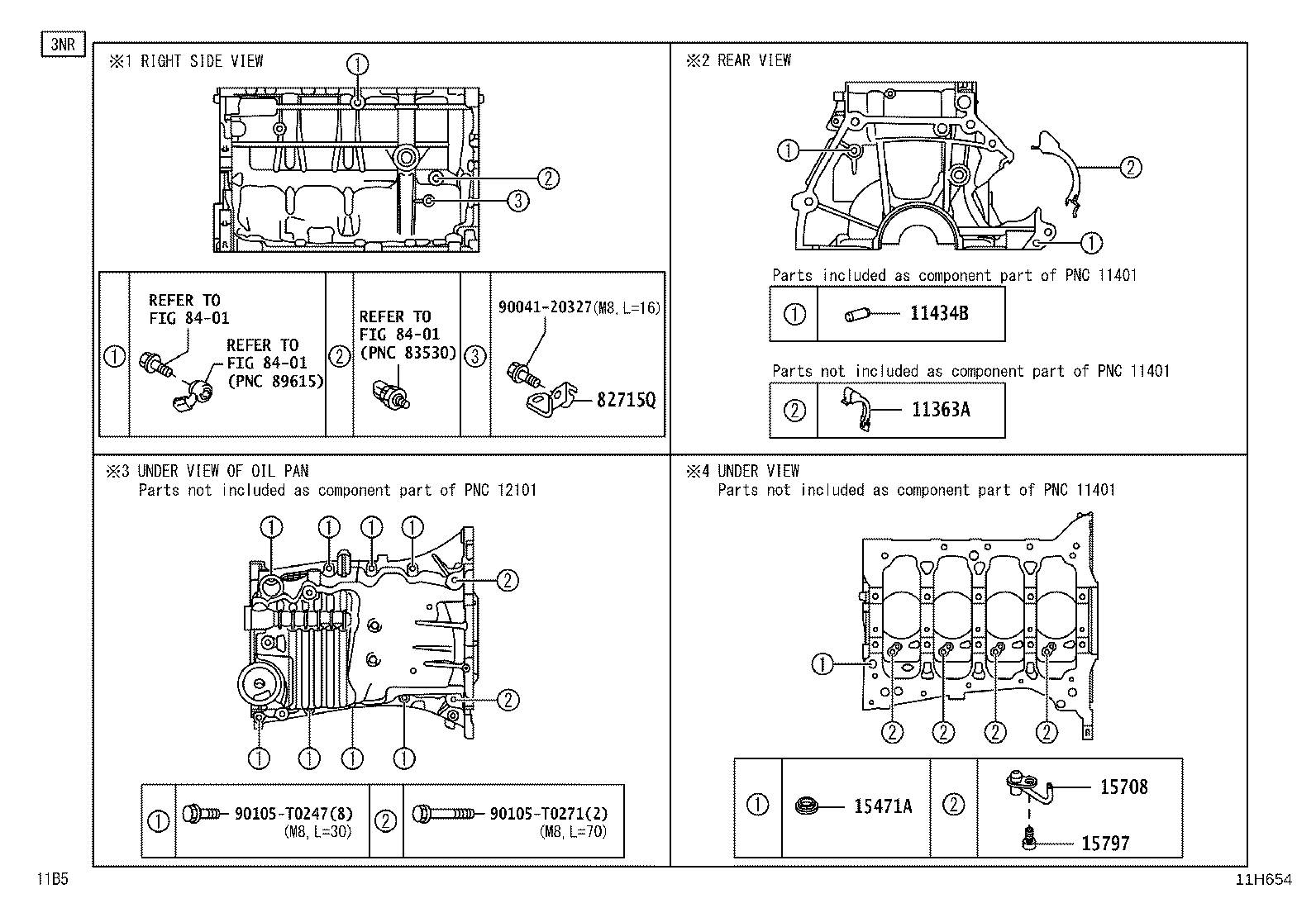

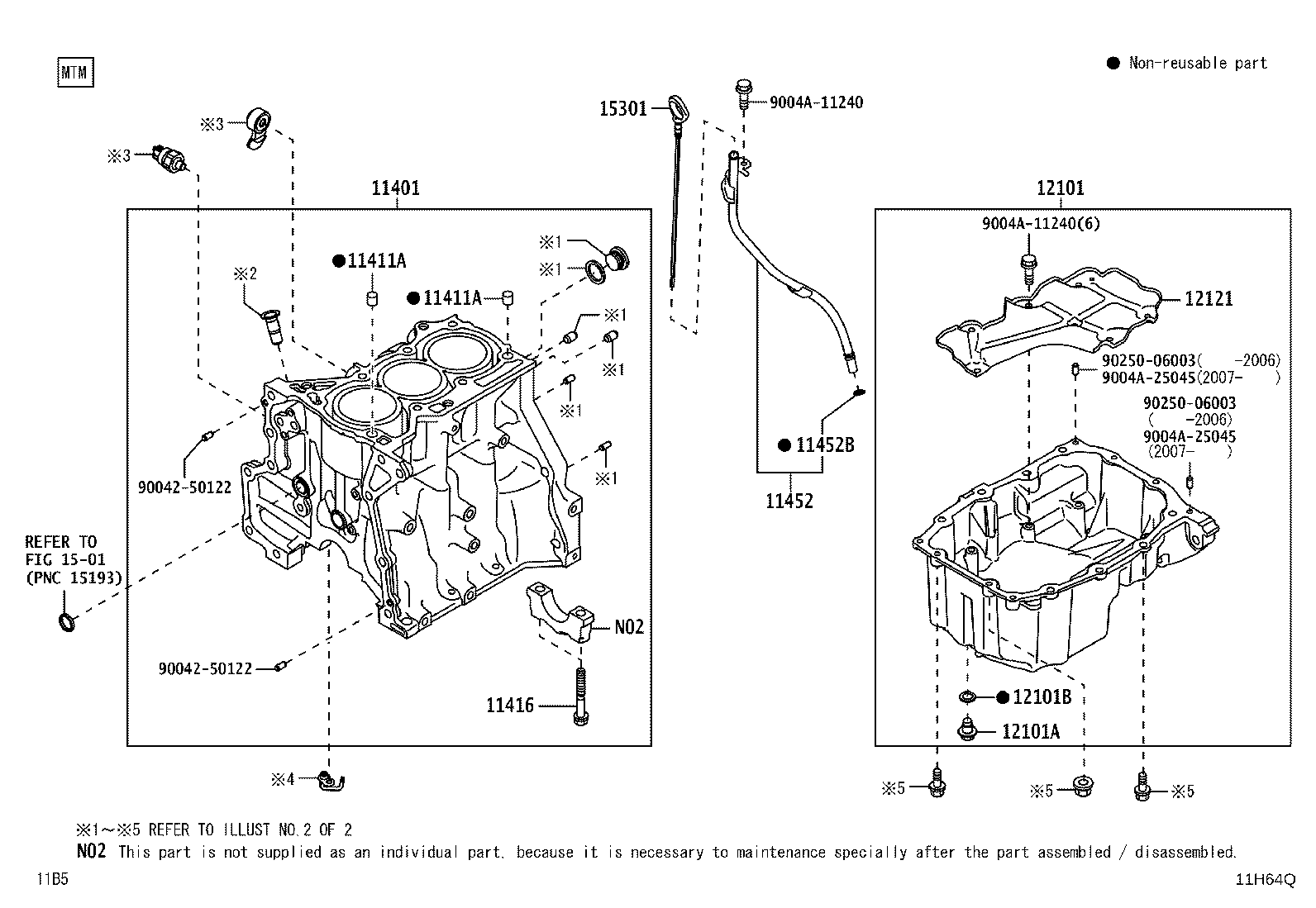

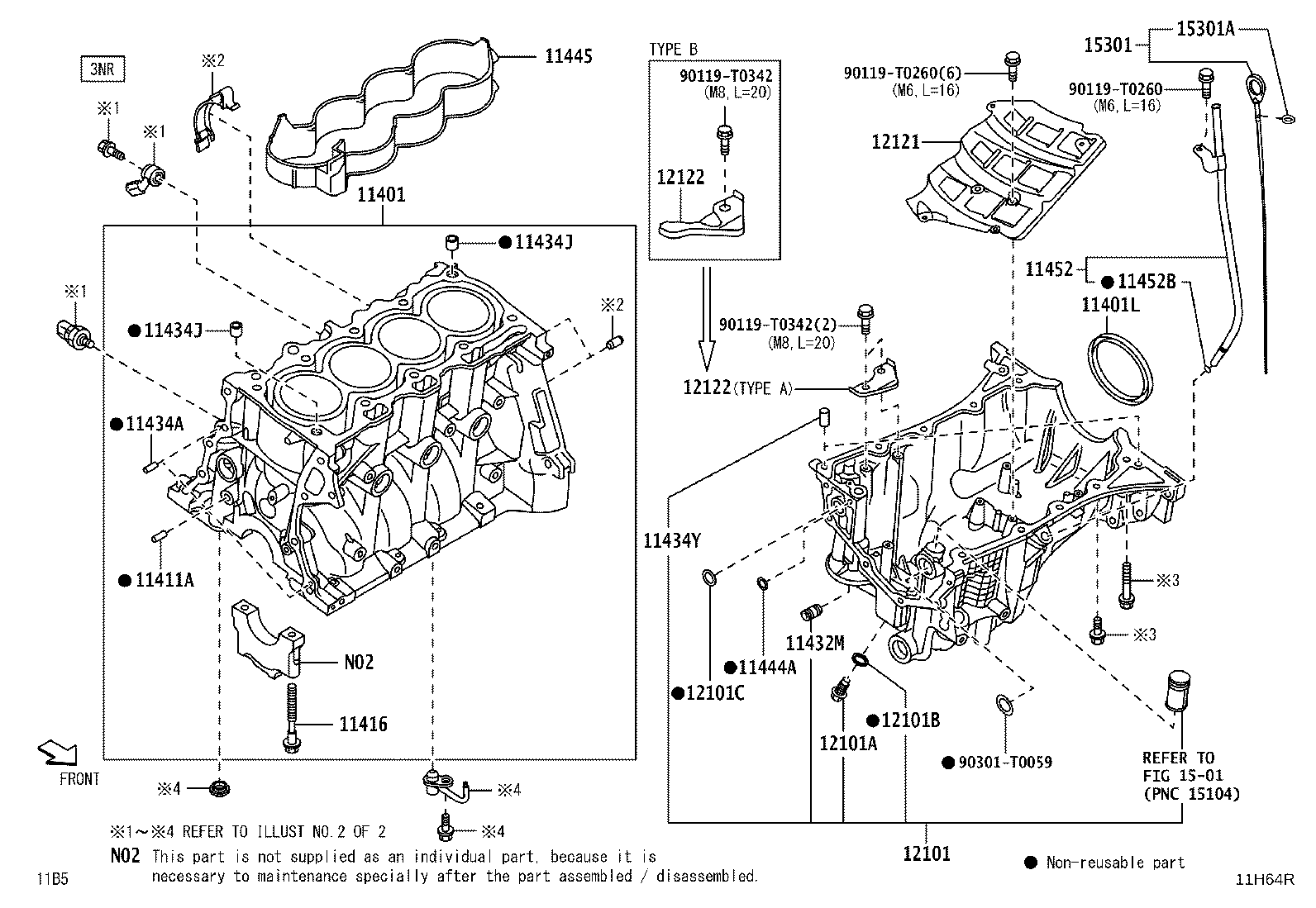

Figure 11H64P 11H64P 2012-12 → 2017-04 Figure 11H64Q 11H64Q 2012-12 → 2017-04 Figure 11H64Q 11H64Q 2017-04 → — Figure 11H64R 11H64R 2017-04 → — Figure 117756G 117756G 2012-12 → — Figure 11H654 11H654 2017-04 → —

Part groups

PNCDescription
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401L Seal, Engine Rear Oil
11411A Pin, Ring(FOR CYLINDER BLOCK NO.1 )
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11432M Union(FOR CYLINDER BLOCK)
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434Y Pin, Straight(FOR OIL PAN)
11444A Ring, O
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12121 Plate, Oil Pan Baffle, NO.1
12122 Plate, Oil Pan Baffle, NO.2
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15471A Gasket(FOR CLYINDER BLOCK)
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
82715Q Bracket, Wiring Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
