Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

11 part groups · 2 illustrations

Illustrations

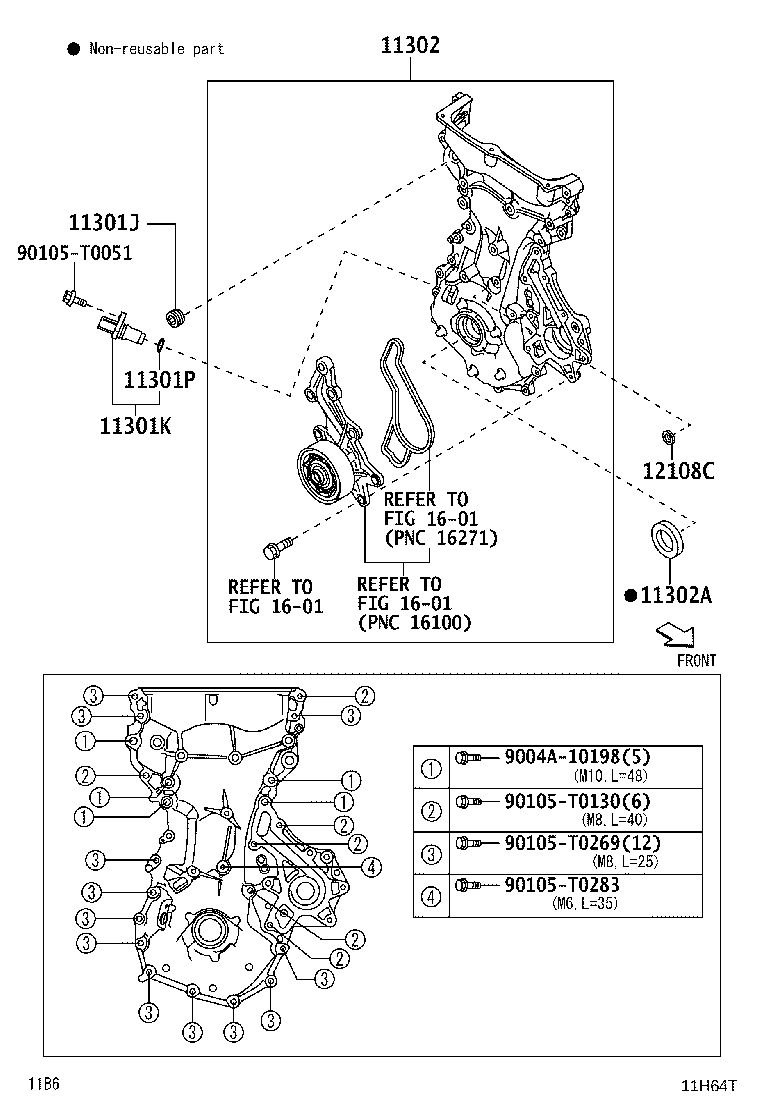

Figure 11H64S 11H64S 2012-12 → — Figure 11H64T 11H64T 2017-04 → —

Part groups

PNCDescription
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12108C Gasket
19312A Protector, Crank Position Sensor
89437J Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
