Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 8 illustrations

Illustrations

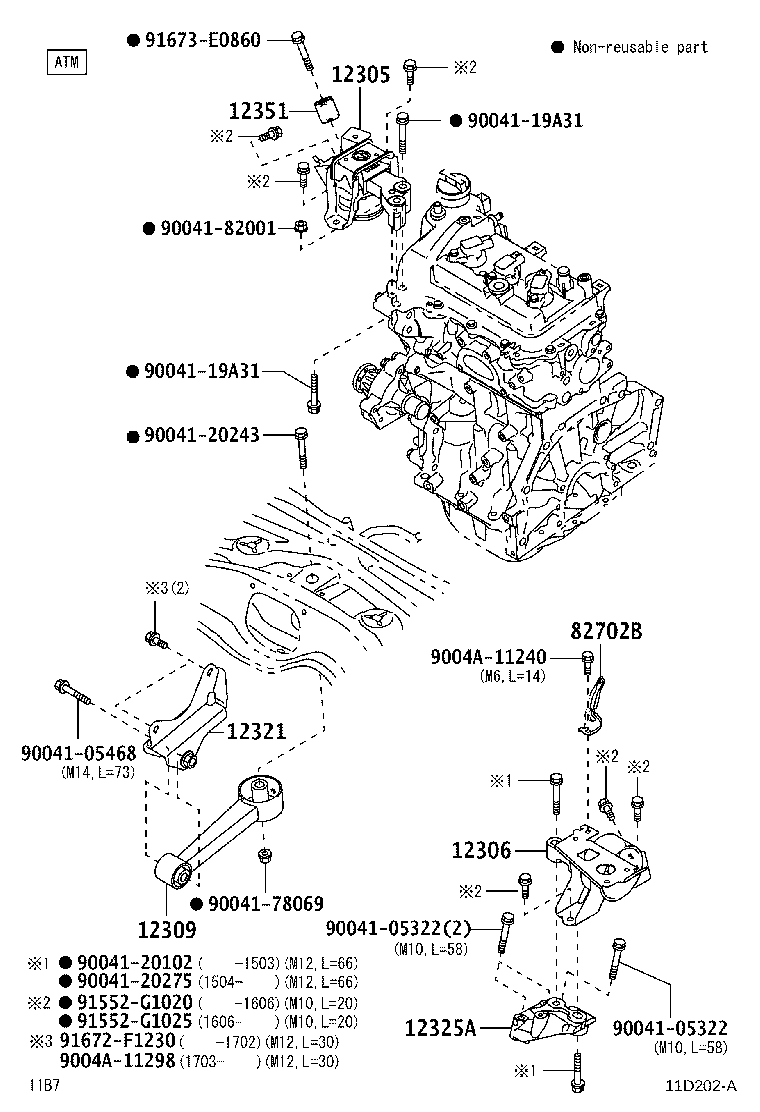

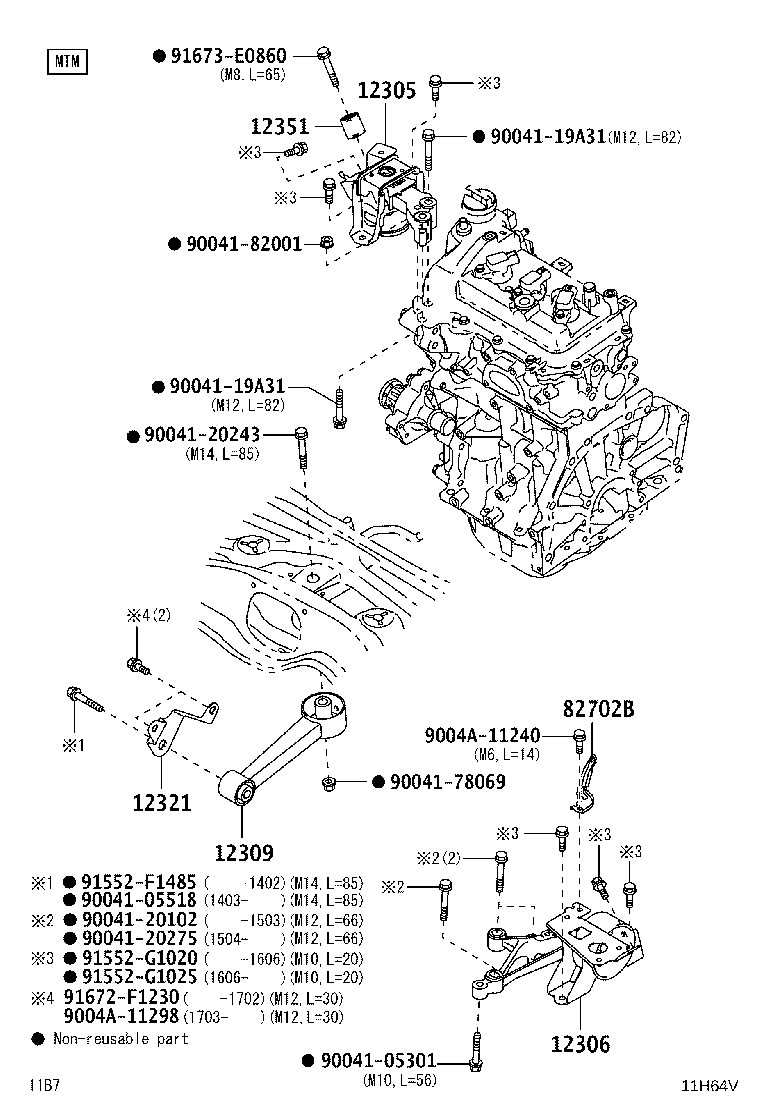

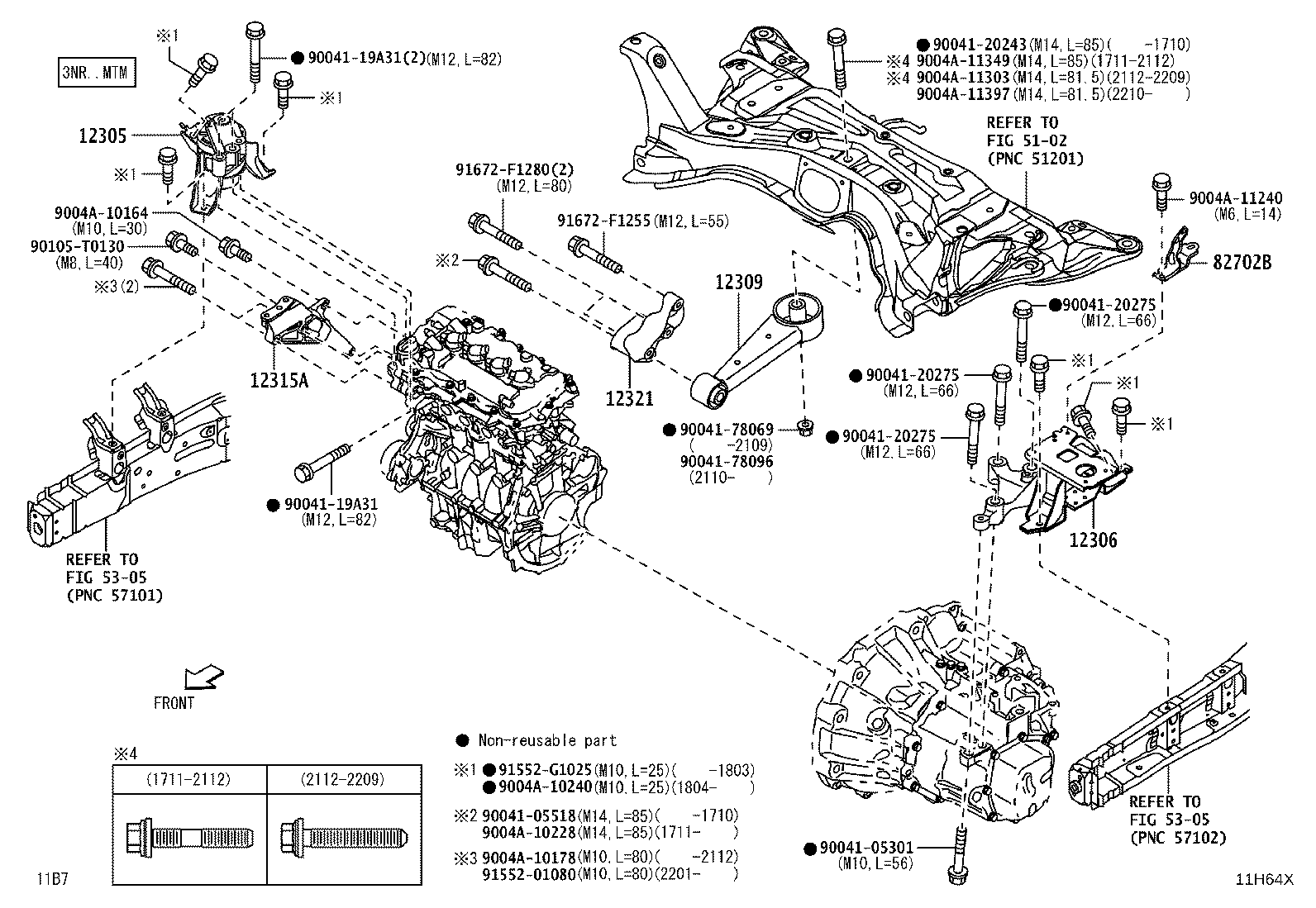

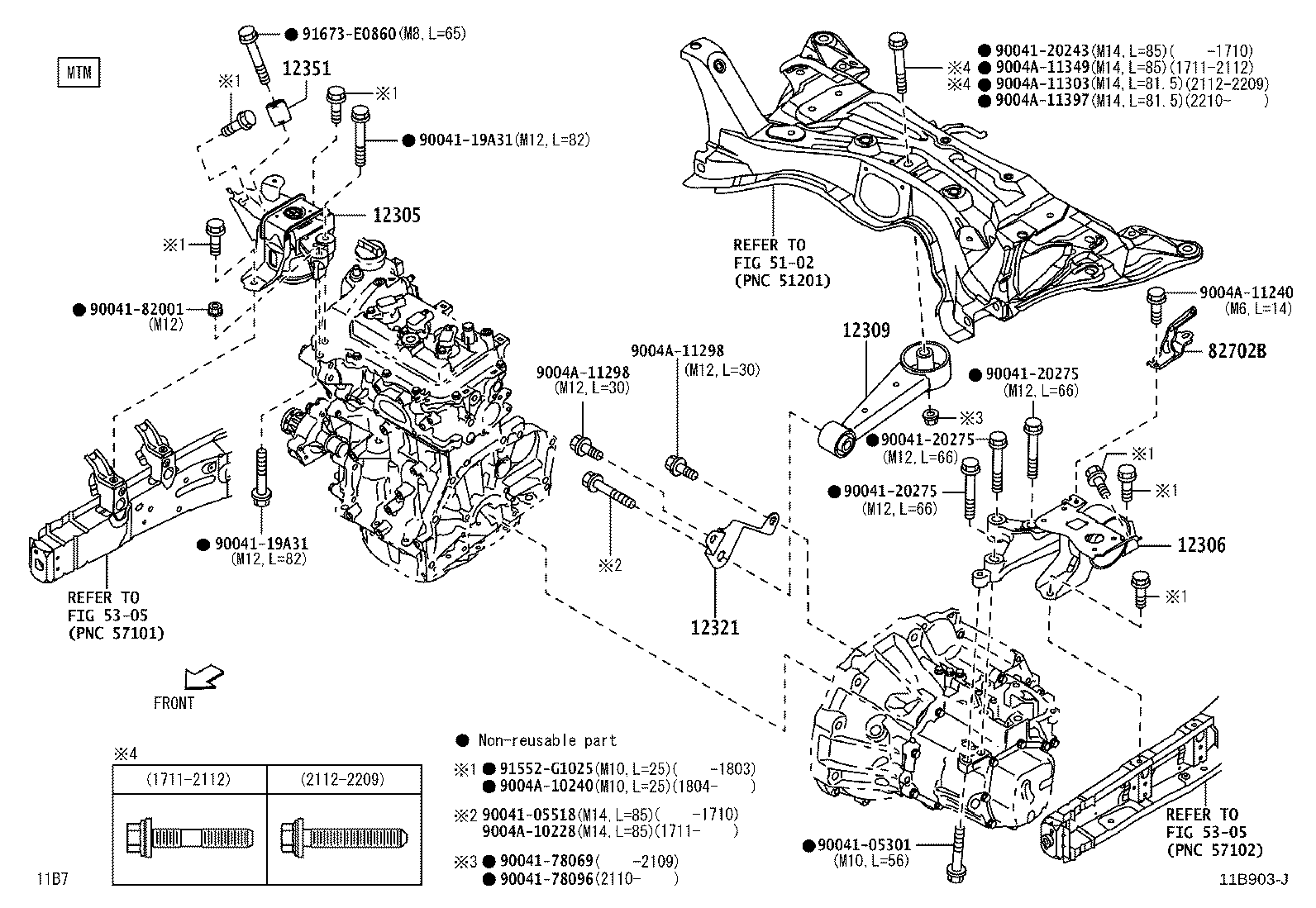

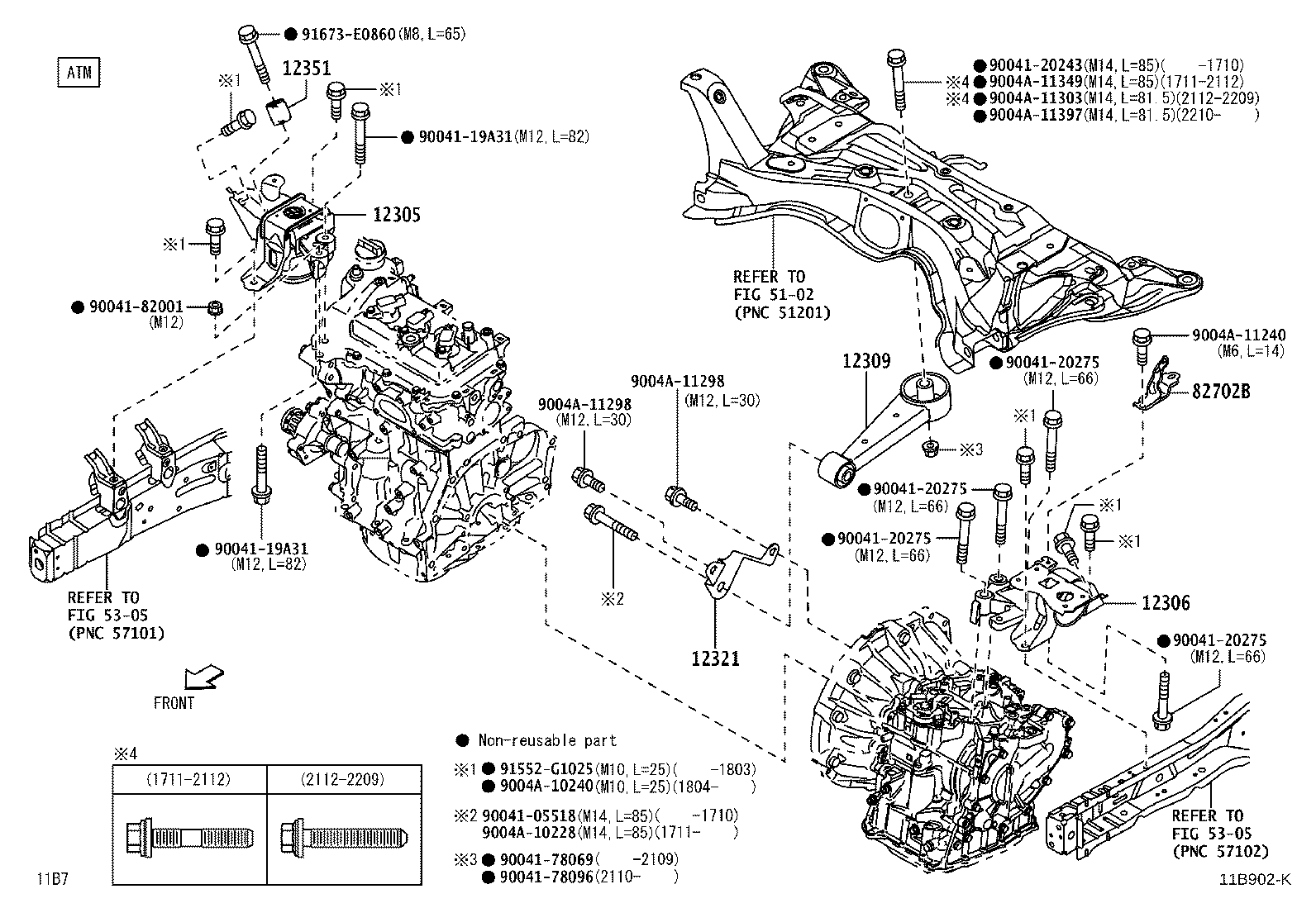

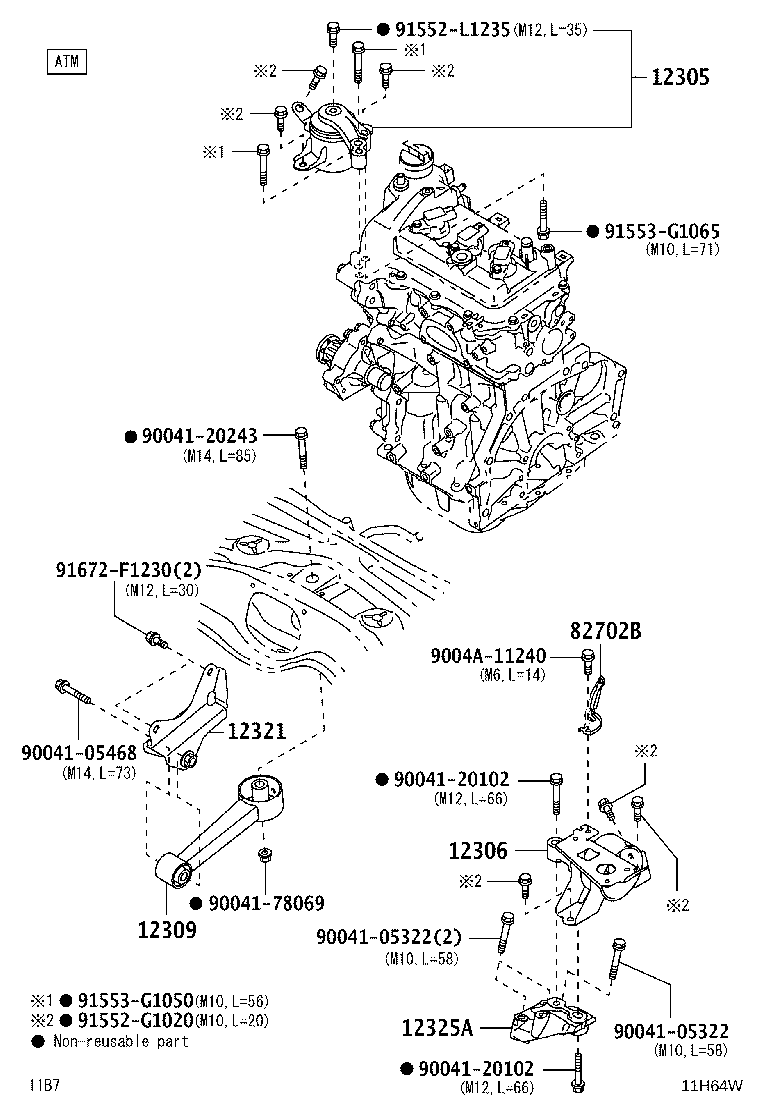

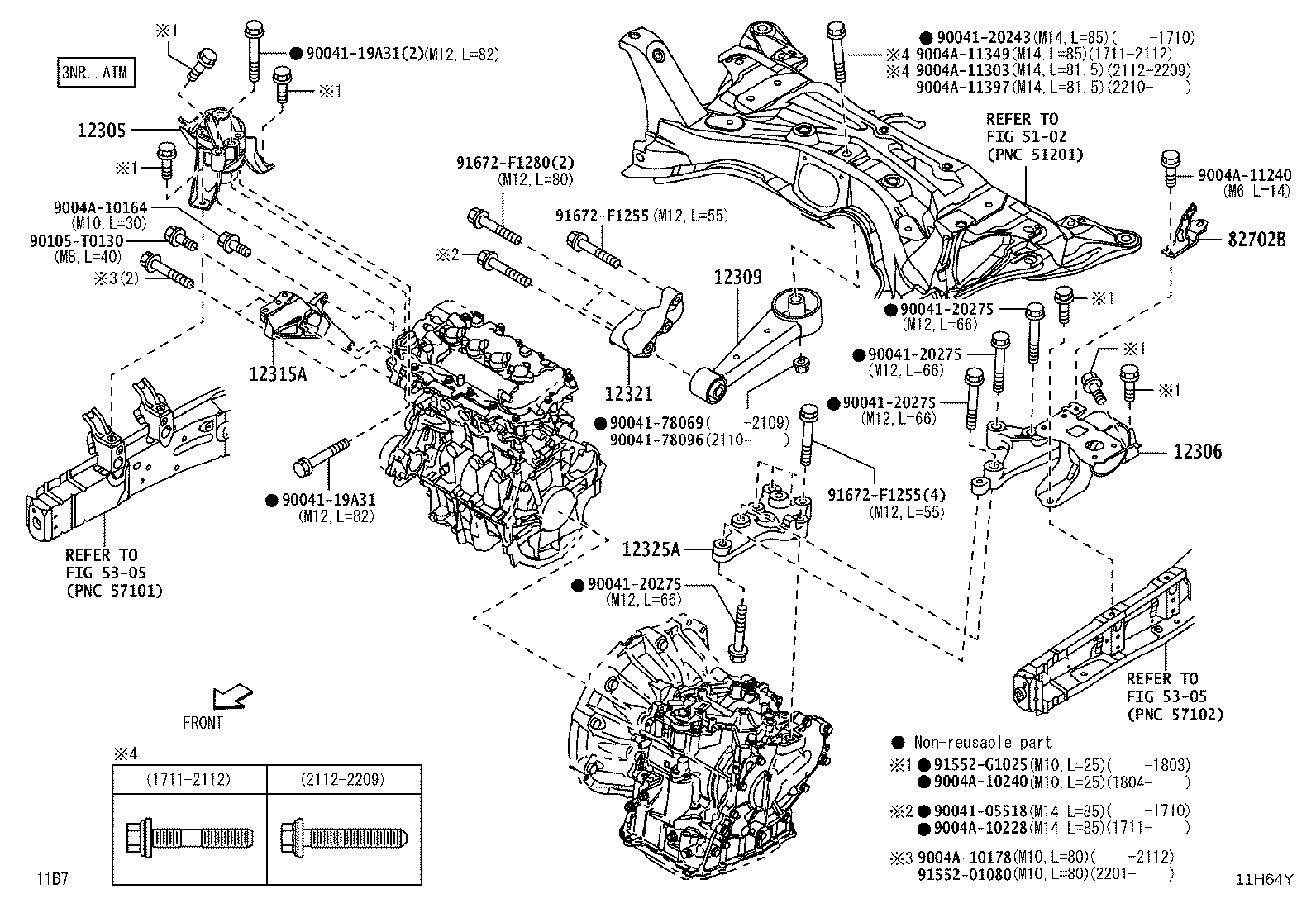

Figure 11H64U 11H64U 2012-12 → 2015-01 Figure 11H64V 11H64V 2015-01 → 2017-04 Figure 11H64W 11H64W 2012-12 → 2015-01 Figure 11D202A 11D202A 2015-01 → 2017-04 Figure 11B903J 11B903J 2017-04 → — Figure 11B902K 11B902K 2017-04 → — Figure 11H64X 11H64X 2017-04 → — Figure 11H64Y 11H64Y 2017-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12309 Rod Sub-assy, Engine Moving Control
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321 Bracket, Engine Mounting, Rear, NO.1
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
82702B Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
