Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02
Radiator & Water Outlet
45 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |

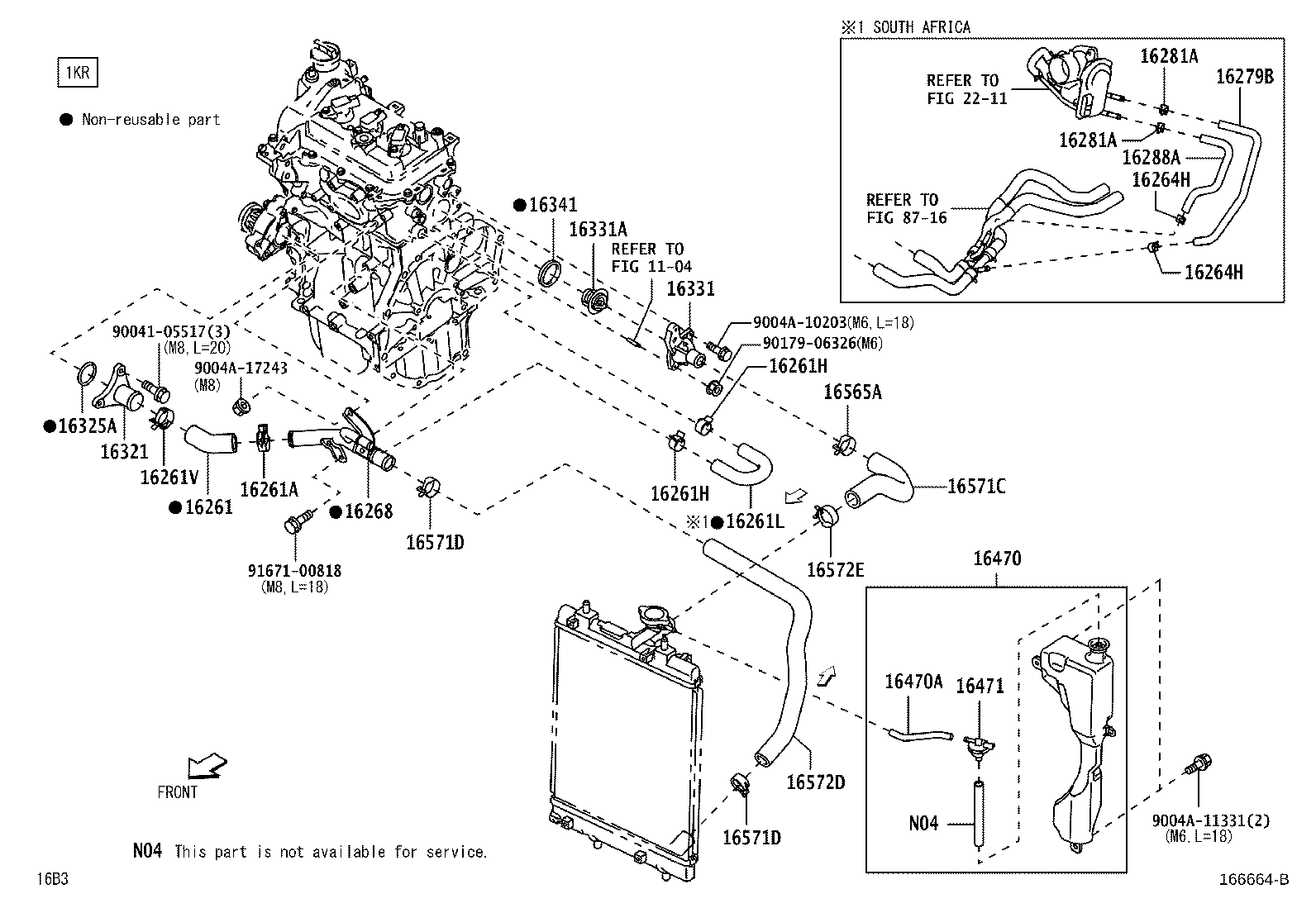

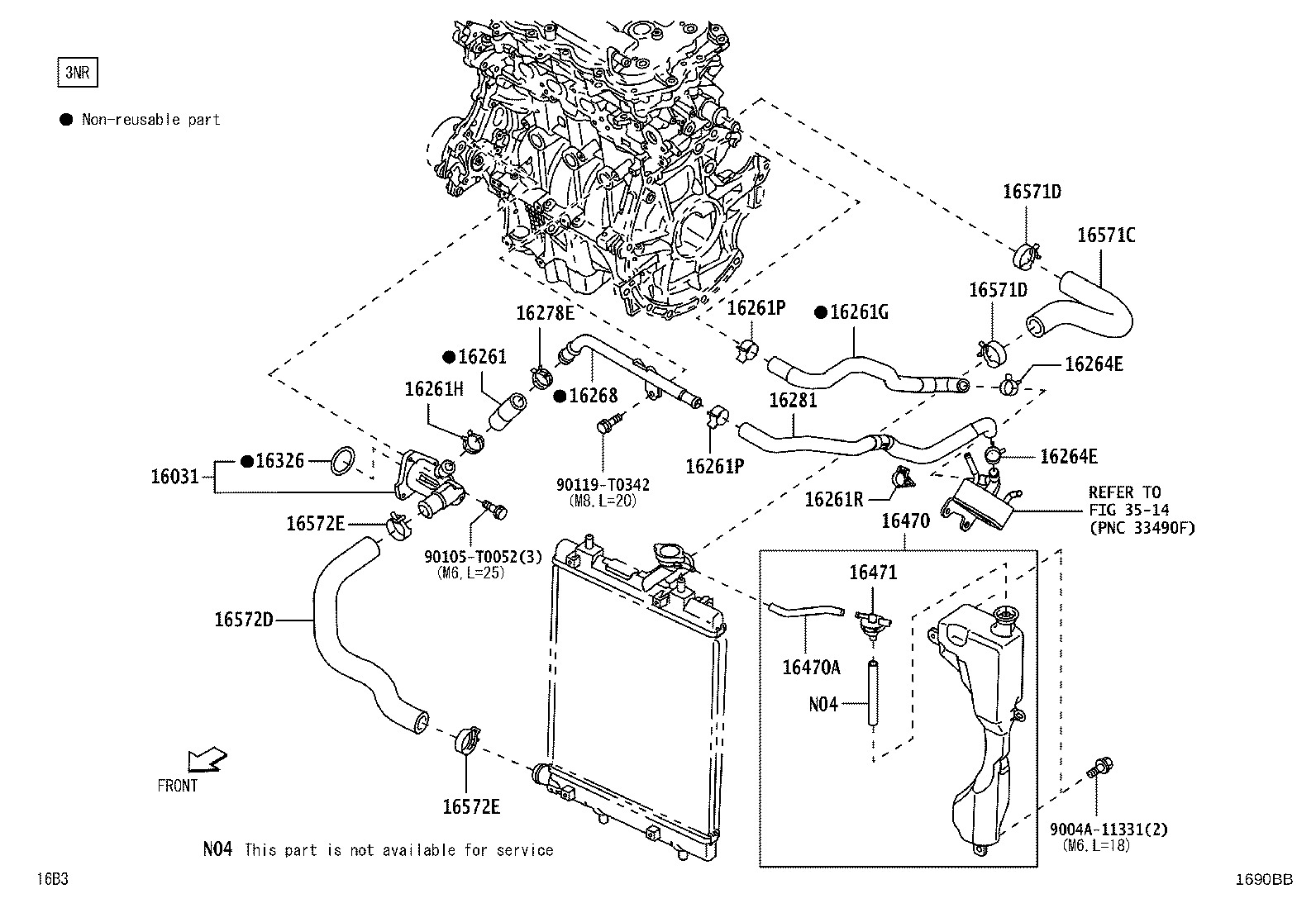

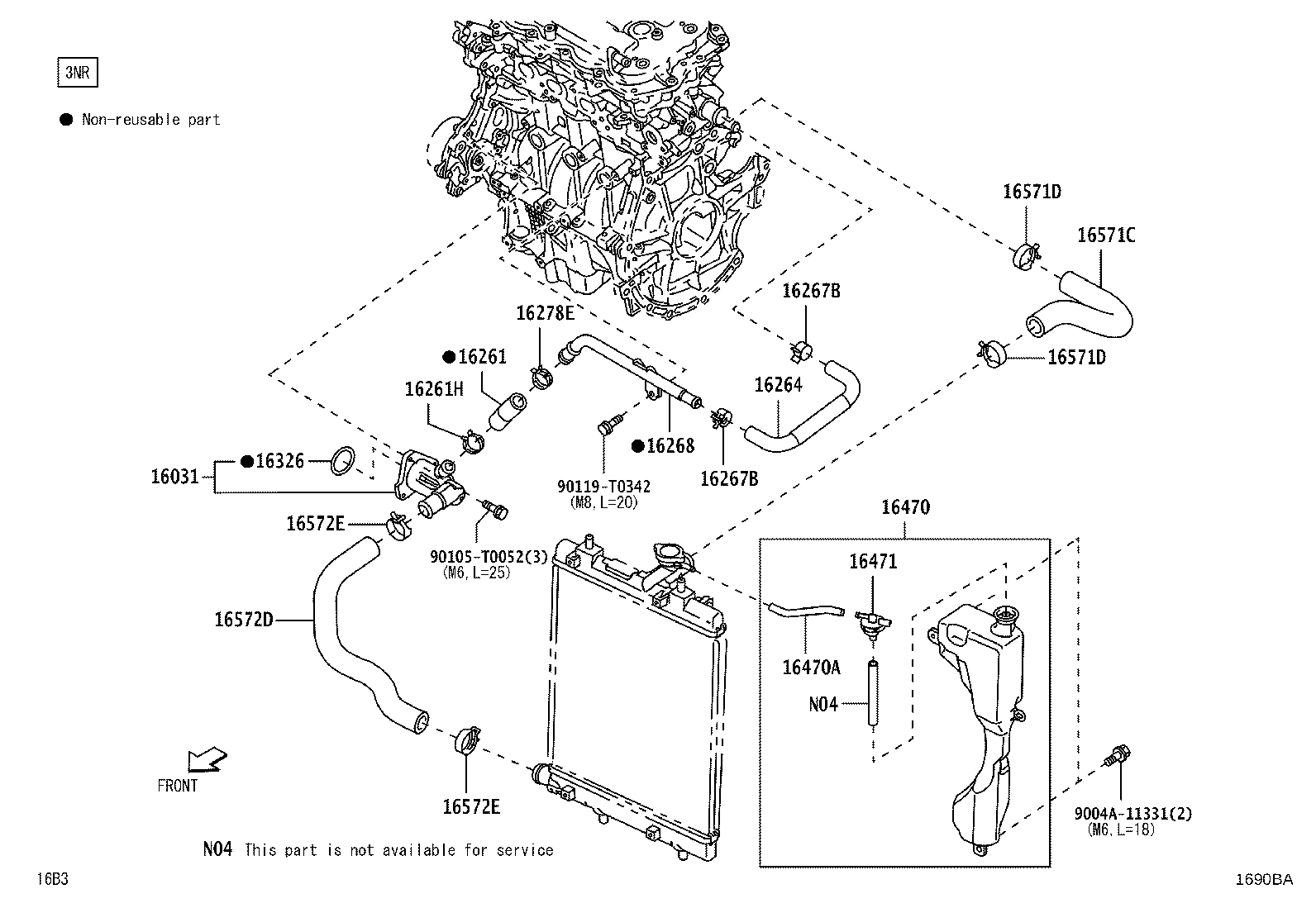

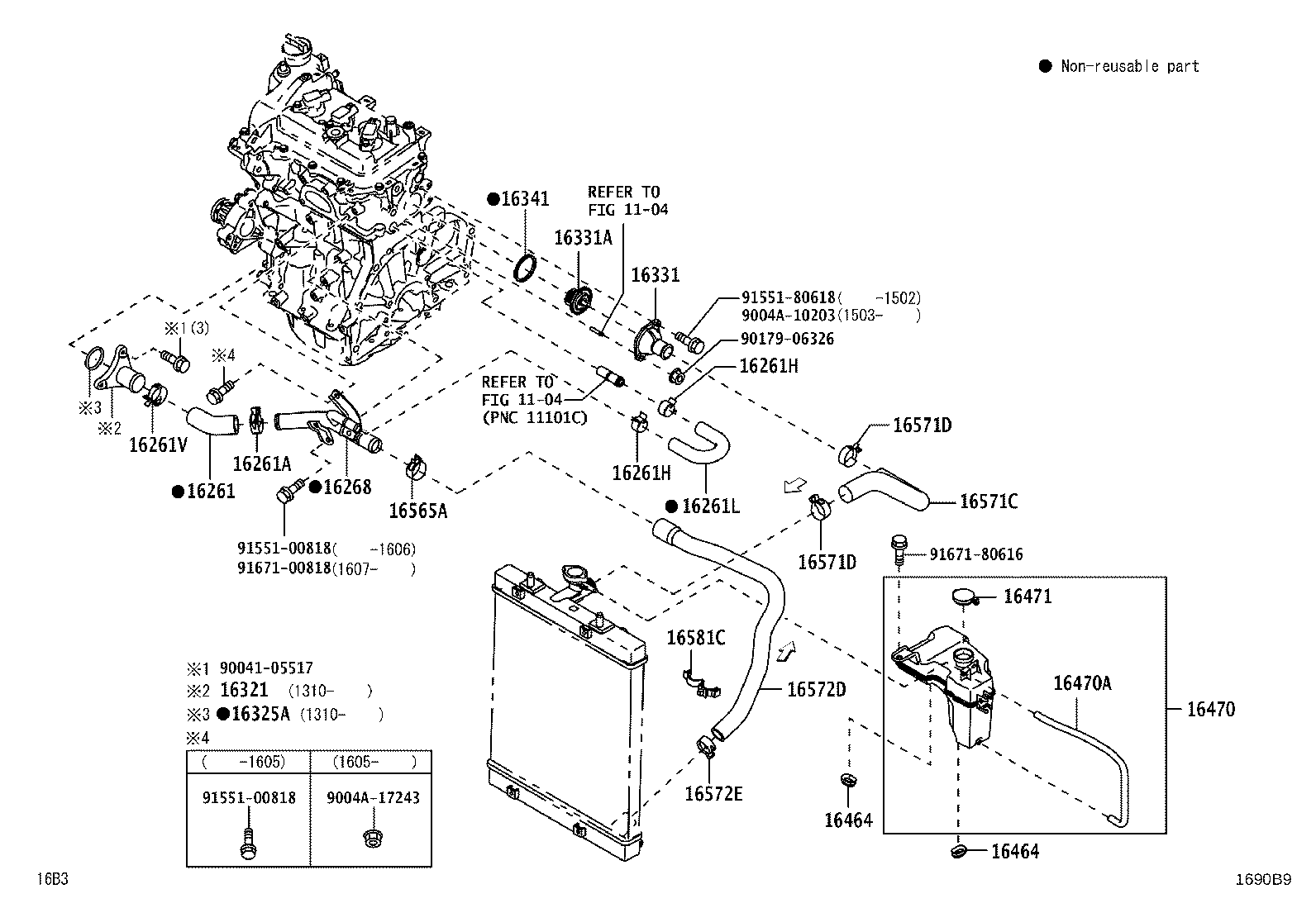

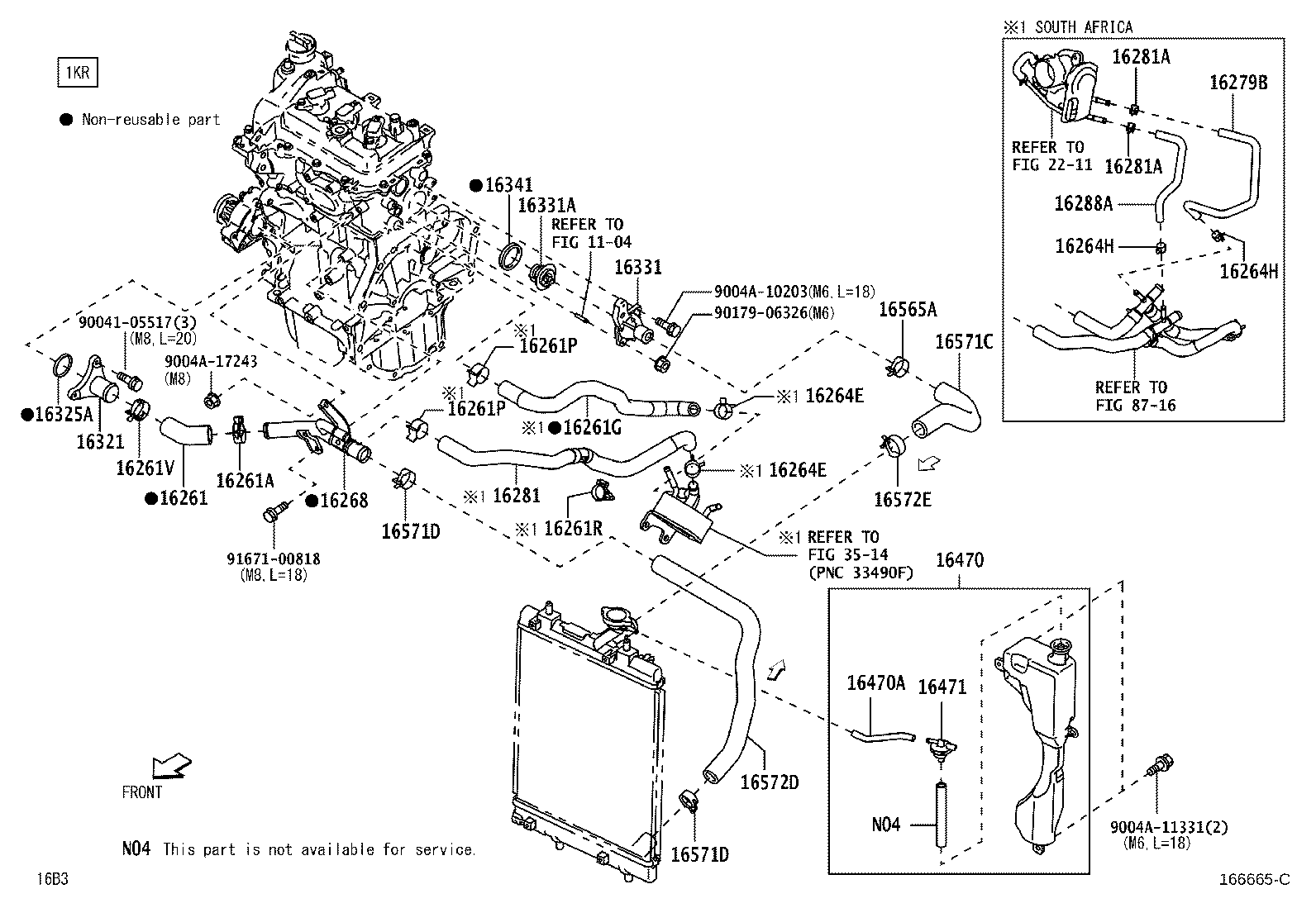

| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261L | Hose, Water By-pass |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16261R | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16279B | Hose(FOR WATER BY-PASS PIPE NO.3) |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16288A | Hose(FOR WATER BY-PASS PIPE NO.4) |
| 16321 | Inlet, Water |
| 16325A | Gasket, Water Inlet Housing |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16360A | Fan Assy, W/Motor |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |

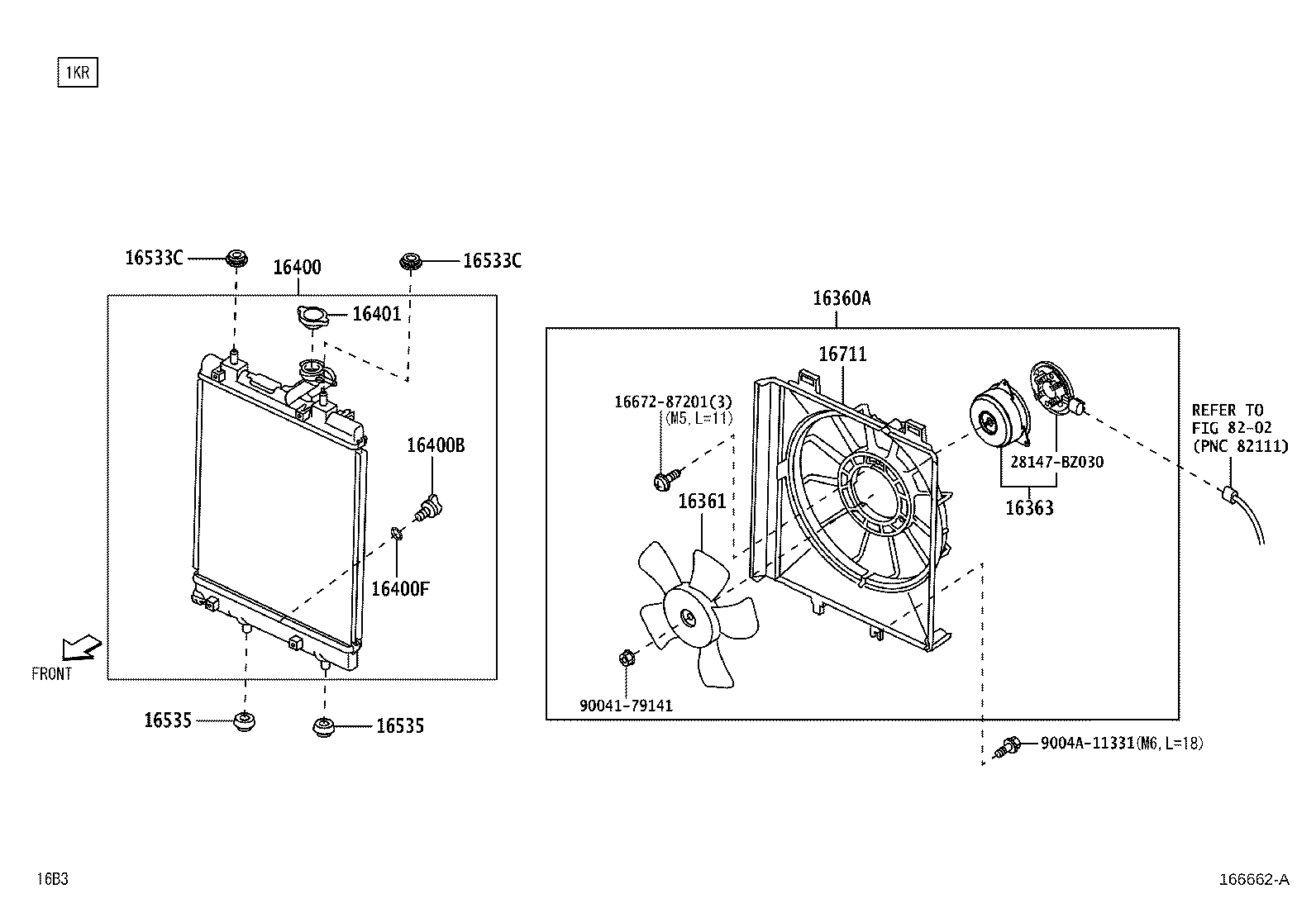

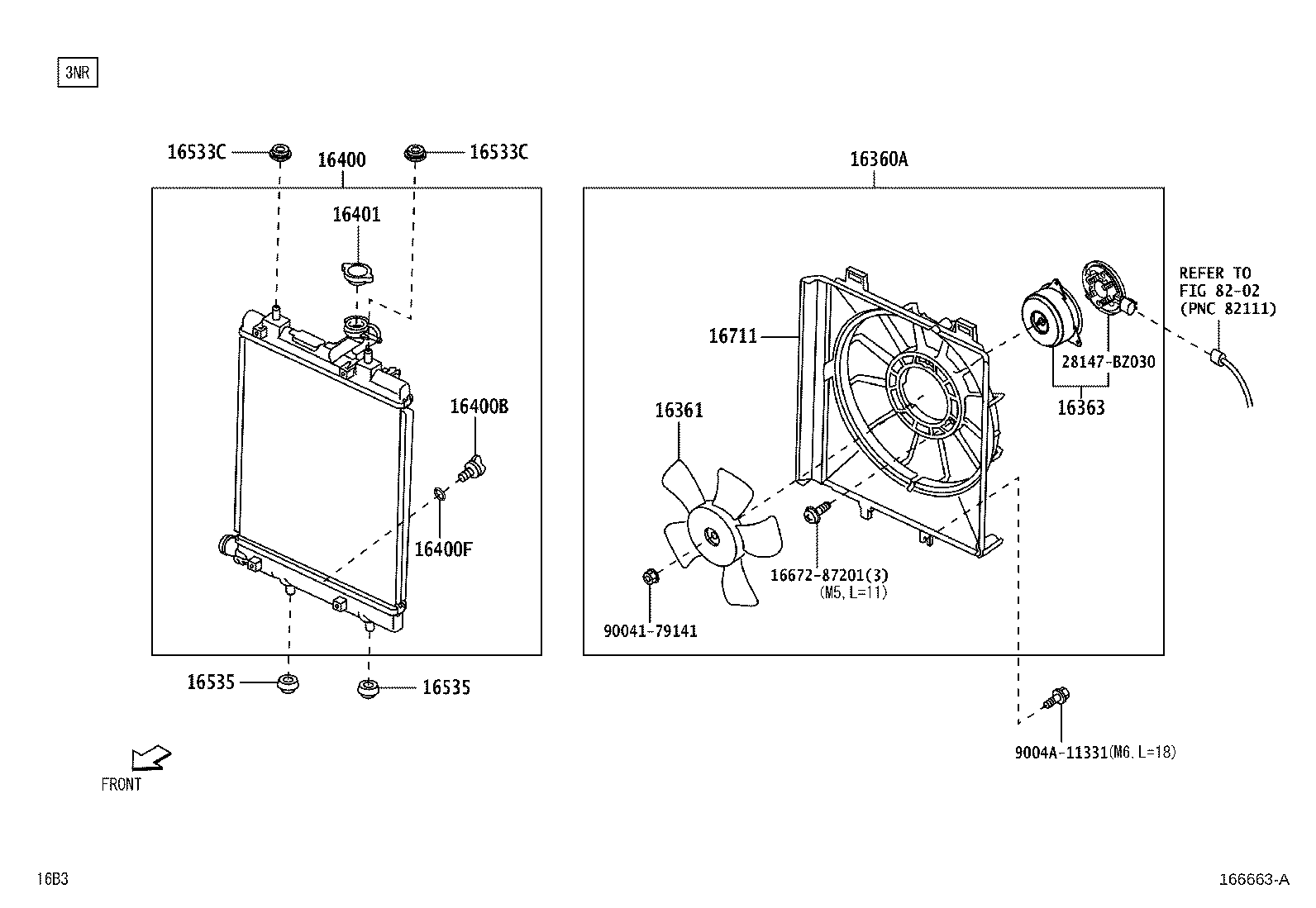

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16464 | Bush, Tank Lower |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16535 | Support, Radiator, Lower |
| 16565A | Clip |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581C | Clamp, Hose(FOR RADIATOR HOSE NO.2) |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
