Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

17 part groups · 3 illustrations

Illustrations

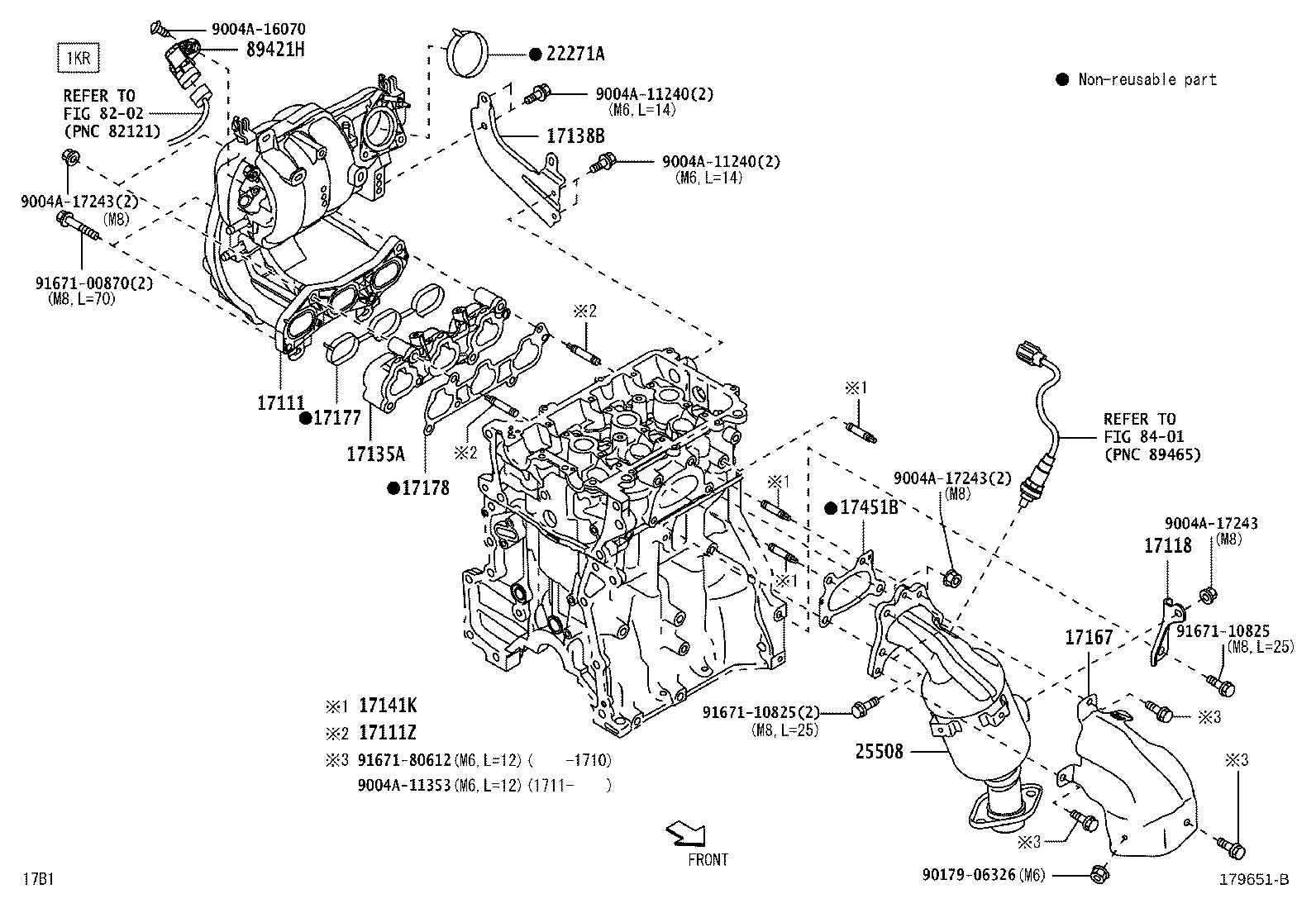

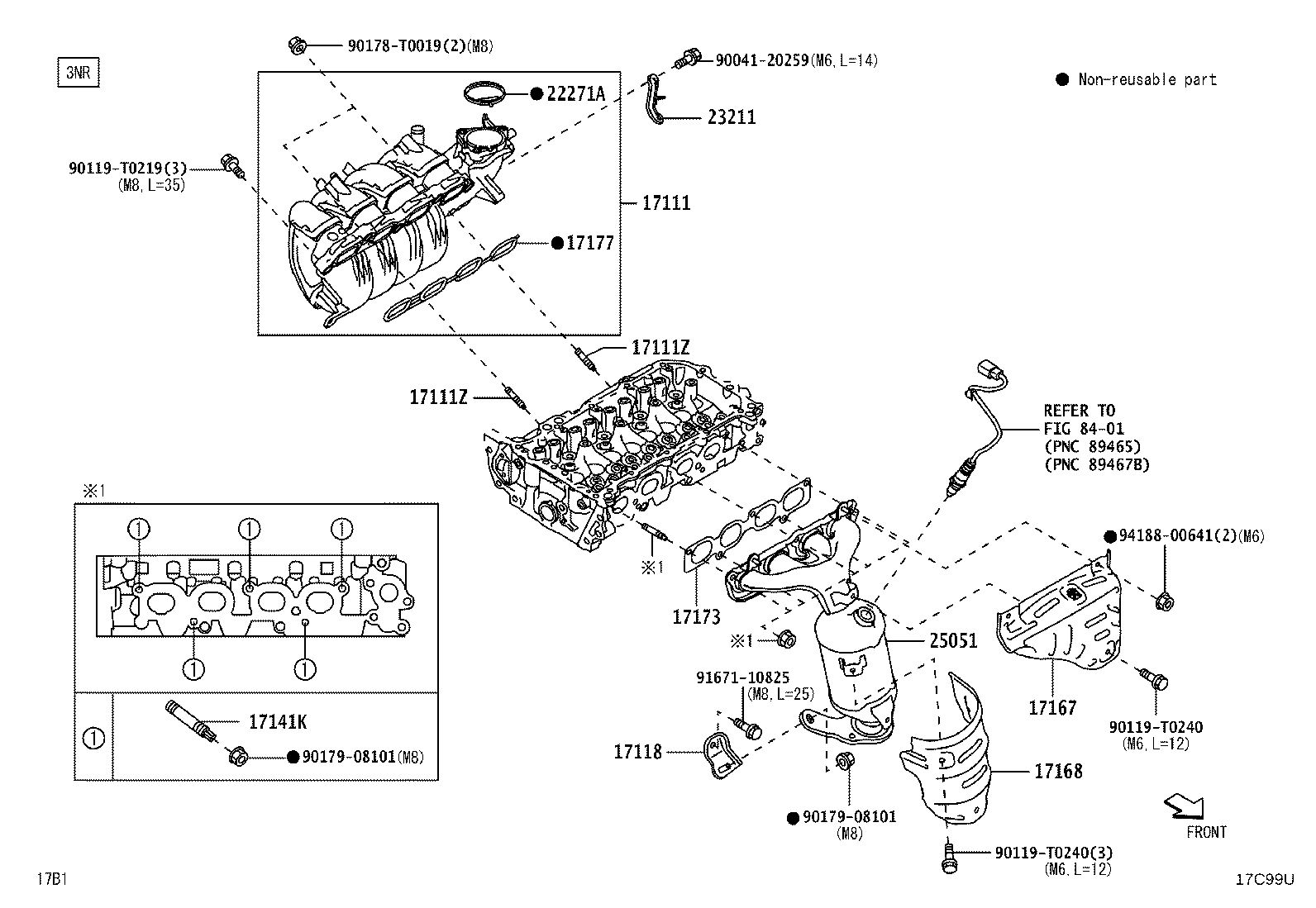

Figure 17A333A 17A333A 2012-12 → 2017-04 Figure 179651B 179651B 2017-04 → — Figure 17C99U 17C99U 2017-04 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17451B Gasket, Exhaust Pipe
22271A Gasket, Throttle Body
23211 Bracket, Wire
25051 Converter Sub-assy, Exhaust Manifold
25508 Converter Sub-assy, Manifold
89421H Sensor, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
