Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

5 part groups · 5 illustrations

Illustrations

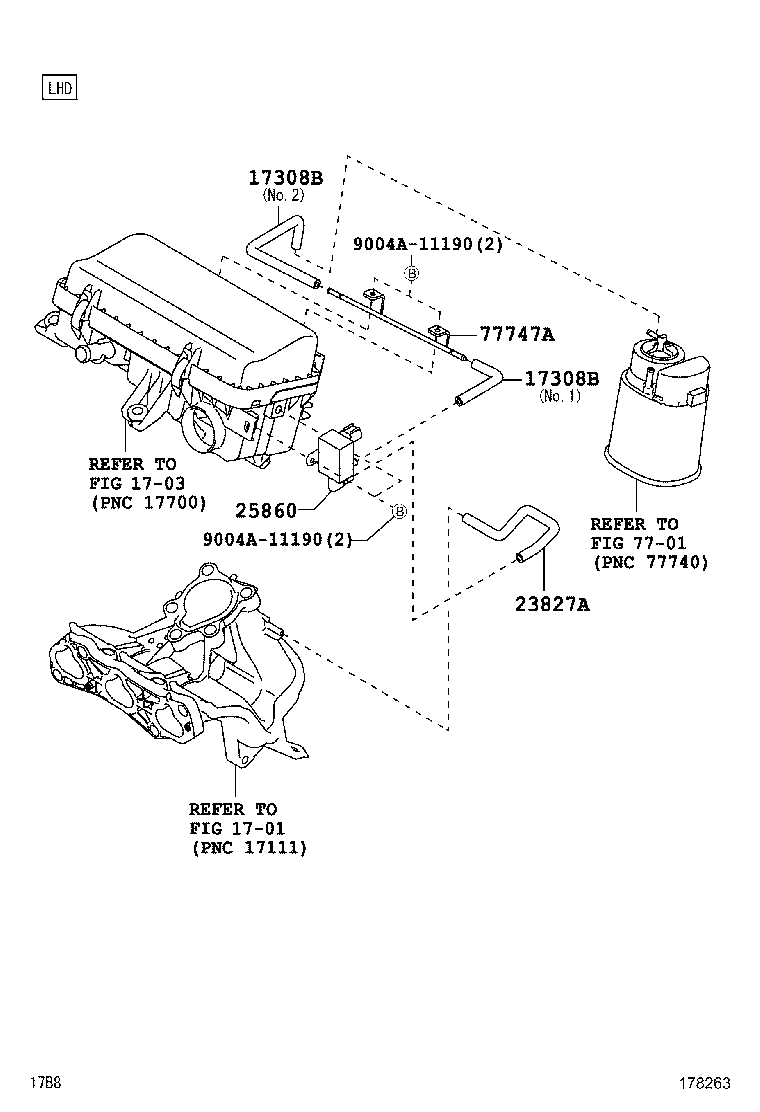

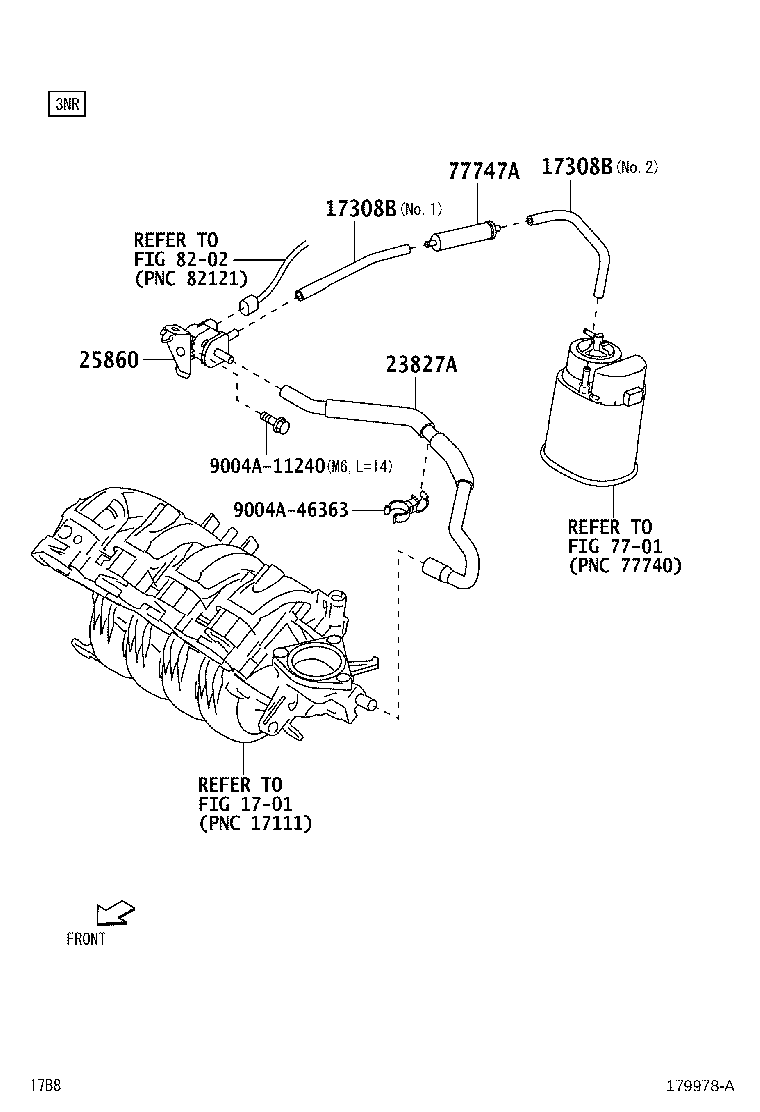

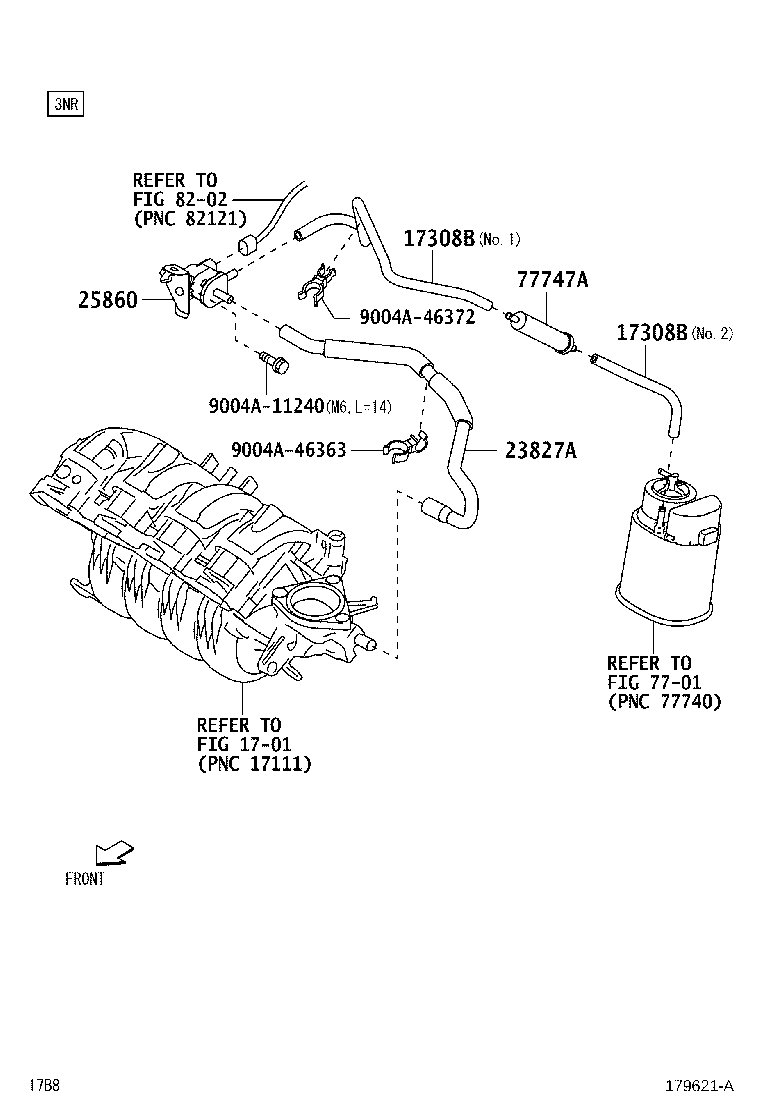

Figure 178264 178264 2012-12 → — Figure 178263 178263 2014-01 → — Figure 17B560C 17B560C 2017-04 → — Figure 179621A 179621A 2017-04 → — Figure 179978A 179978A 2017-12 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
23827A Hose, Fuel Vapor Feed, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
77747A Tube, Charcoal Canister, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
