Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02
Alternator

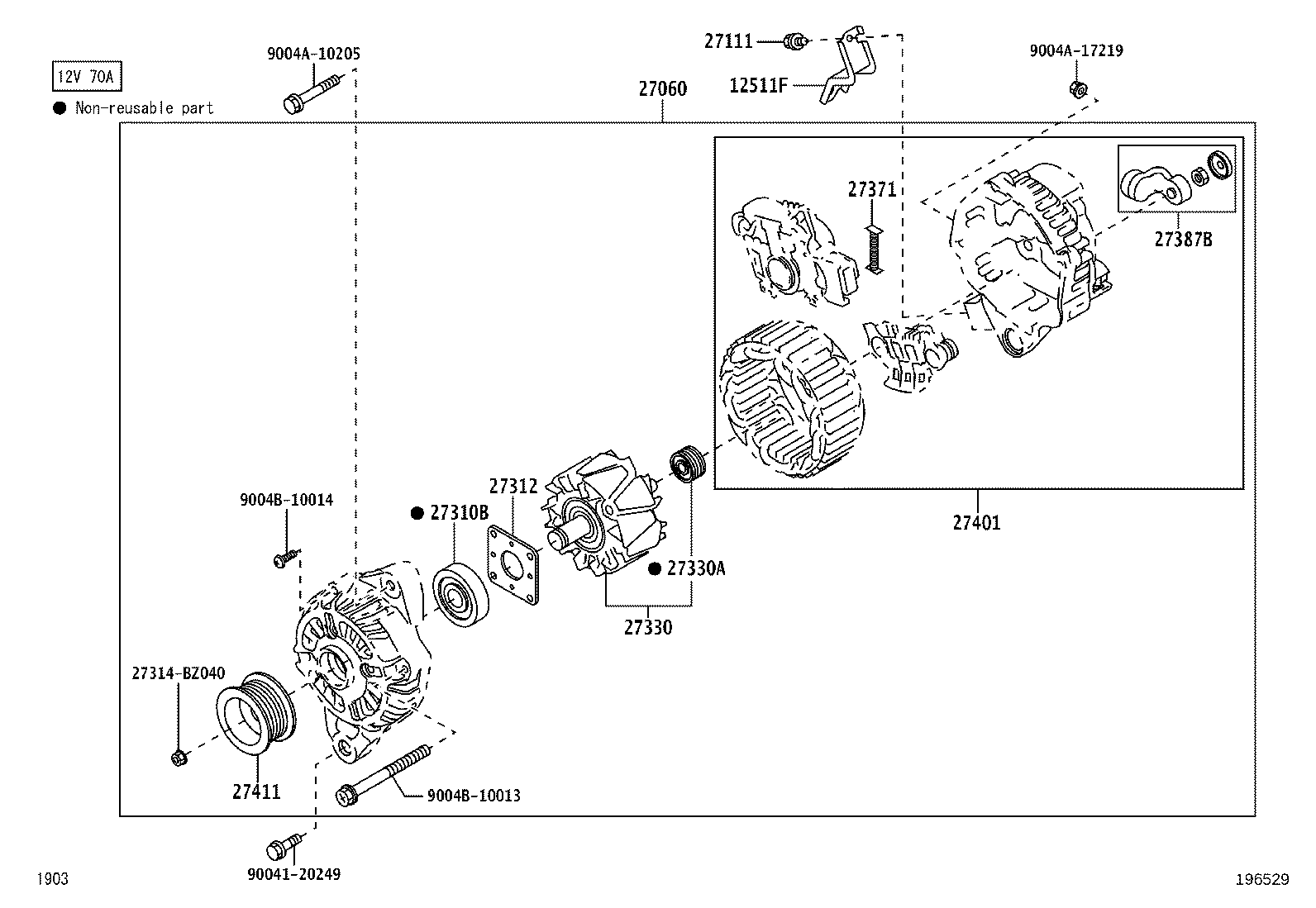

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12511F | Bracket, Alternator, NO.1 |
| 16381D | Bar, Fan Belt Adjusting |
| 16385A | Slider, Fan Belt Adjusting |
| 27060 | Alternator Assy, W/Regulator |
| 27111 | Bolt, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27371 | Brush, Alternator |
| 27387B | Insulator, Alternator Terminal |
| 27401 | Stator Sub-assy Alternator W/Rectifier |
| 27411 | Pulley, Alternator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
