Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

18 part groups · 4 illustrations

Illustrations

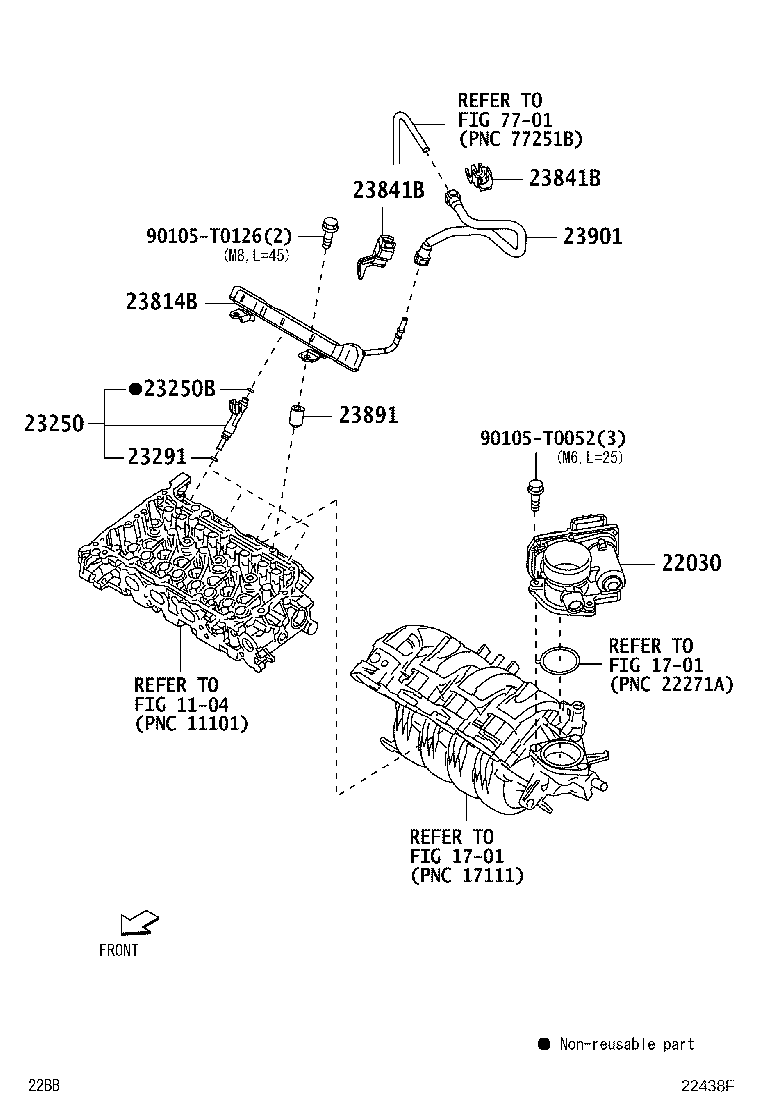

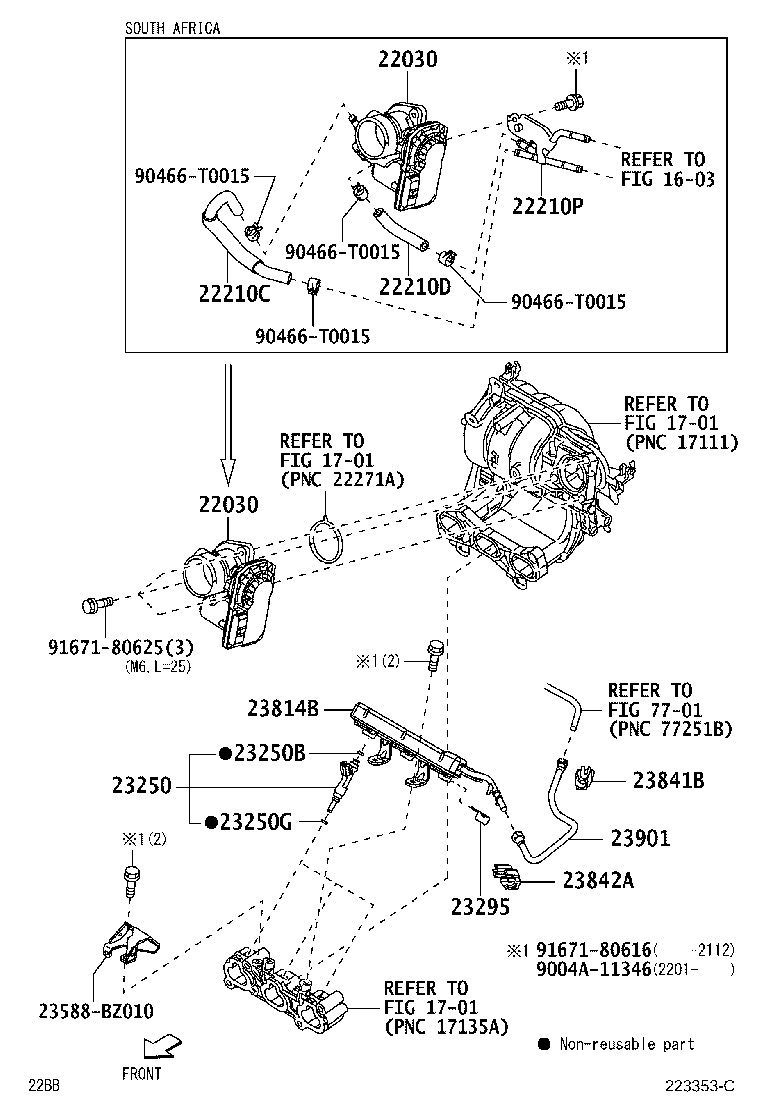

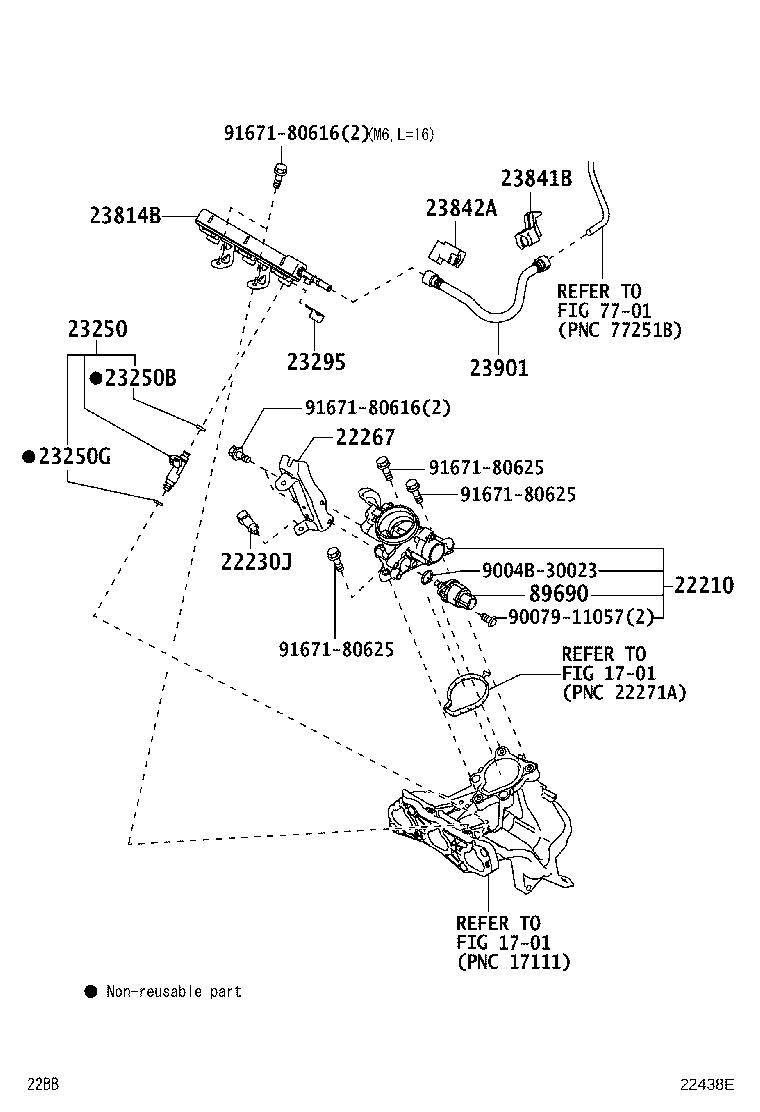

Figure 22438D 22438D 2012-12 → 2016-07 Figure 22438E 22438E 2016-07 → 2017-04 Figure 223353C 223353C 2017-04 → — Figure 22438F 22438F 2017-04 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210D Hose, Water By-pass, NO.2
22210P Pipe, Water By-pass
22230J Clamp
22267 Bracket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250G Ring, O, NO.2(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23295 Holder, Injector, NO.1
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23891 Spacer, Fuel Delivery
23901 Tube Sub-assy, Fuel
89690 Actuator Assy, Idle Speed Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
