Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

11 part groups · 2 illustrations

Illustrations

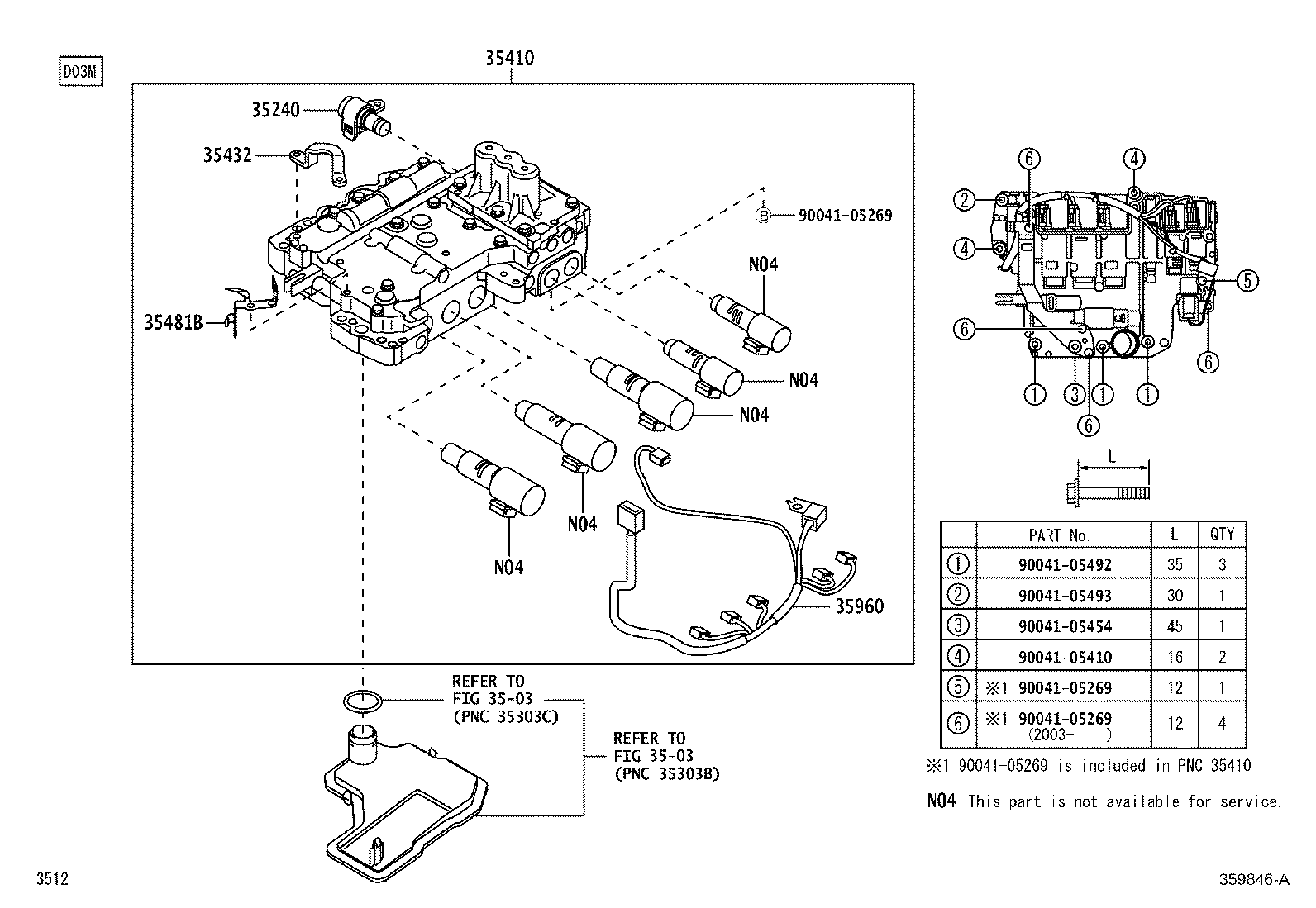

Figure 359671A 359671A 2012-12 → 2017-04 Figure 359846A 359846A 2017-04 → —

Part groups

PNCDescription
35210 Solenoid Assy, Clutch Control, NO.1
35220 Solenoid Assy, Clutch Control, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35240A Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35280 Solenoid Assy, Lock UP Control
35285 Plate, Solenoid Lock
35410 Body Assy, Transmission Valve
35432 Plate, Valve Body, NO.1
35481B Clamp, Valve Body Wire Harness
35960 Wire, Solenoid
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
