Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 2 illustrations

Illustrations

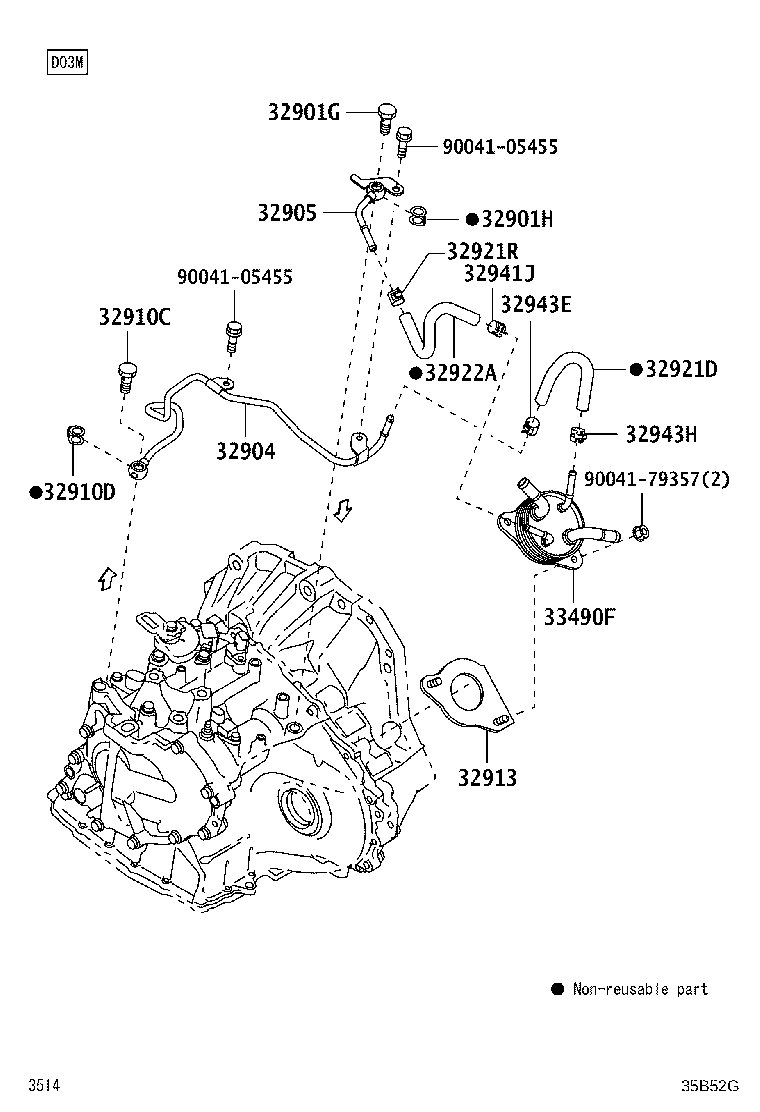

Figure 35B52F 35B52F 2012-12 → 2017-04 Figure 35B52G 35B52G 2017-04 → —

Part groups

PNCDescription
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32910C Bolt, Union(FOR OIL COOLER)
32910D Gasket(FOR OIL COOLER)
32913 Bracket, Oil Cooler
32921D Hose(FOR OIL COOLER INLET)
32921J Clip(FOR OIL COOLER HOSE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32943H Clip, NO.4(FOR OIL COOLER HOSE)
33490F Cooler Assy, Transmission Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
