Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

13 part groups · 3 illustrations

Illustrations

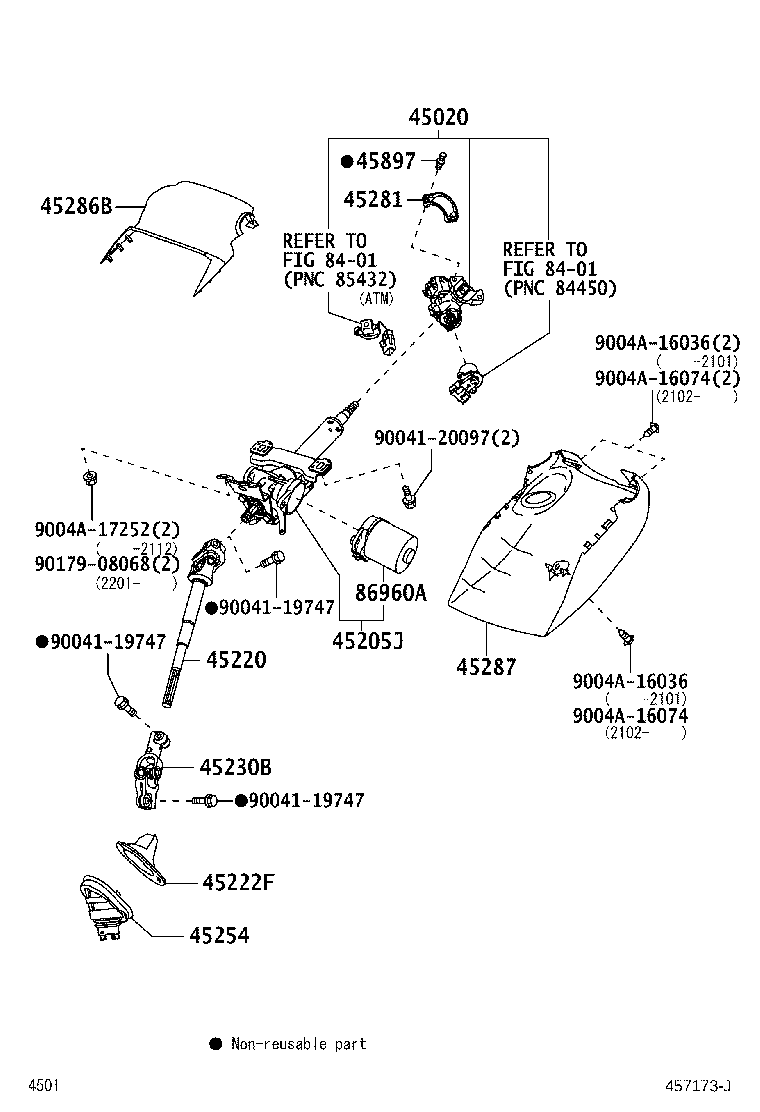

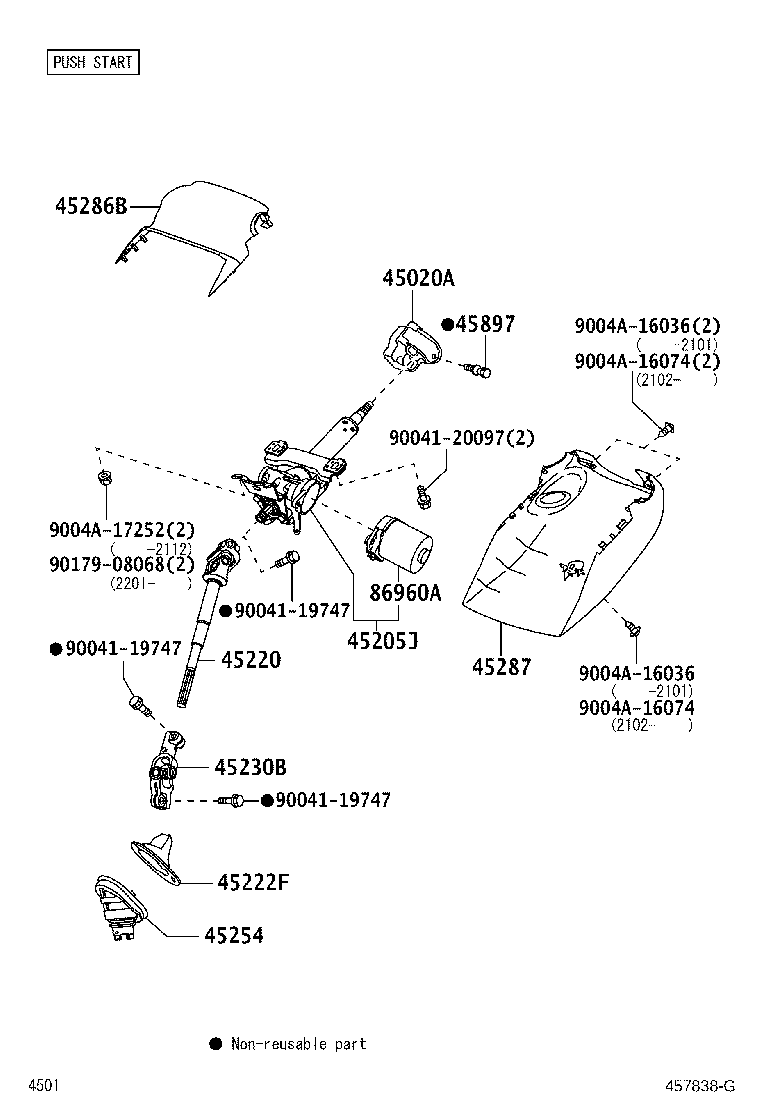

Figure 457014B 457014B 2012-12 → 2017-04 Figure 457173J 457173J 2017-04 → — Figure 457838G 457838G 2020-03 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45020A Actuator Assy, Steering Lock
45205J Tube Sub-assy, Steering Column, Upper
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45230B Joint Assy, Steering Shaft Universal
45250 Column Assy, Steering
45254 Shield, Steering Column Hole
45281 Housing, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
86960A Motor Set, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
