Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 3 illustrations

Illustrations

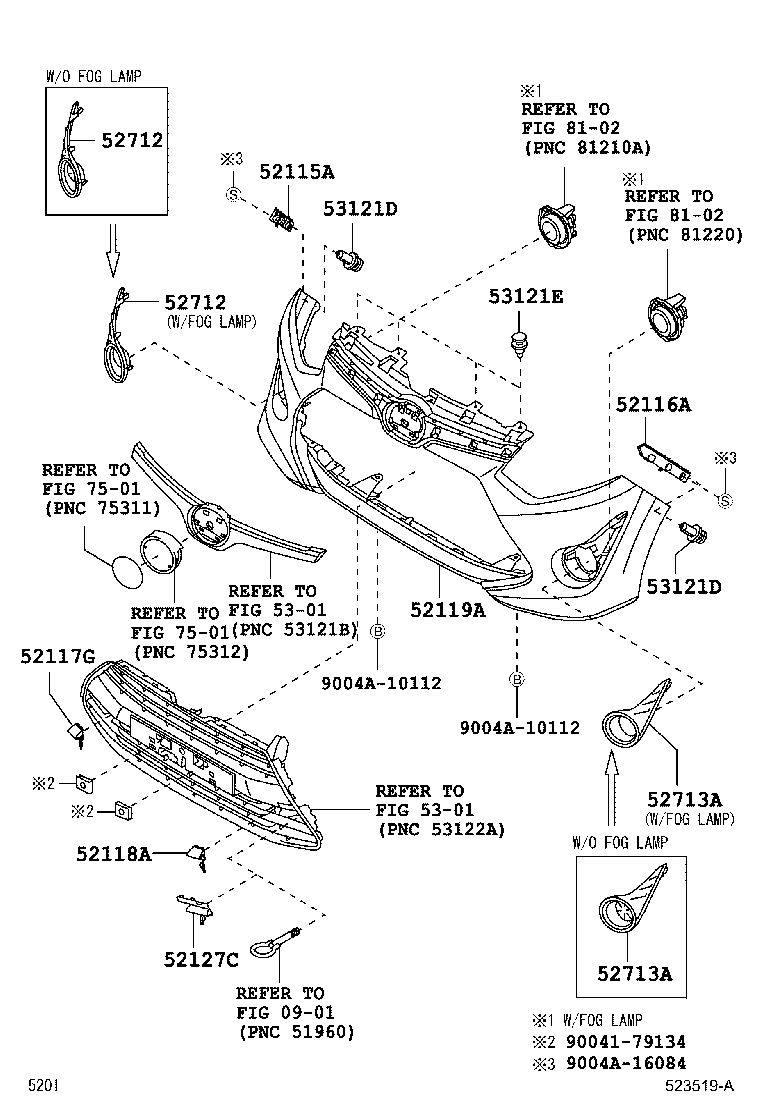

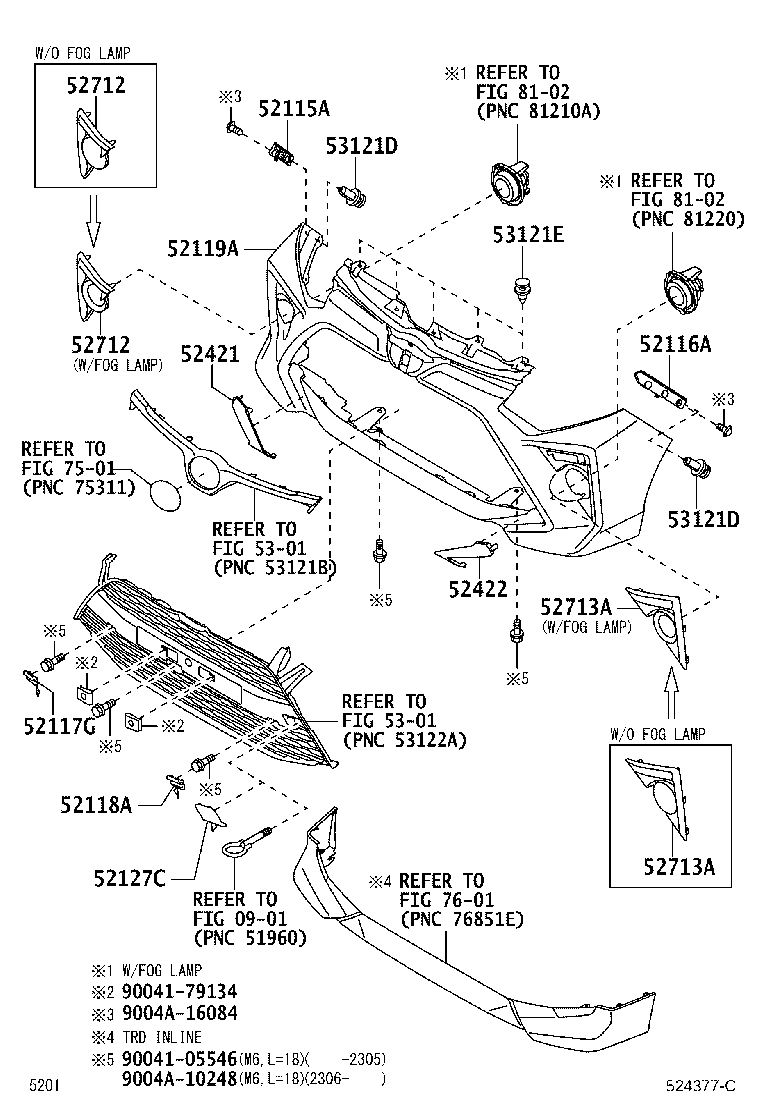

Figure 522758K 522758K 2012-12 → 2017-04 Figure 523519A 523519A 2017-04 → 2020-03 Figure 524377C 524377C 2020-03 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117G Insert, Front Bumper Extension, NO.2 RH
52118A Insert, Front Bumper Extension, NO.2 LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52421 Filler, Front Bumper Moulding, RH
52422 Filler, Front Bumper Moulding, LH
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
