Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

6 part groups · 3 illustrations

Illustrations

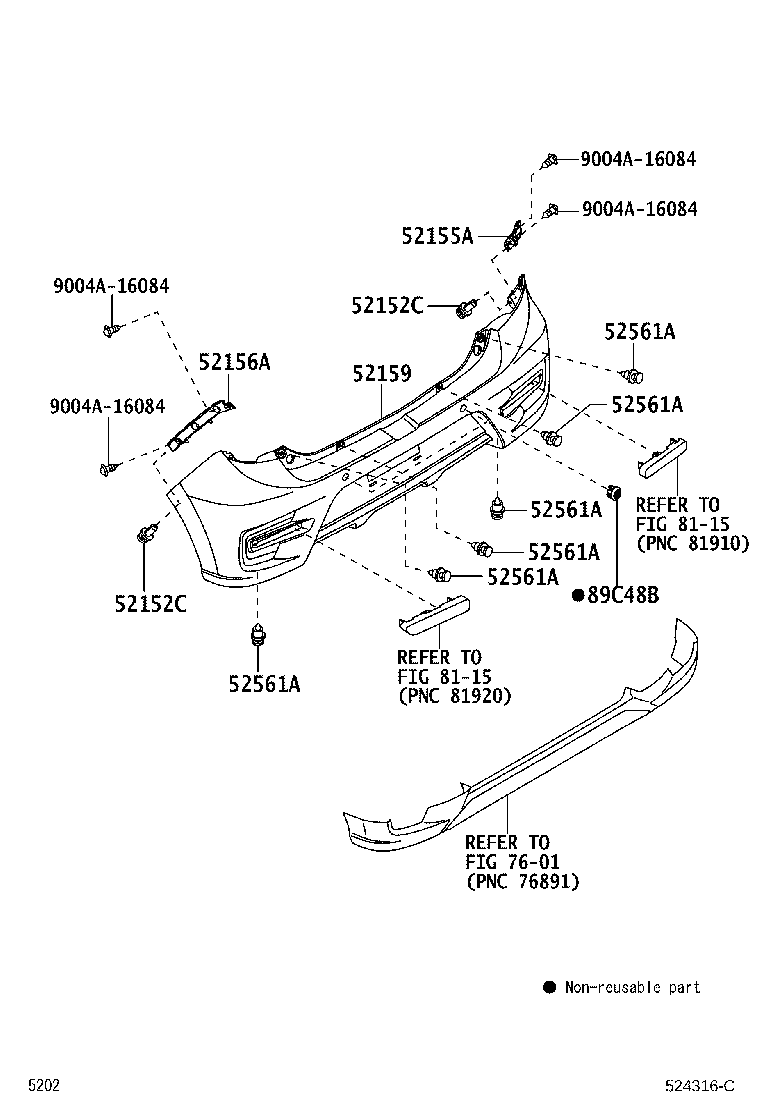

Figure 522760F 522760F 2012-12 → 2017-04 Figure 523535B 523535B 2017-04 → 2020-03 Figure 524316C 524316C 2020-03 → —

Part groups

PNCDescription
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
