Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

17 part groups · 2 illustrations

Illustrations

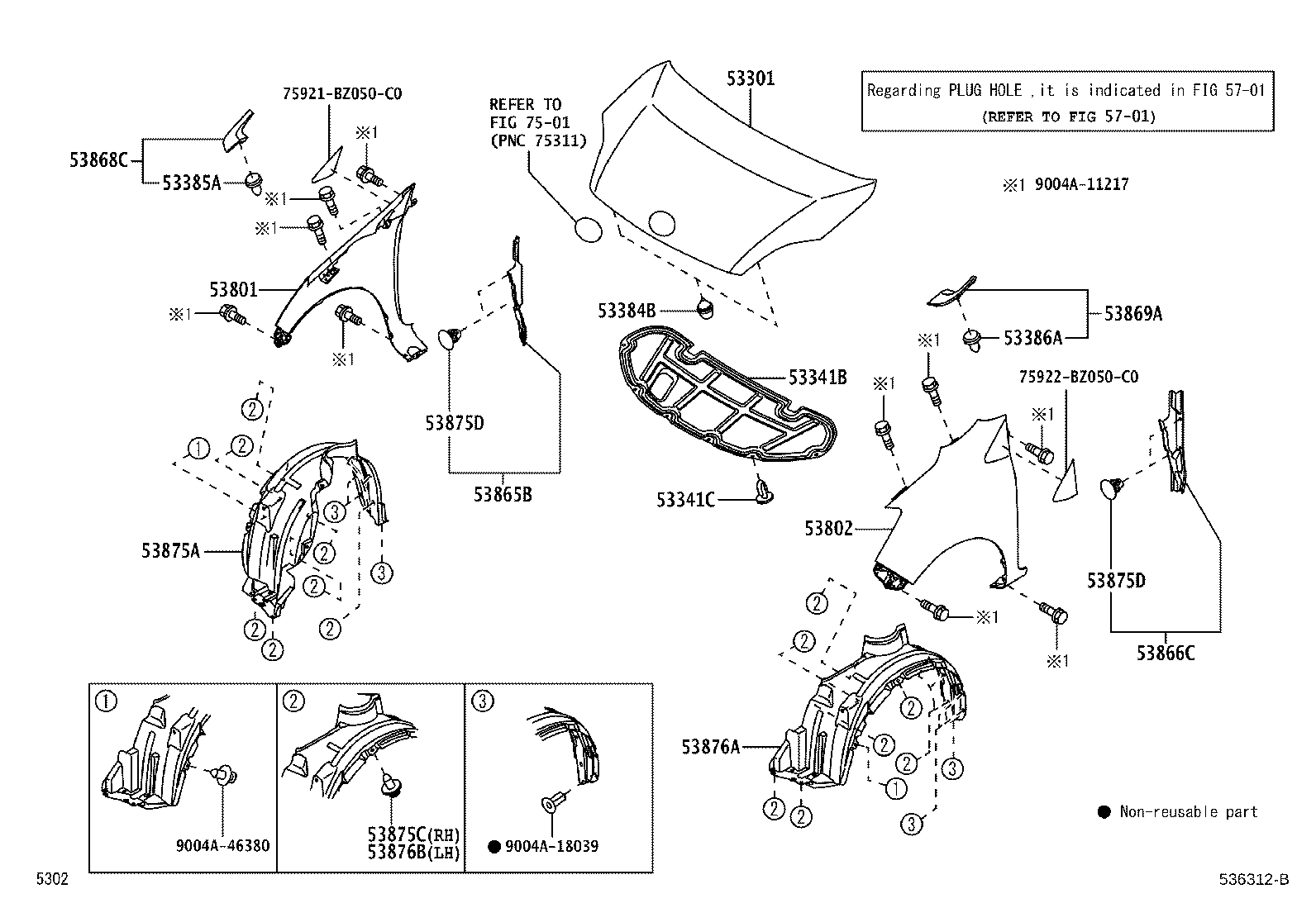

Figure 533917L 533917L 2012-12 → 2017-04 Figure 536312B 536312B 2017-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53384B Cushion, Hood, Center
53385A Retainer, Hood Bumper, RH
53386A Retainer, Hood Bumper, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53865B Plate, Front Fender Extension, RH
53866C Plate, Front Fender Extension, LH
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53876A Liner, Front Fender, LH
53876B Clip, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
