Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

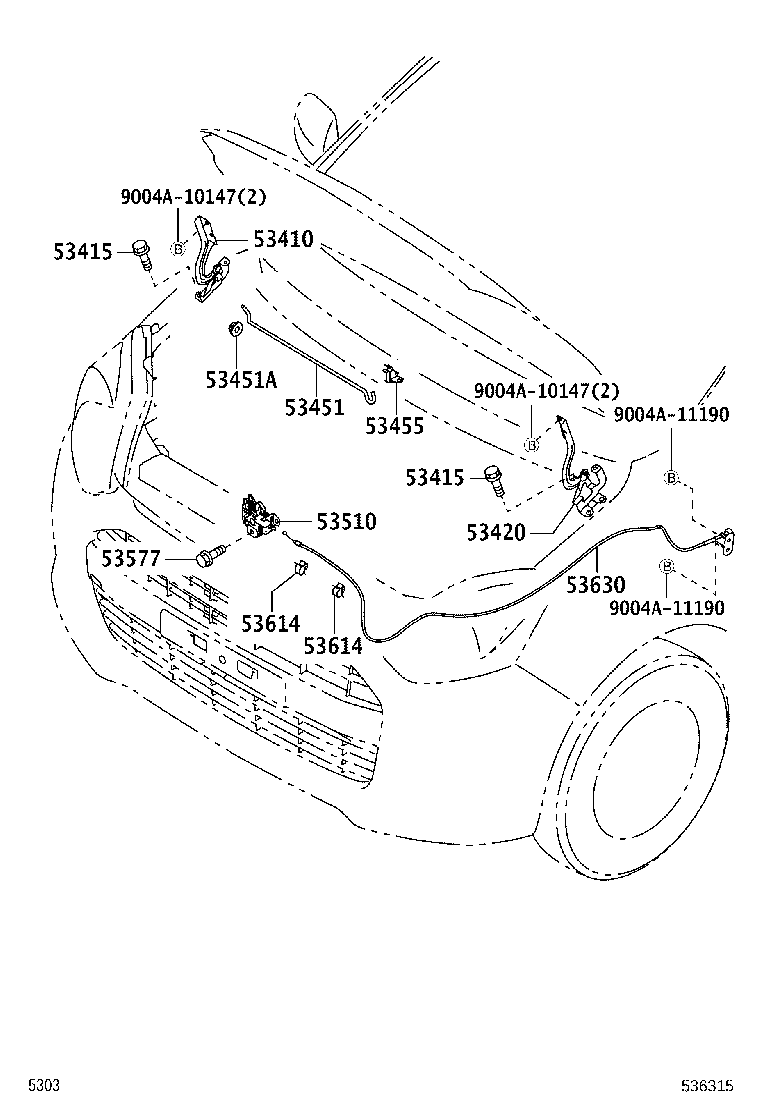

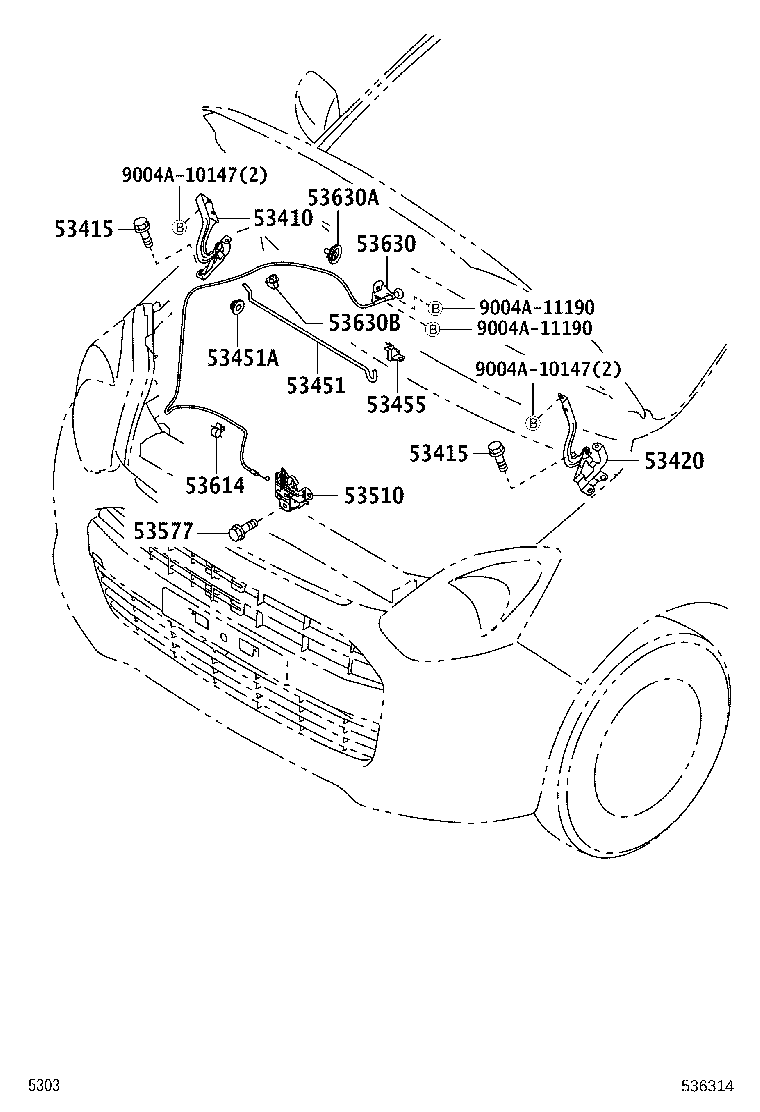

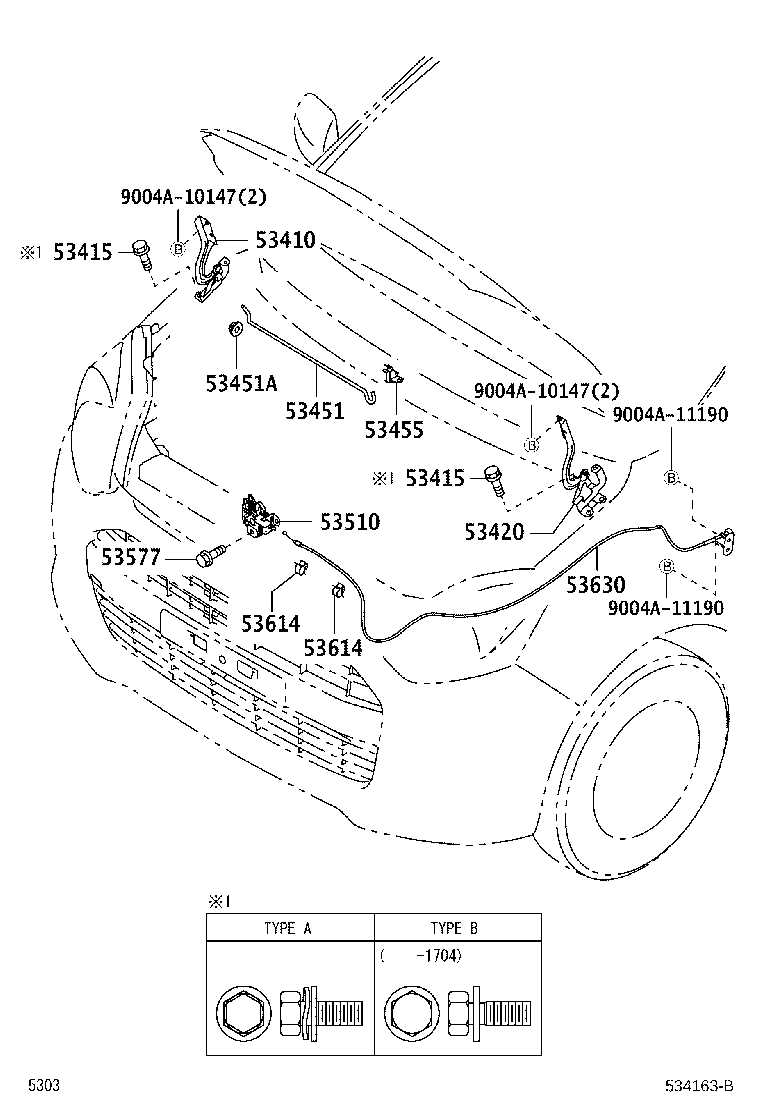

Hood Lock & Hinge
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53415 | Bolt, Hood Hinge |
| 53420 | Hinge Assy, Hood, LH |
| 53451 | Rod, Hood Support |
| 53451A | Grommet(FOR HOOD SUPPORT ROD) |
| 53455 | Clamp, Hood Support Rod |
| 53510 | Lock Assy, Hood |
| 53577 | Bolt, Hood Lock |
| 53614 | Clamp, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
| 53630A | Grommet(FOR HOOD LOCK CONTROL CABLE) |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
