Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

38 part groups · 15 illustrations

Illustrations

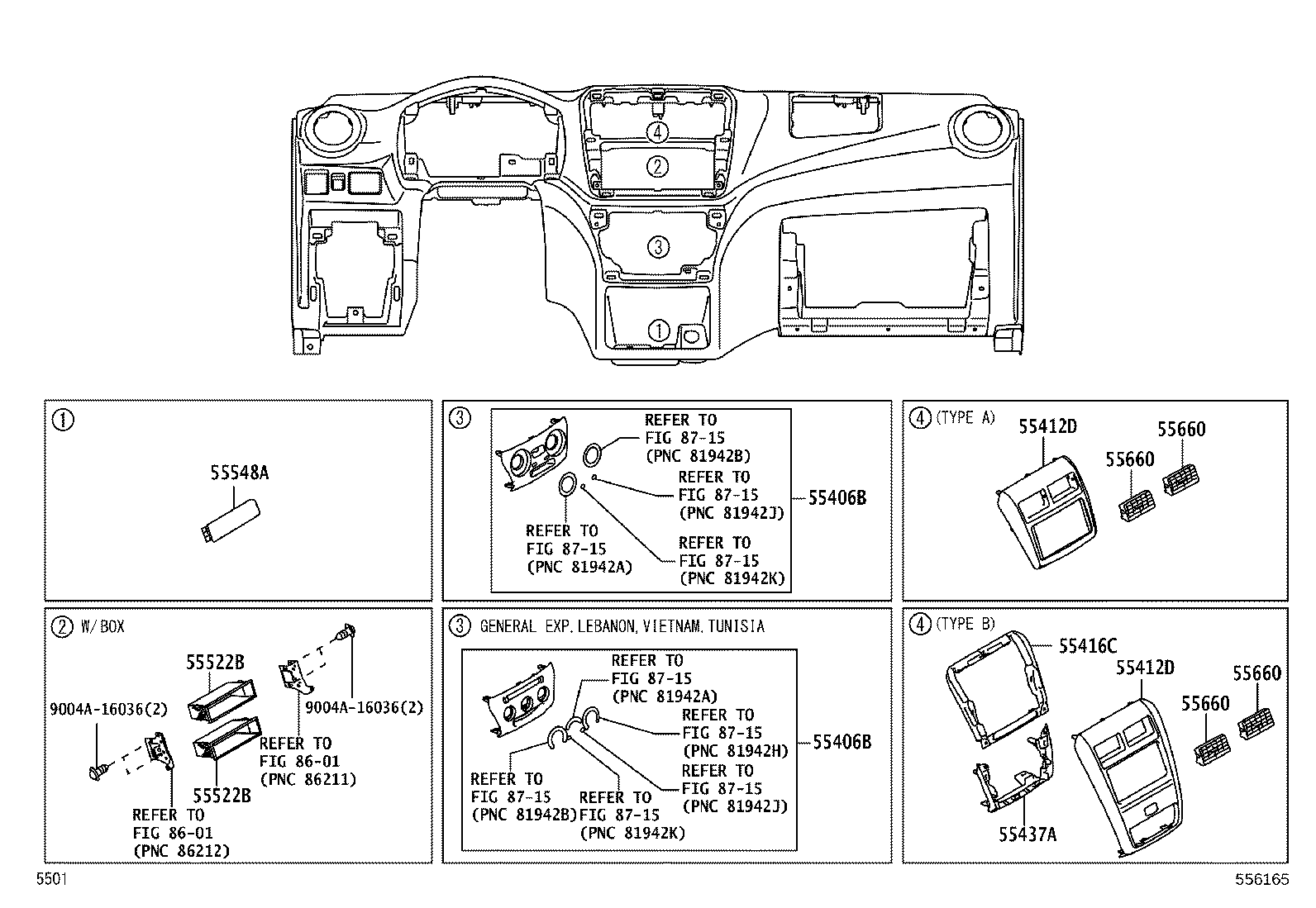

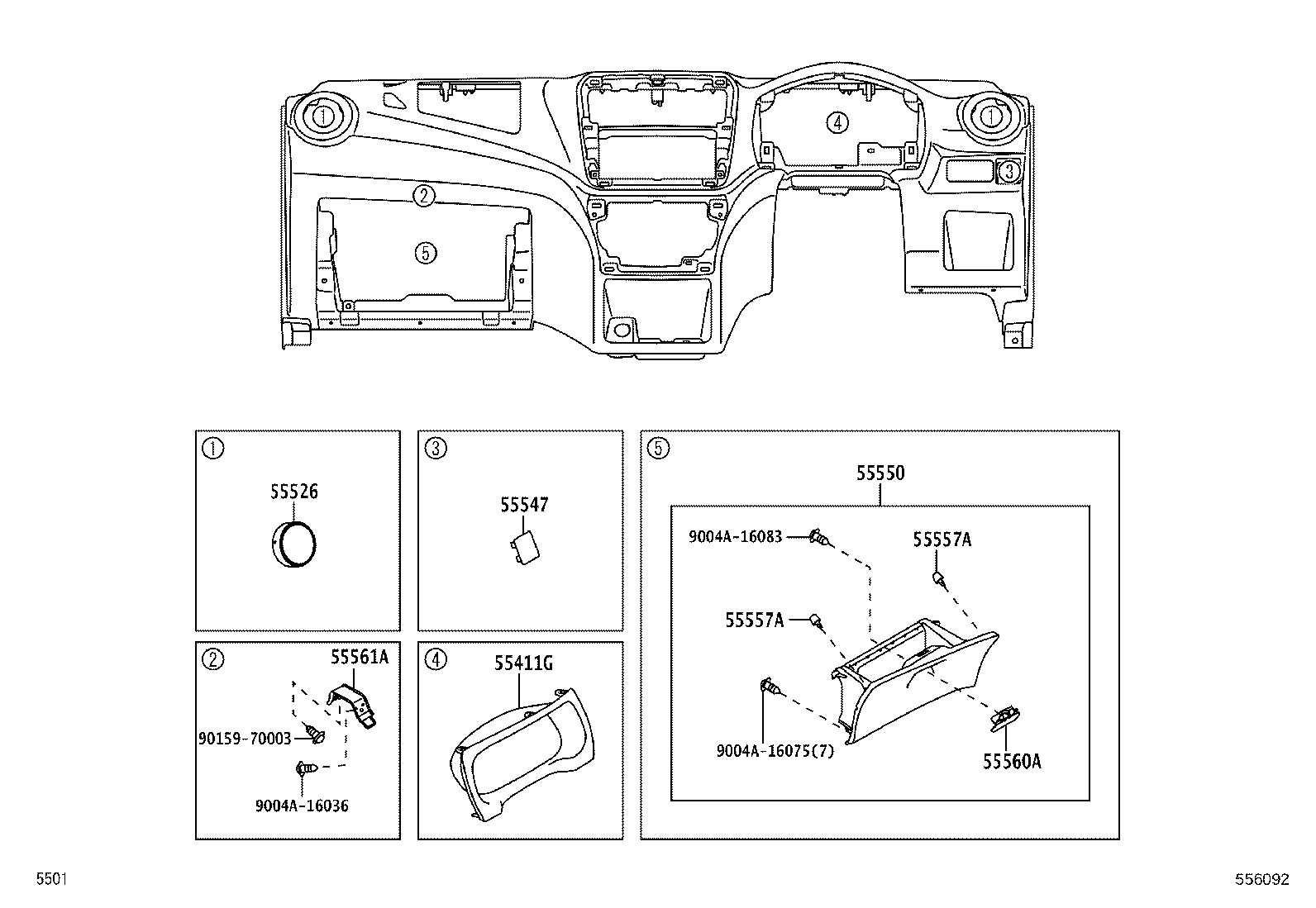

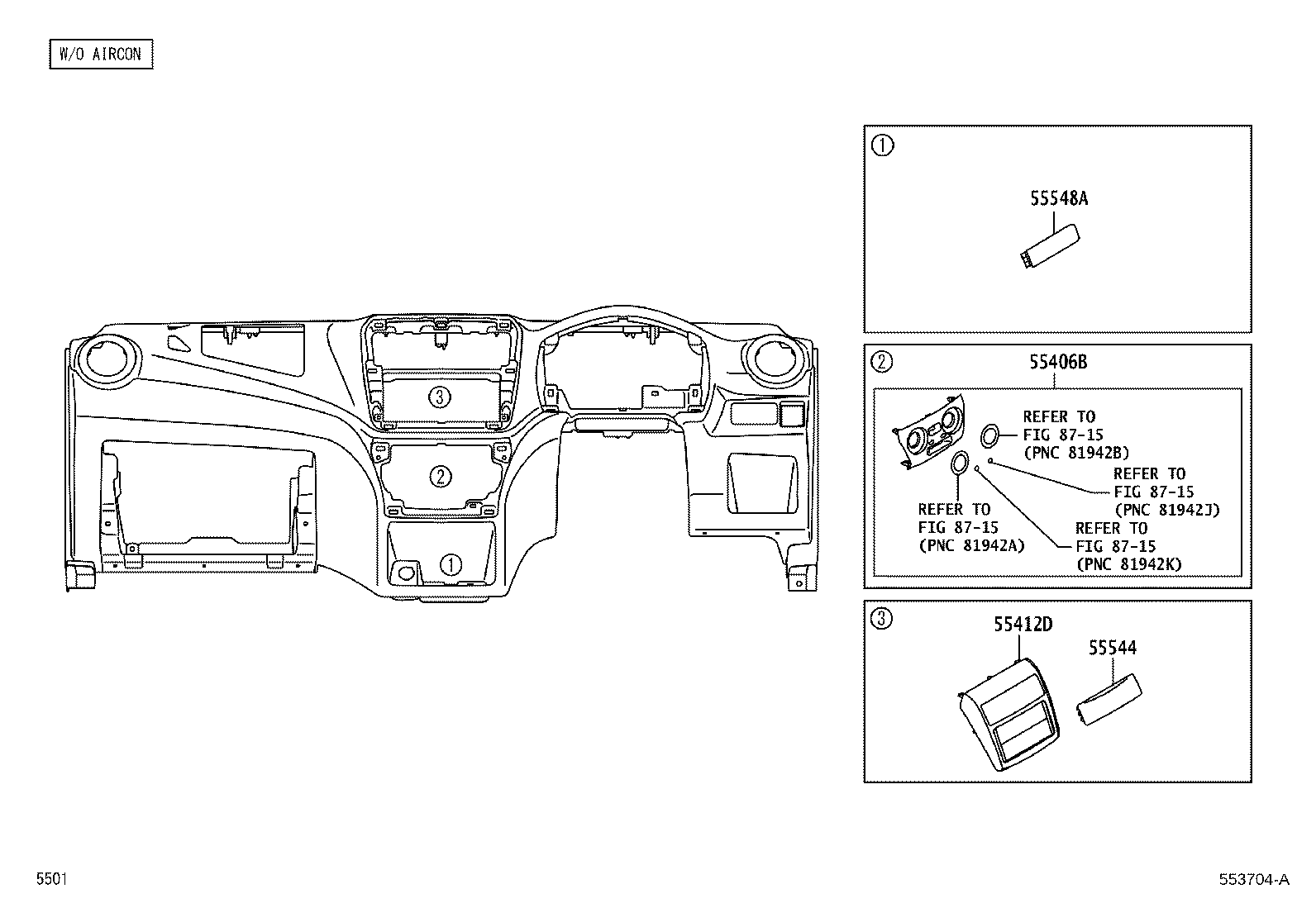

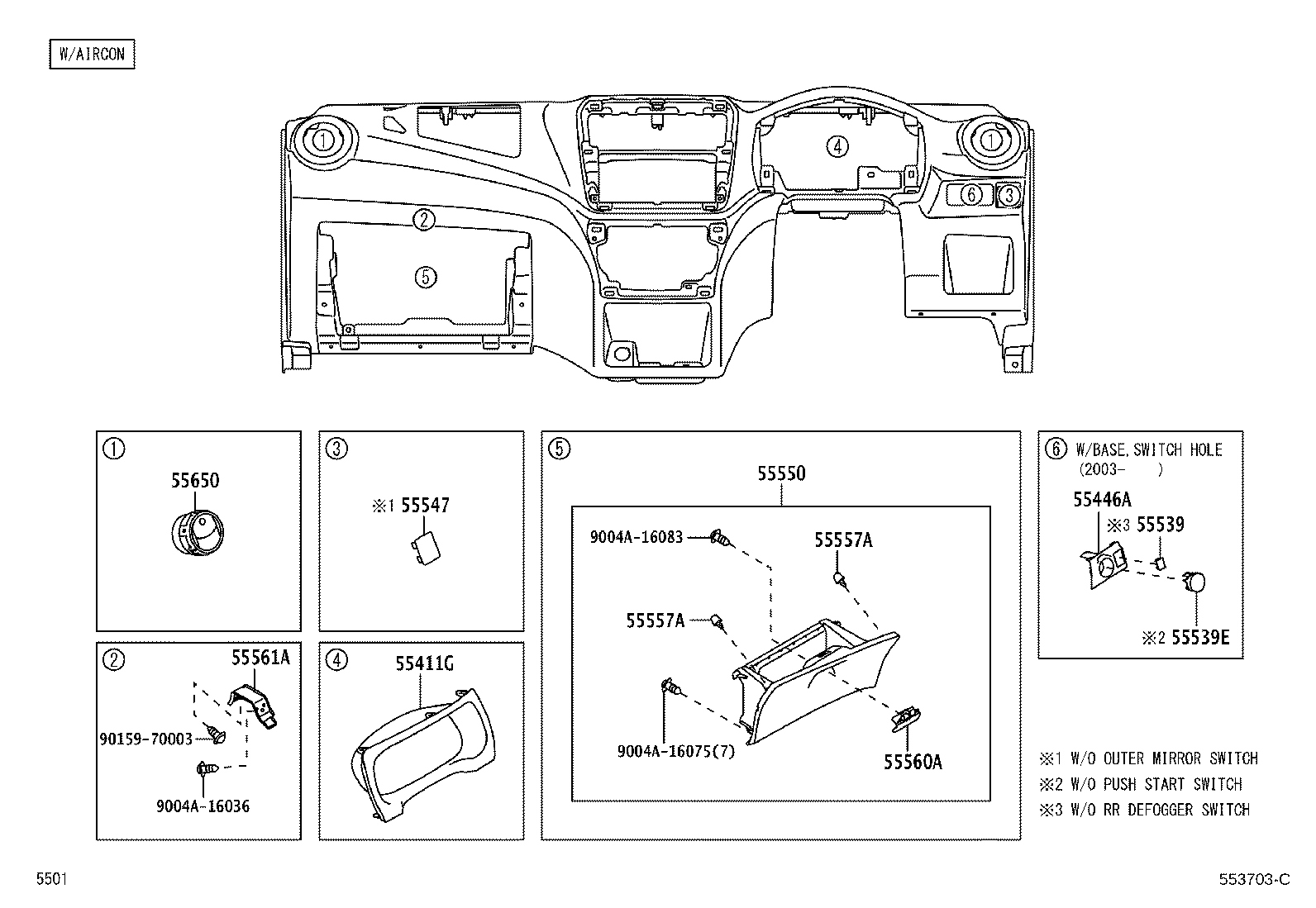

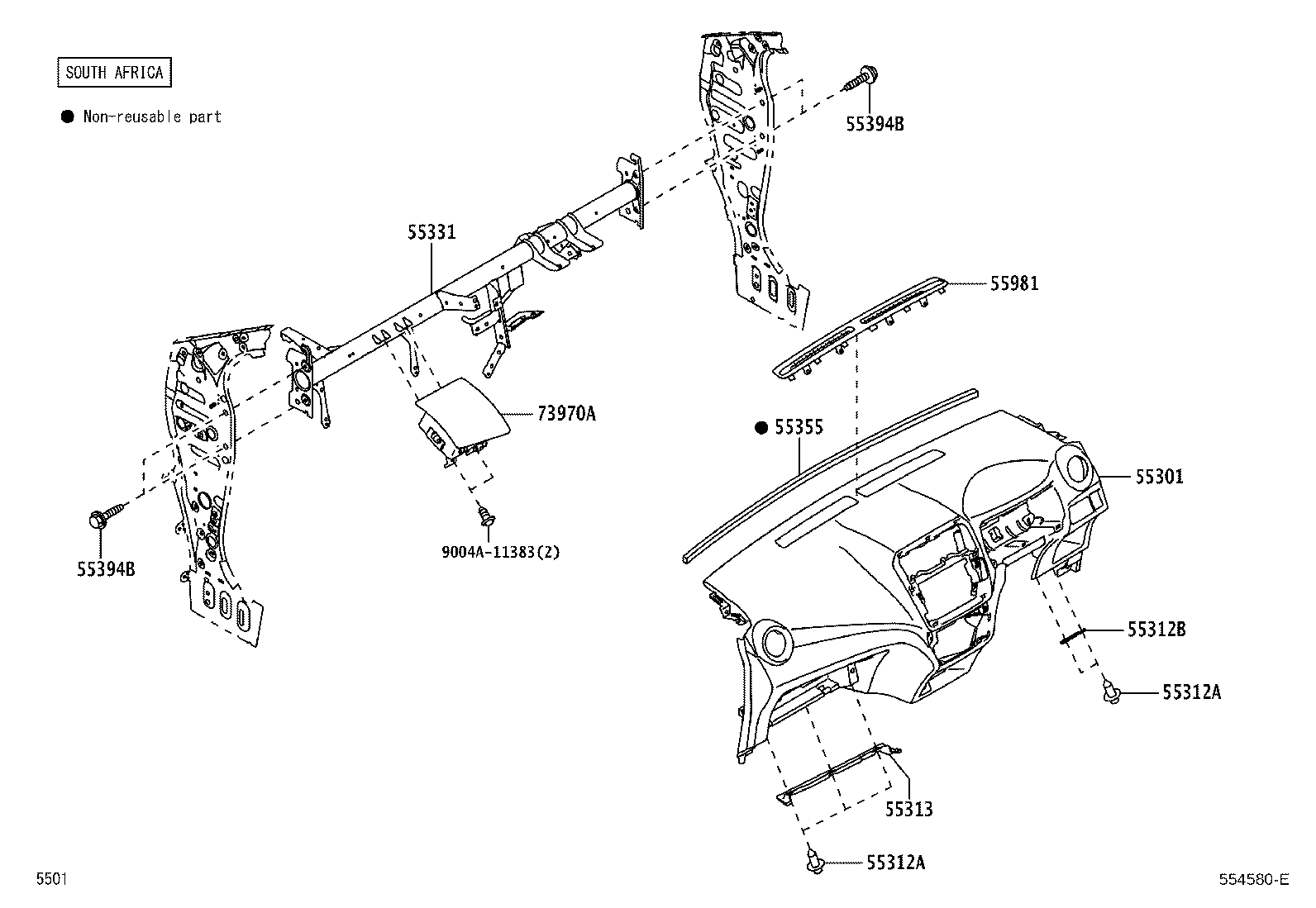

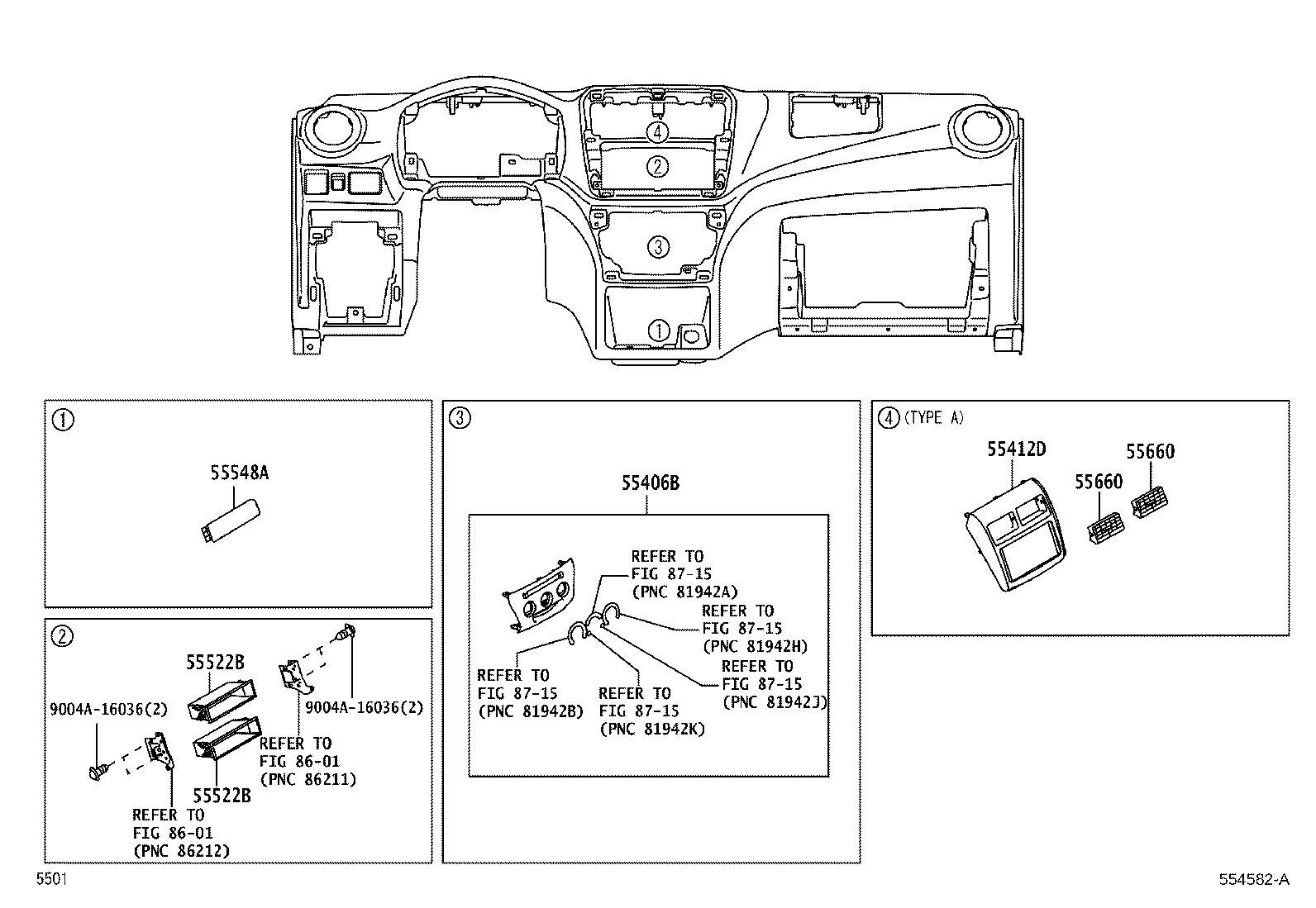

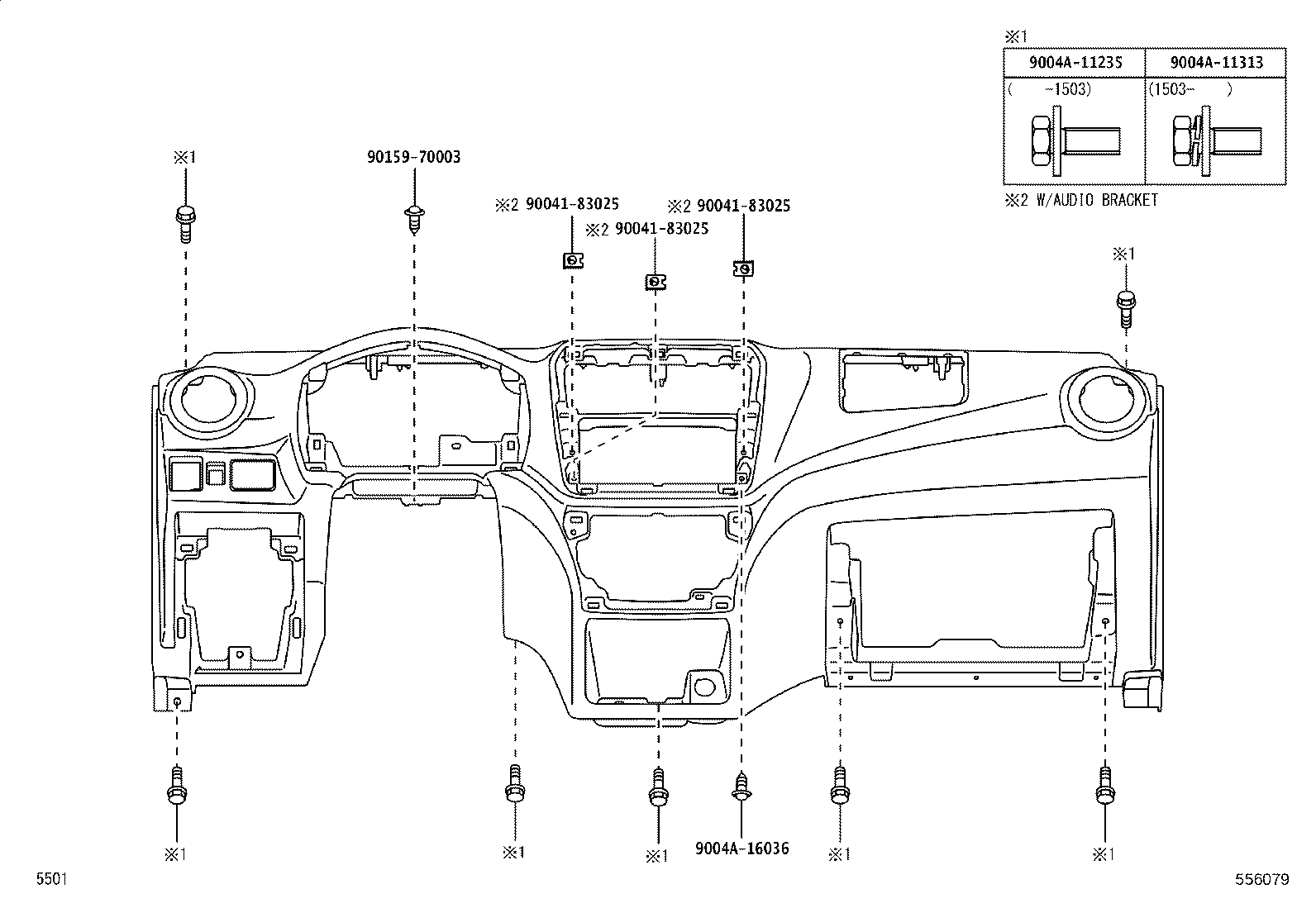

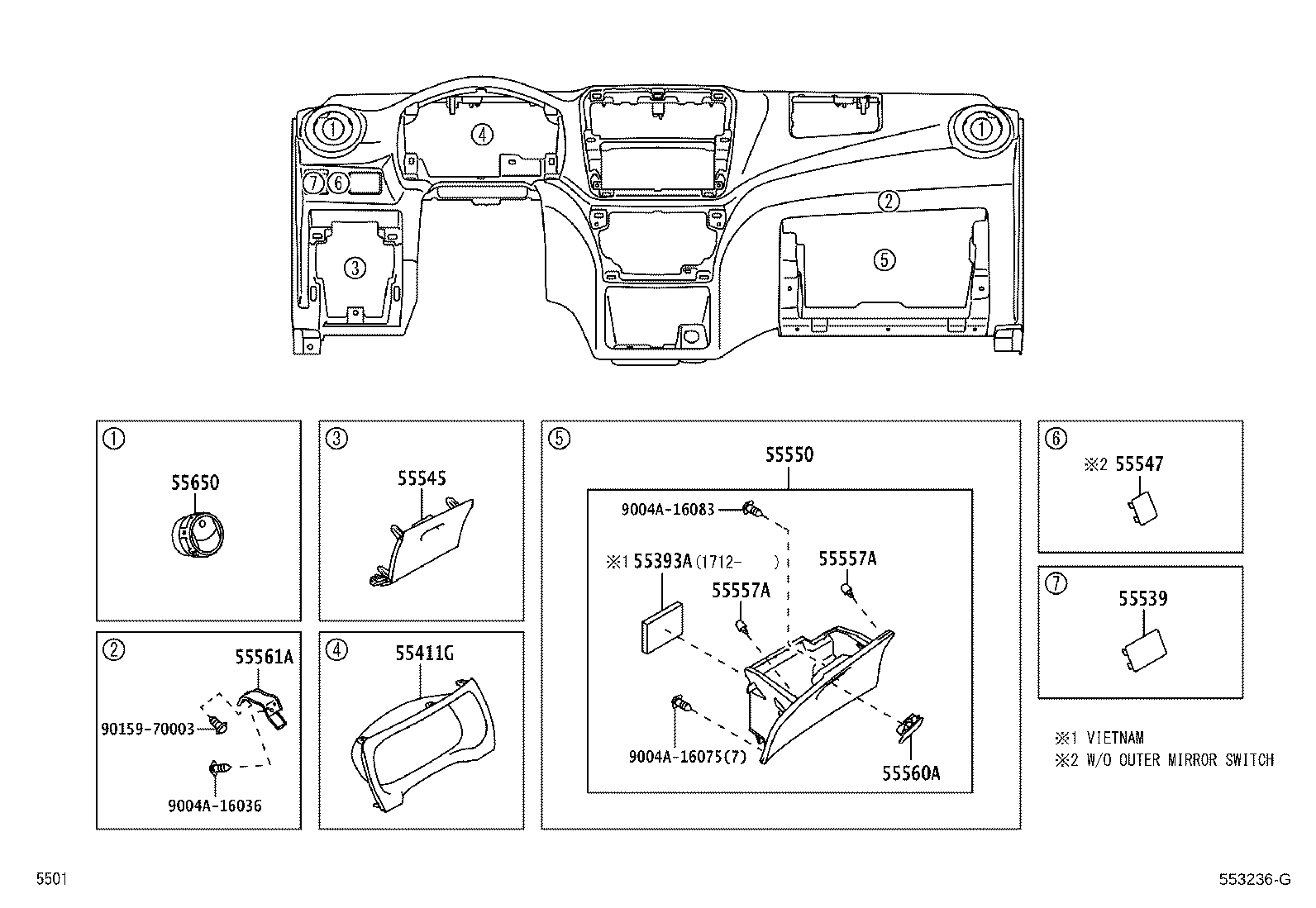

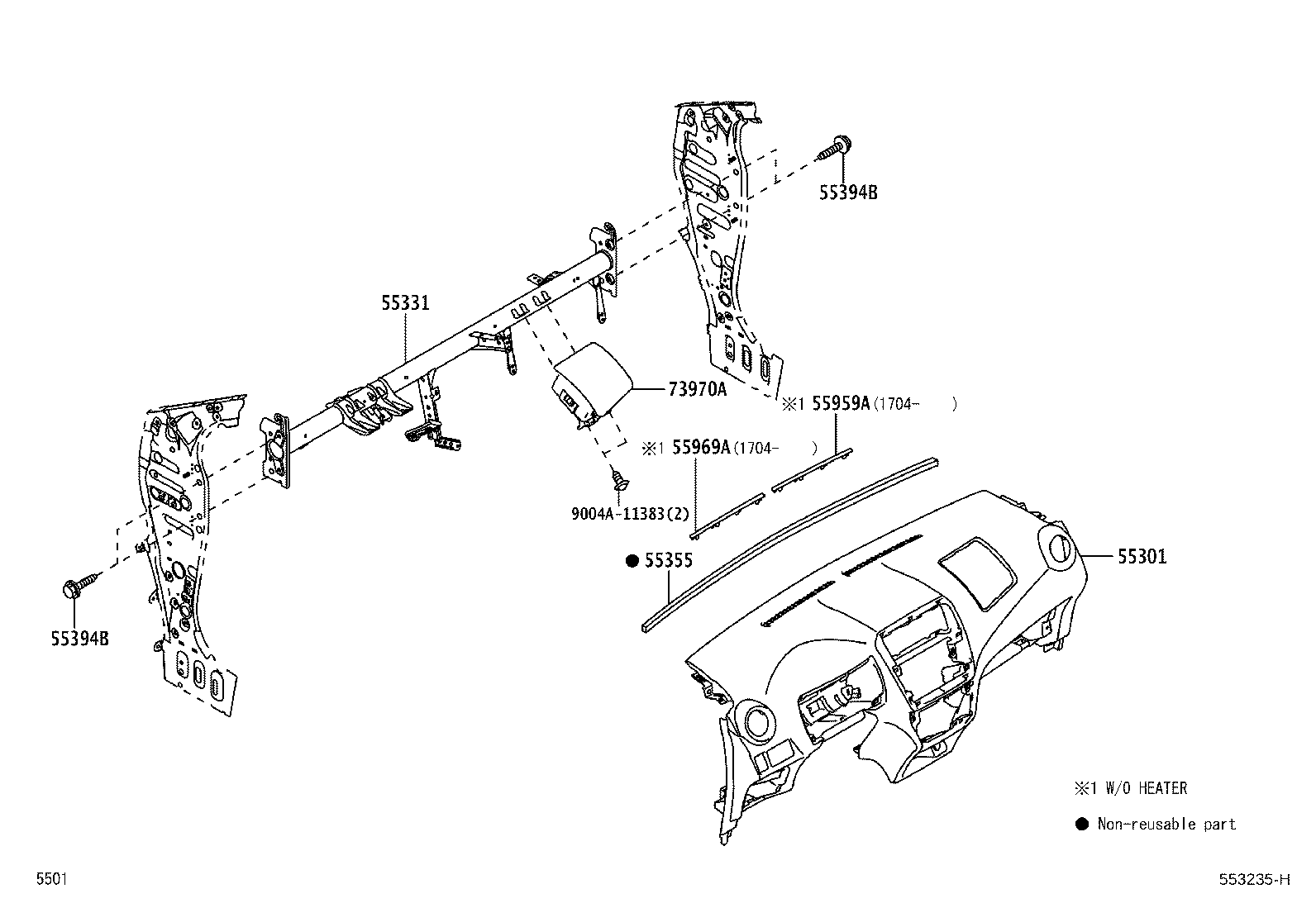

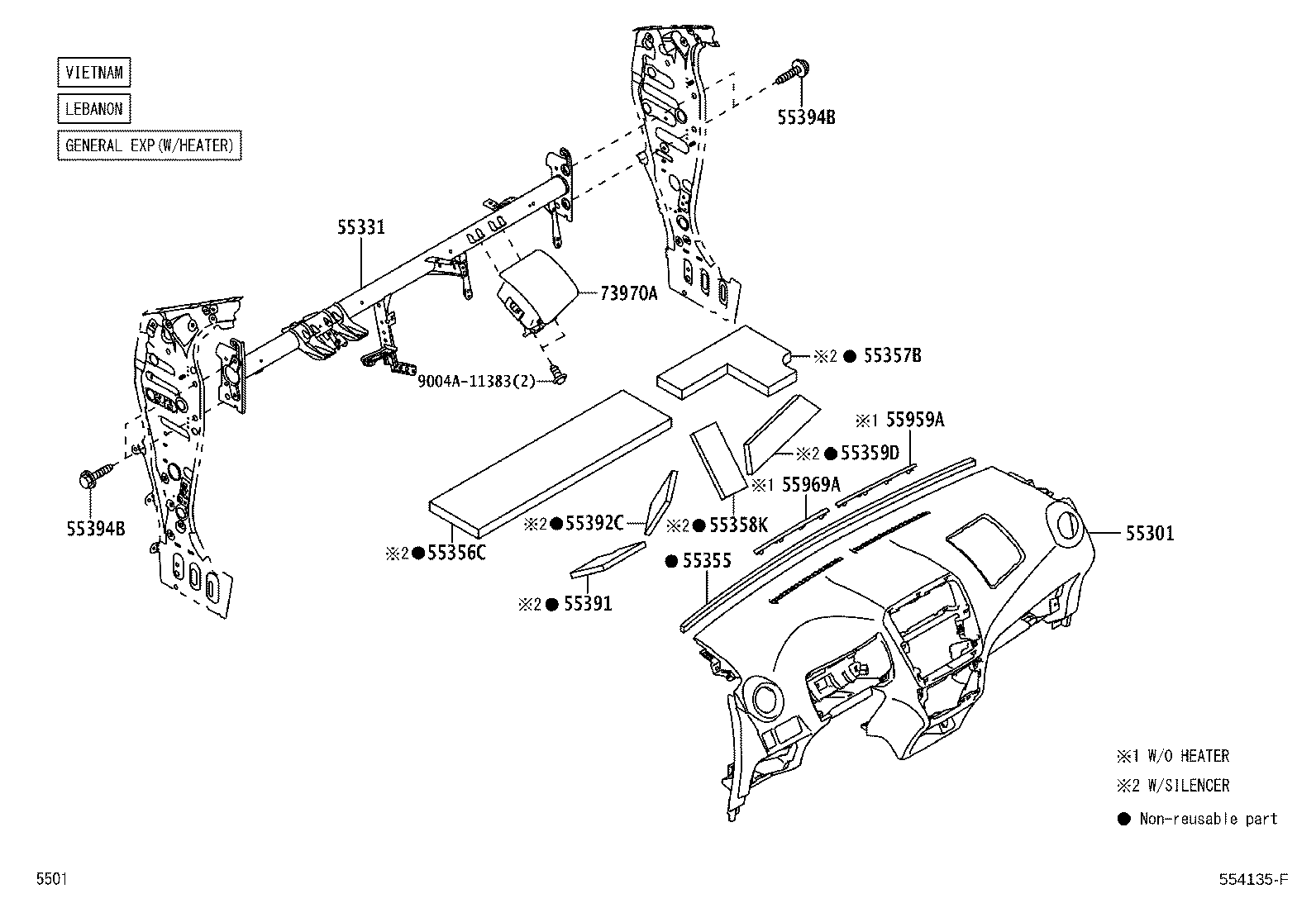

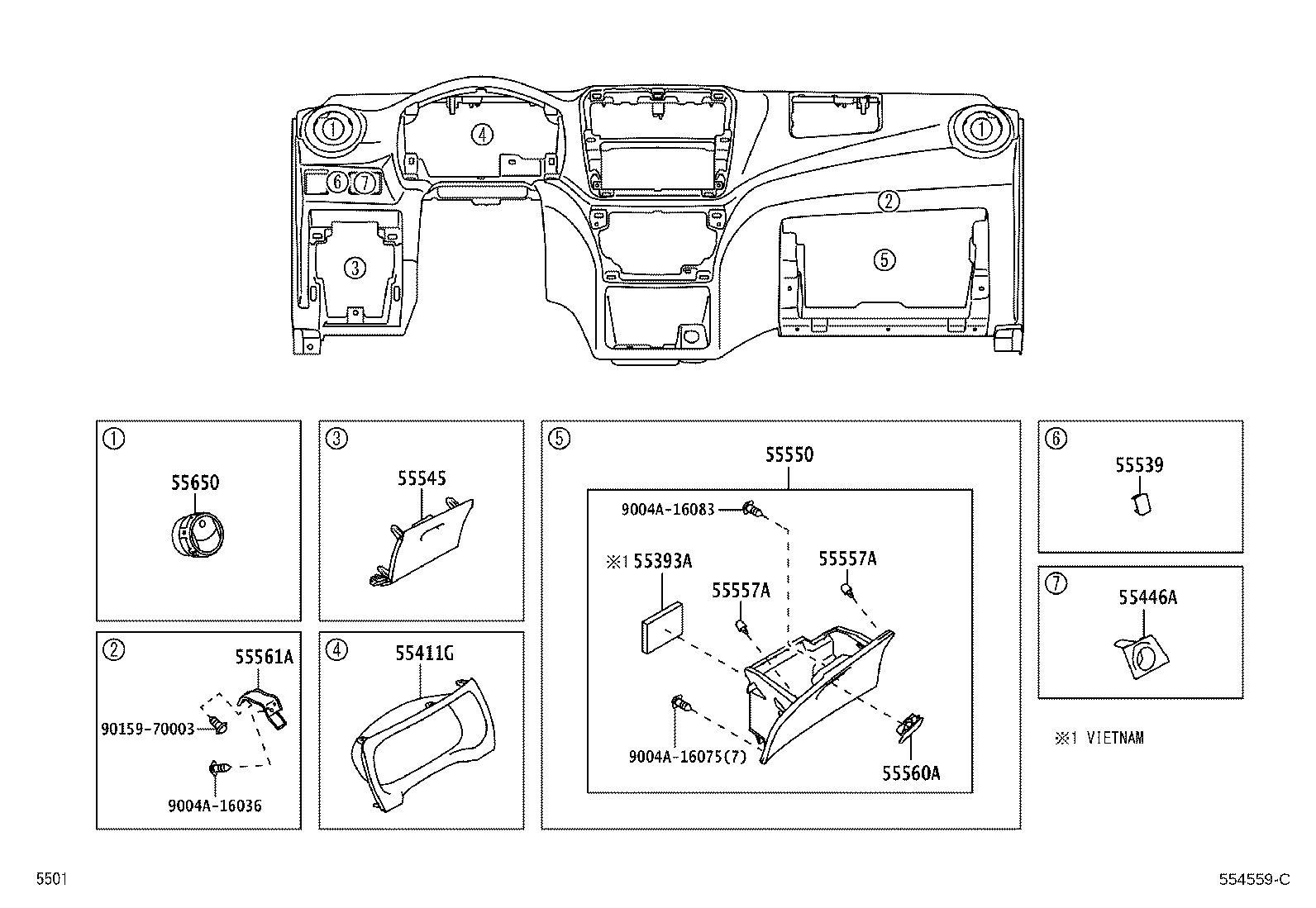

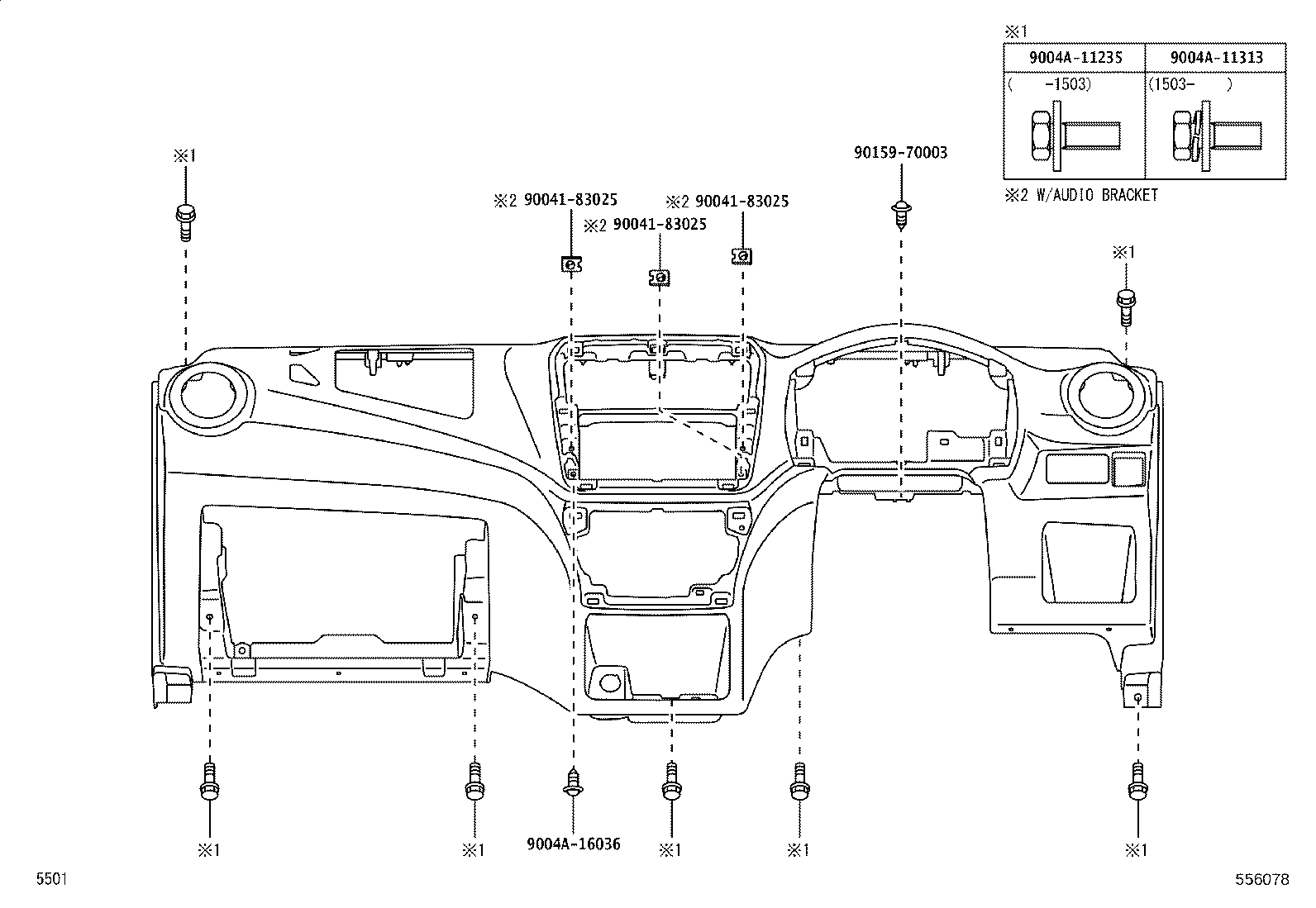

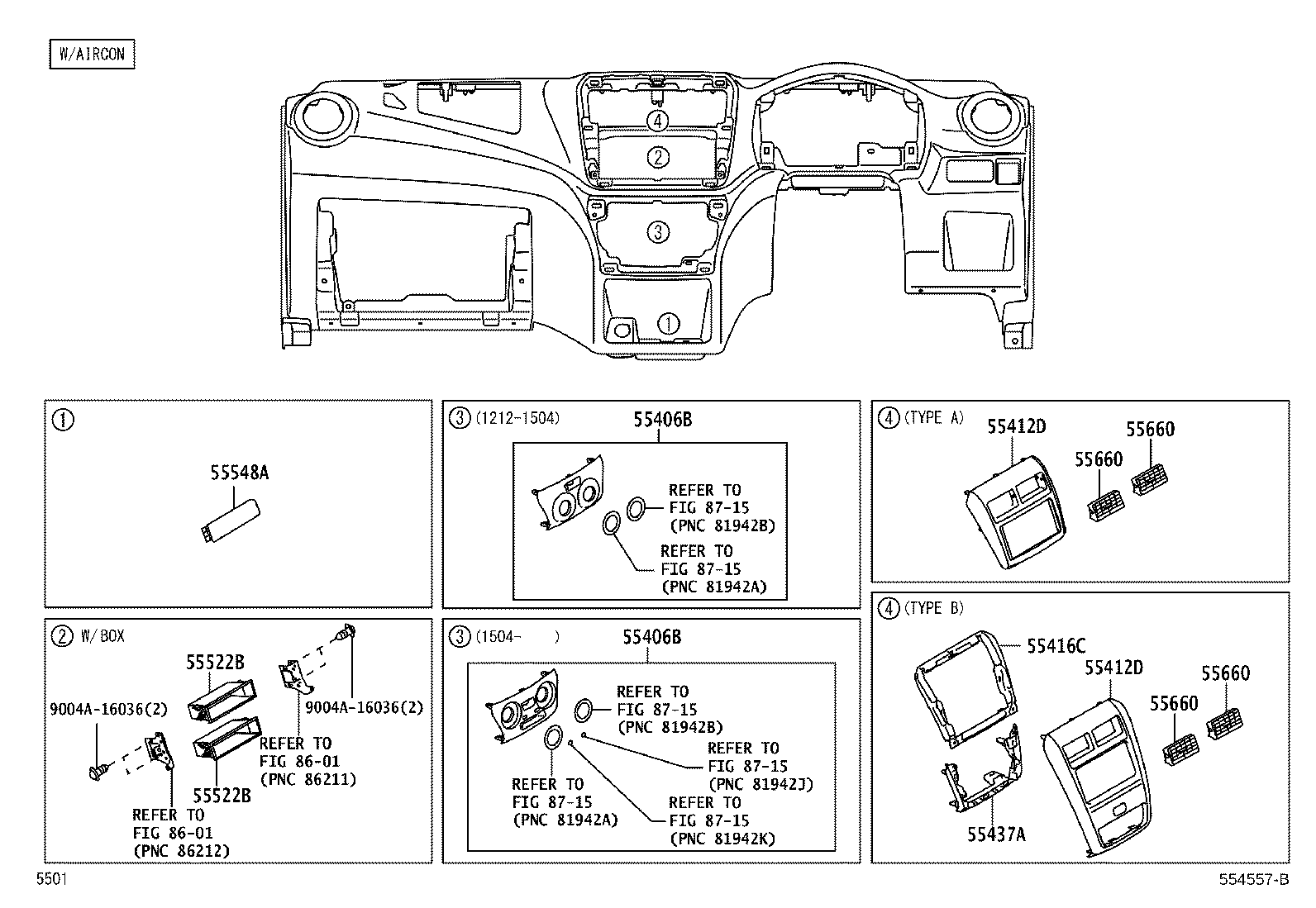

Figure 558586 558586 2012-12 → — Figure 554580E 554580E 2020-07 → — Figure 553235H 553235H 2014-01 → — Figure 554135F 554135F 2017-12 → — Figure 556078 556078 2012-12 → — Figure 556079 556079 2014-01 → — Figure 553703C 553703C 2012-12 → — Figure 556092 556092 2012-12 → 2017-04 Figure 554557B 554557B 2012-12 → — Figure 553704A 553704A 2012-12 → — Figure 553236G 553236G 2014-01 → 2020-03 Figure 553236G 553236G 2020-03 → — Figure 554559C 554559C 2020-03 → — Figure 554582A 554582A 2014-01 → 2017-04 Figure 556165 556165 2017-04 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55312A Clip, Instrument Panel
55312B Panel, Instrument, Lower RH
55313 Panel, Instrument, Lower LH
55331 Reinforcement, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55358K Cushion, Instrument Panel, NO.4
55359D Cushion, Instrument Panel, NO.5
55391 Cushion, Instrument Panel, Lower NO.1
55392C Cushion, Instrument Panel, Lower NO.2
55393A Cushion, Instrument Panel, Lower NO.3
55394B Bolt, Instrument Panel
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55416C Retainer, Instrument Cluster Finish Panel
55437A Retainer, Instrument Panel Finish Panel, NO.1
55446A Base, Switch Hole, NO.1
55522B Cover, Radio Tuner Opening
55526 Cover, Instrument Panel Register Opening
55539 Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55544 Cover, Instrument Panel Register Hole
55545 Cover, Fuse Box Opening
55547 Cover, Remote Control Mirror Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55561A Striker, Glove Compartment Door Lock
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55959A Cover, Defroster Nozzle Opening, NO.1
55969A Cover, Defroster Nozzle Opening, NO.2
55981 Garnish, Defroster Nozzle, NO.1
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
