Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

29 part groups · 3 illustrations

Illustrations

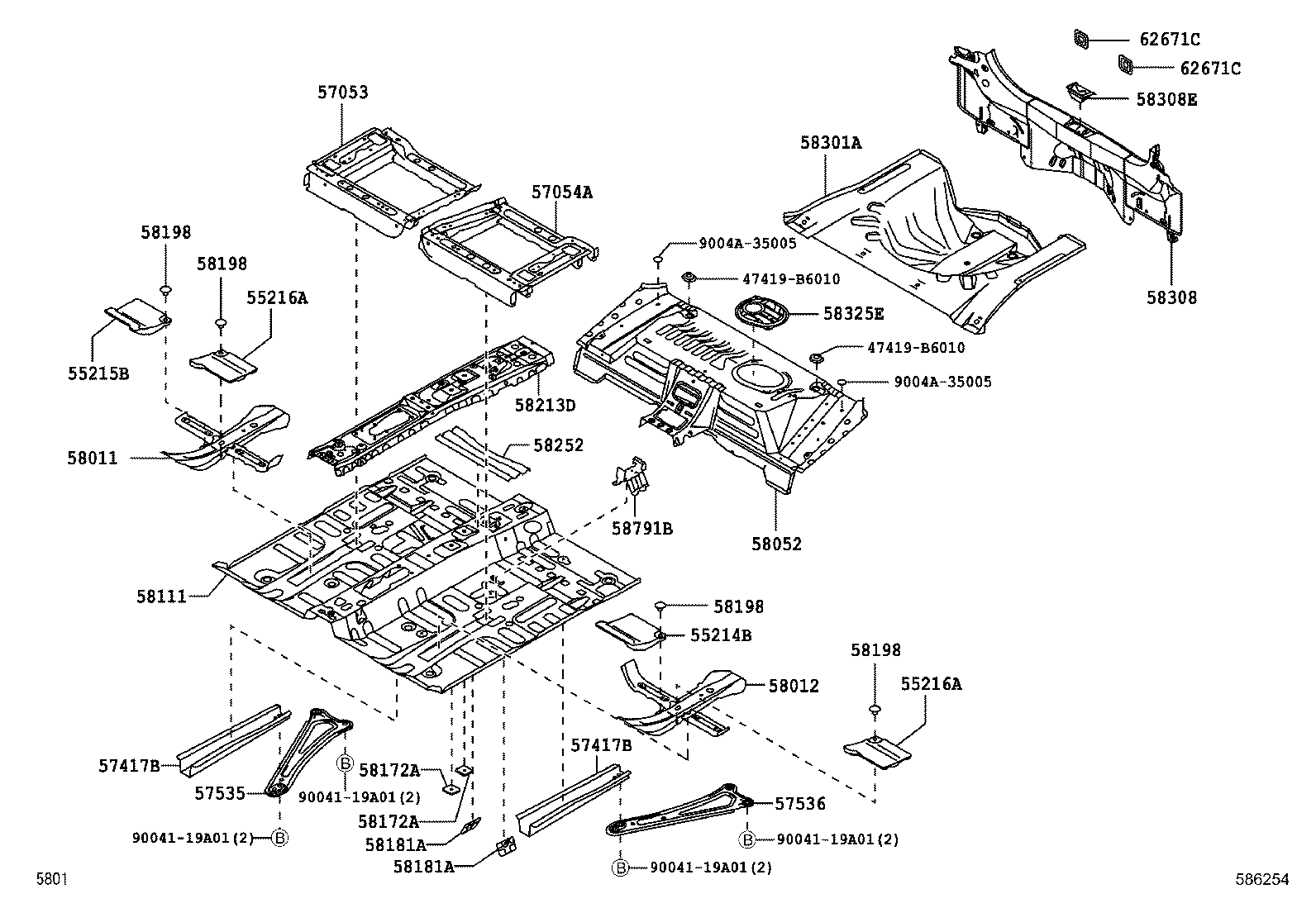

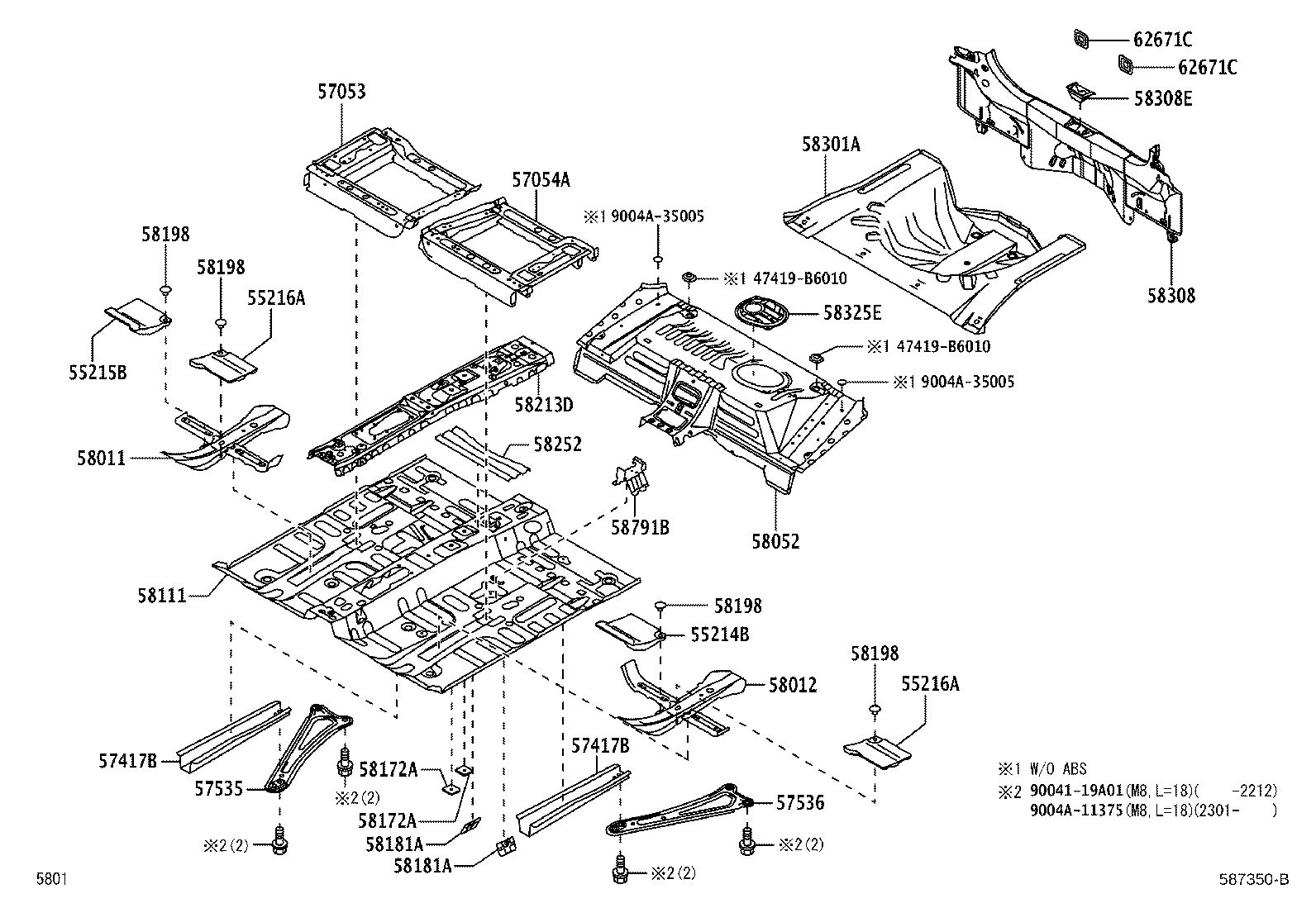

Figure 584756C 584756C 2012-12 → 2017-04 Figure 586254 586254 2017-04 → 2020-03 Figure 587350B 587350B 2020-03 → —

Part groups

PNCDescription
55214B Pad, Dash Panel Insulator, NO.2
55215B Pad, Dash Panel Insulator, NO.3
55216A Pad, Dash Panel Insulator, NO.4
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57053 Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A Reinforcement Sub-assy, Front Floor Crossmember, LH
57417B Reinforcement, Front Floor Under
57427C Reinforcement, Front Floor, Upper
57468B Bracket, Front Seat, Rear
57469A Bracket, Front Seat, Outside, Rear LH
57535 Brace, Front Floor, RH
57536 Brace, Front Floor, LH
58011 Panel Sub-assy, Front Floor Side, RH
58012 Panel Sub-assy, Front Floor Side, LH
58052 Pan Sub-assy, Center Floor
58111 Pan, Front Floor
58172A Plate, Parking Brake Mounting
58181A Retainer, Seat Rail, Front
58198 Clip, Footrest
58211H Pan, Center Floor
58213D Reinforcement, Center Floor Panel
58252 Brace, Floor Panel, Rear
58301A Panel Sub-assy, Rear Floor
58308 Panel Sub-assy, Body Lower Back, Inner
58308E Cover, Hole(FOR LOWER BACK)
58325E Cover, Rear Floor Service Hole
58791B Carrier, Jack
62671C Cover, Lower Back Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
