Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

9 part groups · 5 illustrations

Illustrations

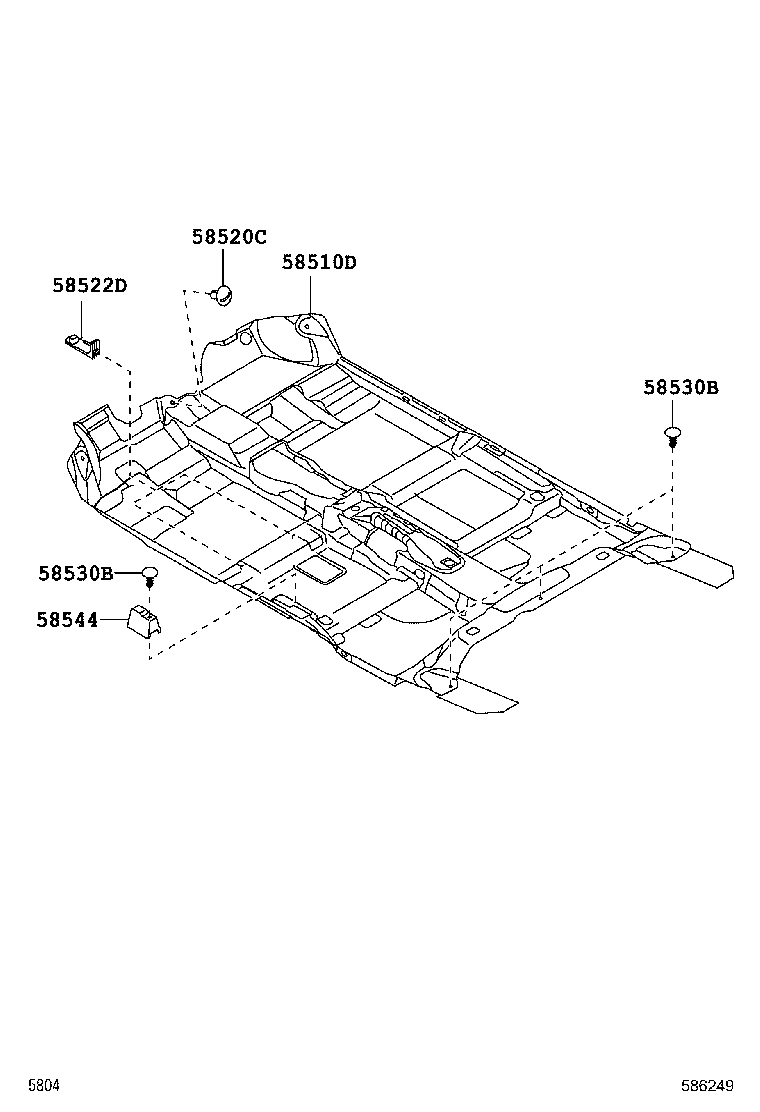

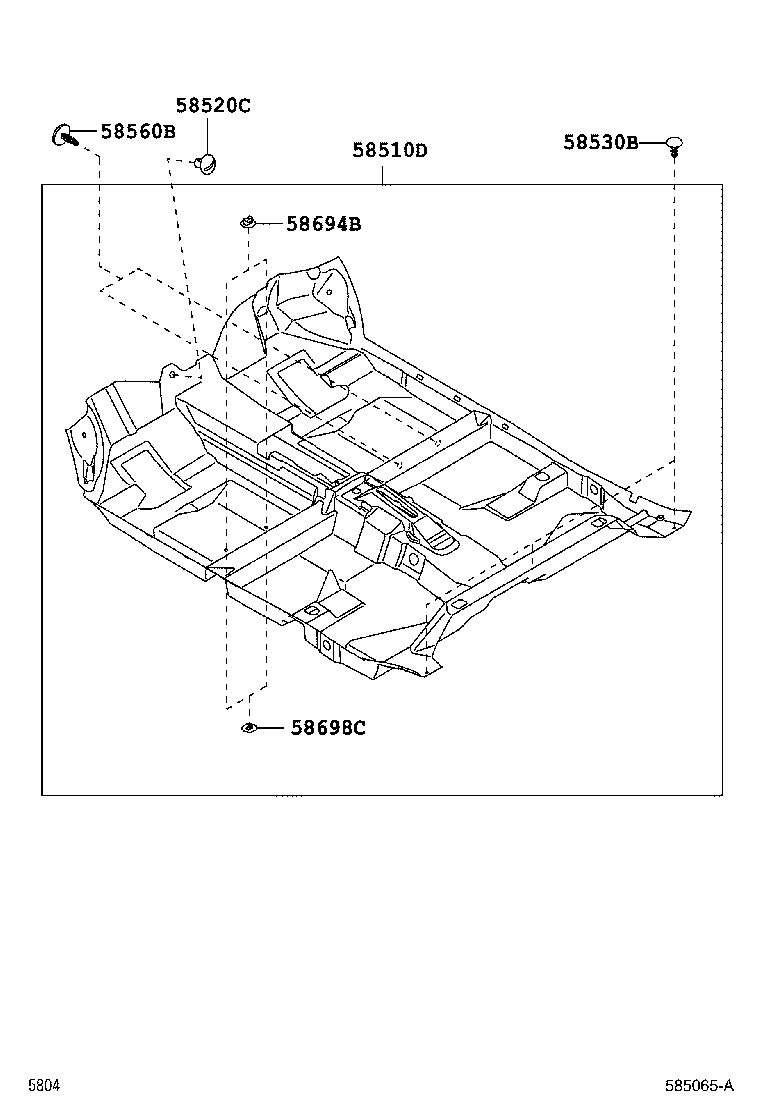

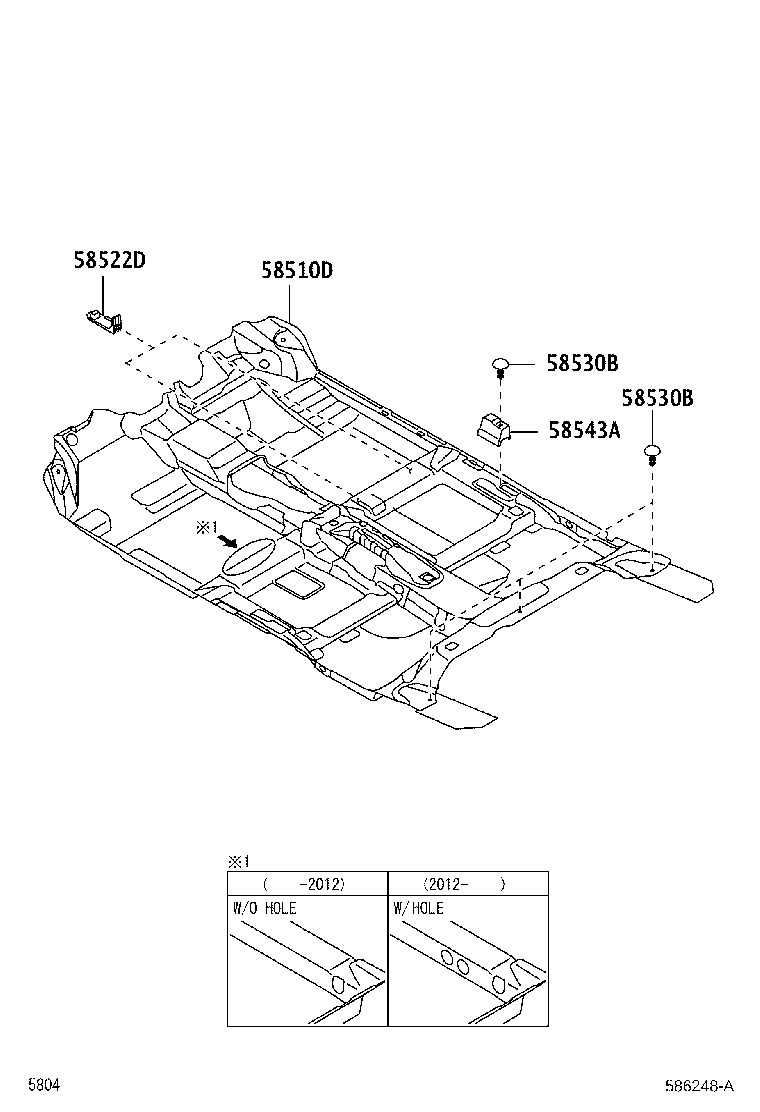

Figure 584747 584747 2012-12 → 2017-04 Figure 585065A 585065A 2014-01 → 2017-04 Figure 586248A 586248A 2017-04 → — Figure 587765 587765 2020-12 → — Figure 586249 586249 2017-04 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58522D Hook, Floor Carpet, NO.2
58530B Clip(FOR FRONT FLOOR CARPET)
58543A Carpet, Step Side, RH
58544 Carpet, Step Side, LH
58560B Clip(FOR FLOOR CARPET, REAR)
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
