Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

62 part groups · 7 illustrations

Illustrations

614496G 2012-12 → —

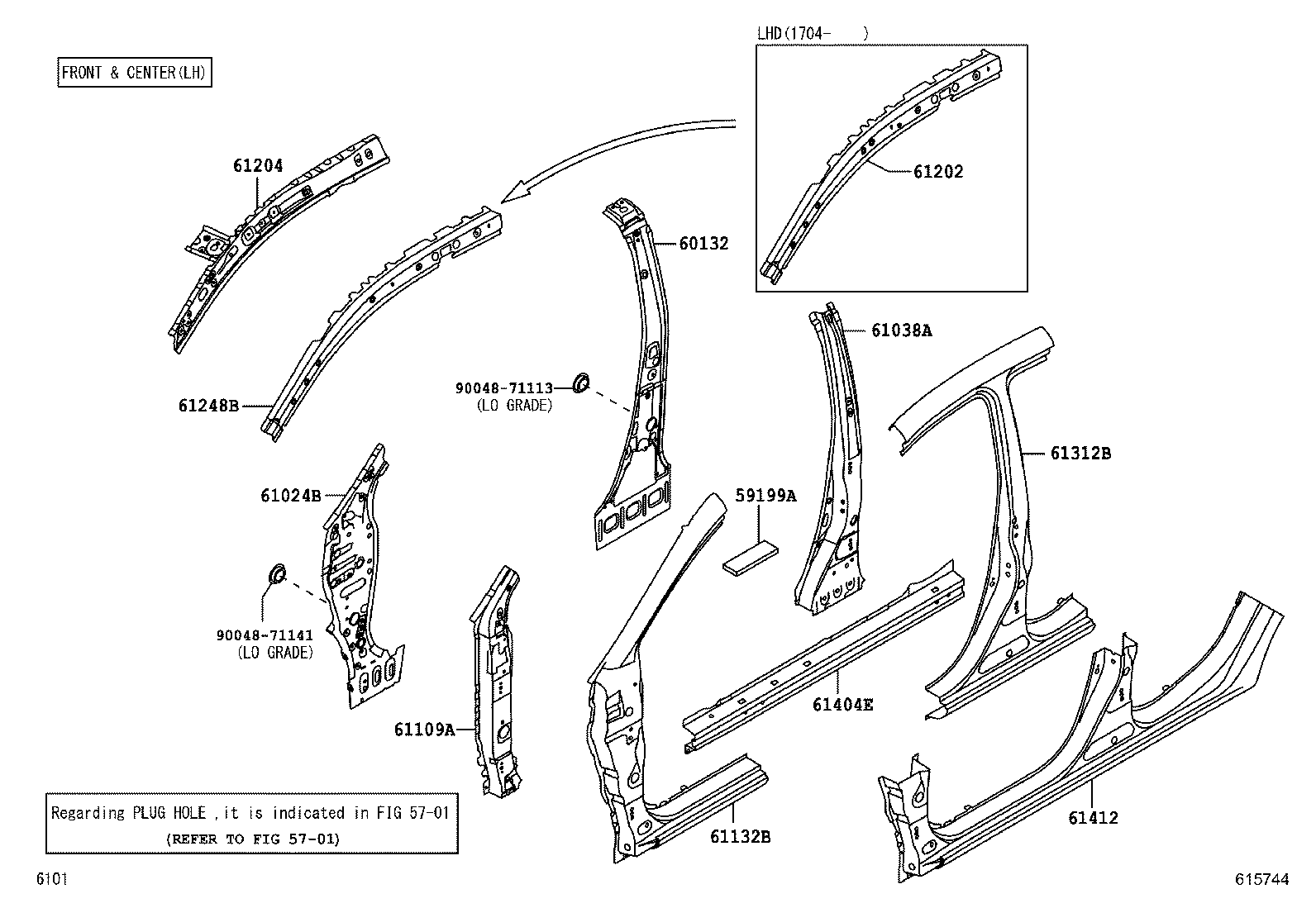

615744 2012-12 → —

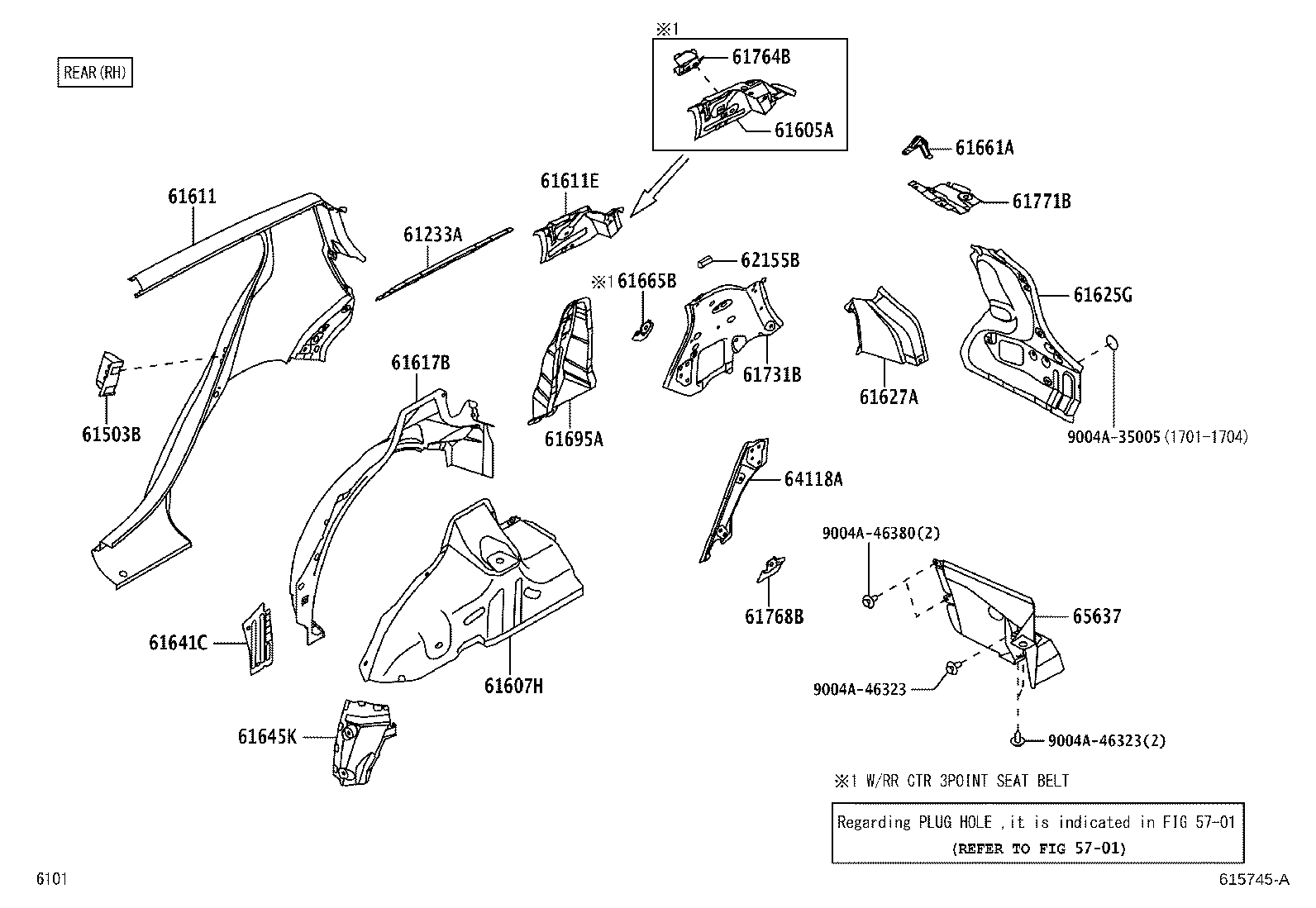

615745A 2012-12 → —

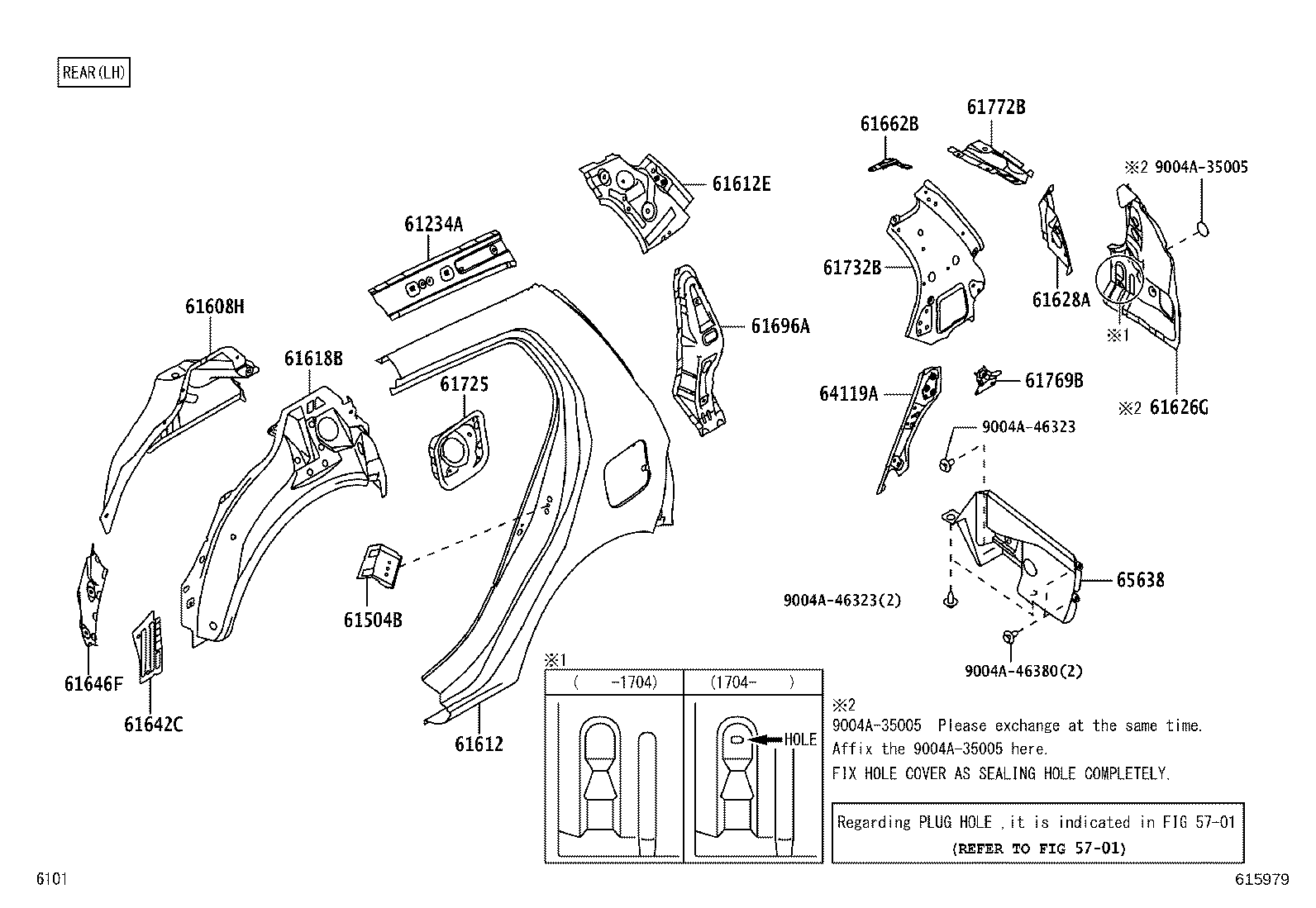

615979 2012-12 → 2017-04

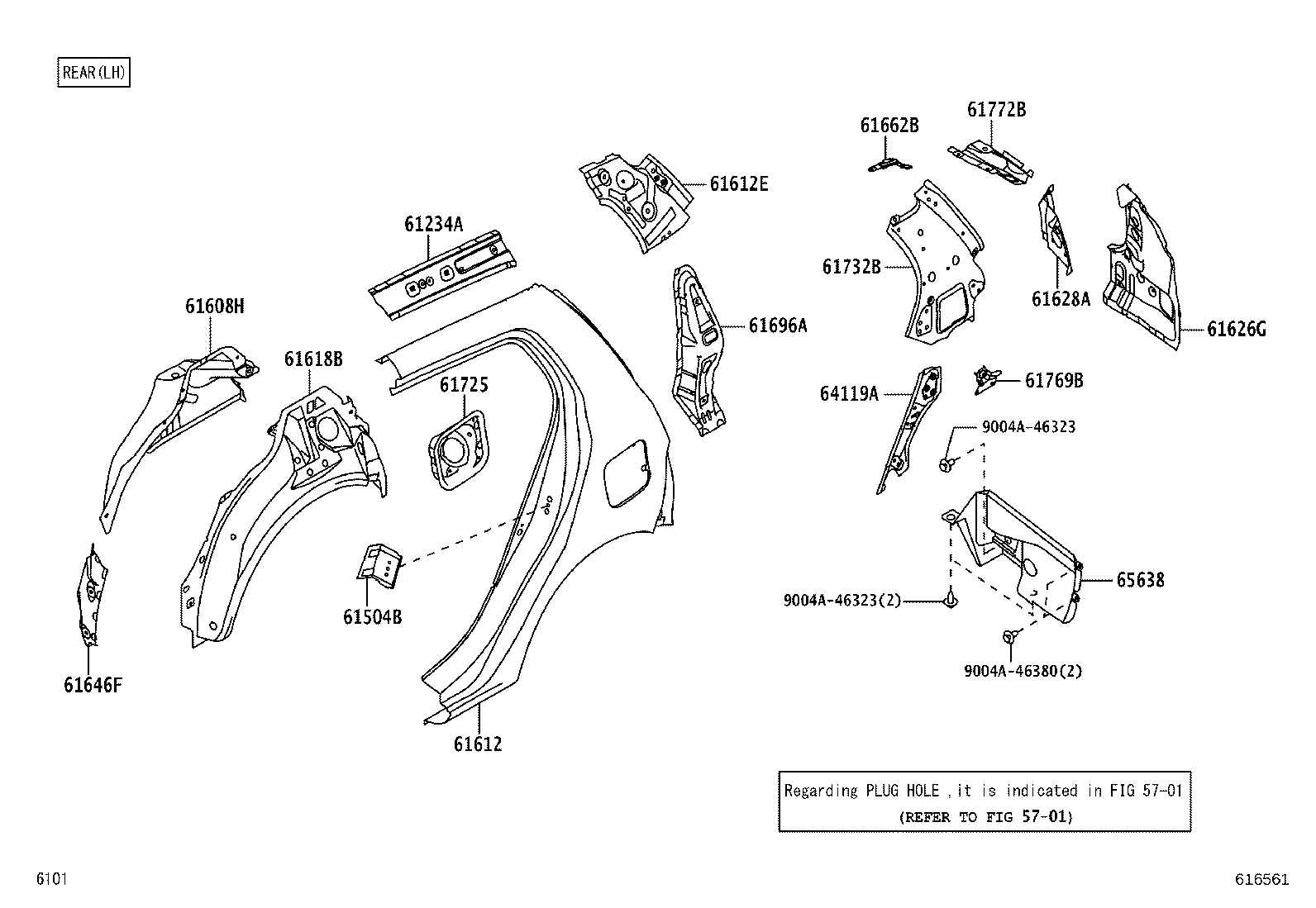

616561 2017-04 → 2020-03

616561 2020-03 → —

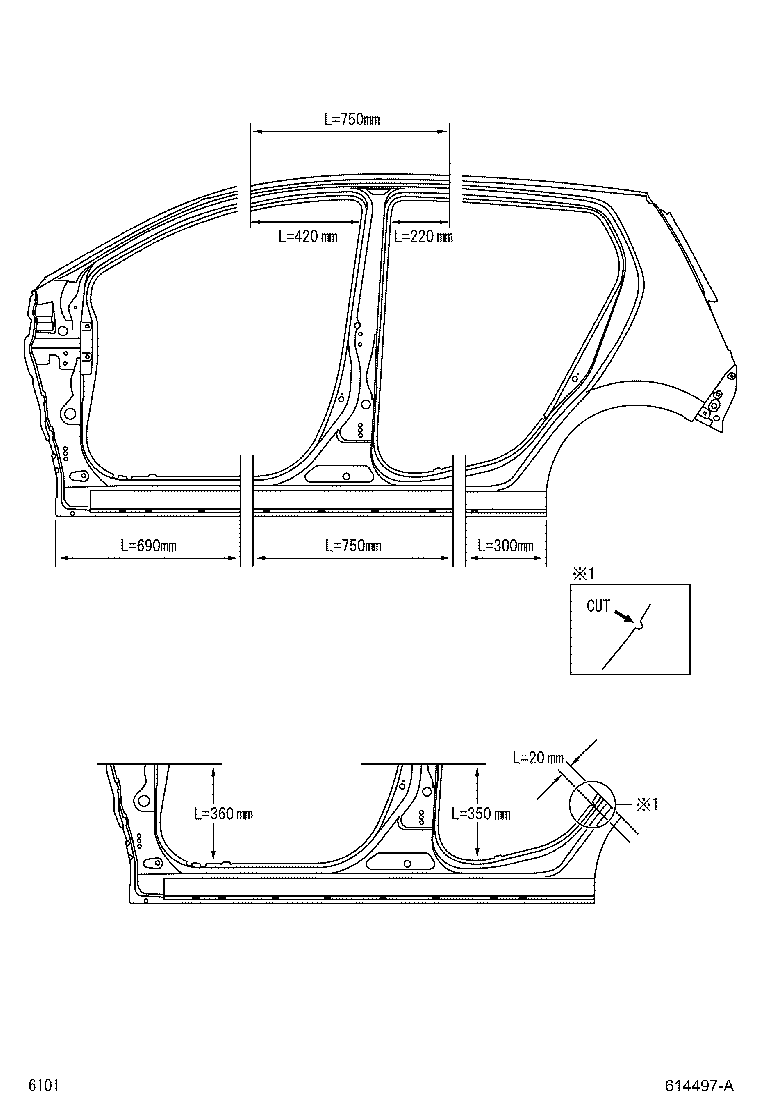

614497A 2012-12 → —

Part groups

PNC	Description
59199A	Seal, Noise Shutter, NO.2
60131	Pillar Sub-assy, Center Body, NO.2 RH
60132	Pillar Sub-assy, Center Body, NO.2 LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131C	Pillar, Front Body, Outer RH
61132B	Pillar, Front Body, Outer LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61247B	Reinforcement, Roof Side Rail, Inner RH
61248B	Reinforcement, Roof Side Rail, Inner LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61605A	Reinforcement Sub-assy, Quarter Panel, RH
61607H	Panel Sub-assy, Quarter Wheel House, Inner RH
61608H	Panel Sub-assy, Quarter Wheel House, Inner LH
61611	Panel, Quarter, RH
61611E	Reinforcement, Quarter Panel, RH
61612	Panel, Quarter, LH
61612E	Reinforcement, Quarter Panel, LH
61617B	Panel, Quarter Inner, Lower RH
61618B	Panel, Quarter, Inner Lower LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61627A	Extension, Quarter Panel, Lower RH
61628A	Extension, Quarter Panel, Lower LH
61641C	Gusset, Quarter Wheel House, Front RH
61642C	Gusset, Quarter Wheel House, Front LH
61645K	Gusset, Quarter Wheel House Inner, RH
61646F	Gusset, Quarter Wheel House Inner, LH
61661A	Extension, Quarter Panel TO Upper Back, RH
61662B	Extension, Quarter Panel TO Upper Back, LH
61665B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61695A	Brace, Quarter Panel, RH
61696A	Brace, Quarter Panel, LH
61725	Box, Fuel Inlet
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61768B	Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61769B	Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
61771B	Frame, Back Door Opening Upper Corner, RH
61772B	Frame, Back Door Opening Upper Corner, LH
62155B	Pad, Quarter Panel
64118A	Reinforcement, Upper Back, NO.4 RH
64119A	Reinforcement, Upper Back, NO.4 LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
