Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

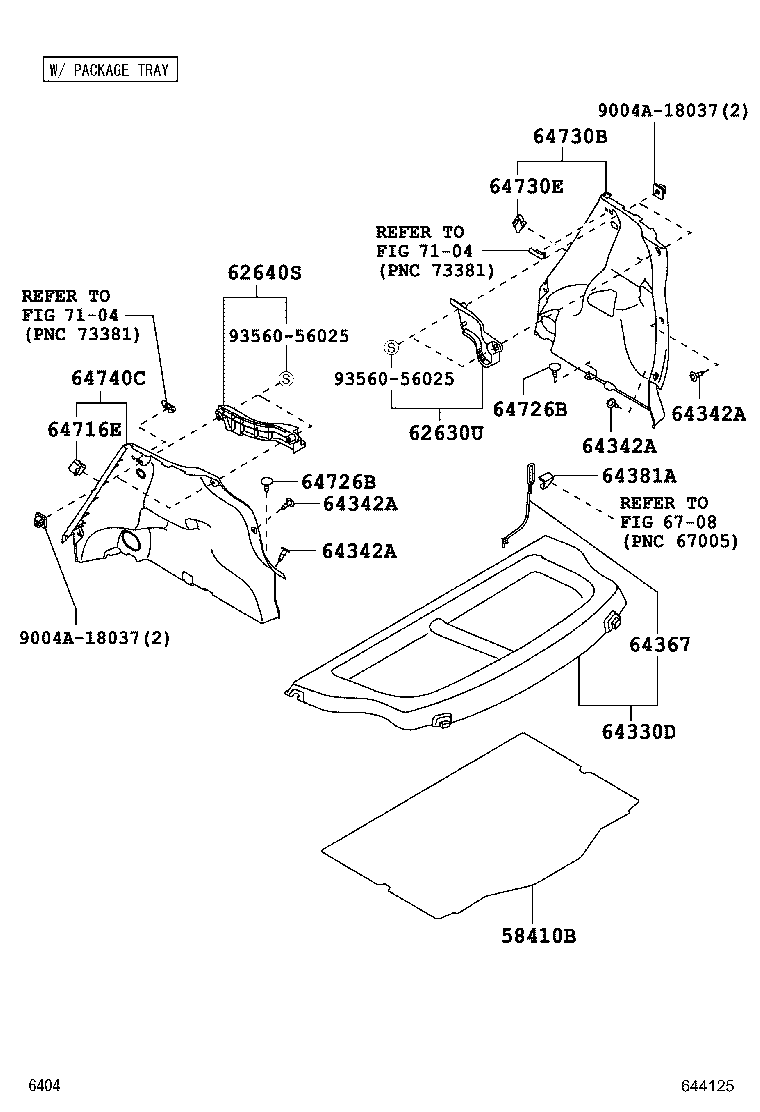

Deck Board & Deck Trim Cover
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 62630U | Panel Assy, Quarter Trim, Rear RH |
| 62640S | Panel Assy, Quarter Trim, Rear LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64342A | Clip |
| 64367 | Suspender, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64726B | Clip, Deck Rear Trim |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
