Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

26 part groups · 3 illustrations

Illustrations

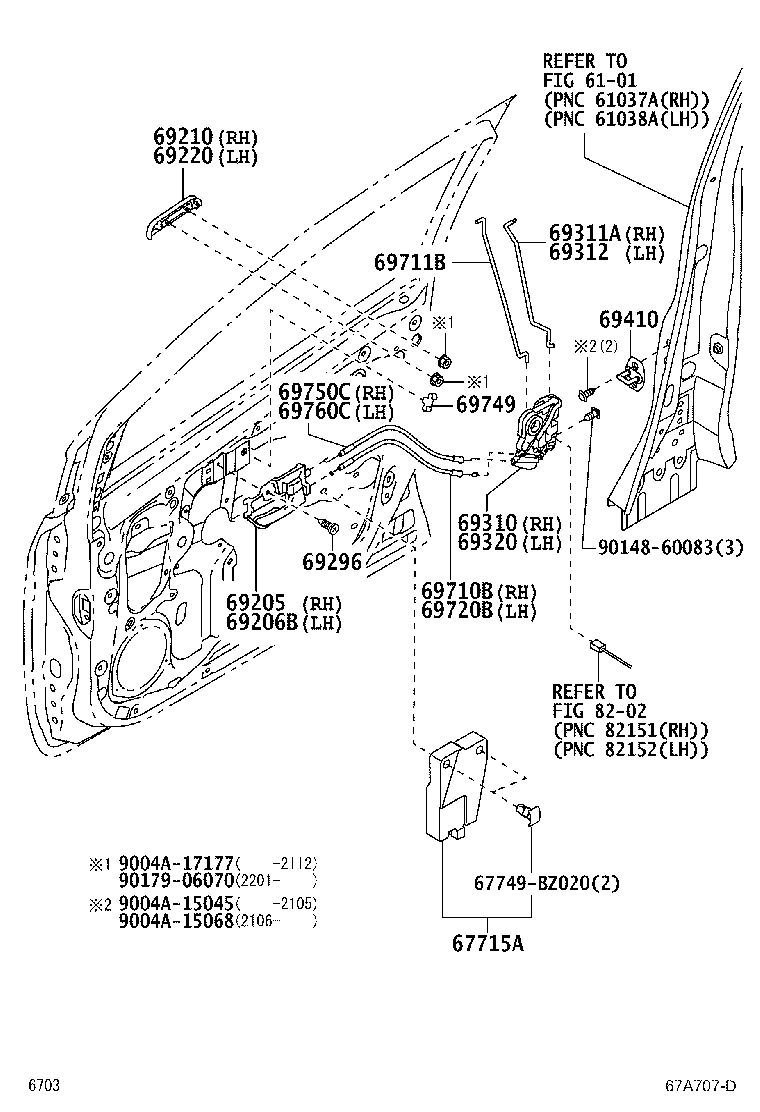

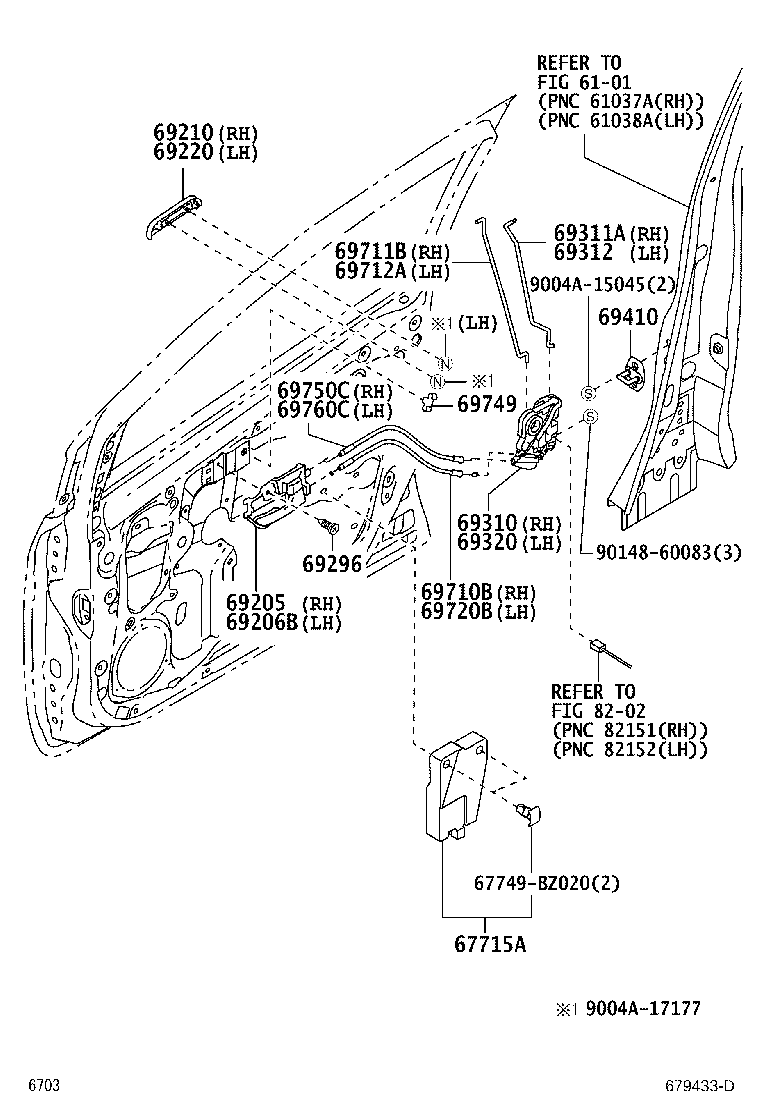

Figure 677686K 677686K 2012-12 → 2017-04 Figure 679433D 679433D 2017-04 → 2020-03 Figure 67A707D 67A707D 2020-03 → —

Part groups

PNCDescription
67715A Pad, Front Door Trim
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69296 Screw, Door Inside Handle
69303C Lock Sub-assy, Front Door, RH
69304C Lock Sub-assy, Front Door, LH
69310 Lock Assy, Front Door, RH
69311A Rod, Front Door Lock Open, RH
69312 Rod, Front Door Lock Open, LH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69710B Cable Assy, Front Door Lock Remote Control, RH
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69720B Cable Assy, Front Door Lock Remote Control, LH
69747A Button, Door Locking(FOR FRONT DOOR)
69749 Clamp, Front Door Lock Link
69750C Cable Assy, Front Door Inside Locking, RH
69751A Holder, Door Locking(FOR FRONT DOOR)
69759K Snap, Door Lock Control Link
69759V Silencer, Front Door Lock Link
69760C Cable Assy, Front Door Inside Locking LH
85450H Motor Assy, Door Control, Front RH
85460D Motor Assy, Door Control, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
