Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

13 part groups · 2 illustrations

Illustrations

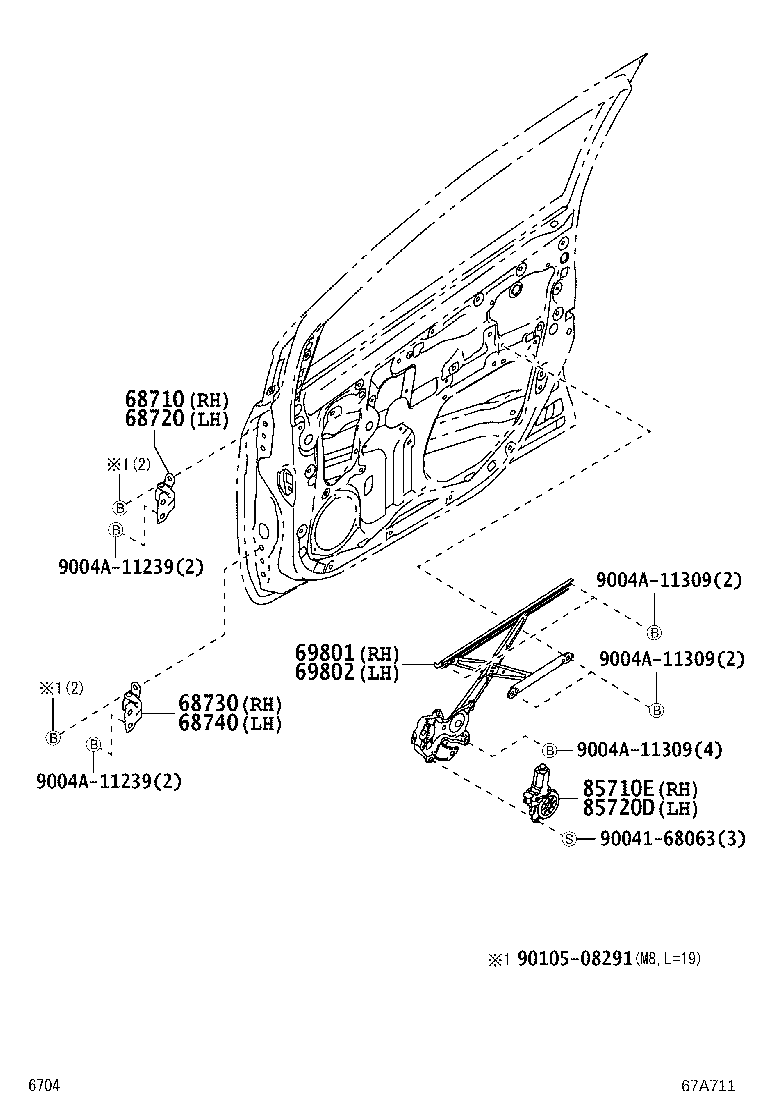

Figure 677687F 677687F 2012-12 → 2020-03 Figure 67A711 67A711 2020-03 → —

Part groups

PNCDescription
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69268 Plate, Window Regulator Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69810A Regulator Assy, Front Door Window, RH
69820 Regulator Assy, Front Door Window, LH
85710E Motor Assy, Power Window Regulator, RH
85720D Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
