Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

20 part groups · 11 illustrations

Illustrations

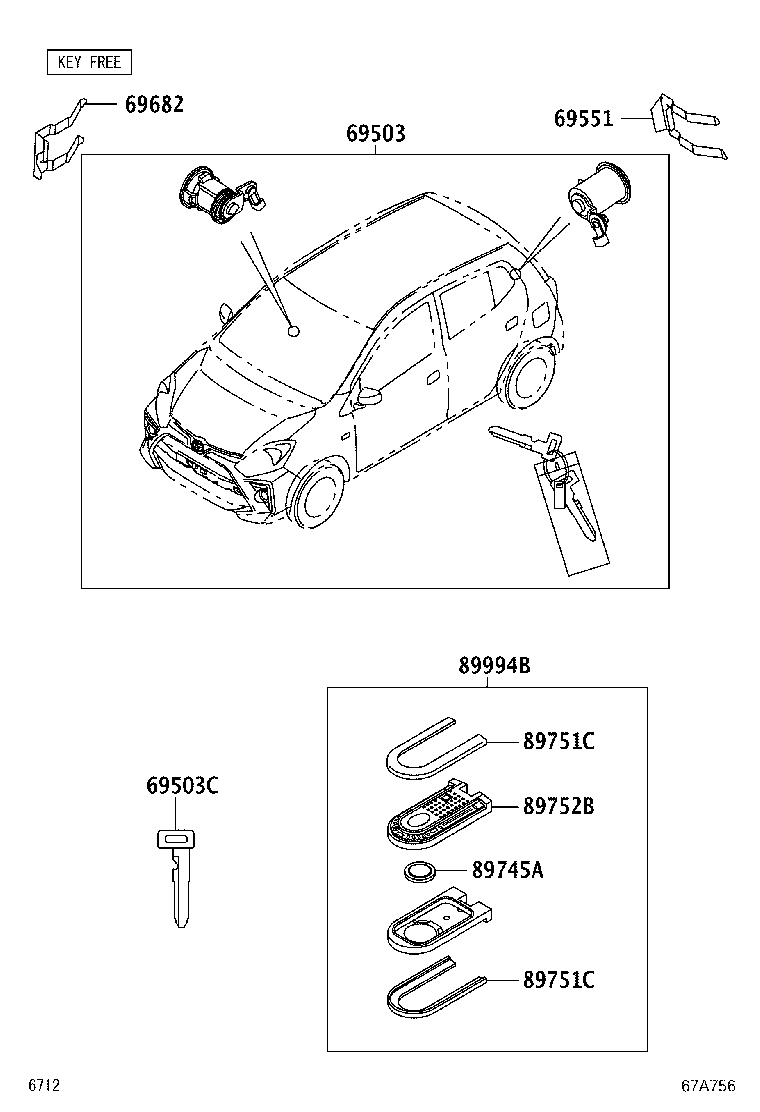

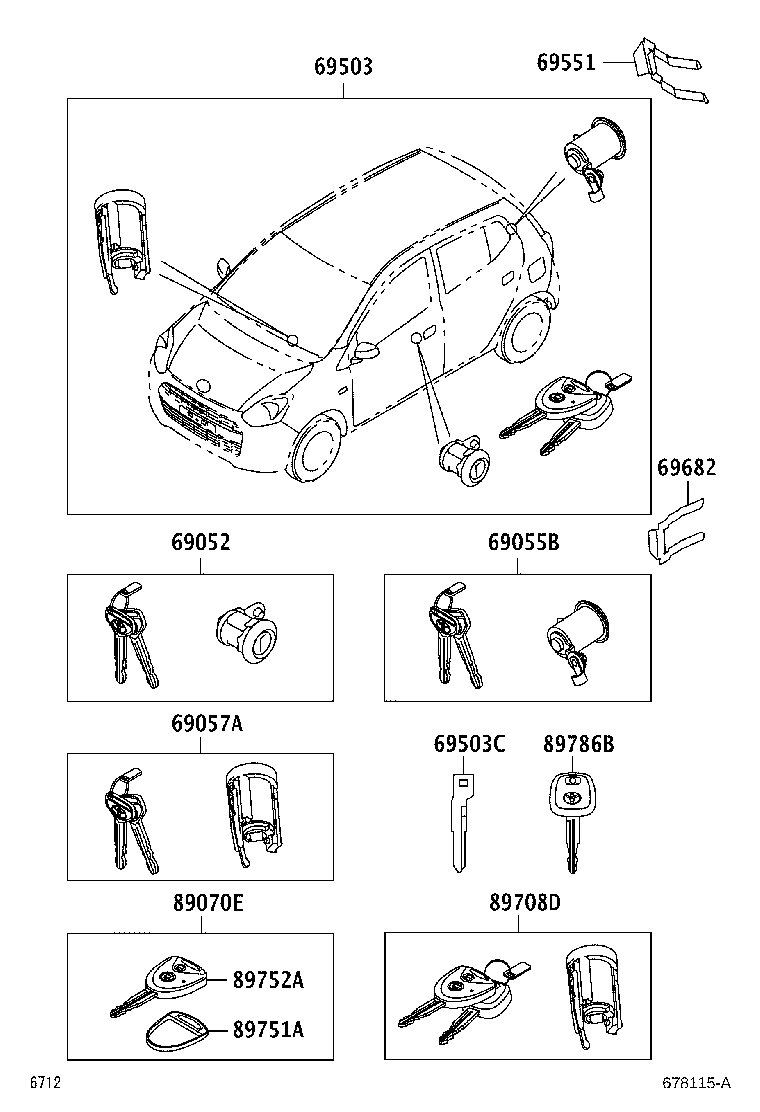

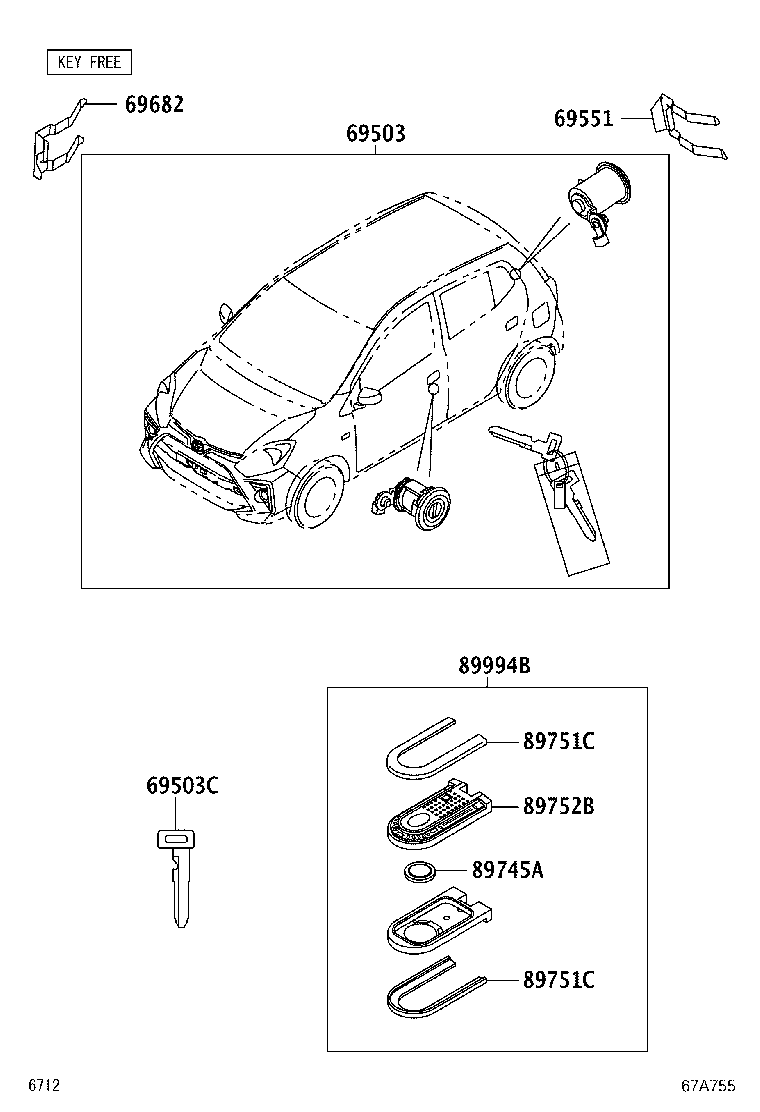

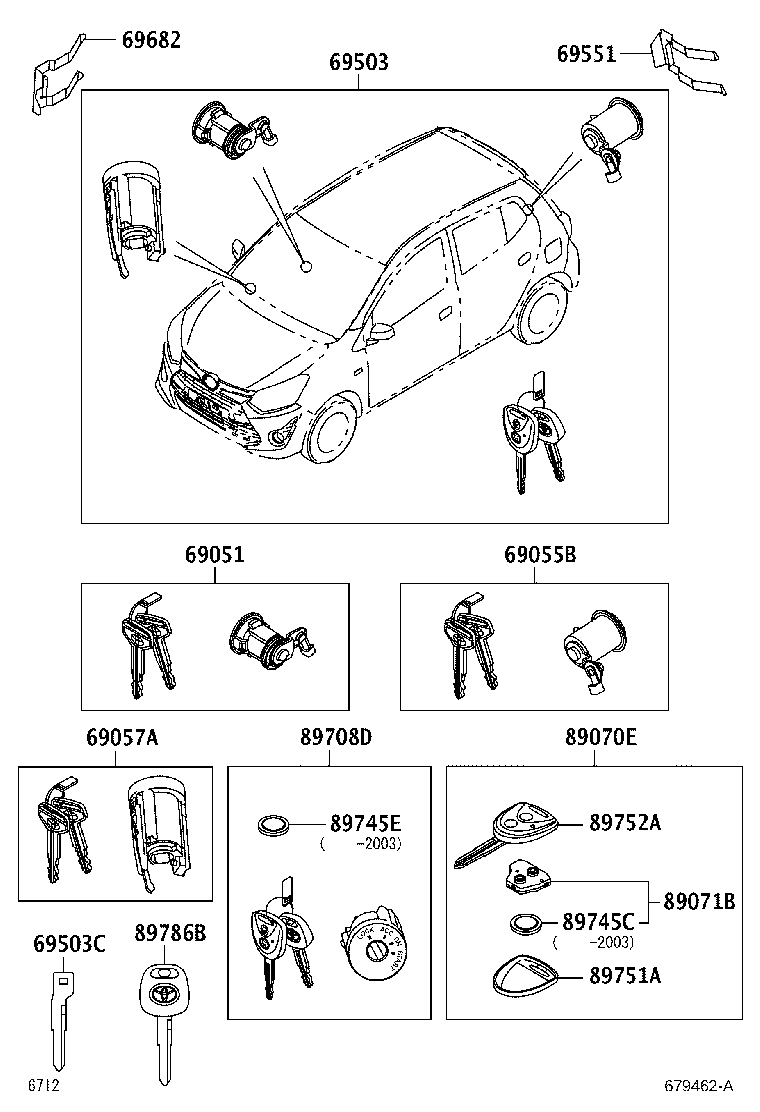

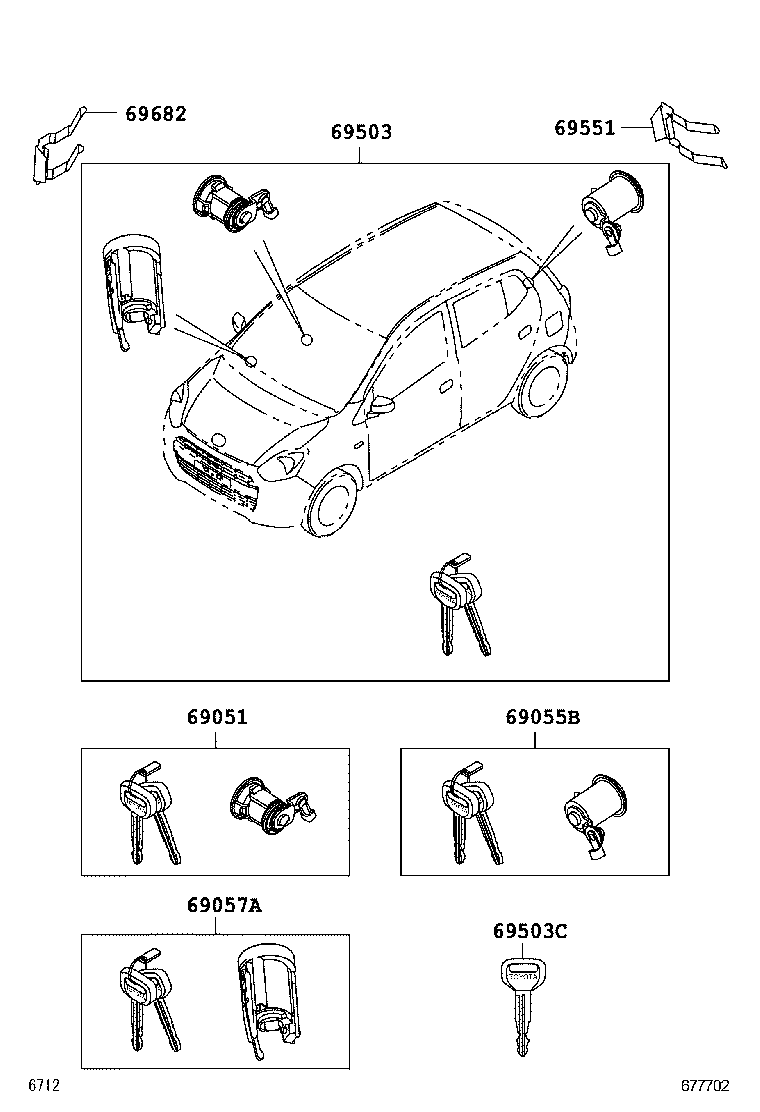

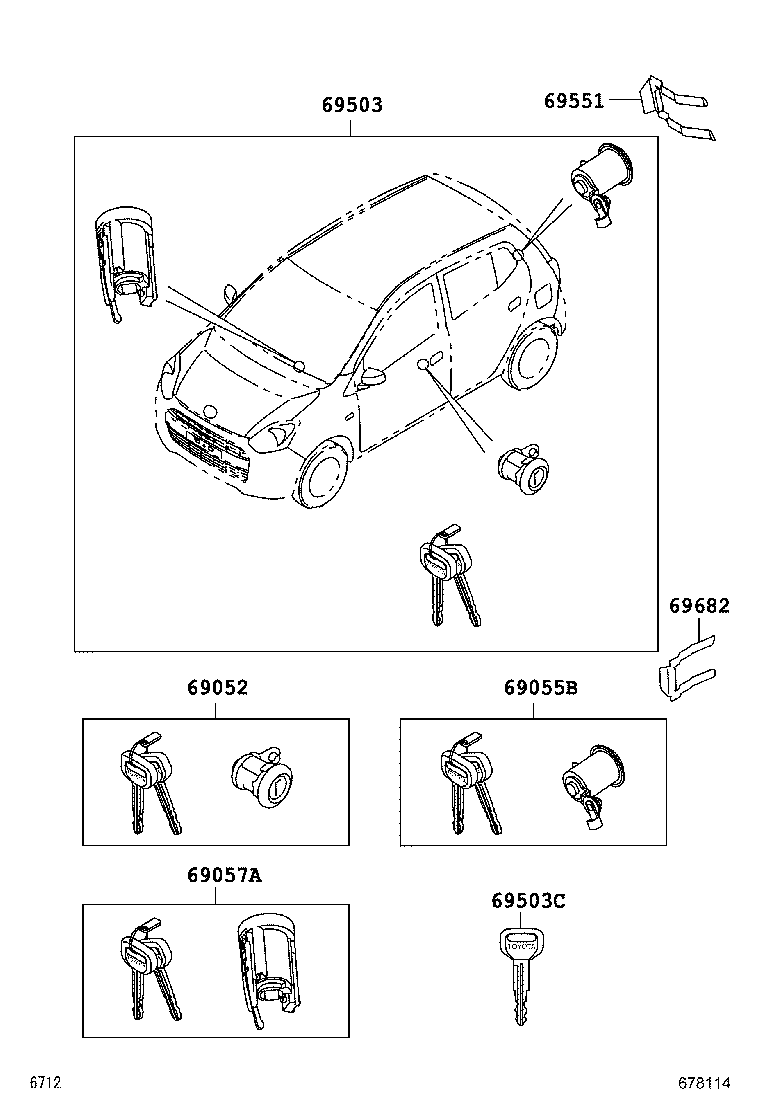

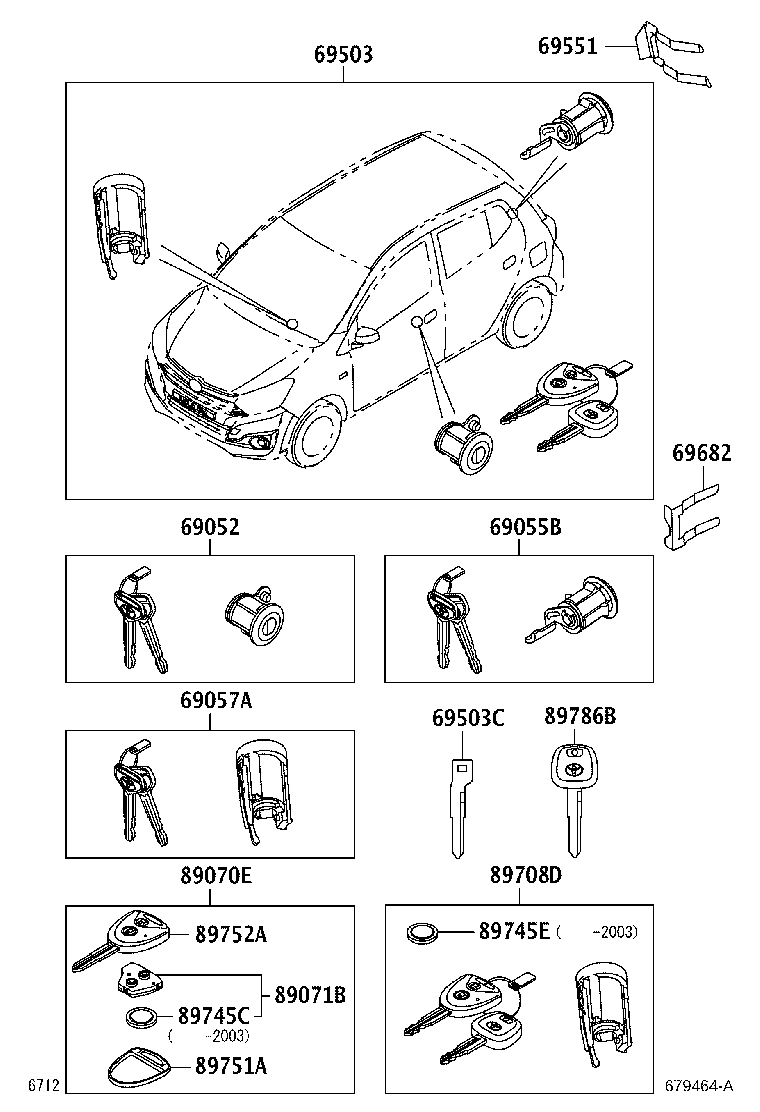

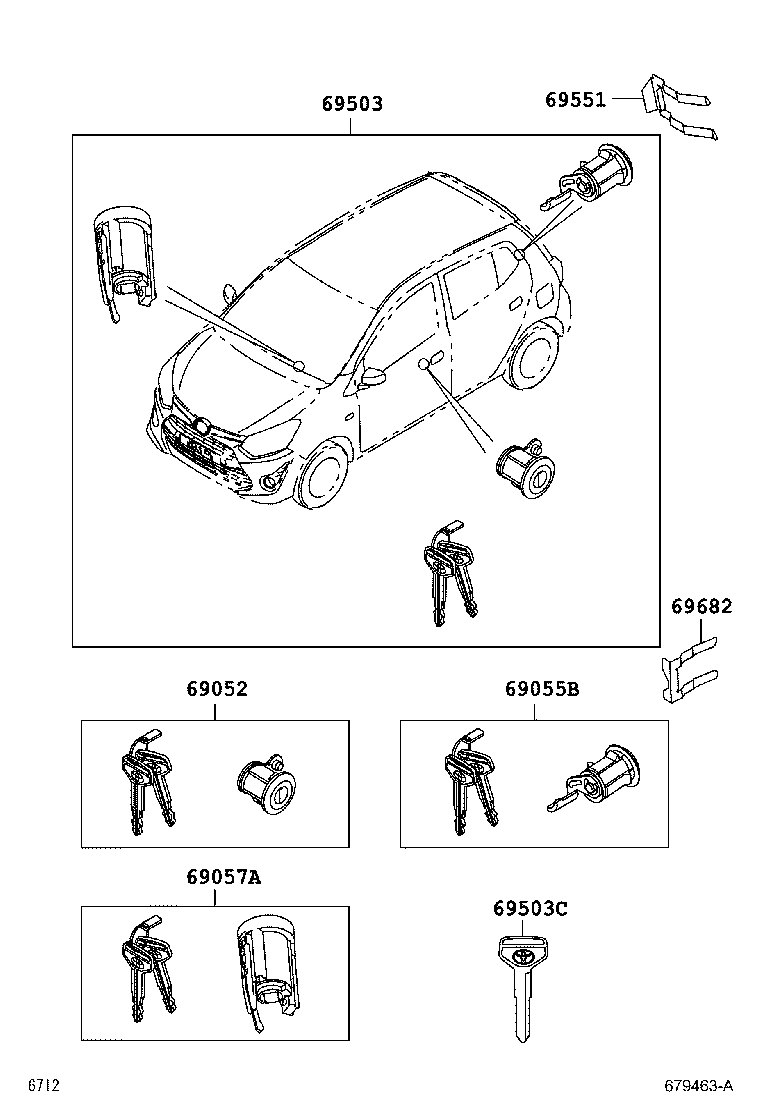

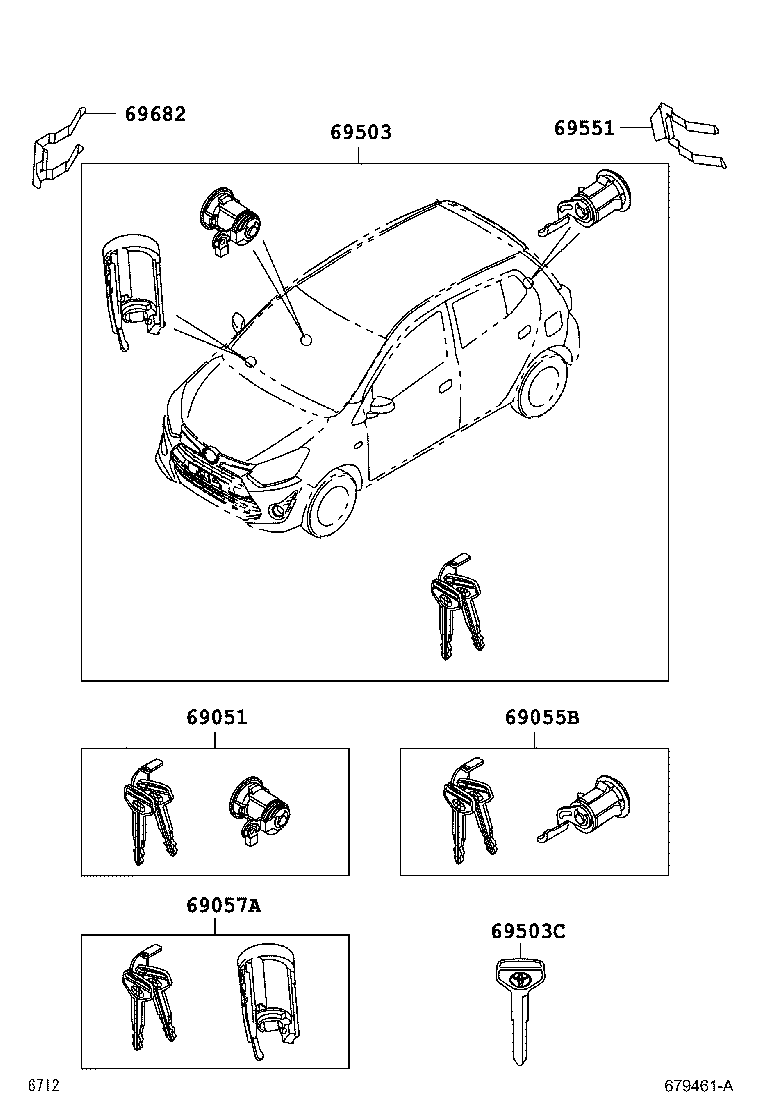

Figure 677695A 677695A 2012-12 → 2017-04 Figure 677702 677702 2012-12 → 2017-04 Figure 678114 678114 2014-01 → 2017-04 Figure 678115A 678115A 2014-01 → 2017-04 Figure 679461A 679461A 2017-04 → — Figure 679462A 679462A 2017-04 → — Figure 679463A 679463A 2017-04 → 2020-03 Figure 679463A 679463A 2020-03 → — Figure 679464A 679464A 2017-04 → — Figure 67A755 67A755 2020-03 → — Figure 67A756 67A756 2020-03 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503C Key, Sub
69551 Retainer, Back Door Lock Cylinder
69682 Retainer, Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708D Cylinder Set, Lock W/Transponder Key Transmitter
89745A Battery, Transmitter
89745C Battery, Transmitter
89745E Battery, Transmitter
89751A Cover, Transmitter Housing
89751C Cover, Transmitter Housing
89752A Case, Transmitter Housing
89752B Case, Transmitter Housing
89786B Transmitter, Transponder Key Sub
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
