Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

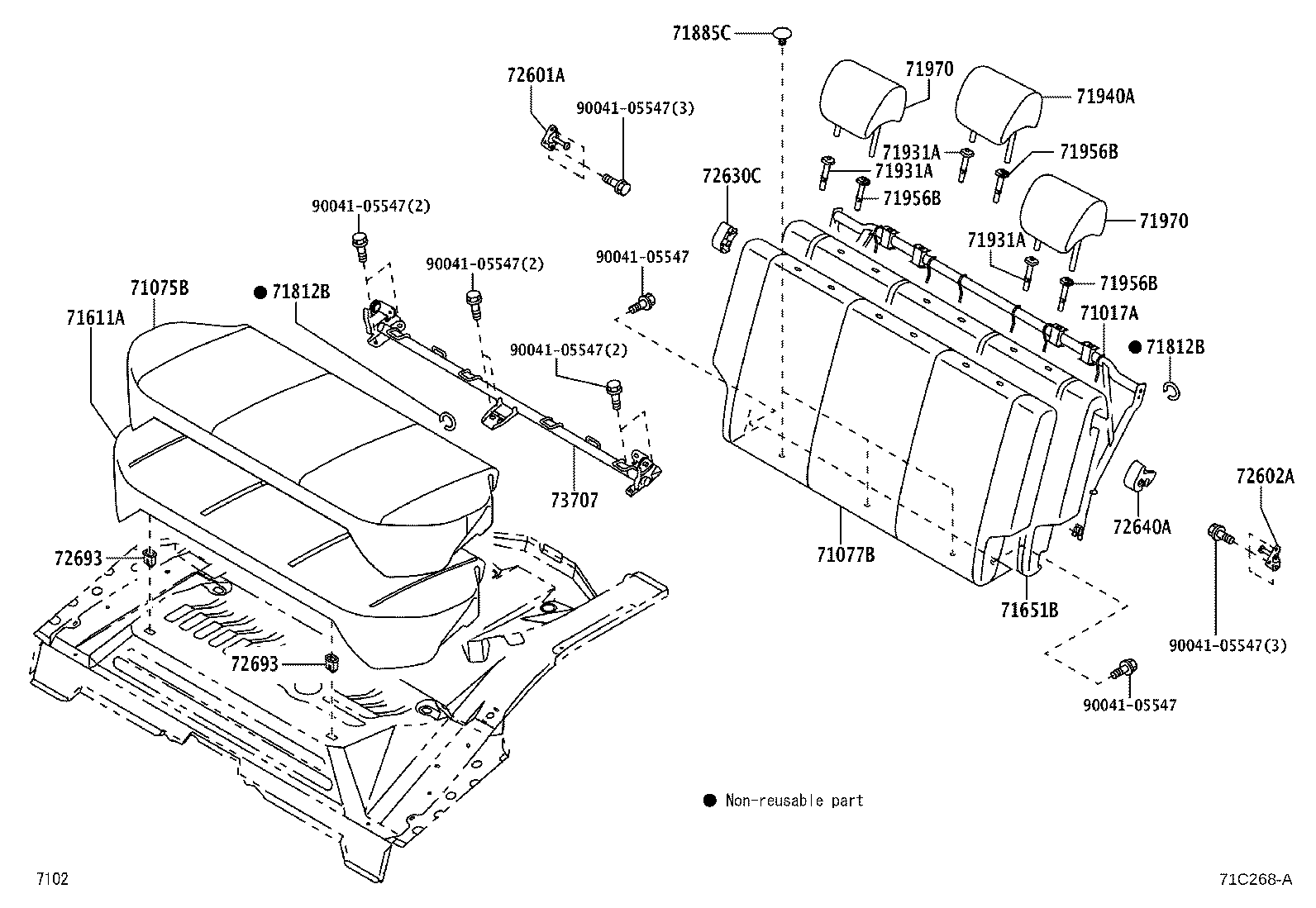

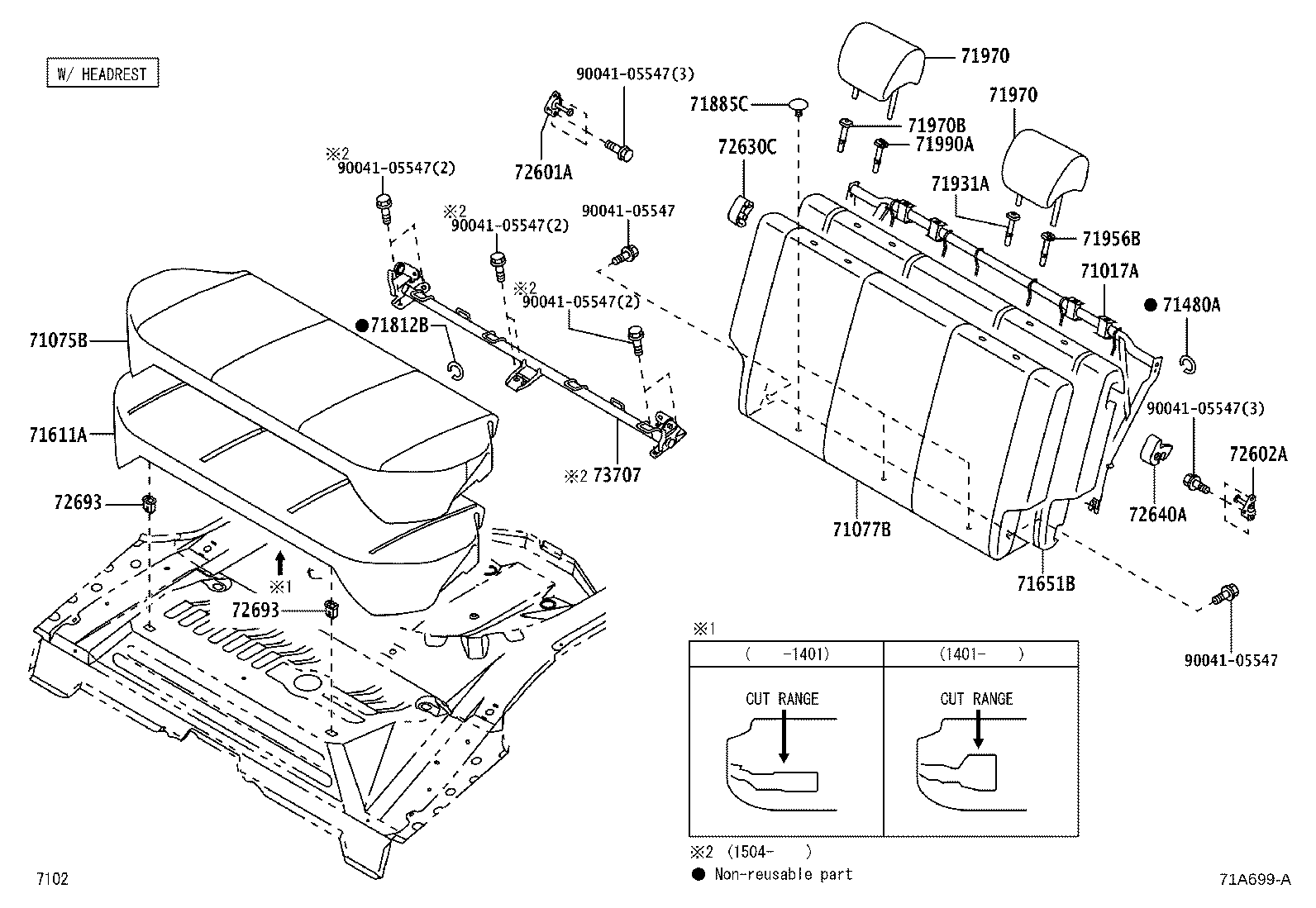

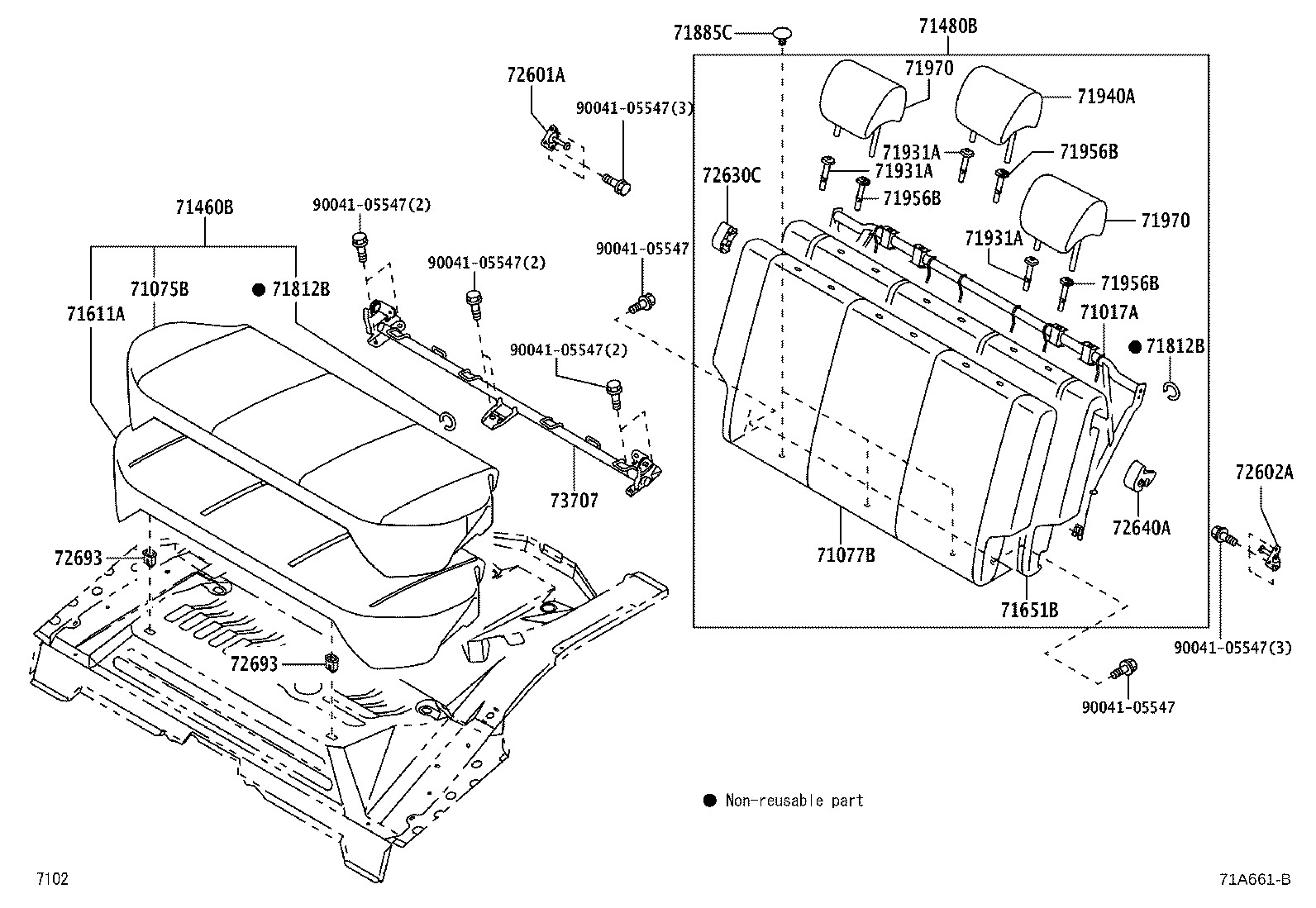

Rear Seat & Seat Track
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017A | Frame Sub-assy, Rear Seatback |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71885C | Clip(FOR REAR SEATBACK CARPET) |
| 71922B | Cover, Rear Seat Headrest Under |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71970 | Headrest Assy, Rear Seat |
| 71970B | Support Assy, Rear Seat Headrest, RH |
| 71990A | Support Assy, Rear Seat Headrest, LH |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72693 | Hook, Rear Seat Cushion Lock |
| 73707 | Bracket Sub-assy, Child Restraint Seat Anchor, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
