Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

9 part groups · 5 illustrations

Illustrations

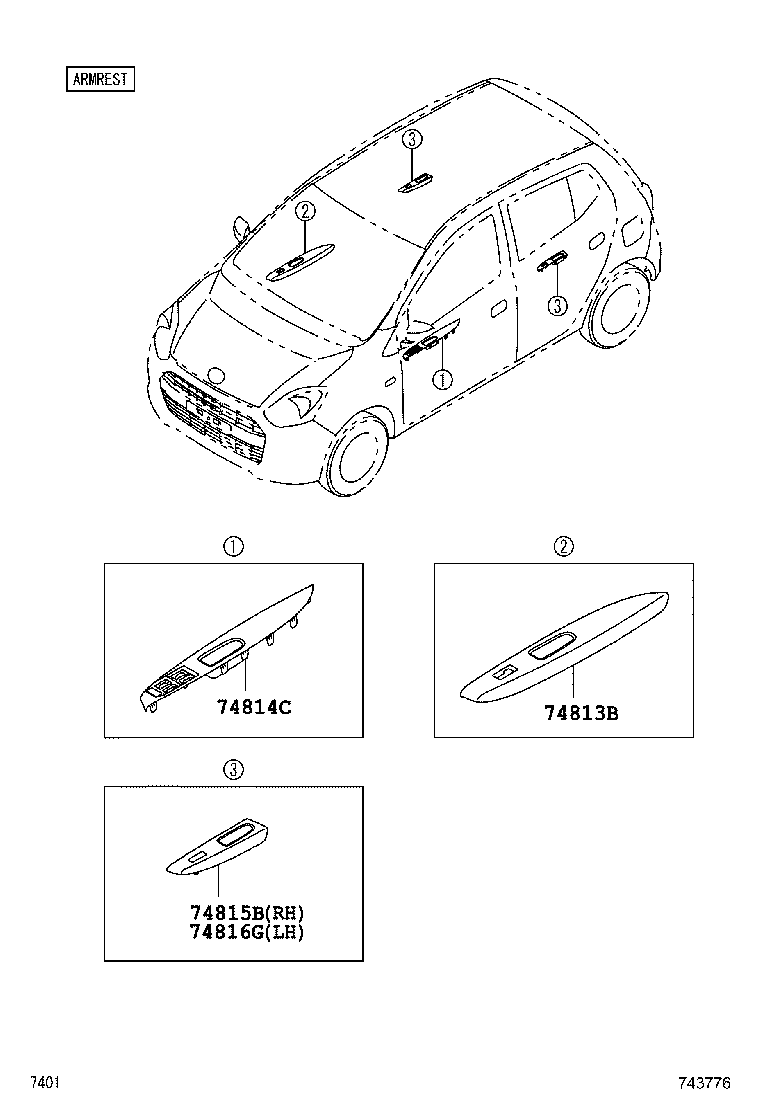

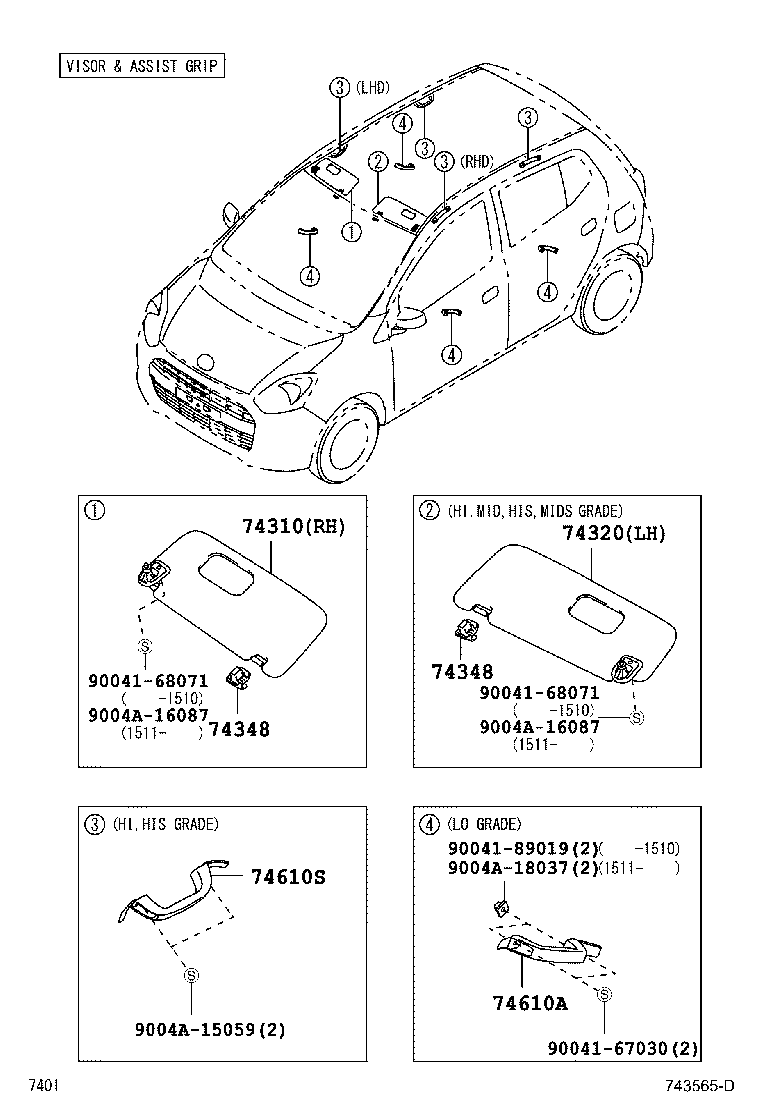

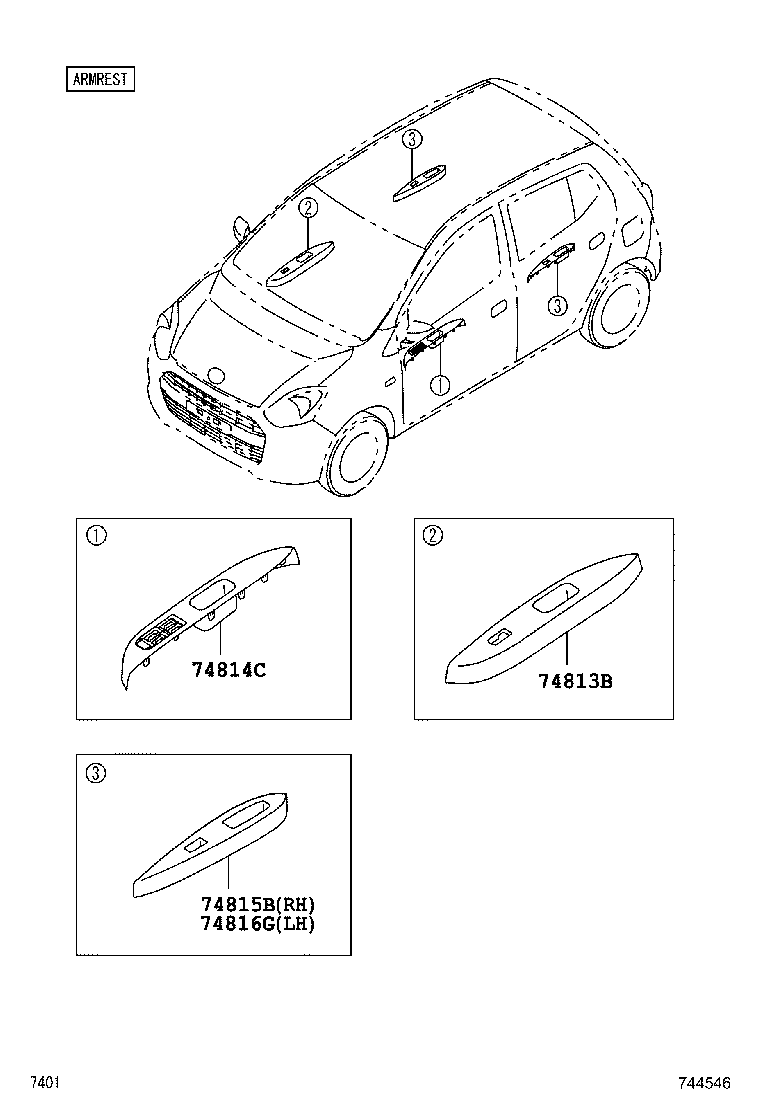

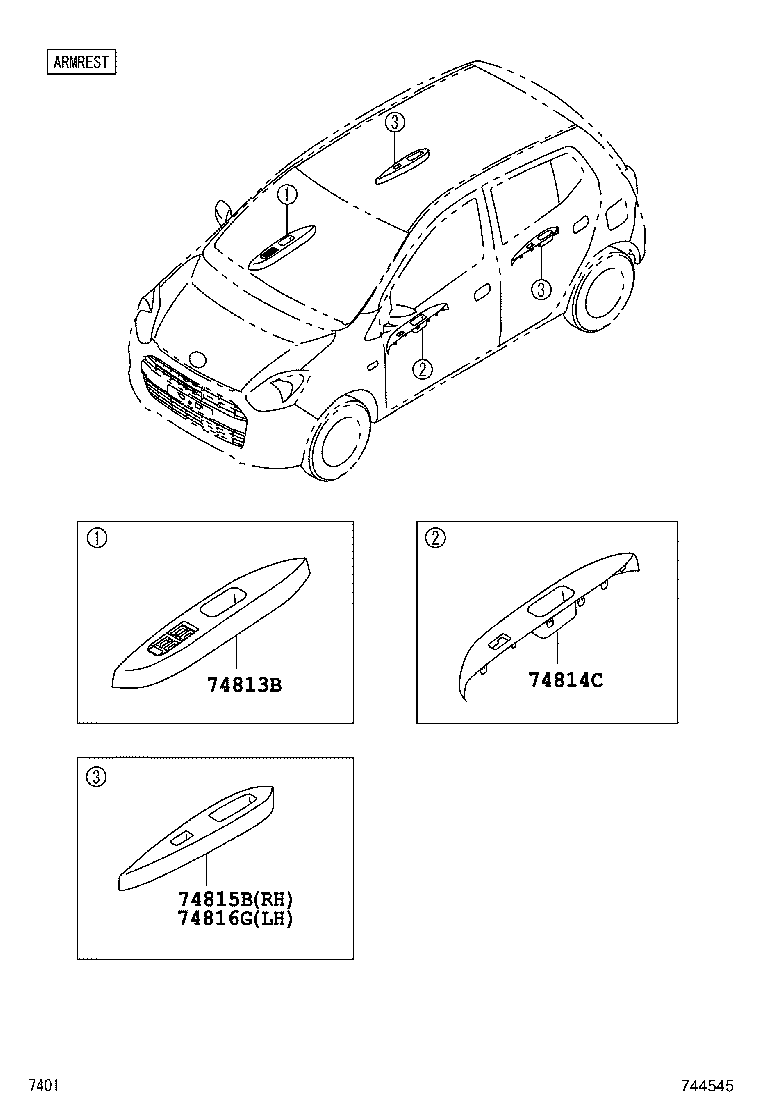

Figure 743564 743564 2012-12 → 2017-04 Figure 743776 743776 2014-01 → 2017-04 Figure 744545 744545 2017-04 → — Figure 744546 744546 2017-04 → — Figure 743565D 743565D 2012-12 → —

Part groups

PNCDescription
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74610S Grip Assy, Assist
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
74815B Handle, Rear Door Pull
74816G Handle, Rear Door Pull, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
