Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

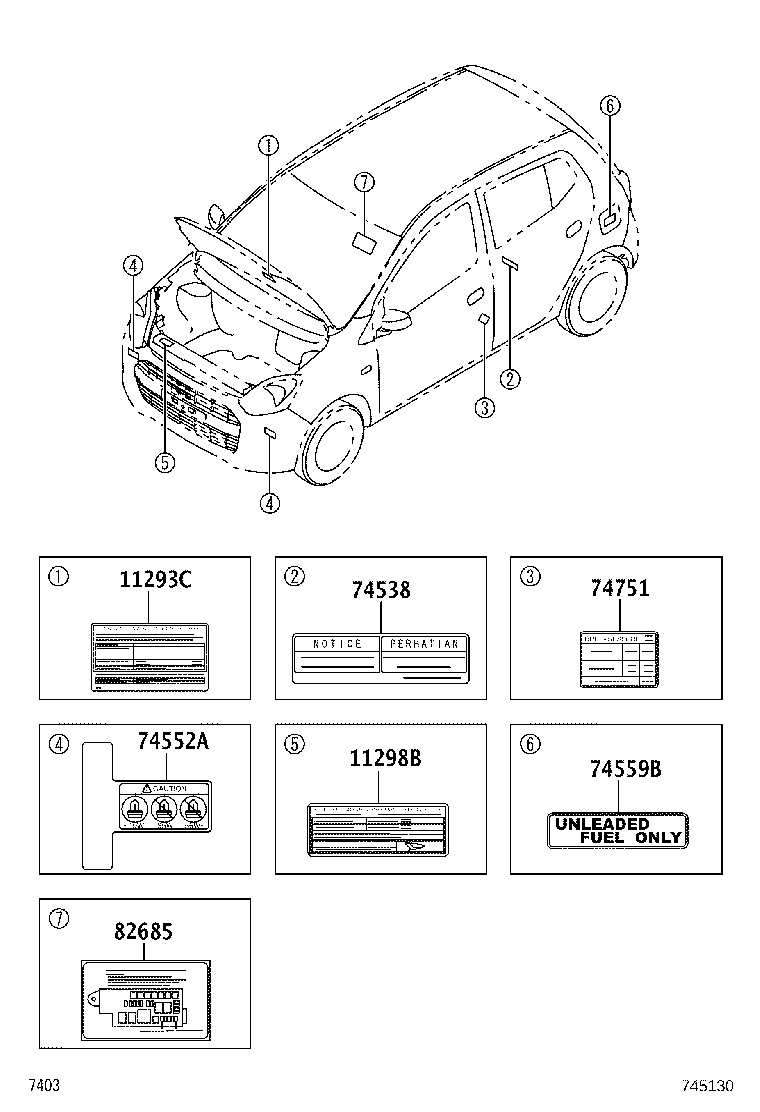

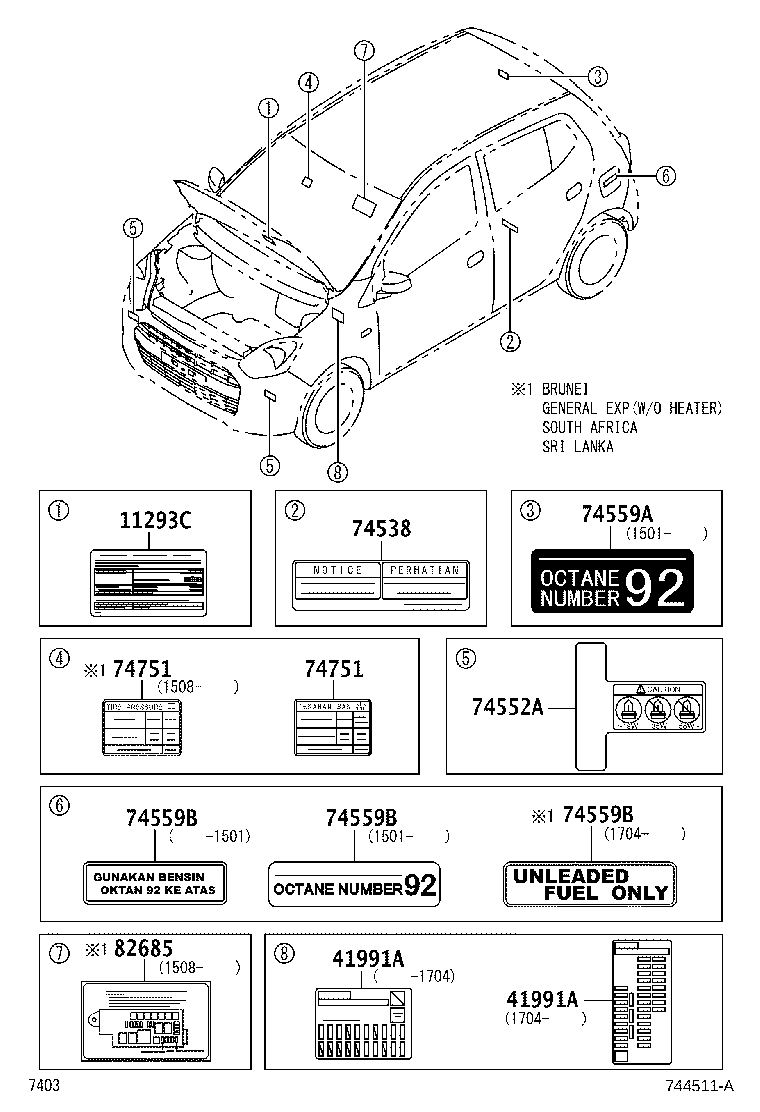

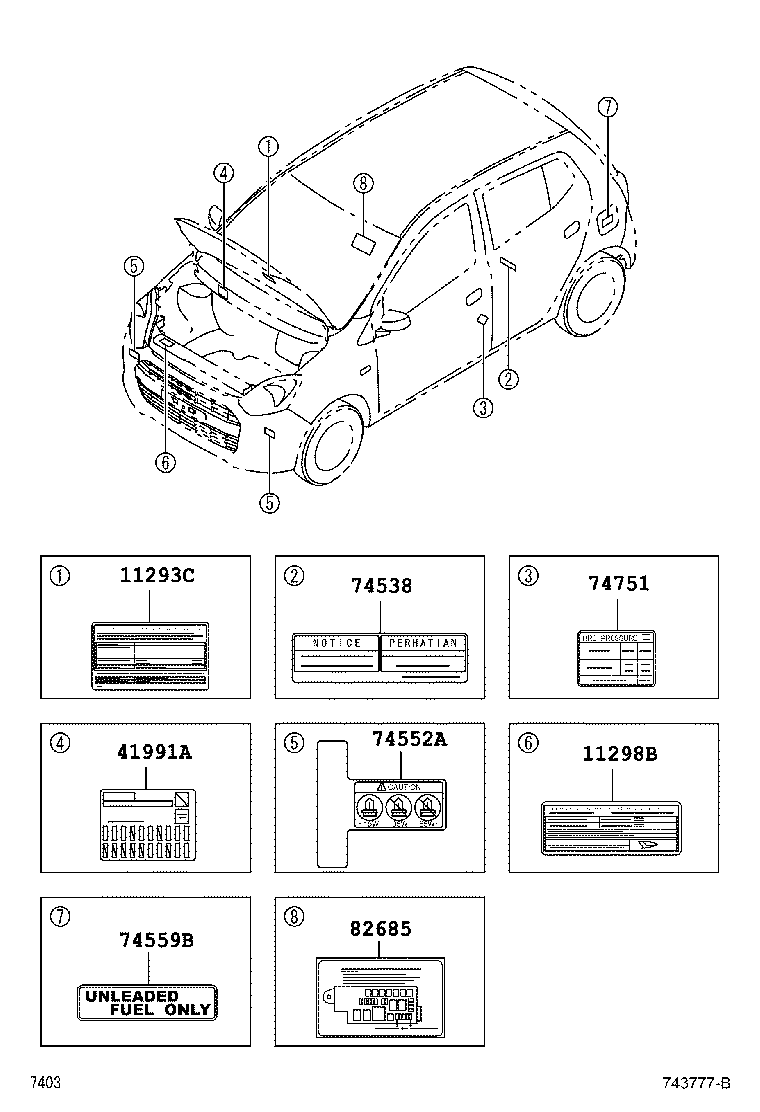

Caution Plate (EXTERIOR & INTERIOR)
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293C | Label, Tune-up Specification Information |
| 11296D | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 41991A | Plate, Caution |
| 74538 | Plate, Jack Carrier Caution |
| 74552A | Label, Safety Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
