Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 8 illustrations

Illustrations

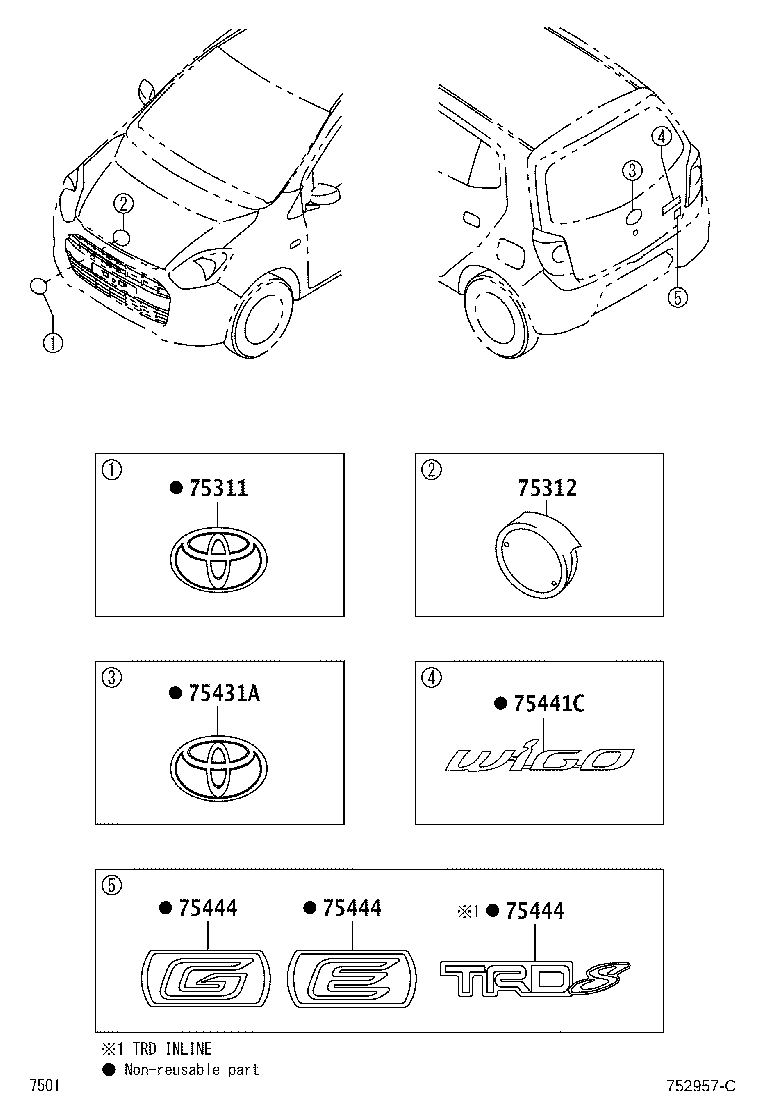

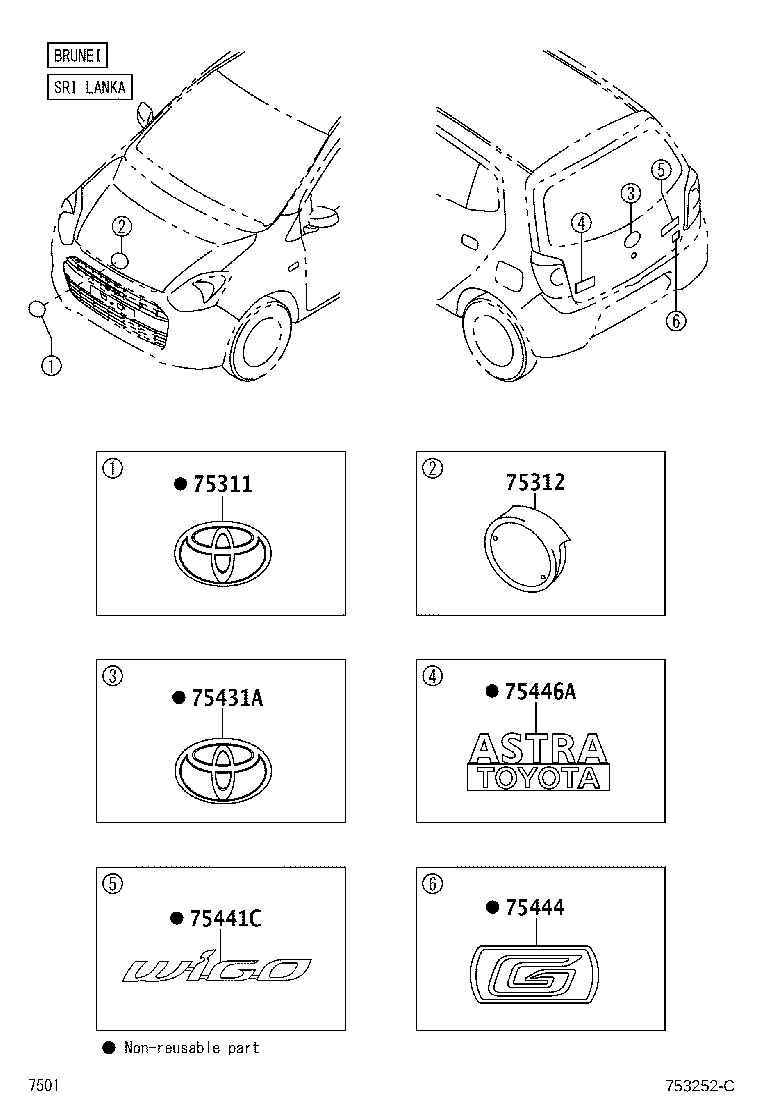

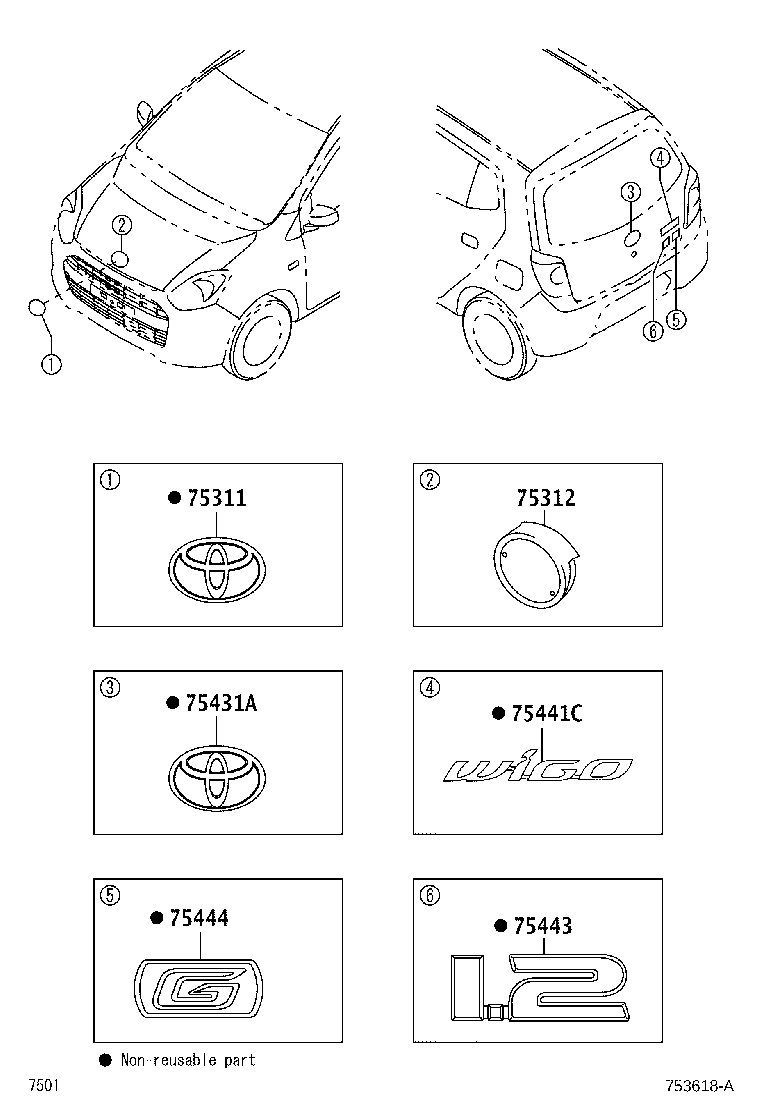

Figure 752805C 752805C 2012-12 → 2020-03 Figure 752805C 752805C 2017-11 → 2020-03 Figure 752805C 752805C 2020-03 → — Figure 752957C 752957C 2014-01 → 2020-03 Figure 752957C 752957C 2020-03 → — Figure 753252C 753252C 2015-08 → 2020-03 Figure 753252C 753252C 2020-03 → — Figure 753618A 753618A 2017-12 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312 Base, Radiator Grille Emblem
75431A Emblem, Back Door, NO.1
75441C Plate, Back Door Name
75443 Plate, Back Door Name, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75446A Plate, Back Door Name, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
